20B Conversion Pg #4 Modifications & Upgrades
 |
Now that our 20B conversion is complete, it is time to perform some upgrades and modifications to handle the additional power.
We upgraded to the Carbonetics Carbon LSD. The Tanabe Medalion exhaust was replaced with the less restrictive APEXi PS REVO system. We also installed Hawk HPS Brake Pads and the Tweakit Idler Pulley Kit.
 |
 |
 |
 |
|
Carbonetics
Carbon LSD
|
APEXi
PS REVO Installed
|
Hawk Brake Pads
|
Tweakit Pulley Kit
|
Click to hear the sound of our 20B engine and APEXi exhaust
We opted to install KONI Sport Series shocks and replaced all the boots and sleeves at the same time.
 |
 |
 |
 |
|
KONI
Shocks
|

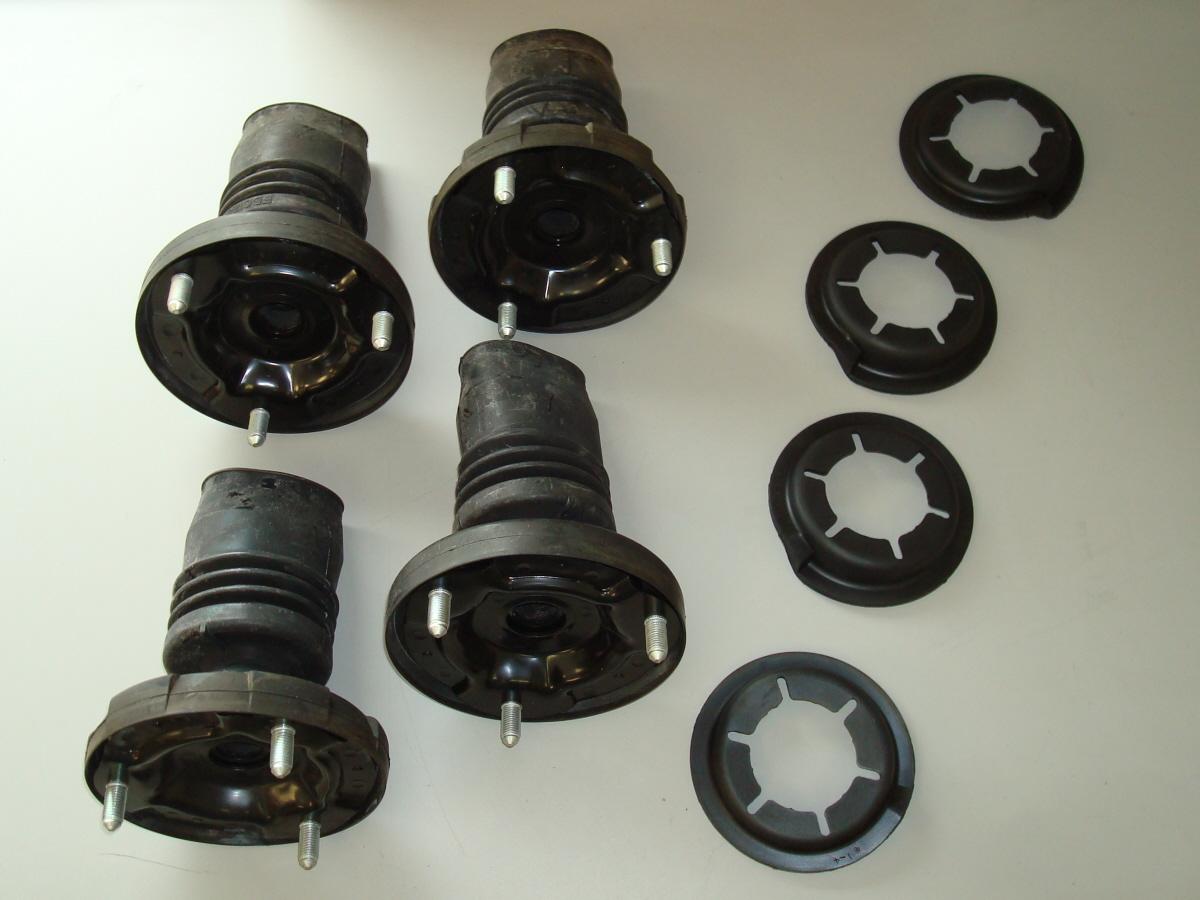

Shock Boots, etc.
|
Front
Shock Installed
|
Rear
Shock Installed
|
We upgraded to the Driveshaft Shop aluminum driveshaft and Chromoly axles.
 |
 |
 |
 |
|
Aluminum
Driveshaft
|
Driveshaft Installed
|

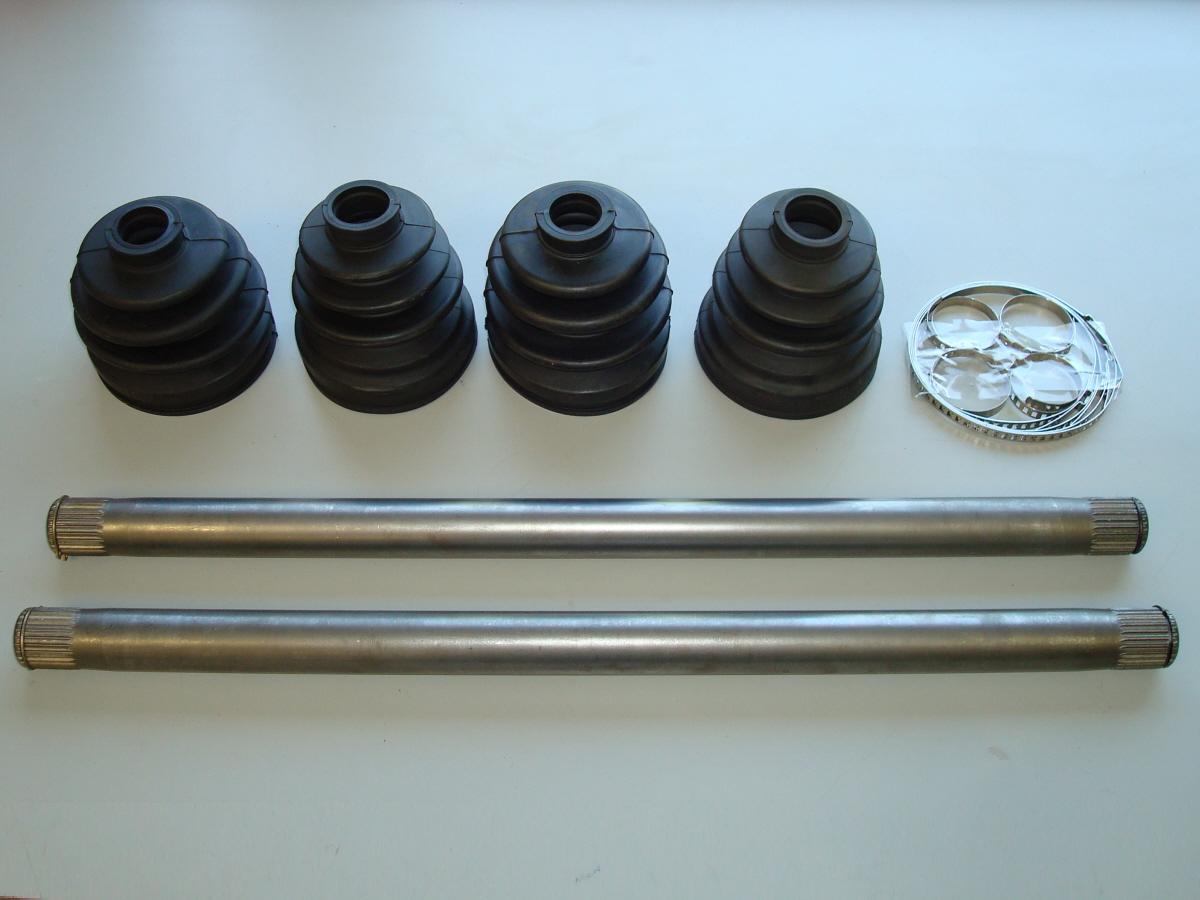

Chromoly Axles Kit
|
New Half-shafts After Rebuild
|
Engine Bay Photographs
 |
 |
 |
|
Passenger
Side View 05/26/10
|
Front
View 05/26/10
|

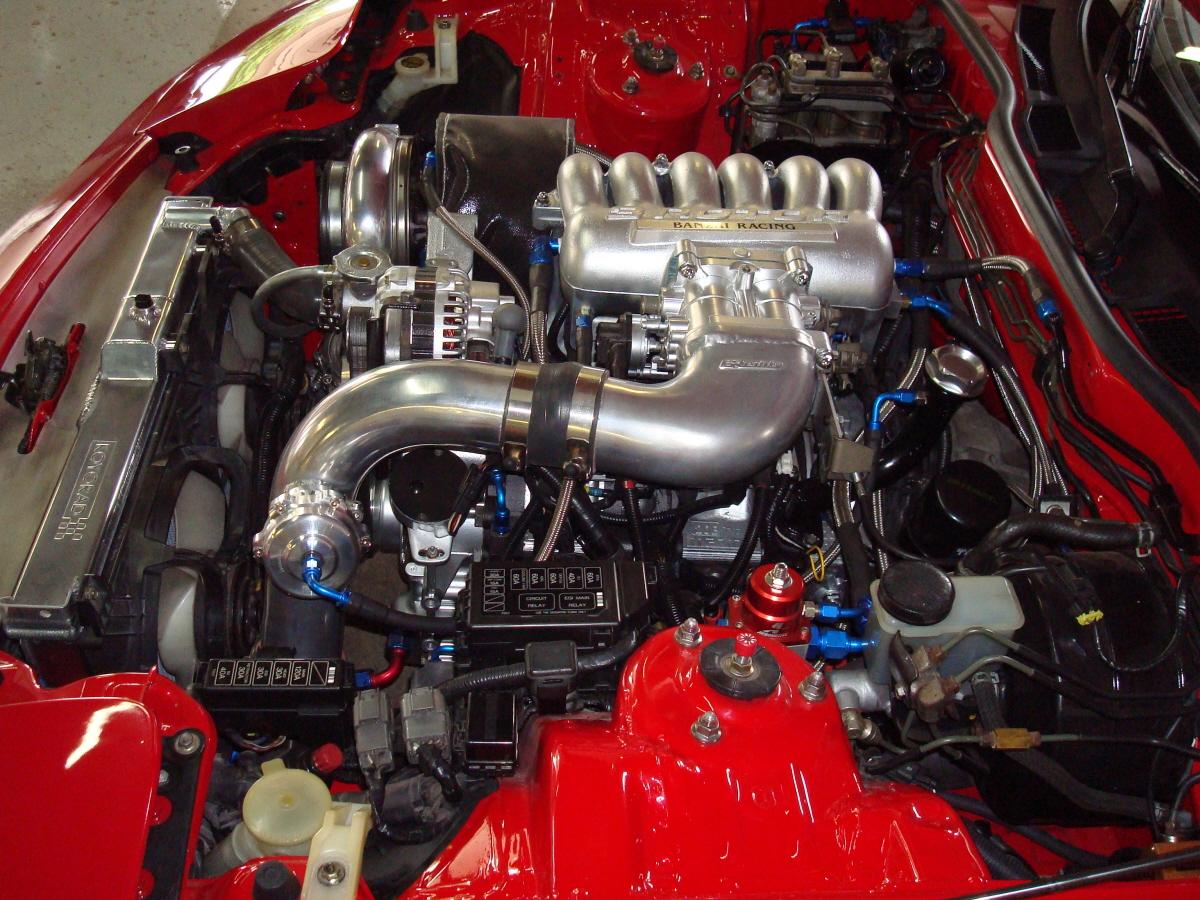

Driver Side View 05/26/10
|
Currently dyno tuned to 621 RWHP at 17 psi.
 |
 |
|
June 2010
|
September
2010
|
Latest photograph of our Efini October 2010.
 |
|
"POWER !!!"
|
February 2012 we installed our newly developed Transmission Crossmember Kit
 |
 |
|
Crossmember Kit
|
Crossmember
Installed
|
January 2014 we freshened up the engine and also installed the Xcessive LIM Kit and 6 x 1000cc ID Injectors
 |
 |
 |
 |
 |
|
LIM Kit
|
Manifold
Installed #1
|
Manifold
Installed #2
|
Injectors
|
Injectors
& Rail Installed
|
Fall 2014 we installed a 929 Brake Master Cylinder & 2 kw High Torque Starter
 |
 |
 |
 |
|
929 Brake MC
|
Master
Cylinder Installed
|
2kw
High Torque Starter
|
Starter Installed
|
Summer / Fall 2015 we performed some fuel upgrades including relocating the Fuel Pressure Regulator and installing 3 x 1000cc Primary Injectors. We then did some dyno tuning. Additionally, while on the dyno we discovered the limit of the EXEDY Twin Disc clutch kit and replaced it with the Triple Disc Clutch Kit and ACT Monoloc Wedge Collar. We also switched to a 1.16 AR Housing on the GT42 RS Turbo
 |
 |
 |
 |
 |
|
1000cc
Injectors
|
7/03/15
Dyno Video
|

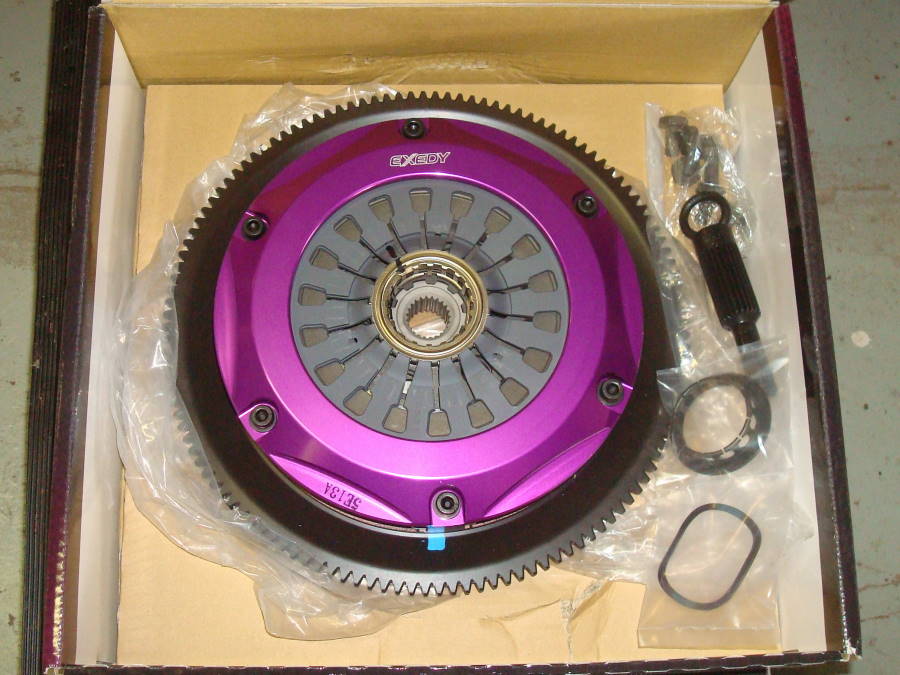

EXEDY
Triple Disc & Monoloc
|
EXEDY
Triple Disc Installed
|
TiAL
1.16 AR Housing
|
Currently dyno tuned to 647 RWHP at 18 psi.
 |
|
June
2016
|
Summer 2016 we installed the Vibrant Recessed Filter Top Oil Catch Can
 |
 |
 |
 |
 |
|
Oil
Catch Can
|
Installed
|
Passenger
Side View 08/18/16
|
Front
View 08/18/16
|
Driver Side View 08/18/16
|
Fall 2017: We fabricated a custom 4" downpipe (with DEI Titanium Exhat Wrap), modified the Midpipe and dyno tuned our Efini to 683 RWHP @ 20.6 psi
 |
 |
|
Custom
DP Installed
|
October
2017
|
Early 2018: We installed a new DEI Turbo Blanket turbo blanket, Levy Rotor Aluminum Gas Pedal, E-Brake Handle Button and HalGuard Compact Fire Extinguisher
 |
 |
 |
 |
 |
 |
|
Turbo
Blanket
|
AL
Pedal
|
Pedal
Installed
|
E-Brake
Button
|
Fire
Extinguisher
|
Fire
Extinguisher Mounted
|
Current Engine Bay Photographs January 2018
 |
 |
 |
|
P-Side
View 01/25/18
|
Front
View 01/25/18
|
D-Side
View 01/25/18
|
January 2019: We upgraded to a much larger intercooler
 |
|
I/C
|
Click to view the most recent video of one of our dyno runs
Click to view a video of the exhaust during one of our dyno runs
Click to view a video of the Engine Bay during one of our dyno runs
