FD3s Oil Pan Brace Installation Instructions


FD Oil Pan Brace Kit
FD Oil Pan Brace Installed



Tools & Materials Required


Pic #1 Clean Stud Holes
Pic #2 Clean Stud Holes
Pic #3 Insert Studs

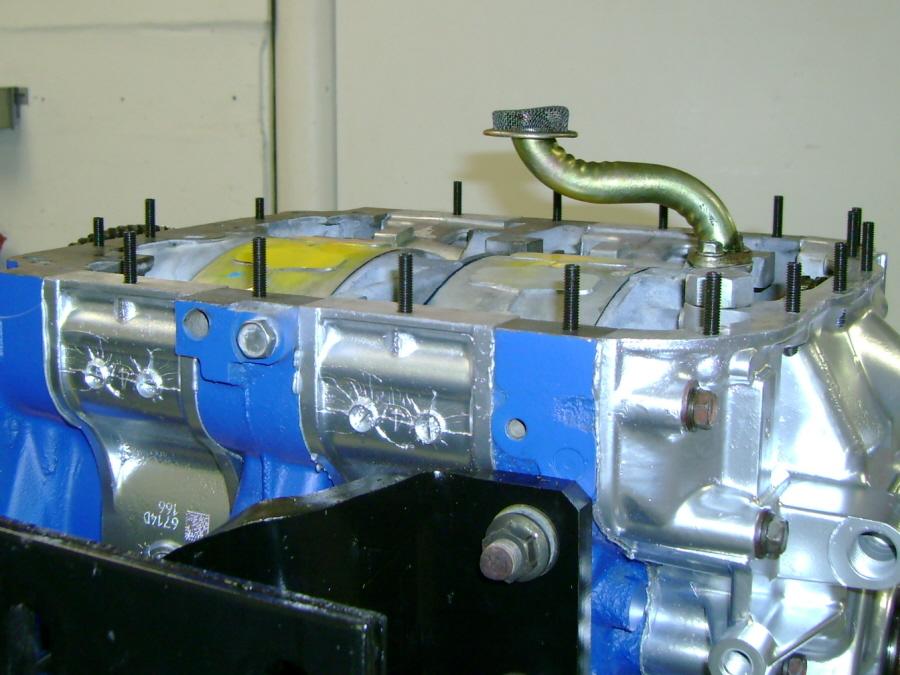

Pic #4 Studs Installed
Pic #5 Install Brace on Oil Pan
Pic #6 Apply RTV
Pic #7 Install Oil Pan & Brace
Pic #8 Pan & Brace Installed
Pic #9 Attach Nuts
Pic #10 Torque Nuts

Procedure

  1. Clean the oil pan and engine contact surfaces thoroughly.
  2. Clean out oil pan stud holes completely, ensuring that there is NO RTV, dirt, etc. at base of holes. Failure to do so may result in cracking of plates. We recommend using a M6 x 1.0 Tap (pic #1) , but you may use a pick if necessary (pic #2).
  3. Ensure that the contact surface of all parts are clean.
  4. Using 3mm Allen wrench, thread studs into oil pan mounting holes (pic #3).
      • If you experience difficulty inserting the studs, please ensure that the holes are thoroughly clean.
      • Note two studs on rear plate insert farther than the others in order to allow for motor mount installation (pics #4 & #11).
  5. Place oil pan brace on oil pan (pic #6). Drain Plug must be removed.
  6. Apply a 4 - 6mm continuous bead of RTV Silicone Gasket Maker to the bottom of the engine components along the inside of the studs and around motor mount holes (pic #6). NOTE: Install oil pan within 5 minutes of application.
  7. Install oil pan and brace as pictured, lowering onto the studs (pic #7).
  8. Thread hex nuts onto oil pan studs (pic #9).
  9. Torque nuts gradually and evenly to 8.9 - 11 N-m (79 - 104 in-lbf). DO NOT over torque nuts as this will cause studs to break.
  10. Using supplied 19mm bolts & washers, install left and right engine mounts (pic #11).
  11. Torque engine mount bolts to 75 - 93 N-m (55 - 68 ft-lbf).
  12. Allow a minimum of 24 hours for RTV to cure.

Note: Do not use Oil Pan Gasket

Click Here for instructions on Oil Pan removal while engine is in vehicle
Pic #11 Install Mounts
Pic #12 Brace Installed

Printable PDF Version

Banzai Racing Inc. is not liable for any accidents or damage resulting from application of this procedure.
