1991 S5 Vert TII 13B-RE Cosmo Conversion

Phase IV: FMIC & Engine Management Installation

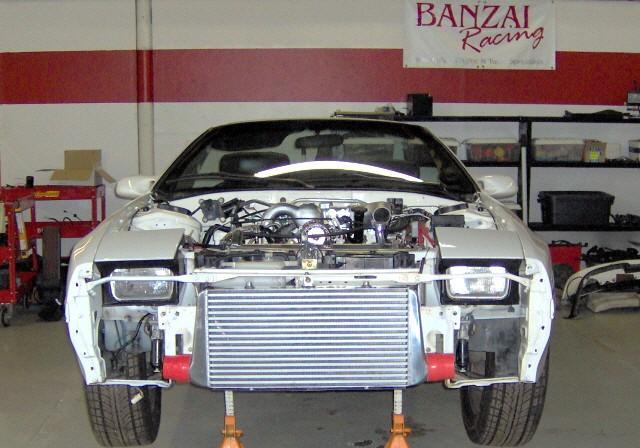

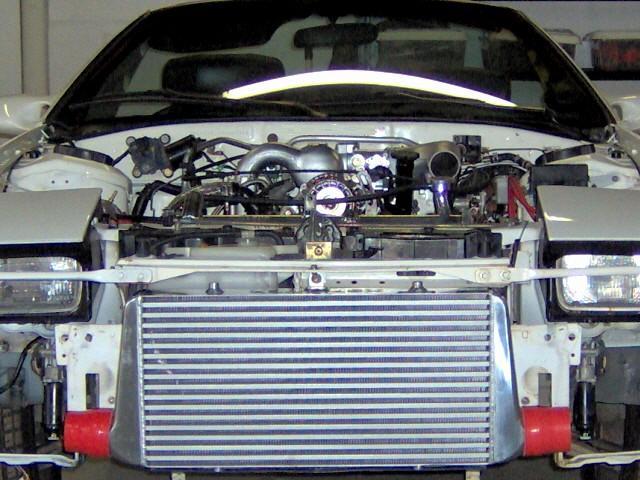

FMIC Mounted #1
FMIC Mounted #2

October '05 We completed fabricating the Intercooler Piping. We used polished aluminum, cut and welded to ensure optimum efficiency. We also used six 4-Ply silicone couplers/reducers. Here are photographs of the custom IC Piping and Blitz Blow Off Valve.

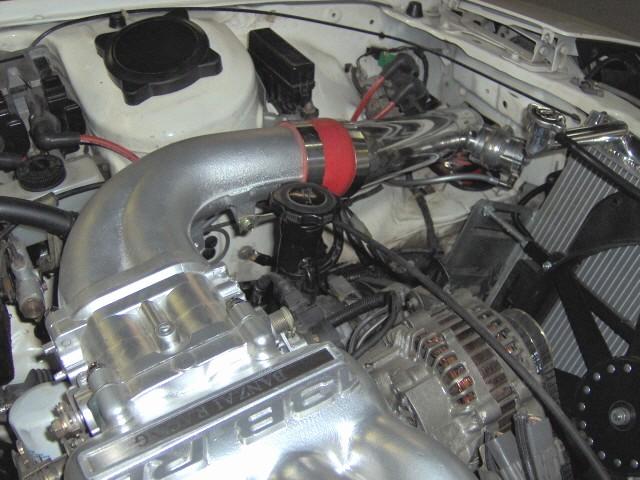

Driver's Side View
Driver's Side/Front View

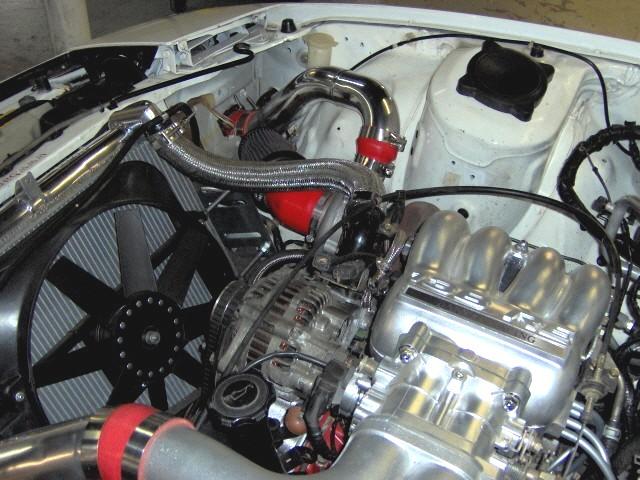

Passenger's Side View
Passenger's Side/Front View

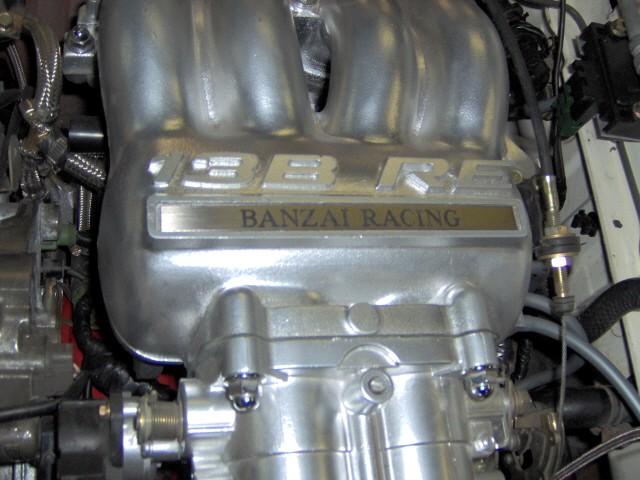

UIM Plate

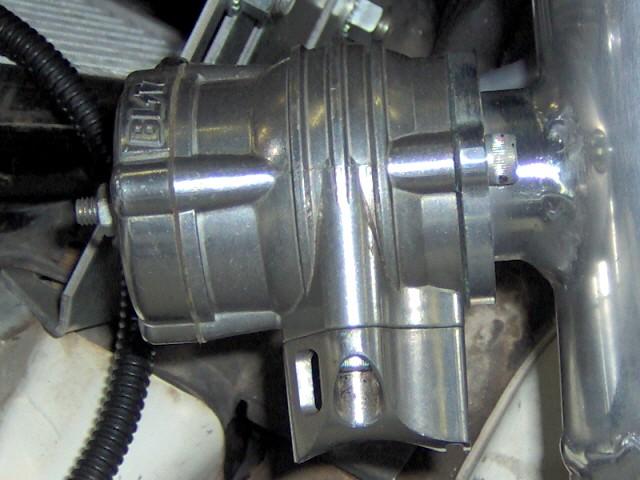

Blitz BOV

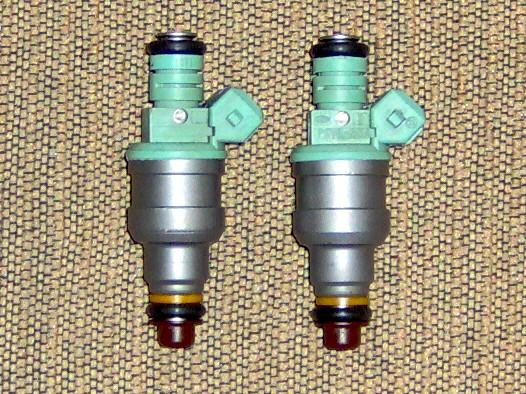

1600cc Injectors

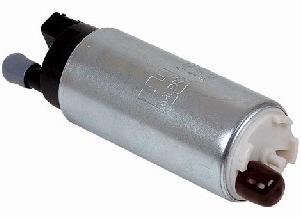

Walbro 255 lph Fuel Pump

We also installed Bosch 1600cc Low Impedance Secondary injectors, and a Walbro 255 lph Fuel Pump

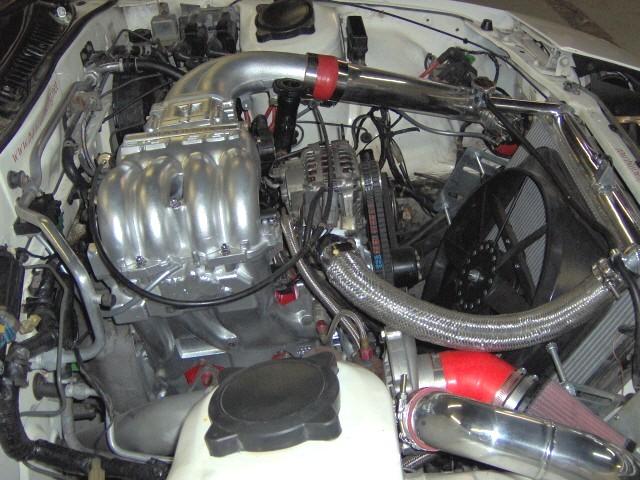

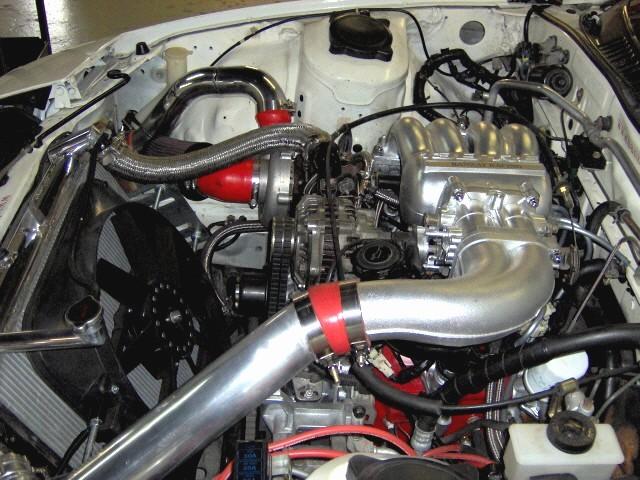

Engine Bay 10/12/05

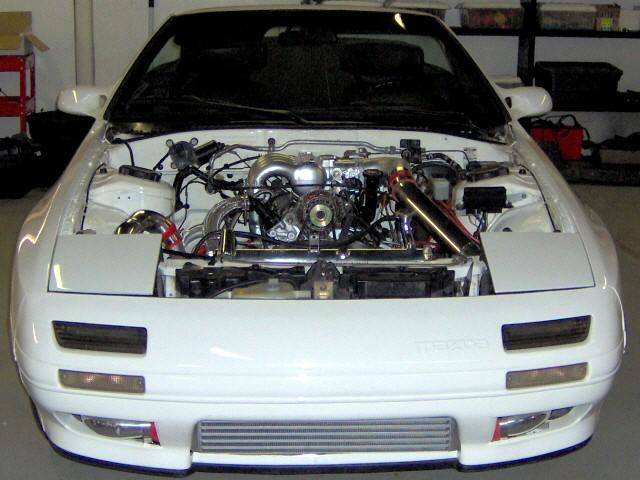

Front View 10/12/05

August '06 We completed the APEXi Power FC Installation, with GM 3-Bar Map Sensor, PS/2 Cable, FD Igniter & FD Coils.

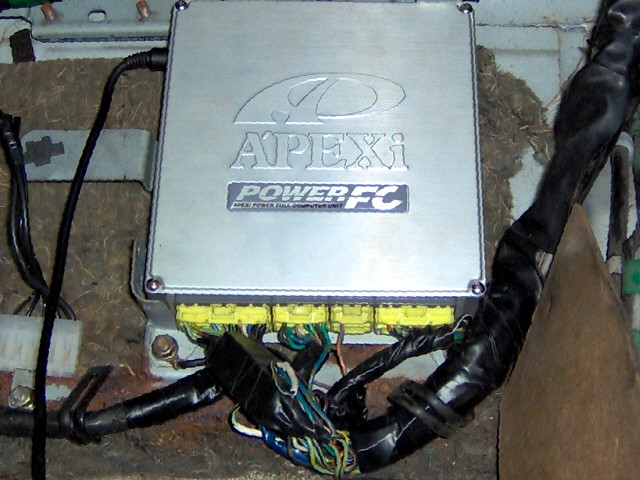

Power FC Installed
PS/2 Cable Installed
GM 3-Bar Map Sensor

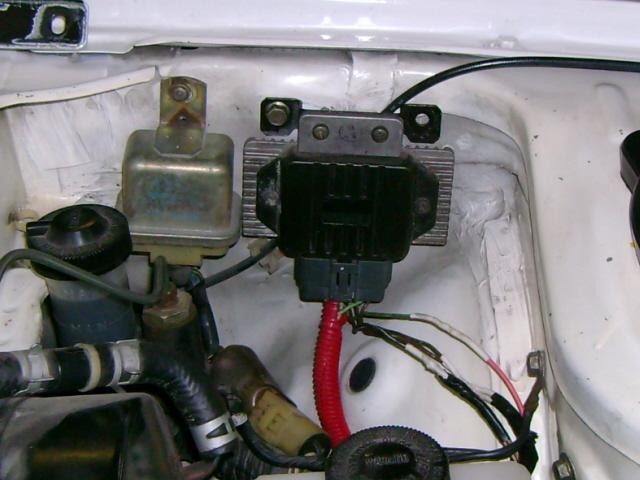

FD Igniter

Phase V: Oil & Fuel System Upgrades and New Wheels

2007 We installed our SS Braided Oil Cooler Lines and upgraded the fuel system; we installed an Aeromotive FPR, fuel pressure gauge, SS braided lines and AN fittings. We also put on some new rims.

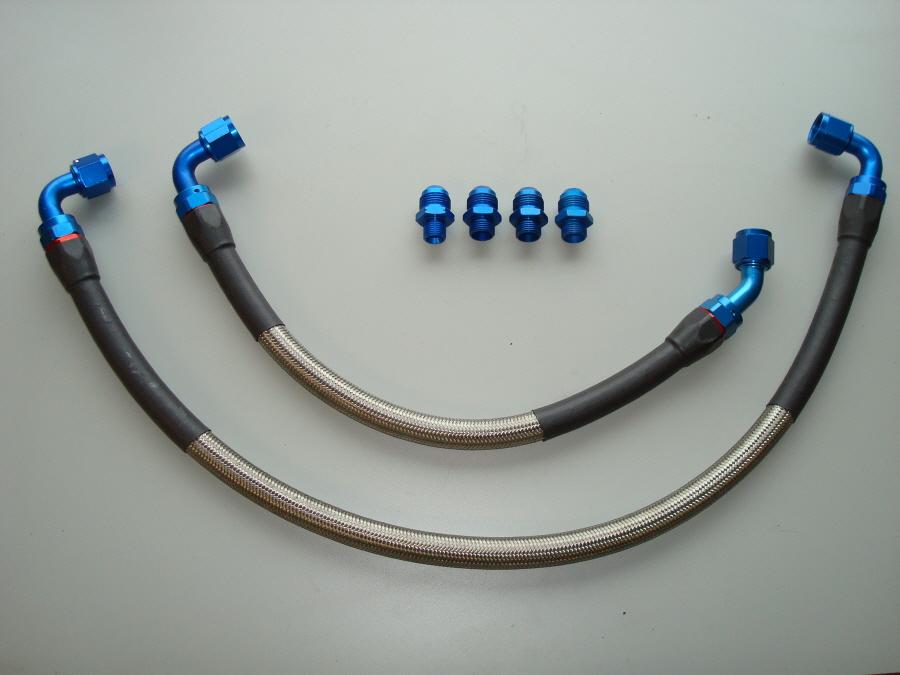

SS Oil Cooler Lines Kit

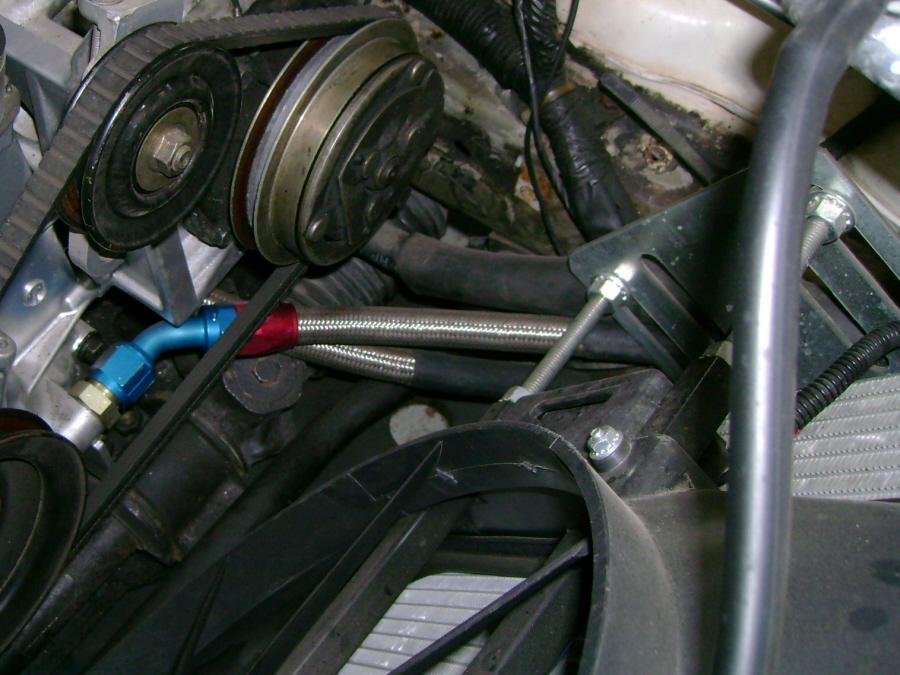

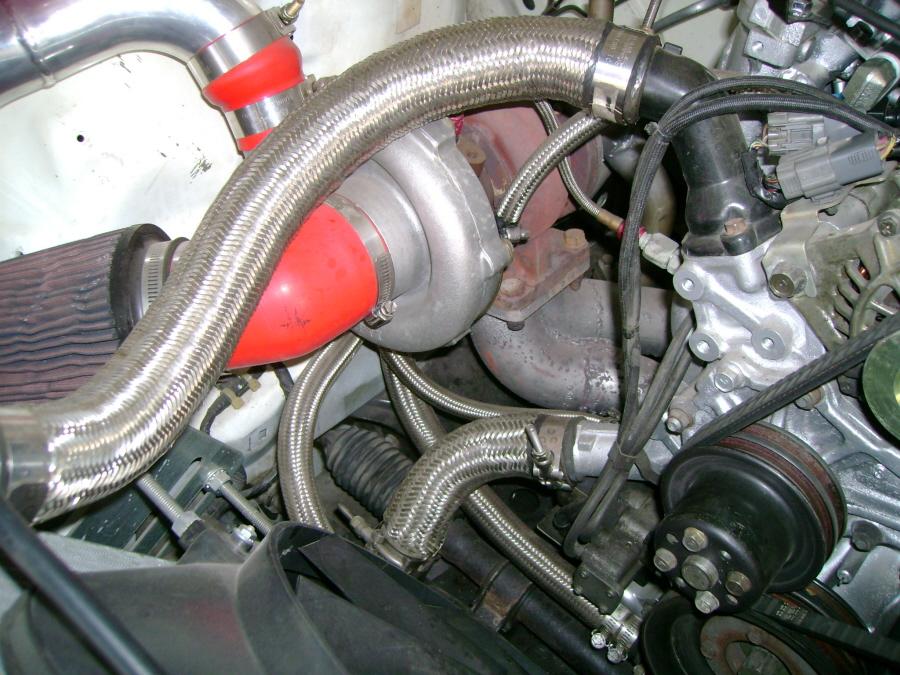

SS Lines Passenger Side
SS Lines Driver Side

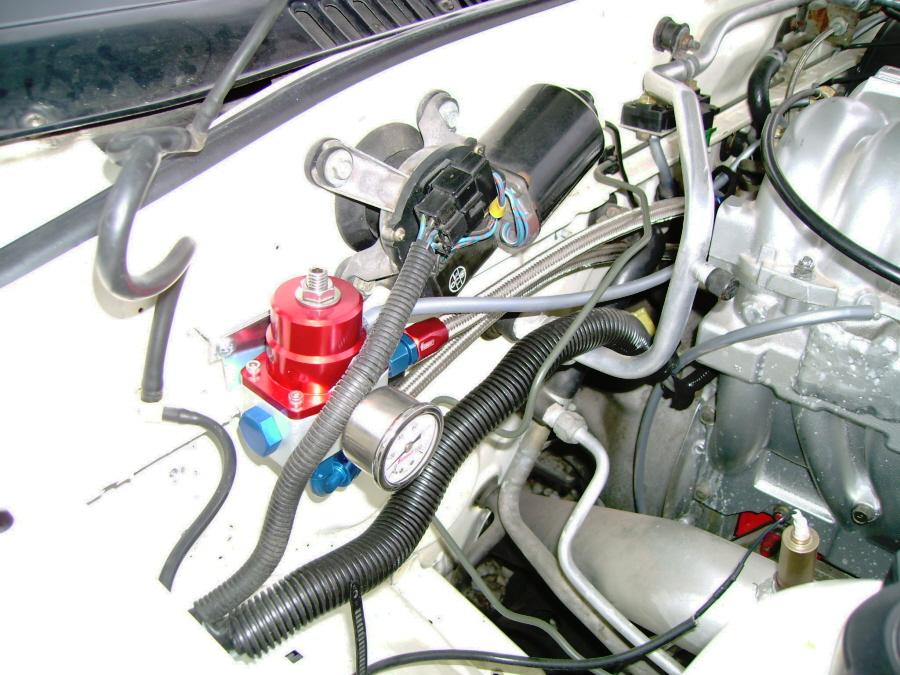

Fuel System

RPM Hyper Black Rims with Goodyear Eagle F1 Tires

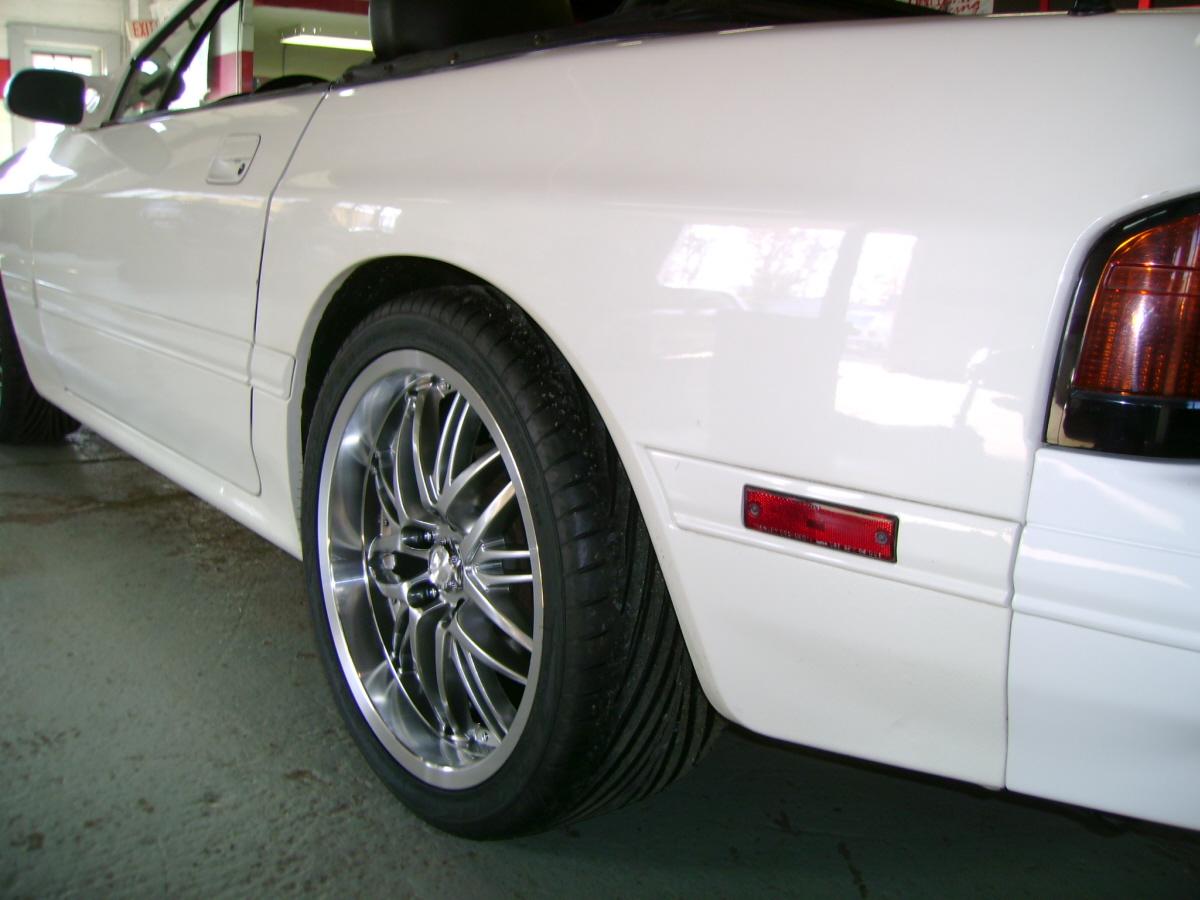

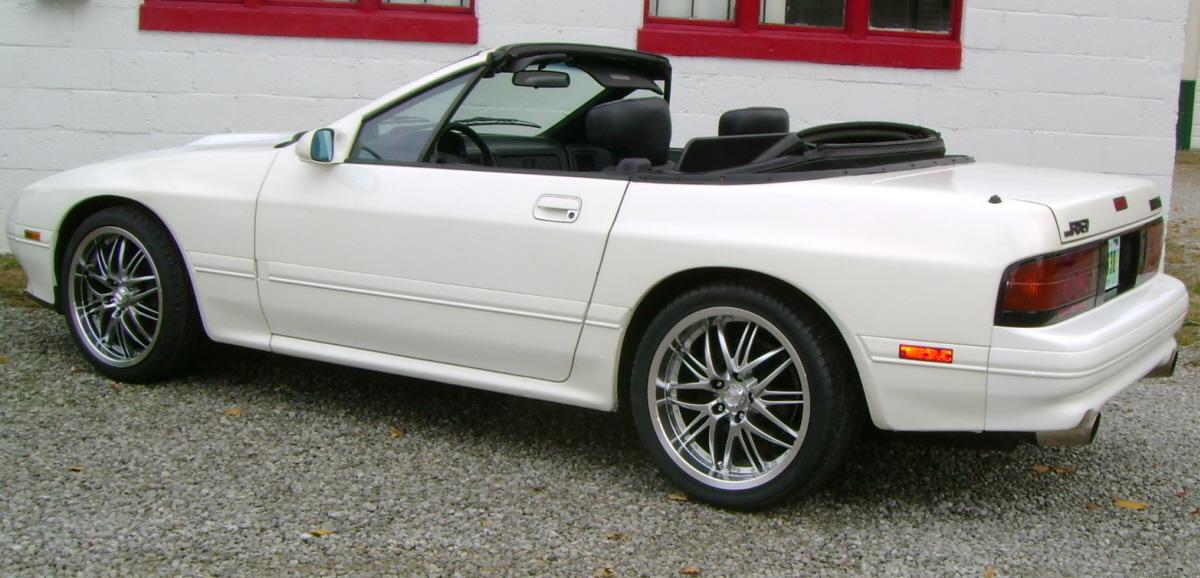

Driver Side Rear (18 x 9)

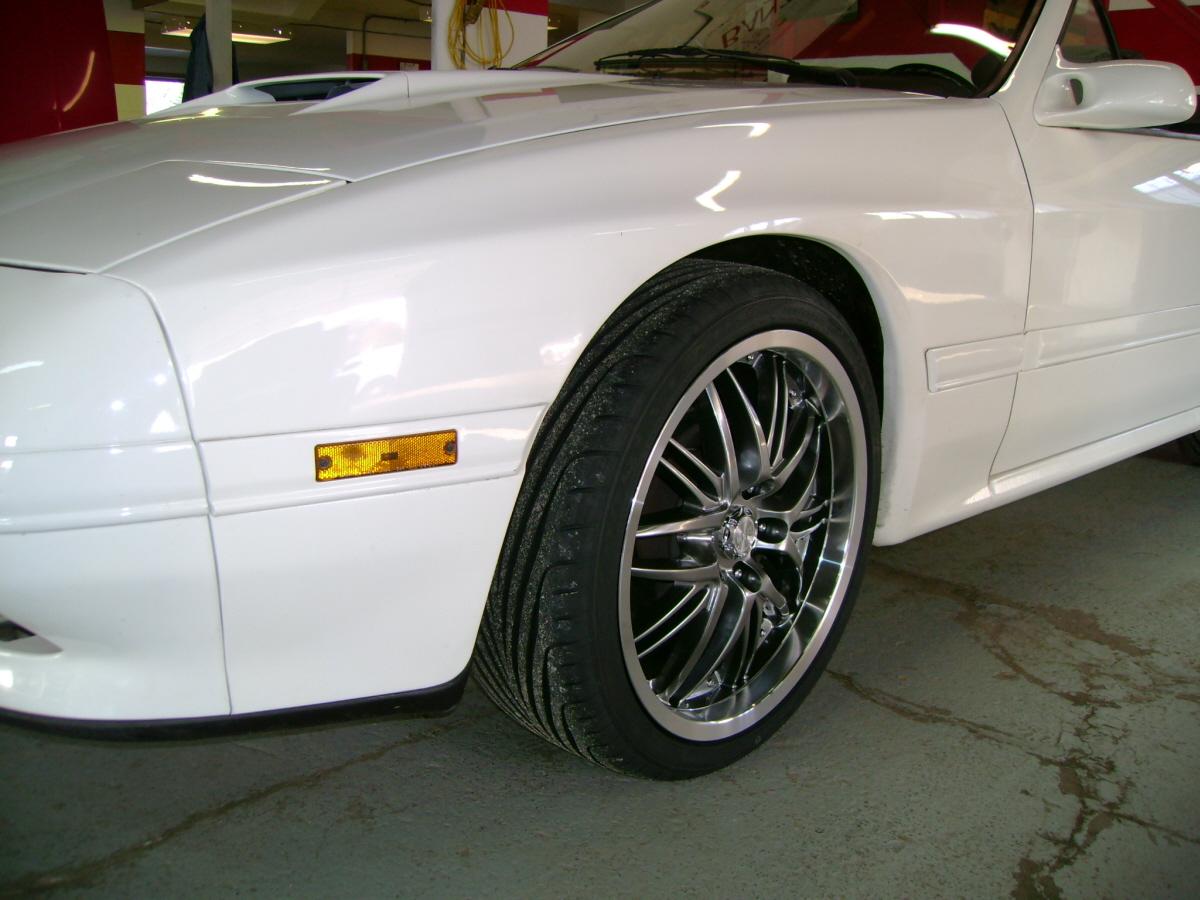

Passenger Side Front (18 x 8)

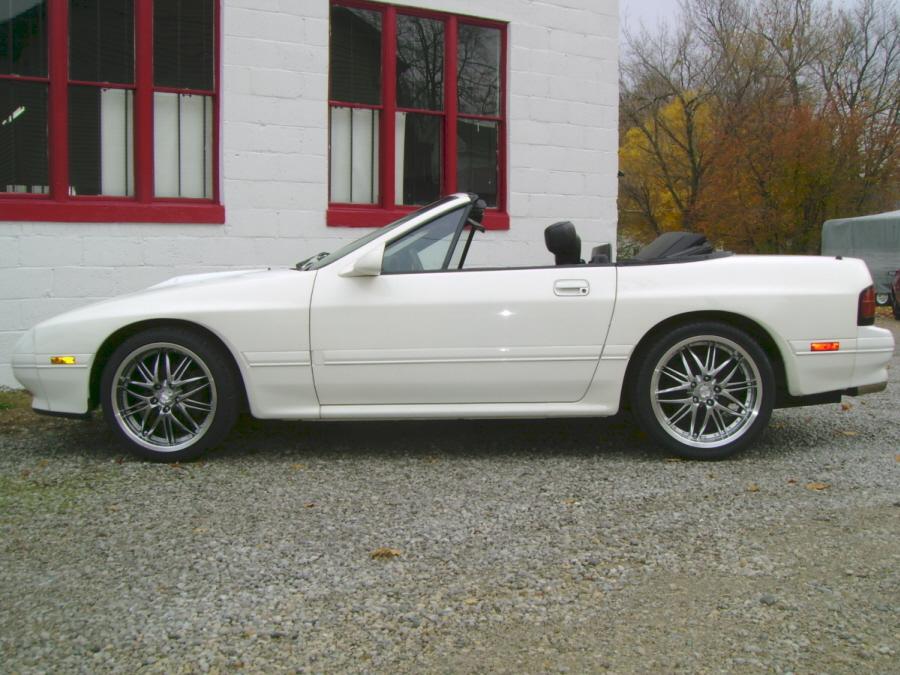

Side View

Engine Bay November 2007

Passenger-Side View
Driver-Side View
Front View
