Slava's RX-7 13B-REW Engine Installation & Modifications

Photographs of Engine taken before & during installation

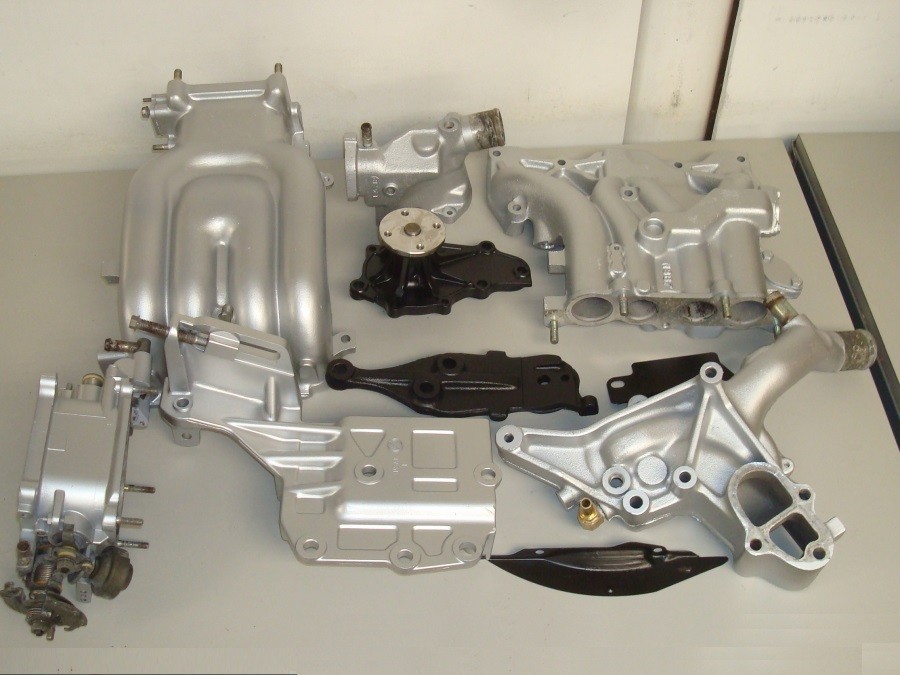

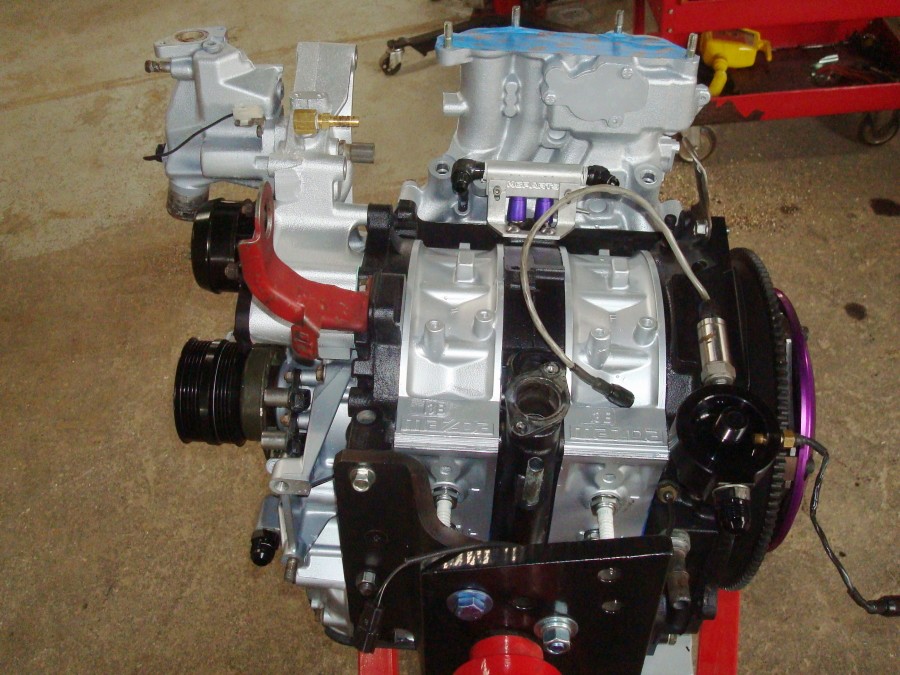

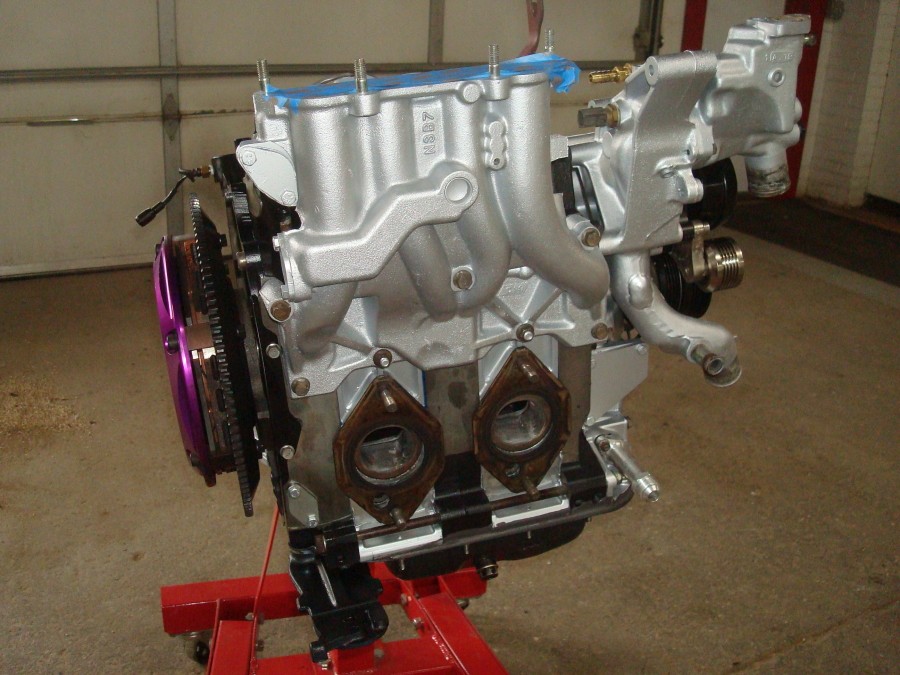

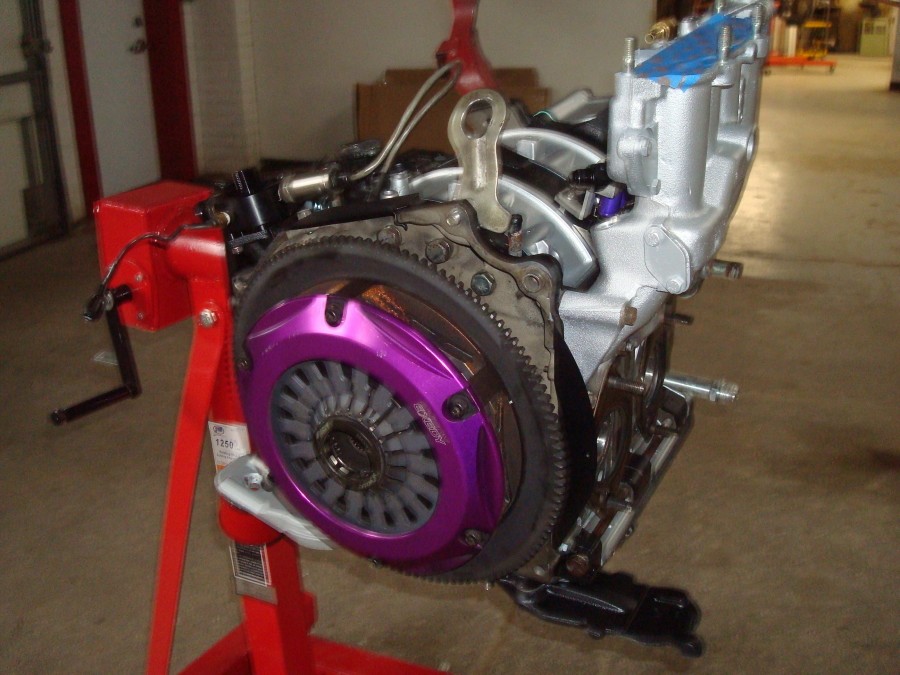

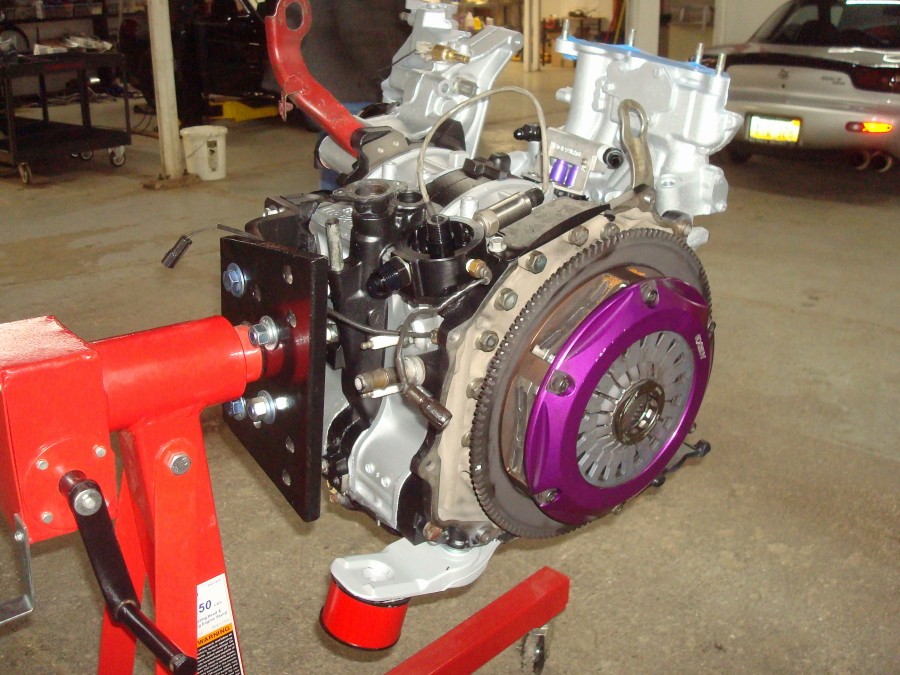

Painted Peripherals	Engine Long Block #1	Engine Long Block #2	Engine Long Block #3

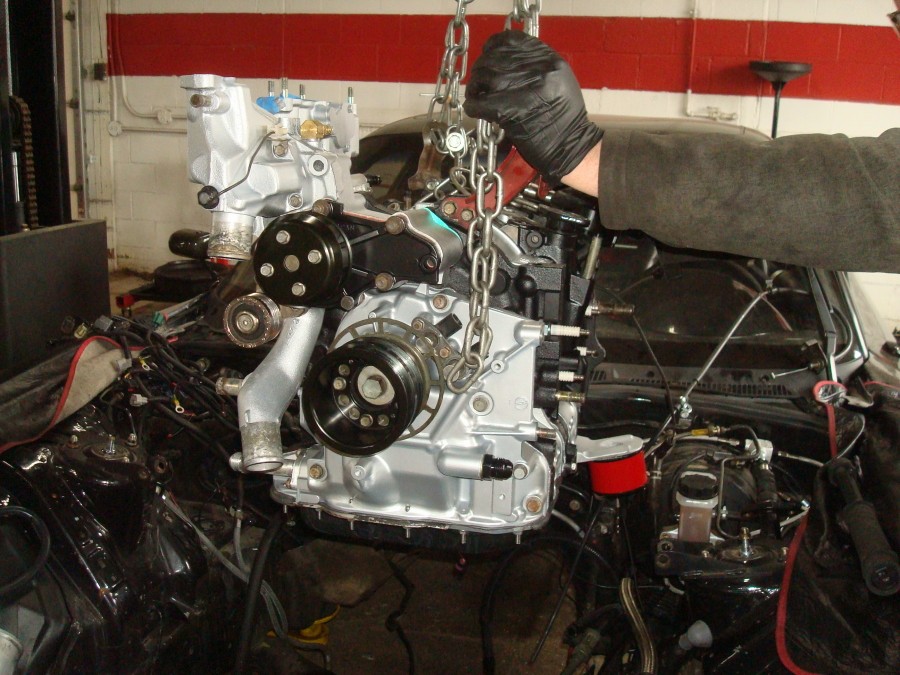

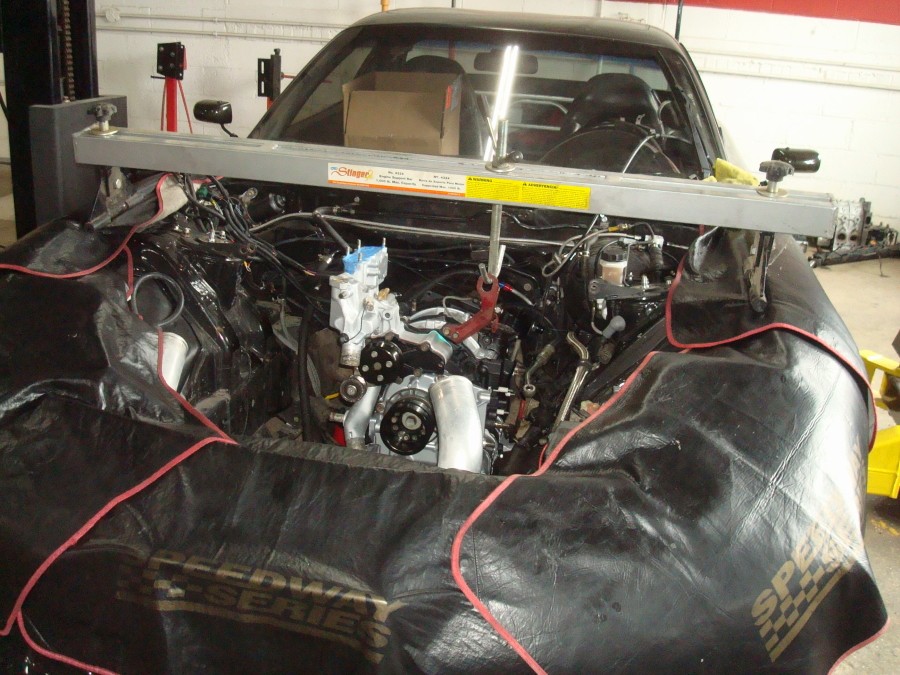

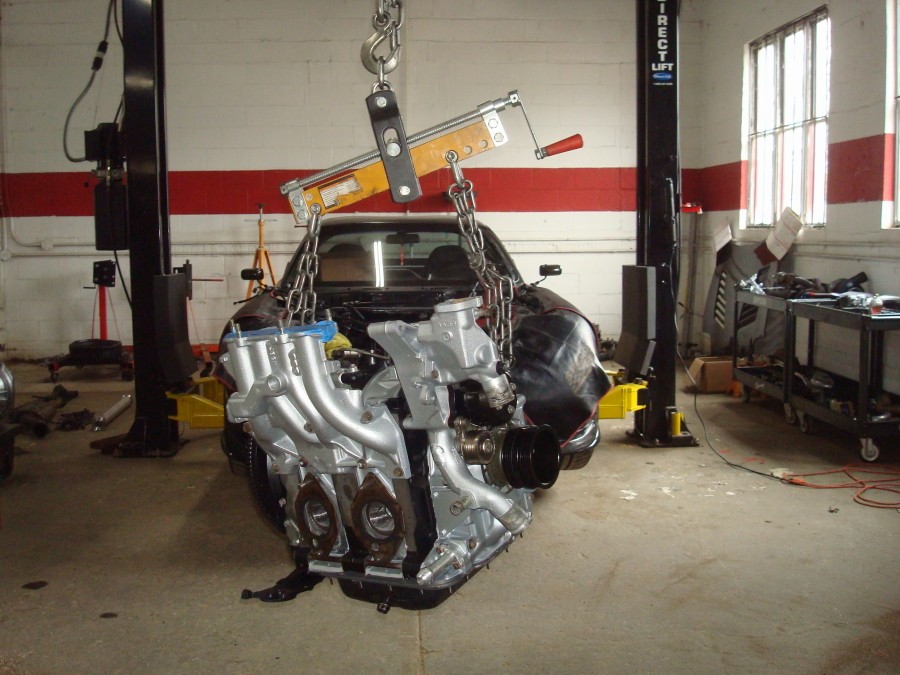

Installation #1	Installation #2	Installation #3	Installation #4

List of upgraded components & modifications;

• Banzai Racing FD Level 1 Engine Rebuild w/ Super Apex Seals
• Aggressive Race Porting
• Used Replacement Engine Components: Front Plate, Rotor Housings, Rotor, Corner Seals, etc.
• OEM Rotor & Stationary Gear Bearings

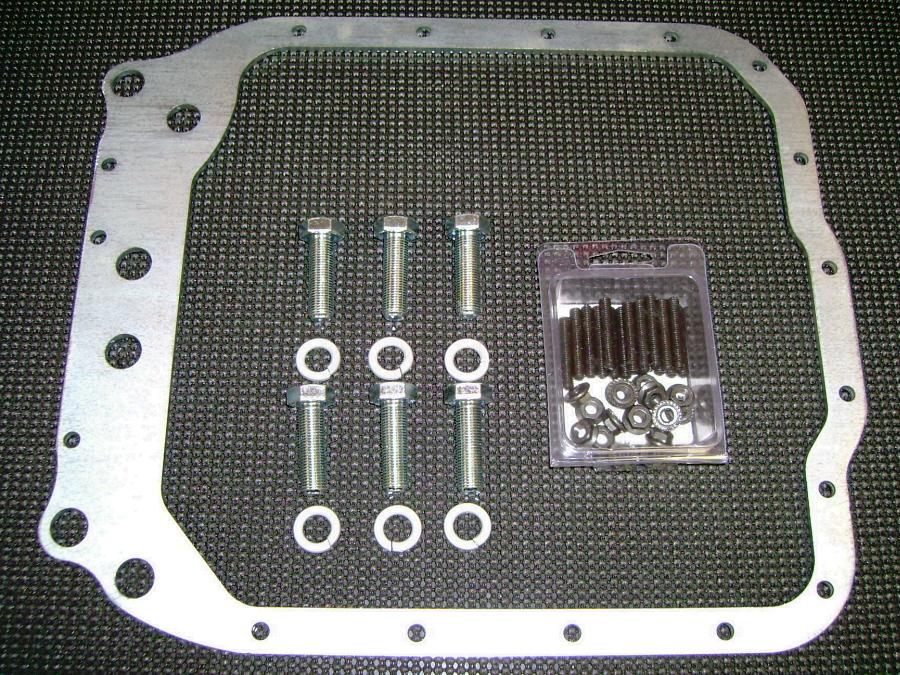

• Banzai Racing FD Oil Pan Brace Kit
• Banzai Racing Polyurethane Motor Mounts
• FD Oil Metering Pump Elimination Kit

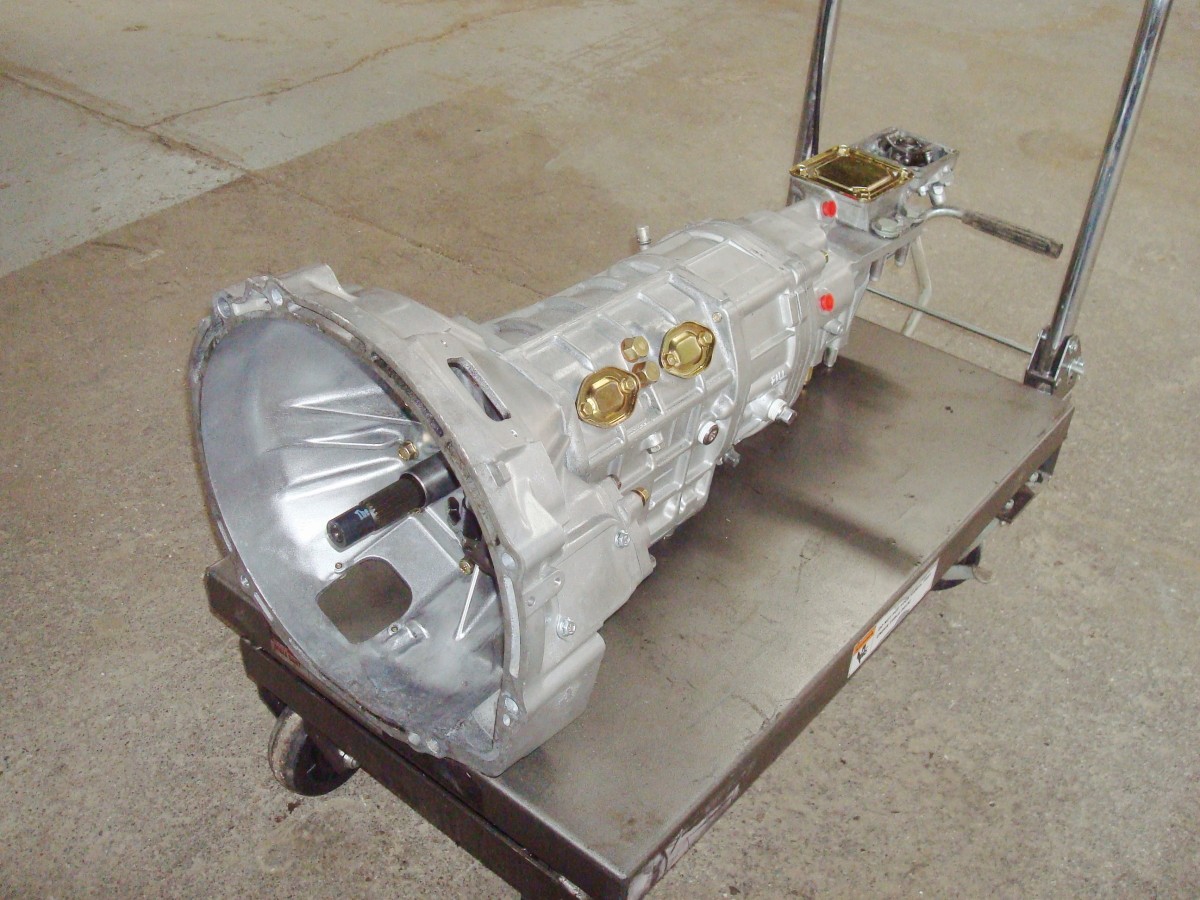

• Pettit Racing Blue Print Transmission Rebuild
• Peripheral Paint & Engine Bay Cleaning
• FD Aluminum Driveshaft

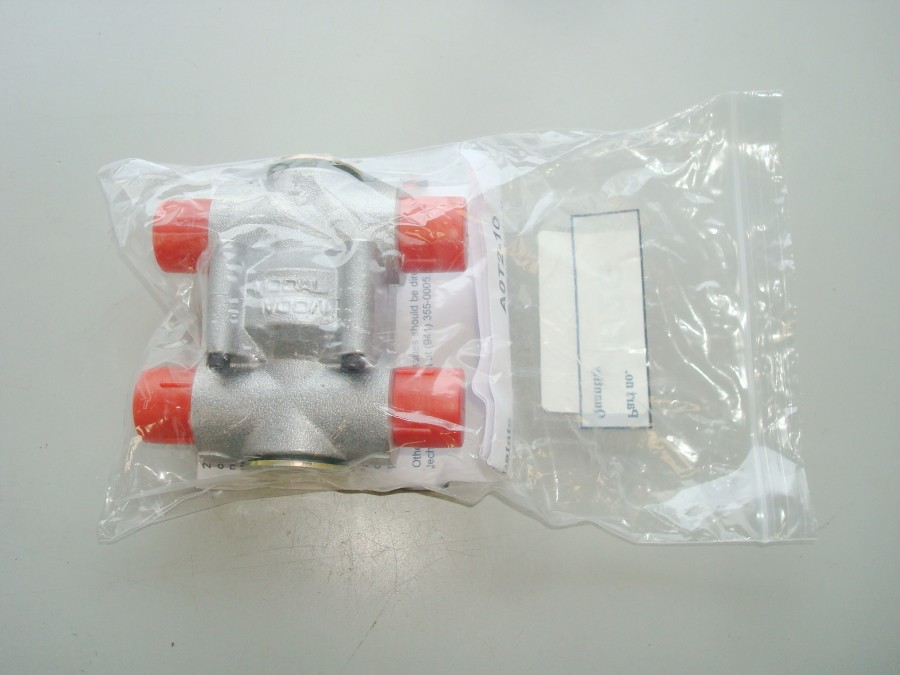

• Mocal -10 AN Oil Thermostat
• ABS Elimination
• Billet Oil Filter Pedestal

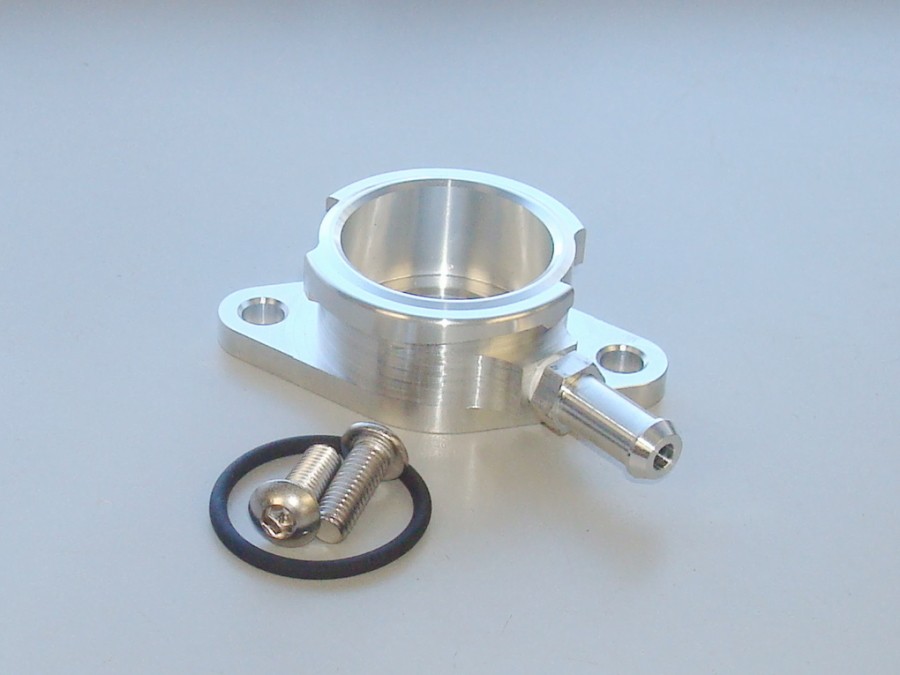

• Billet AL Filler Neck

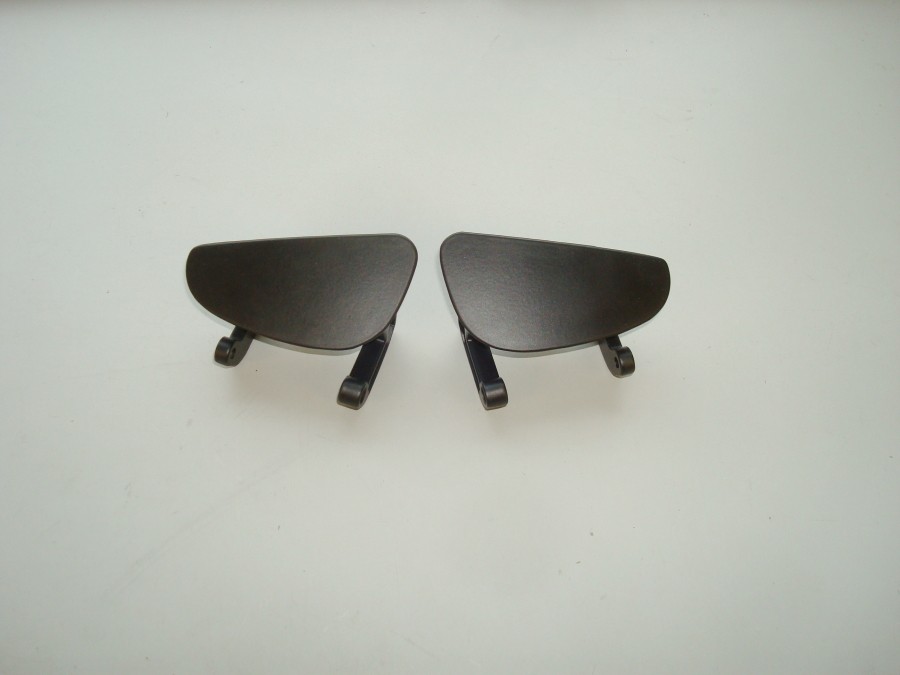

• AL Door Handle Pulls
• Misc Parts; Thermostat, fittings, connectors, injector spacers. short shifter bushing, radiator mount, fan motor, HW, etc.

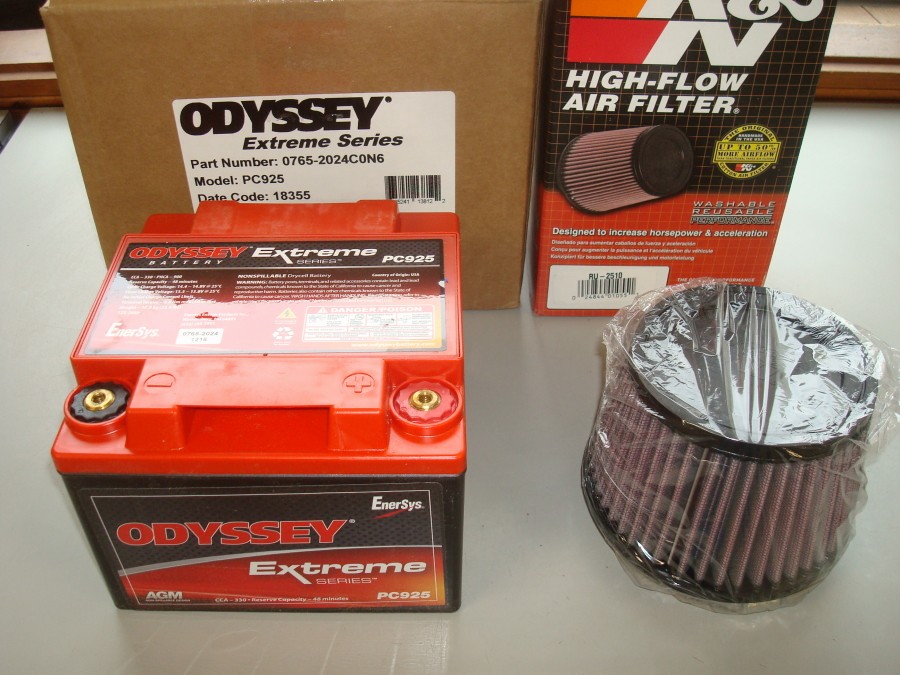

• Odyssey Drycell Battery PC925
• K&N Filter RU-2150

Upgrades & Modifications Photographs

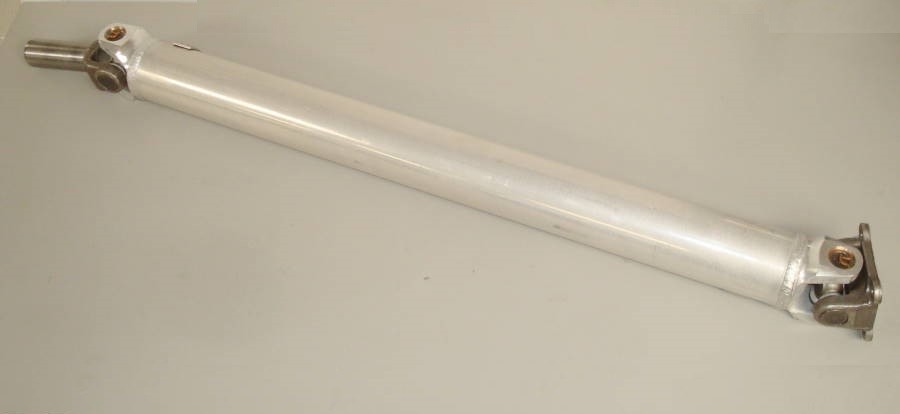

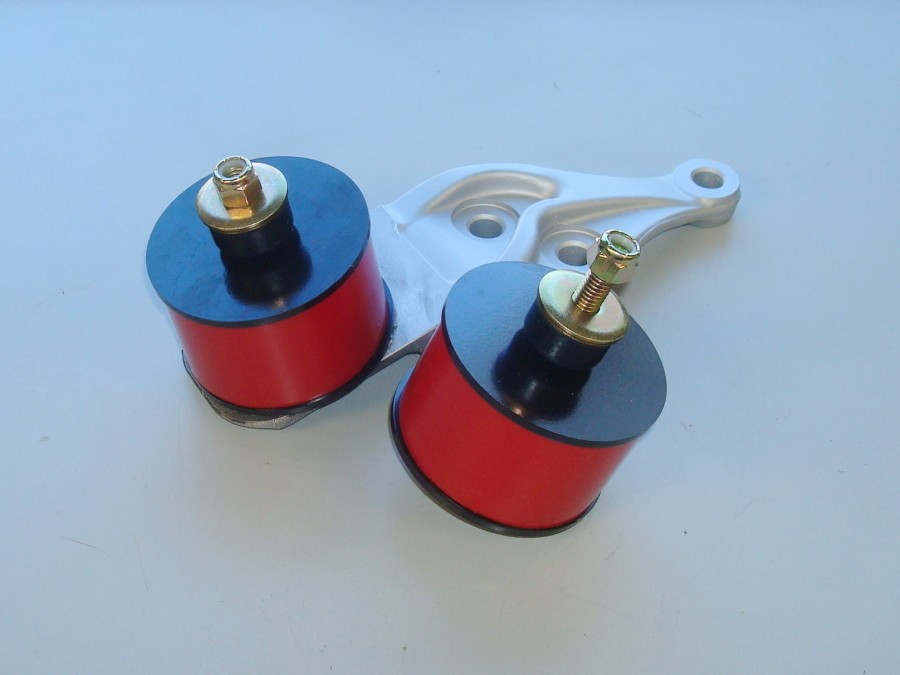

Driveshaft	Oil Pan Brace	Motor Mounts	Transmission	Oil Thermostat

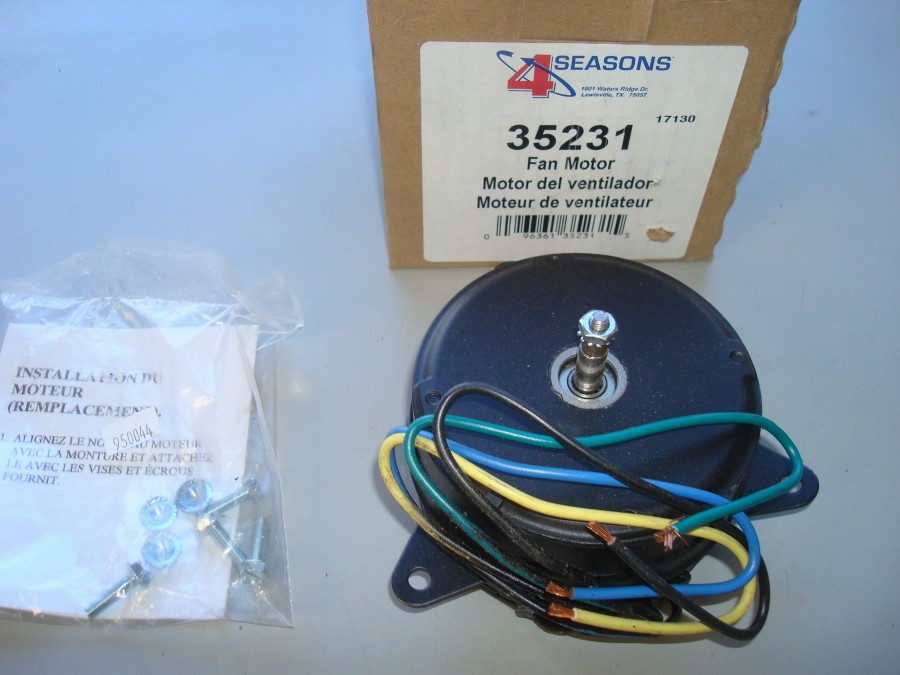

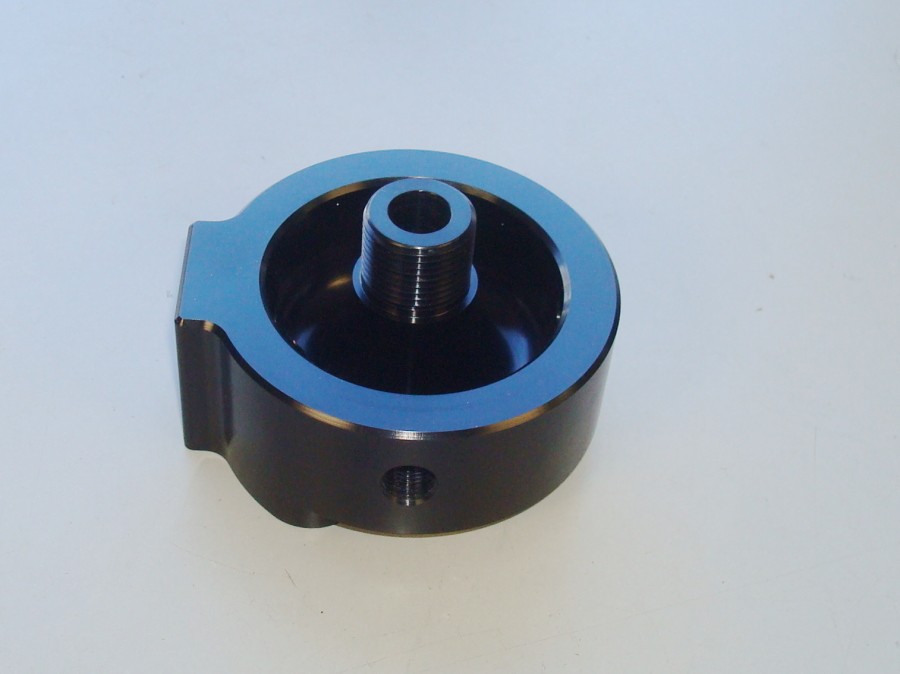

Oil Filter Pedestal	Billet AL Filler Neck	Door Pulls	Battery	Fan Motor

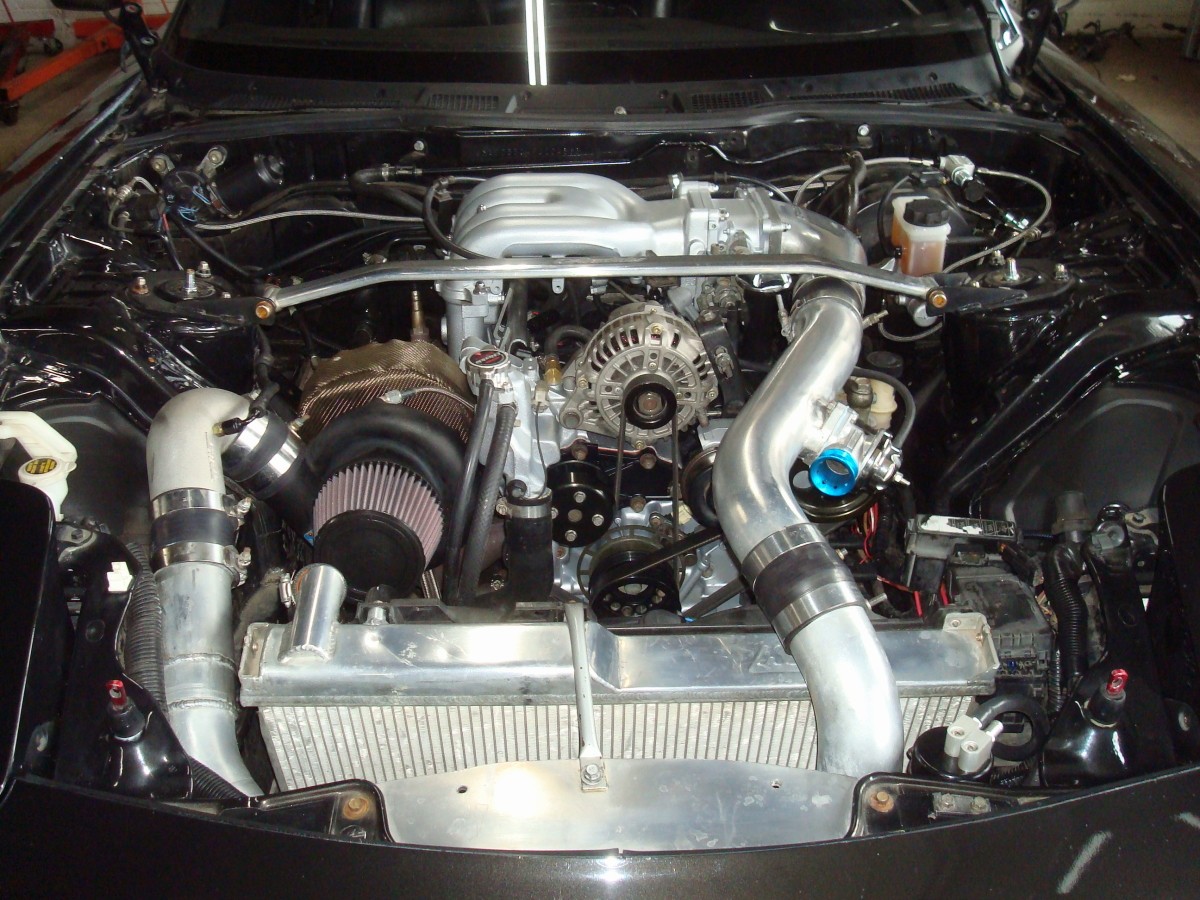

Engine Bay Photographs Spring 2019

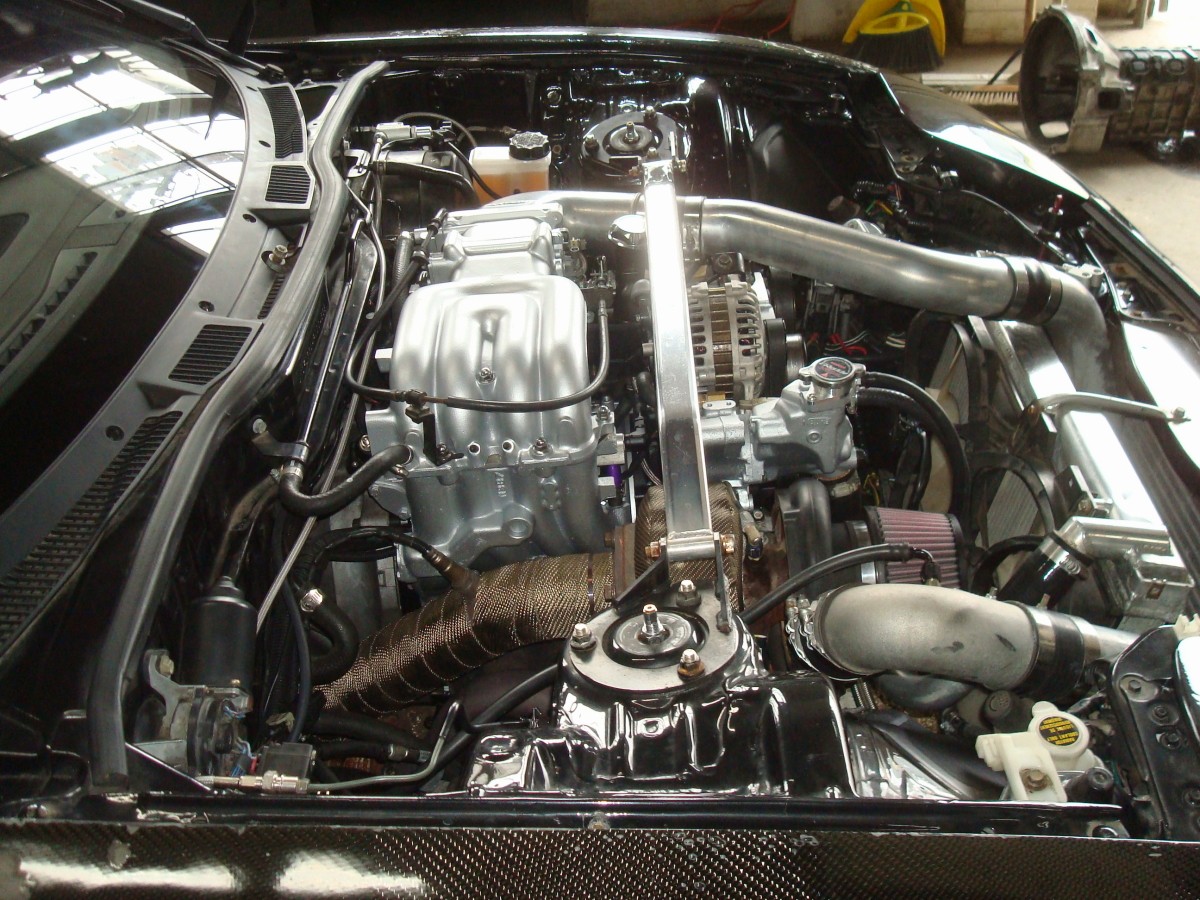

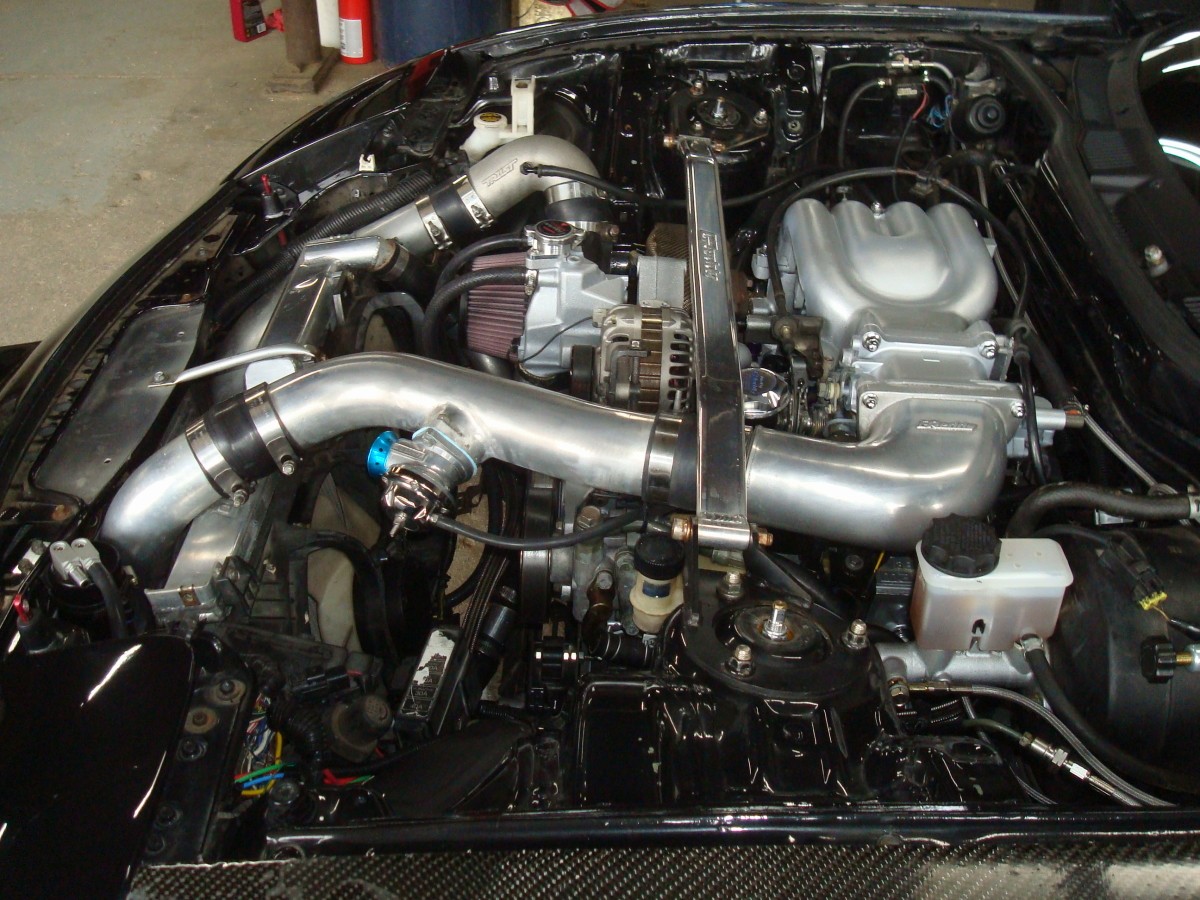

Passenger Side View	Front View	Driver Side View

Summer 2019: Slava brough back his car after engine break-in for the following service;

• Dyno tuned to 502 RWHP @ 20.7 psi
• ANZO LED Lights Replacement

8/21/19
