Chris' Staged Modification Plan

Engine Bay Photographs November 2014

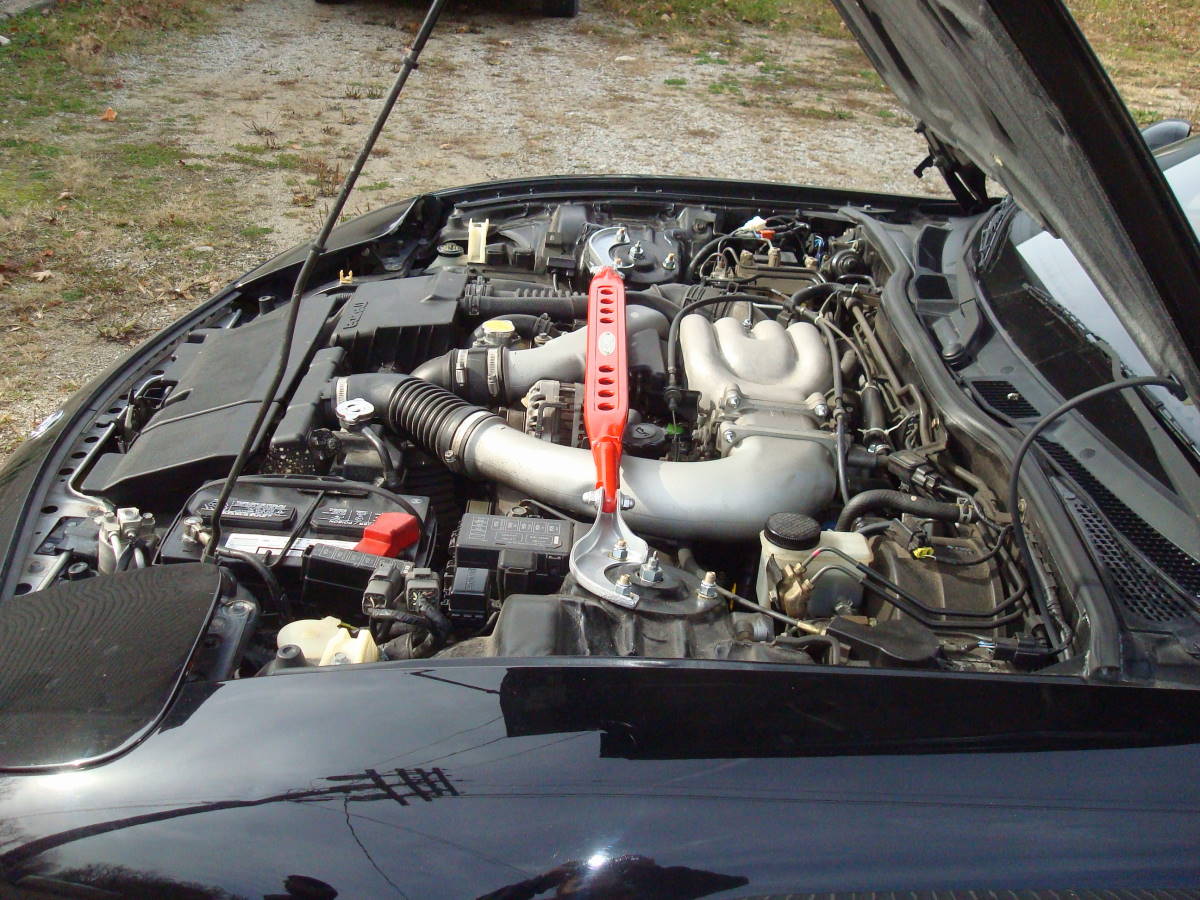

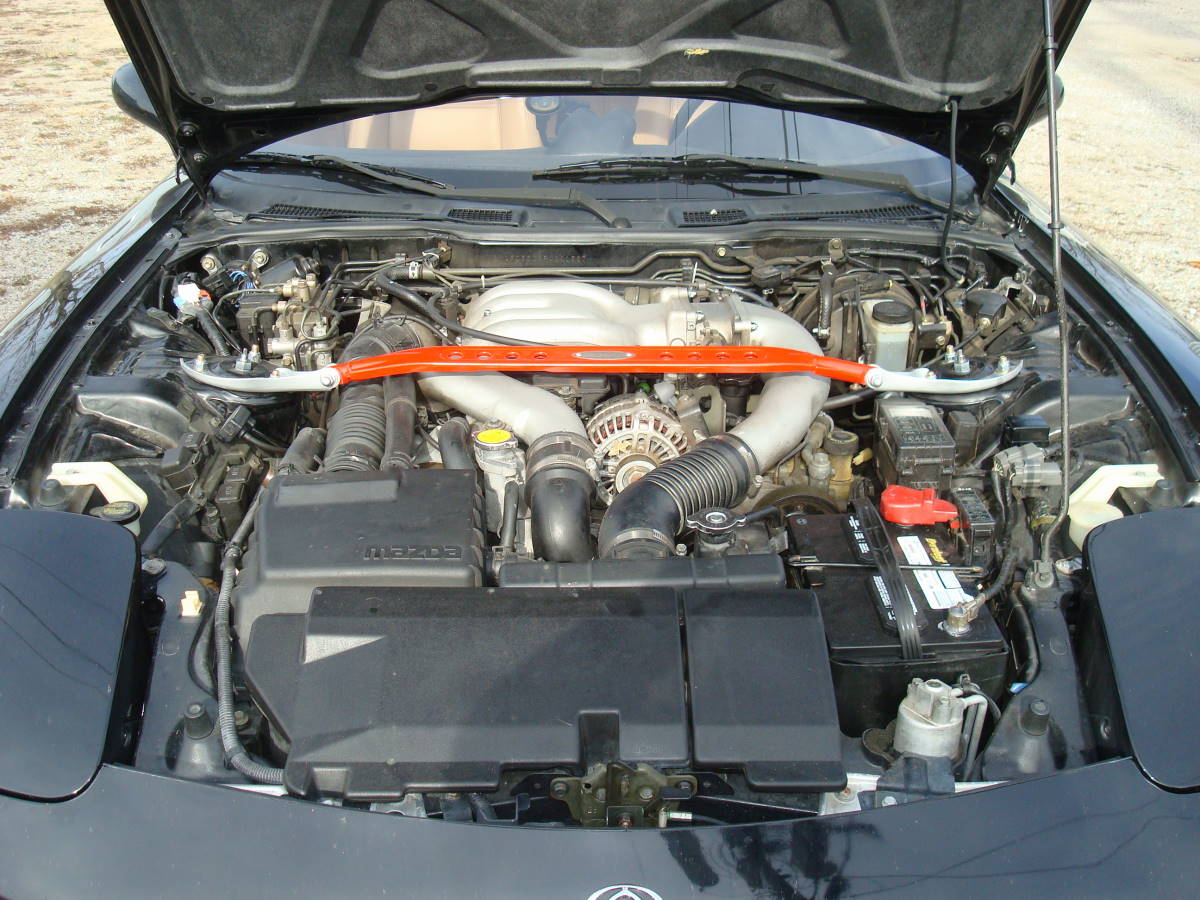

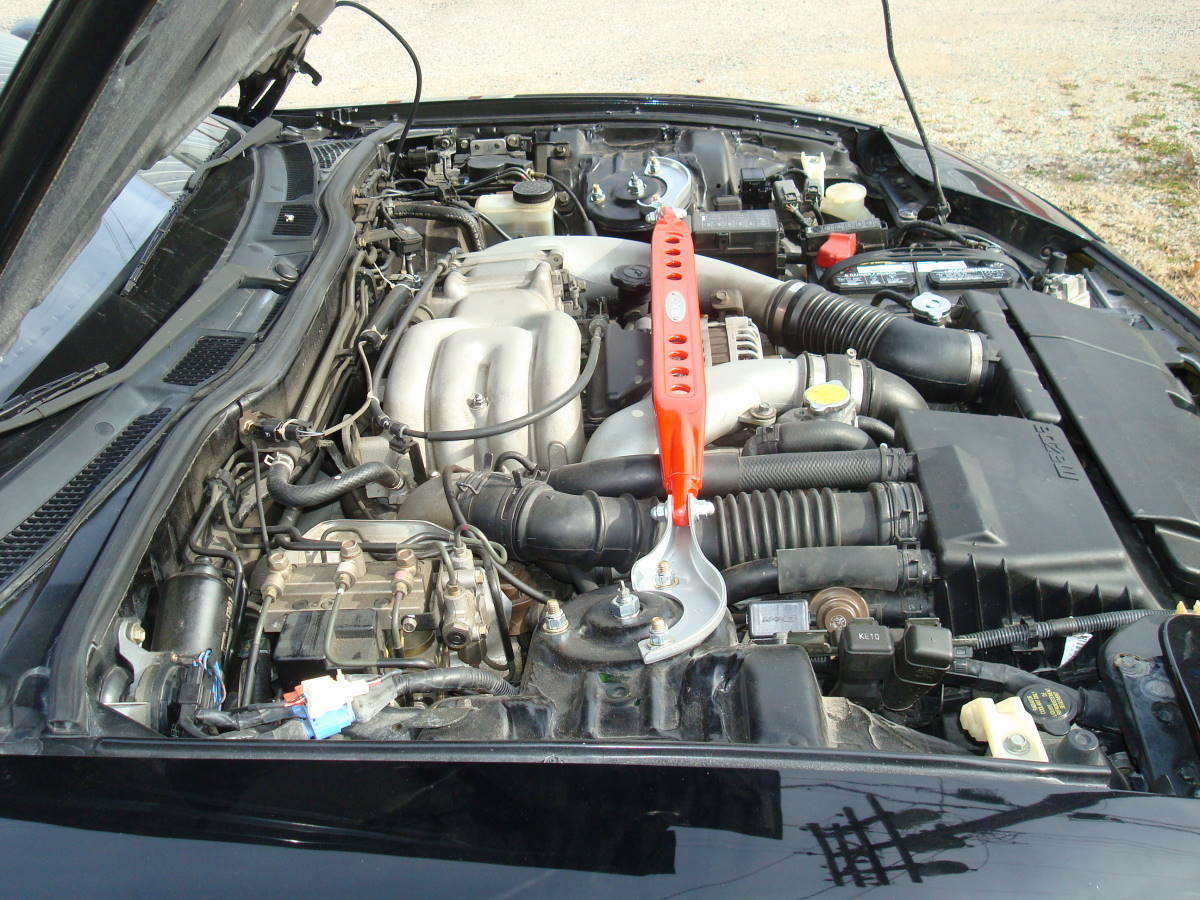

Passenger Side View	Front View	Driver Side View

List of parts & work performed

• Koyo R-Series Radiator
• Aluminum AST
• OEM Radiator Hoses
• OEM Fan Blade and Motor
• HKS Downpipe
• Dual Mishimoto 19-Row Oil Coolers installation with Banzai Brackets
• Hawk HPS Brake Pads
• TechnaFit SS Brake Lines
• NGK Platinum Spark Plugs (BUR9EQP x 4) & Plug Wires
• Denso Supra TT Fuel Pump
• Miscellaneous Maintenance Parts (Thermostat, Belts, Fuel Filter, FC Thermoswitch, Silicone Couplers)
• Miscellaneous OEM Parts (Turbo & Exhaust Gaskets, Hoses, Fuel Hose Recall Kit, Clutch Switch)
• Dyno 255 RWHP @ 10.9 psi

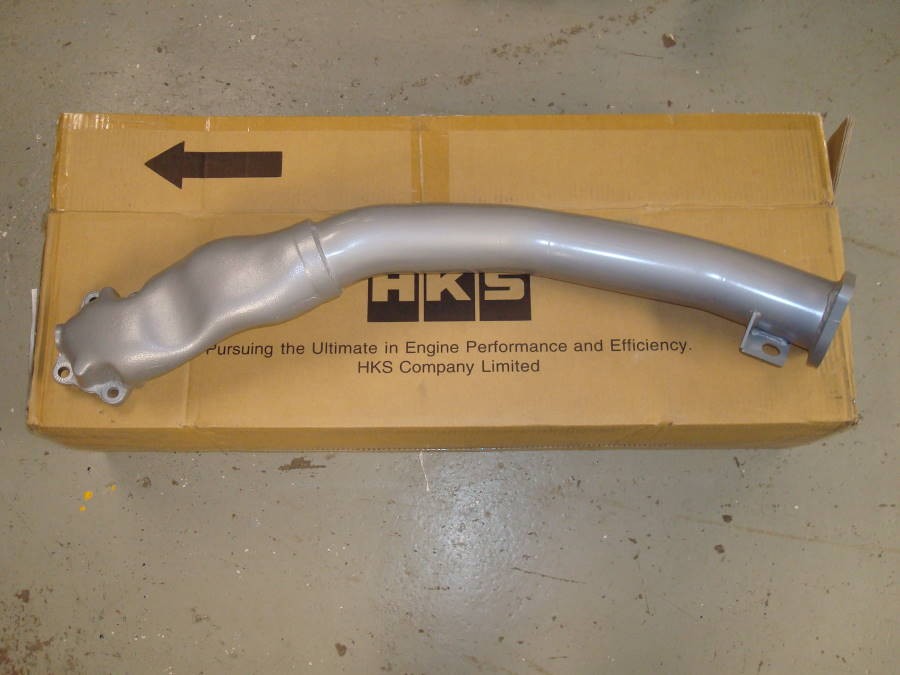

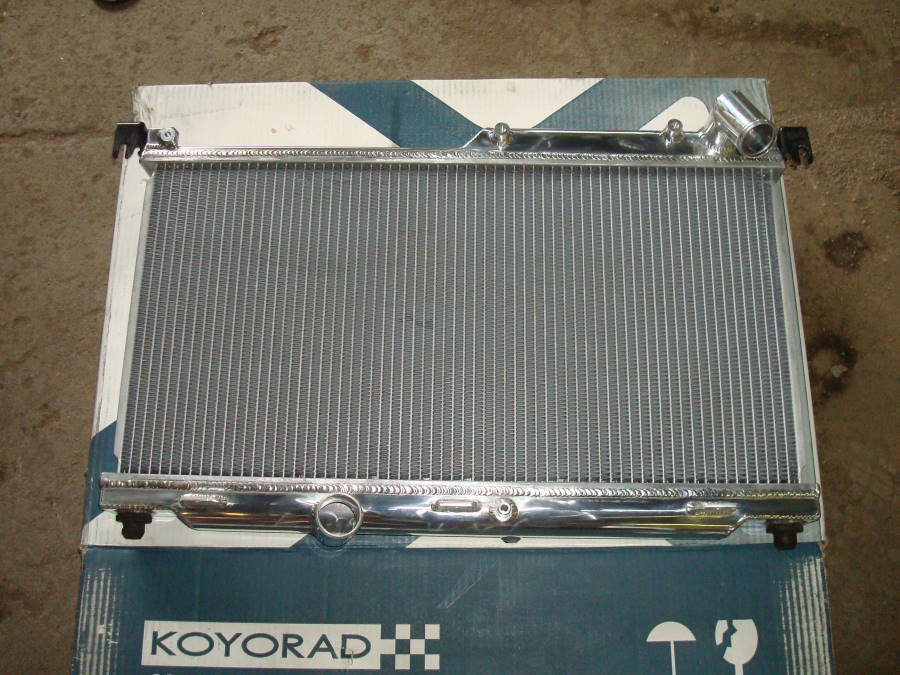

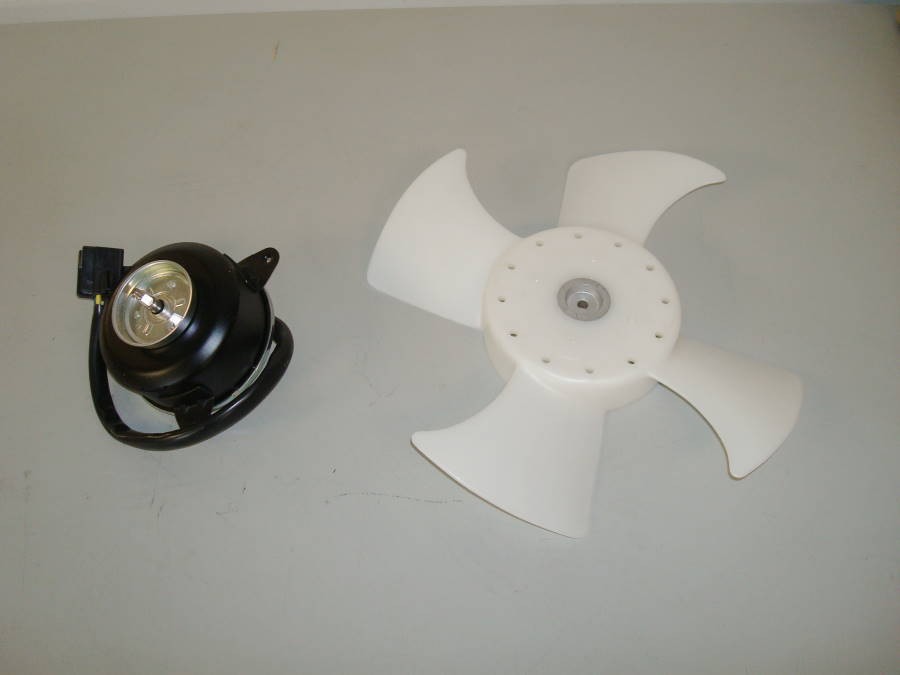

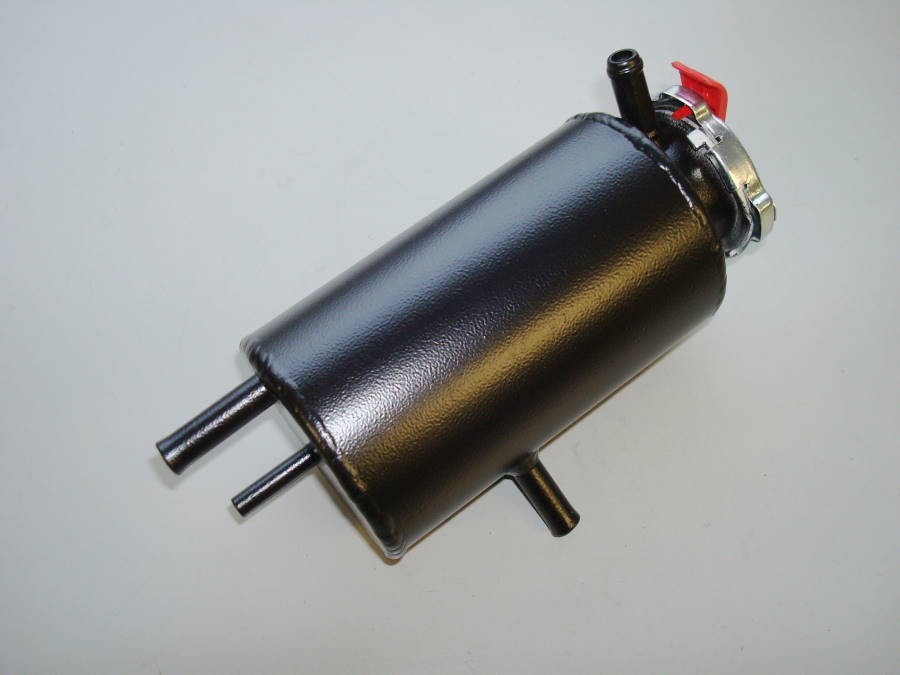

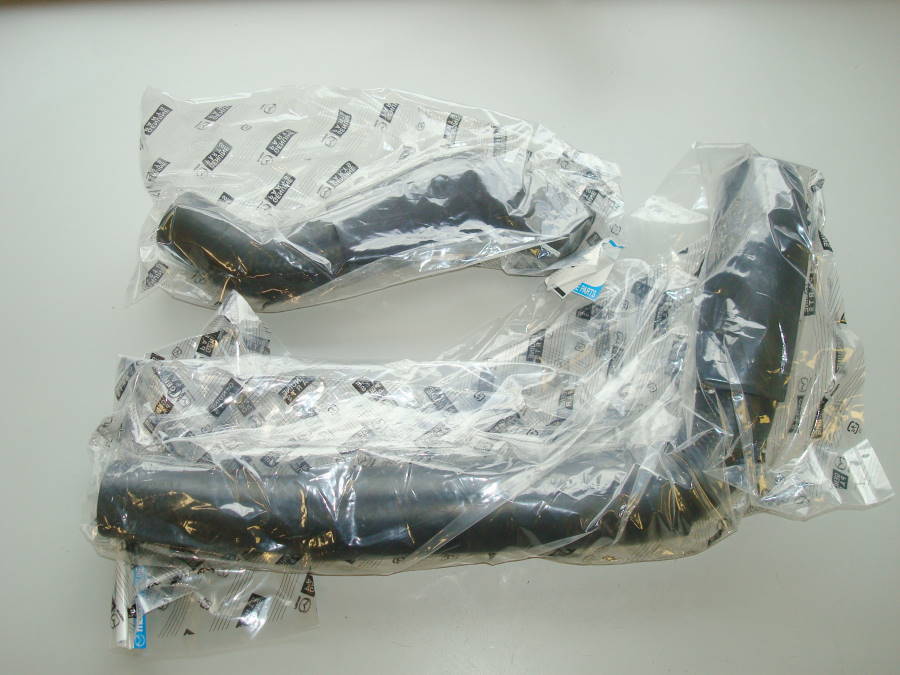

Radiator	AST	Radiator Hoses	OEM Fan Blade & Motor	Downpipe

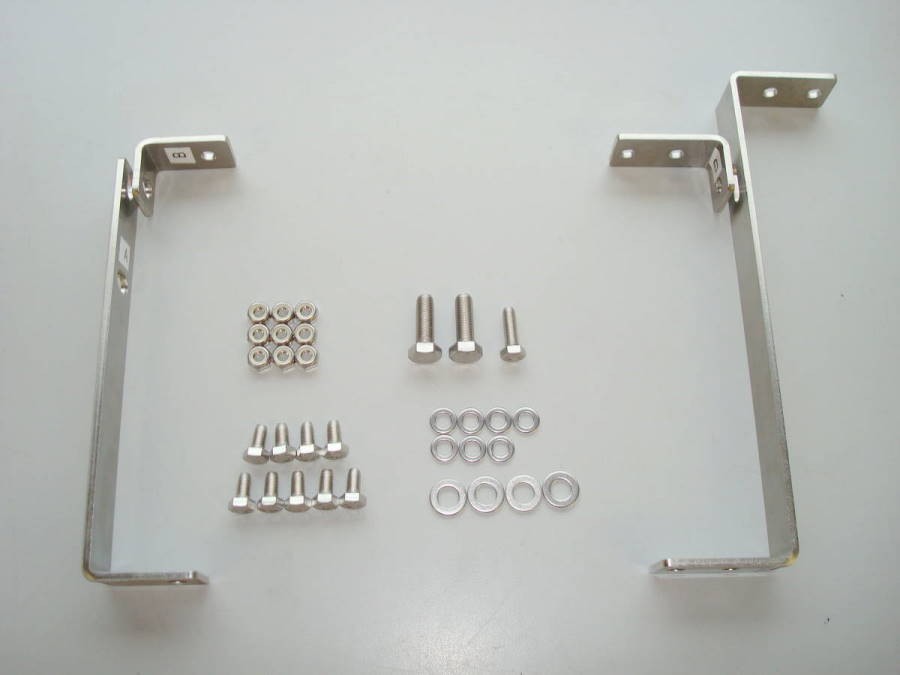

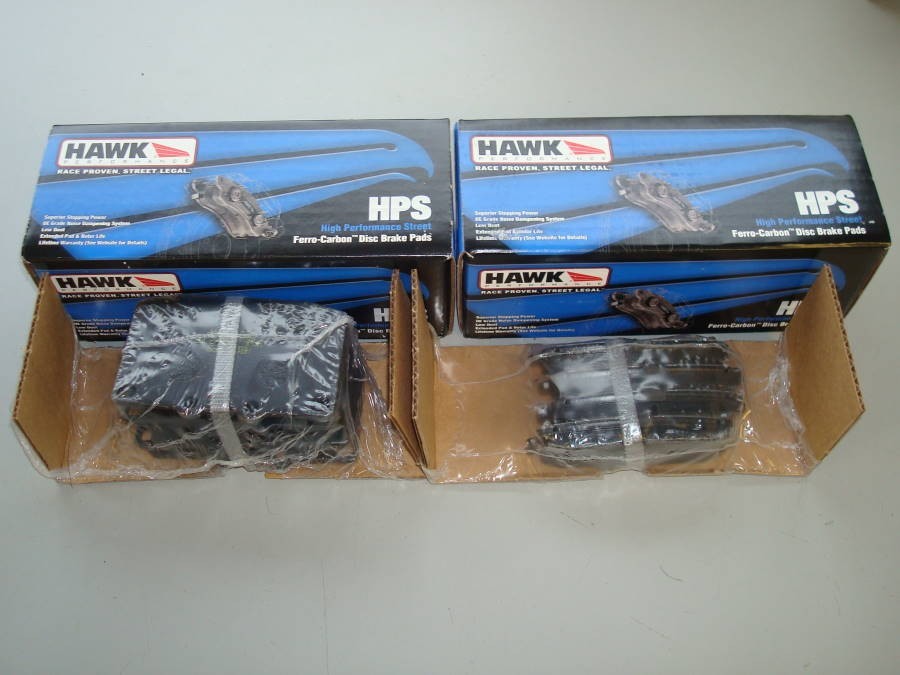

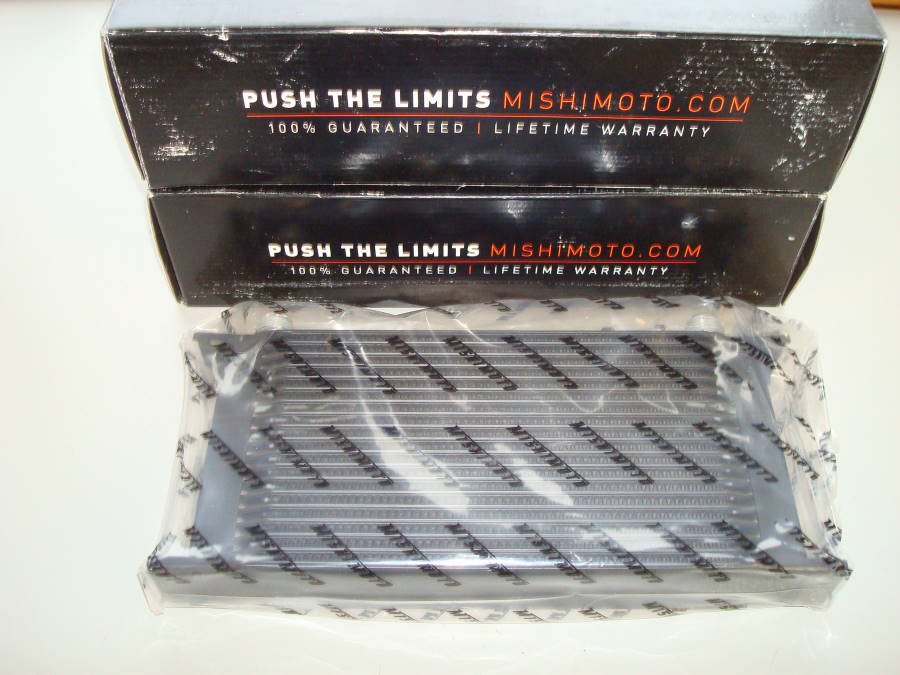

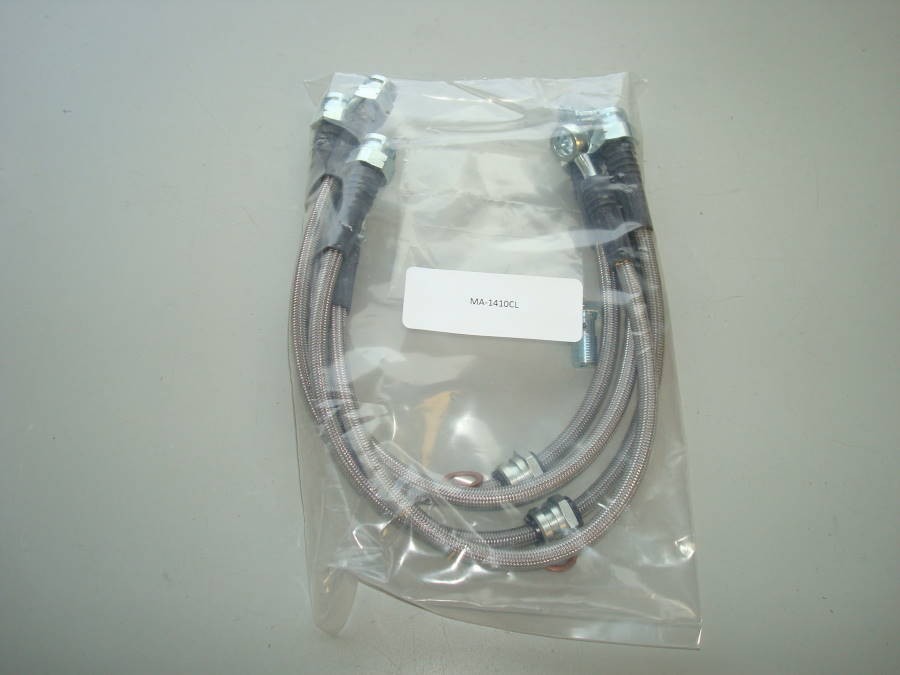

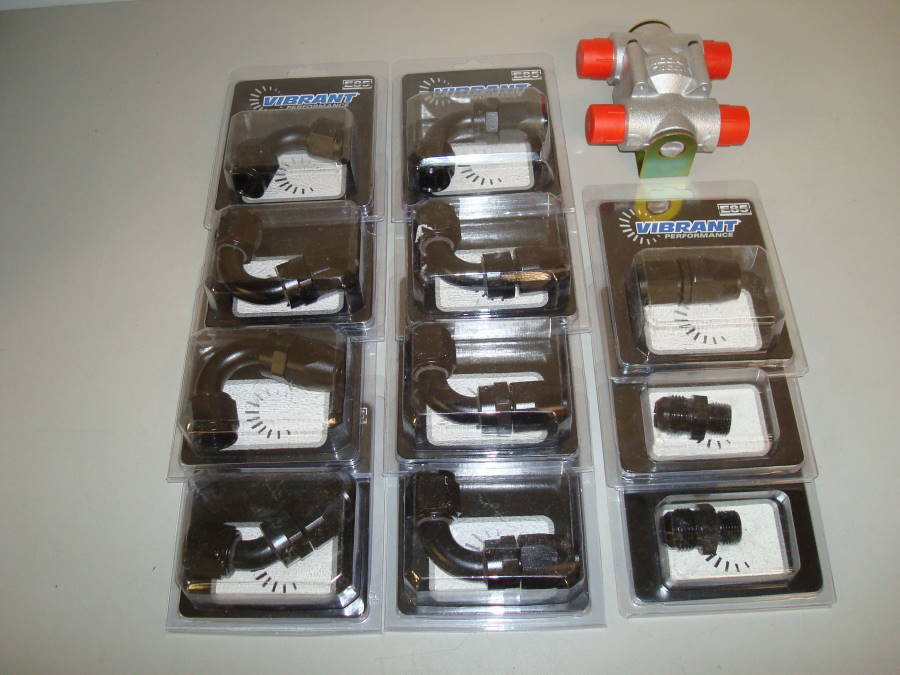

Oil Coolers	Oil Cooler Brackets	Oil Thermostat & Fittings	Brake Pads	SS Brake Lines

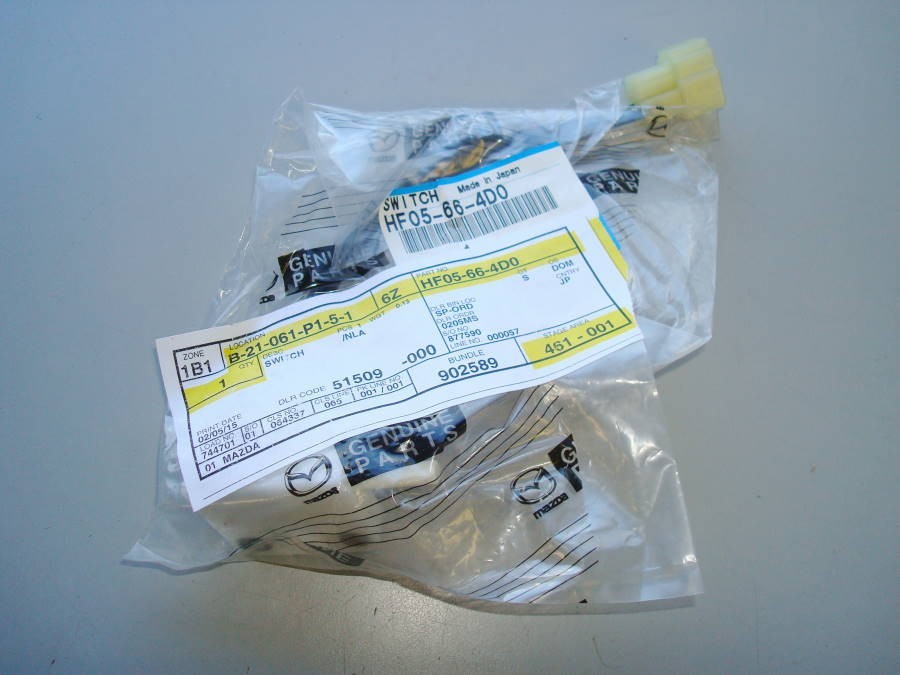

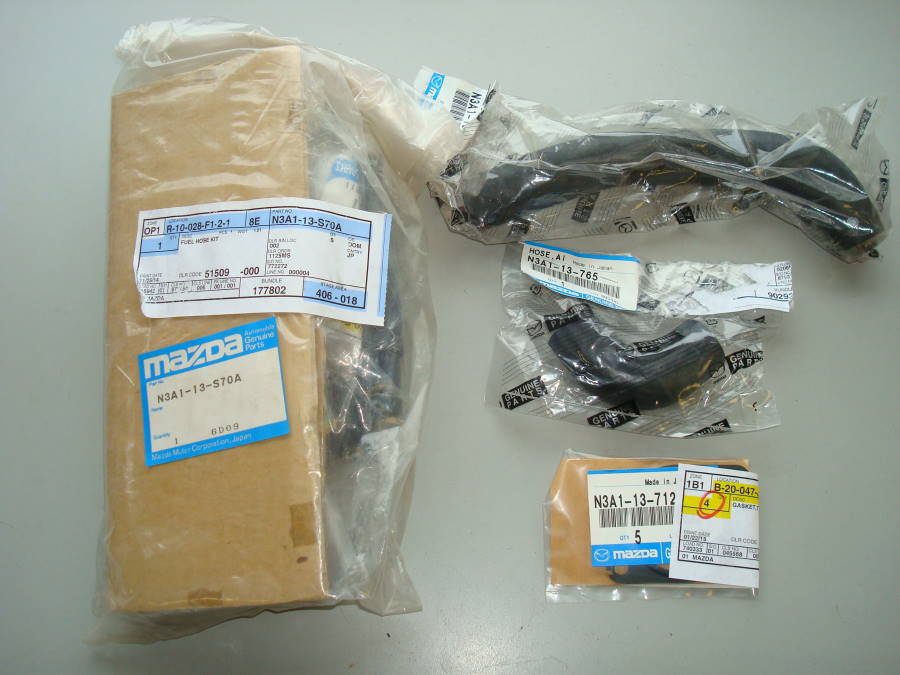

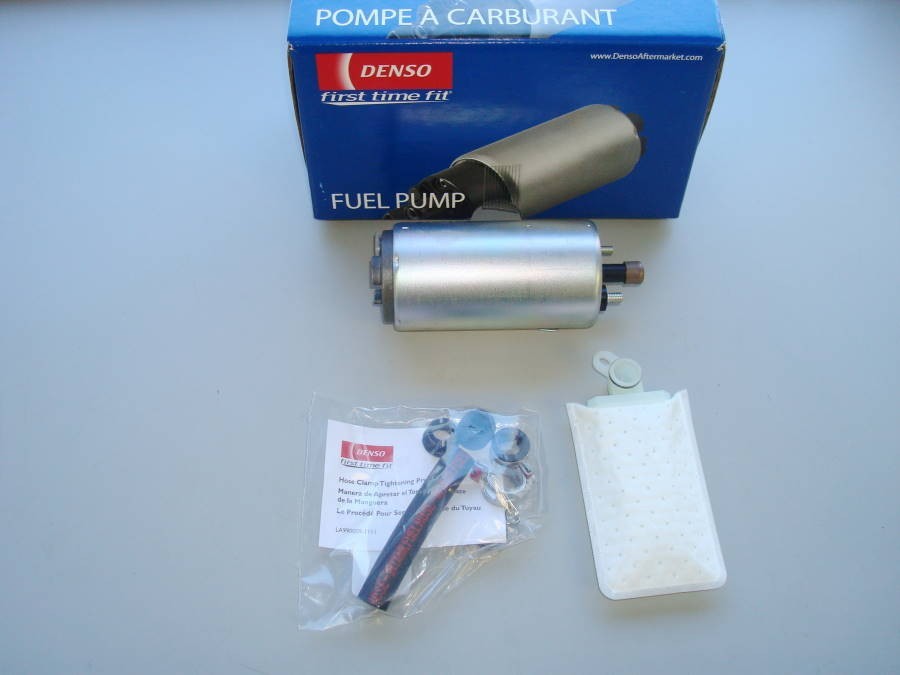

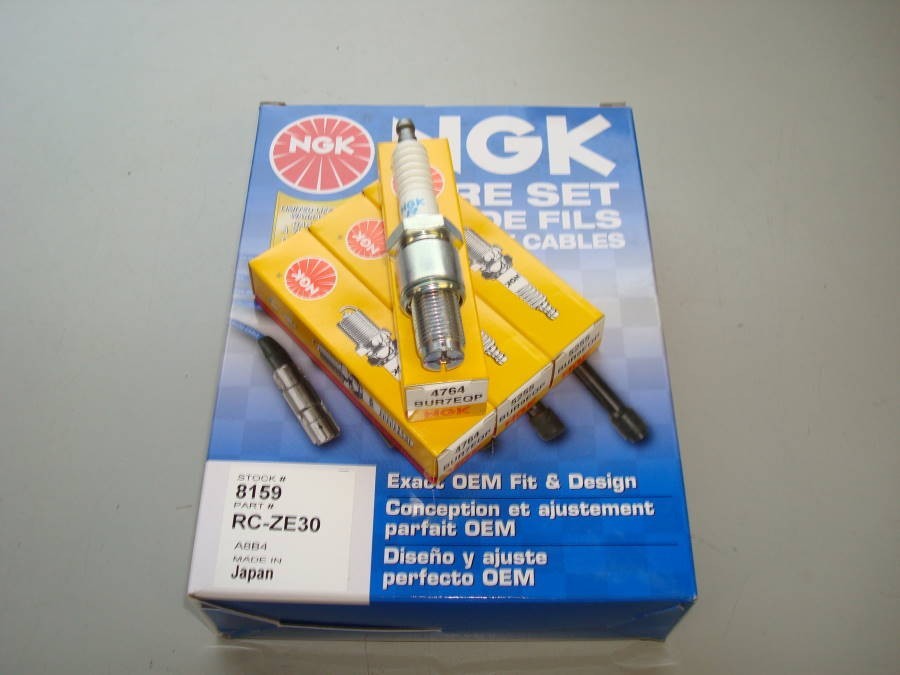

SS Brake Lines	Plugs & Wires	Fuel Pump	OEM Clutch Switch	OEM Parts

Photographs of Parts Installed

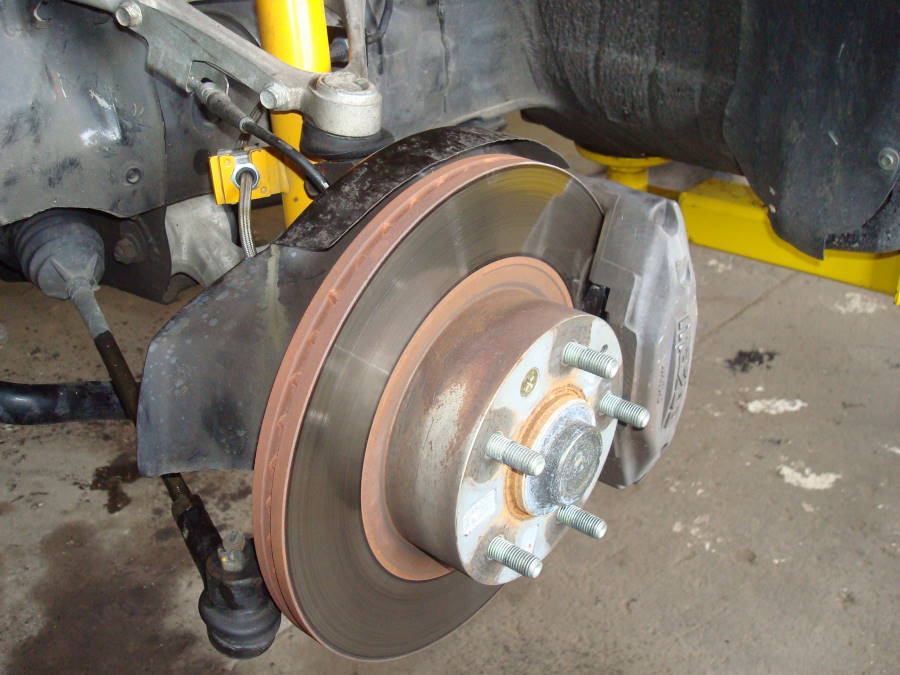

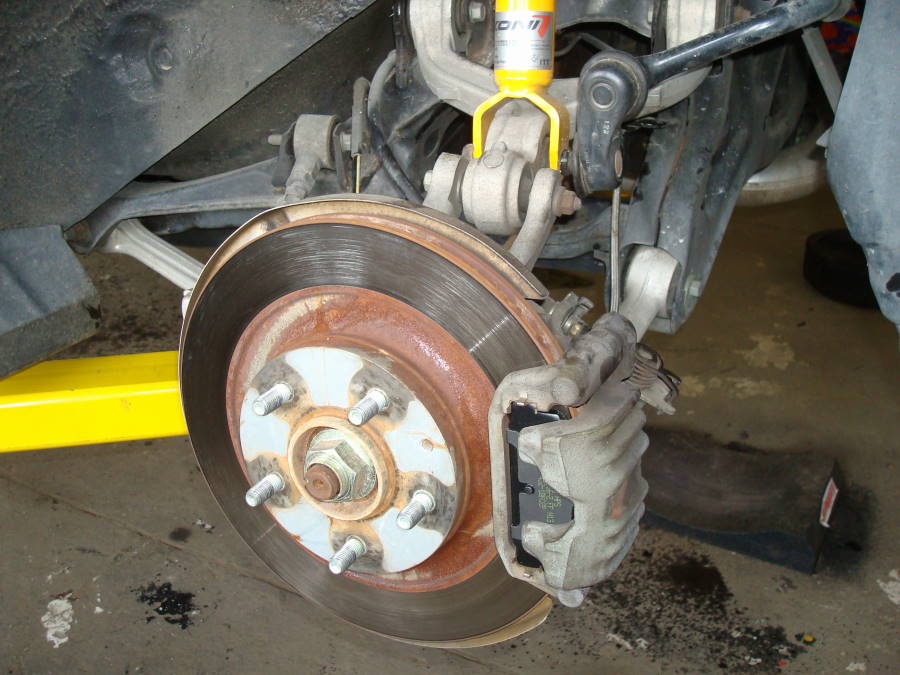

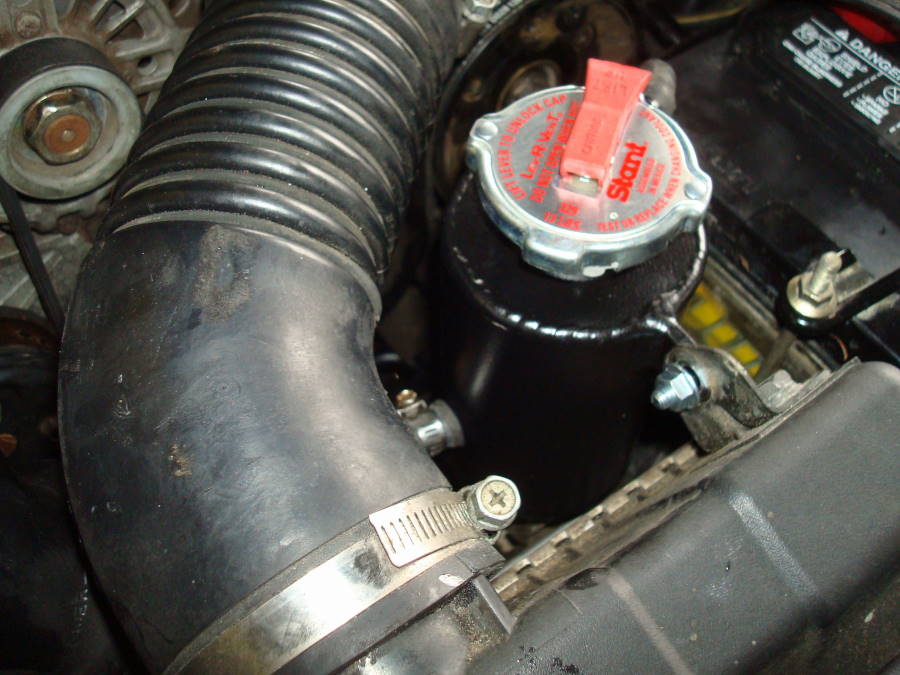

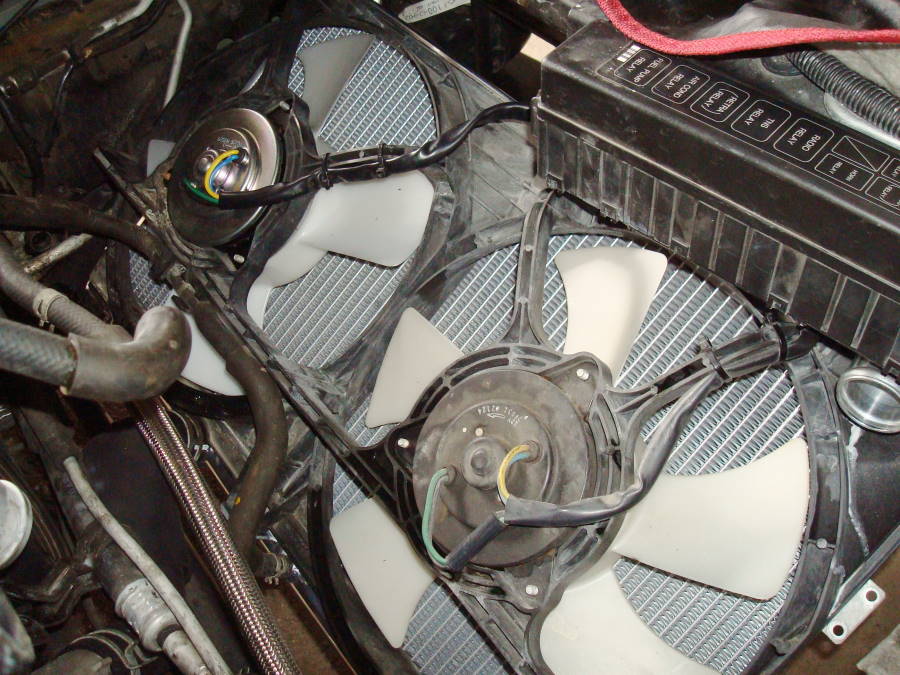

Front Brake Pads & Lines	Rear Brake Pads & Lines	Radiator	AST

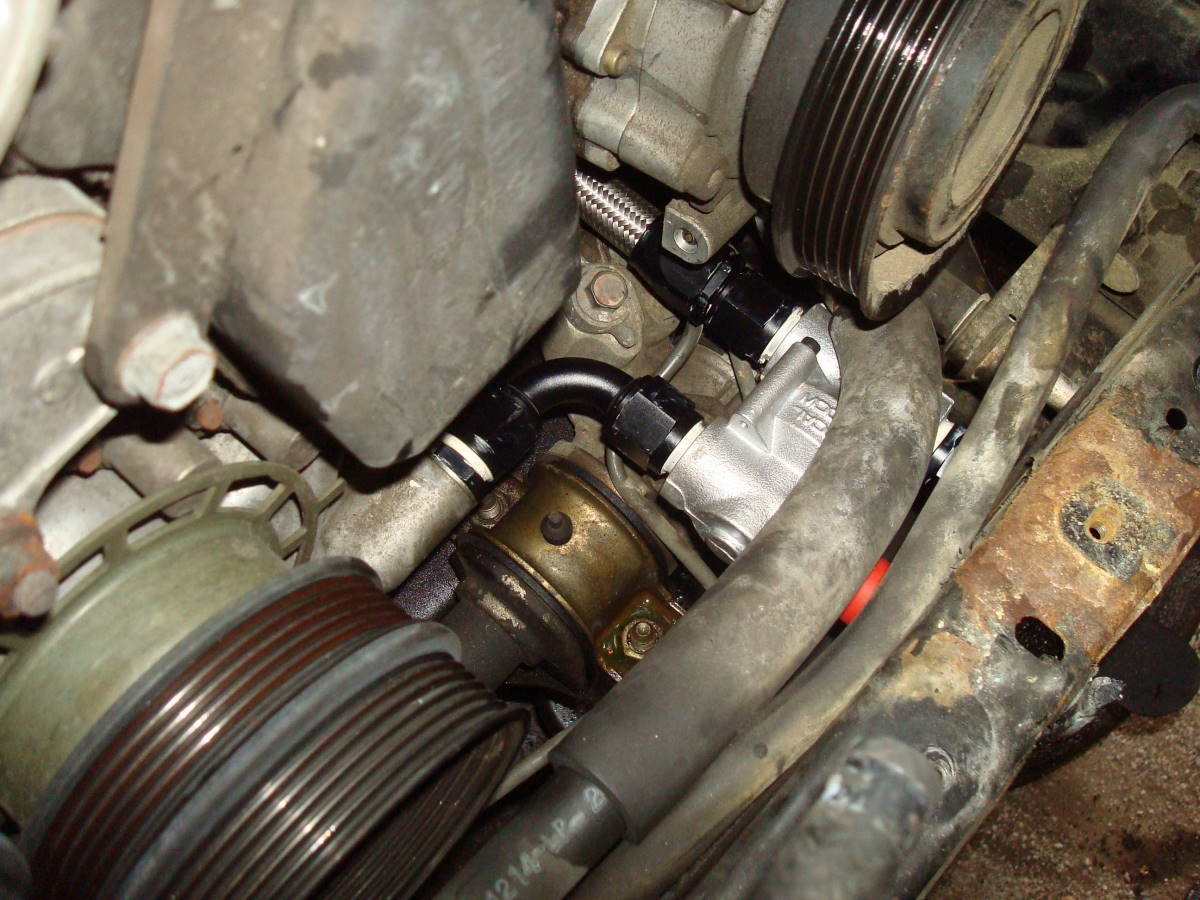

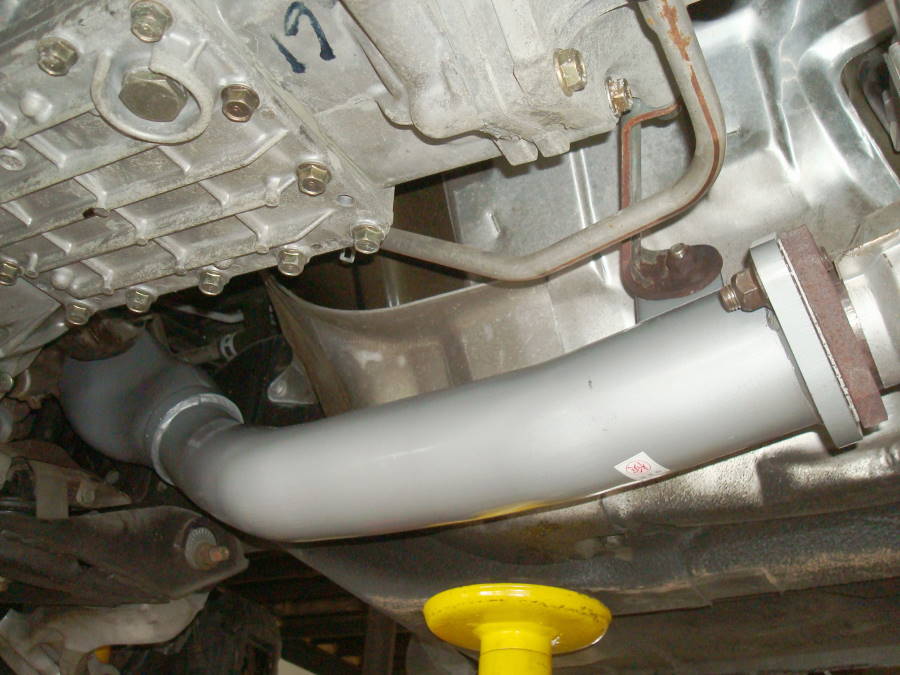

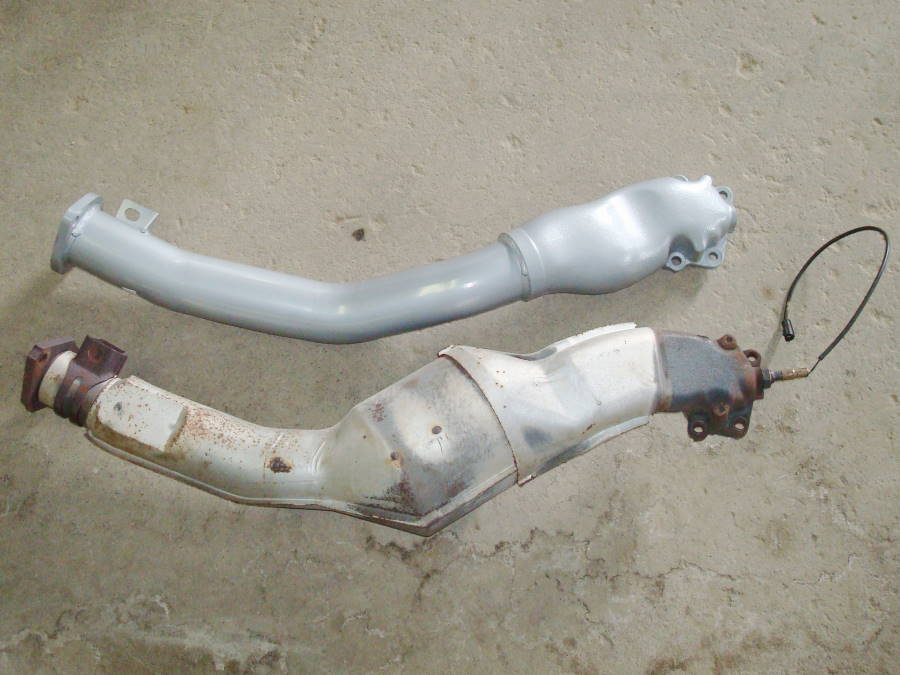

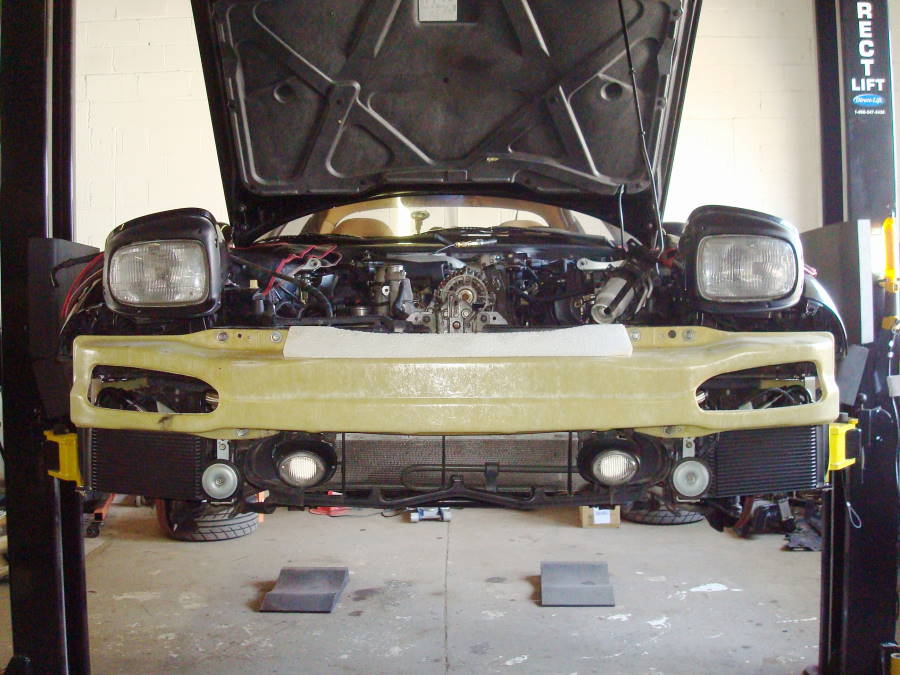

Oil Coolers	Oil Thermostat	Downpipe Comparison	Downpipe

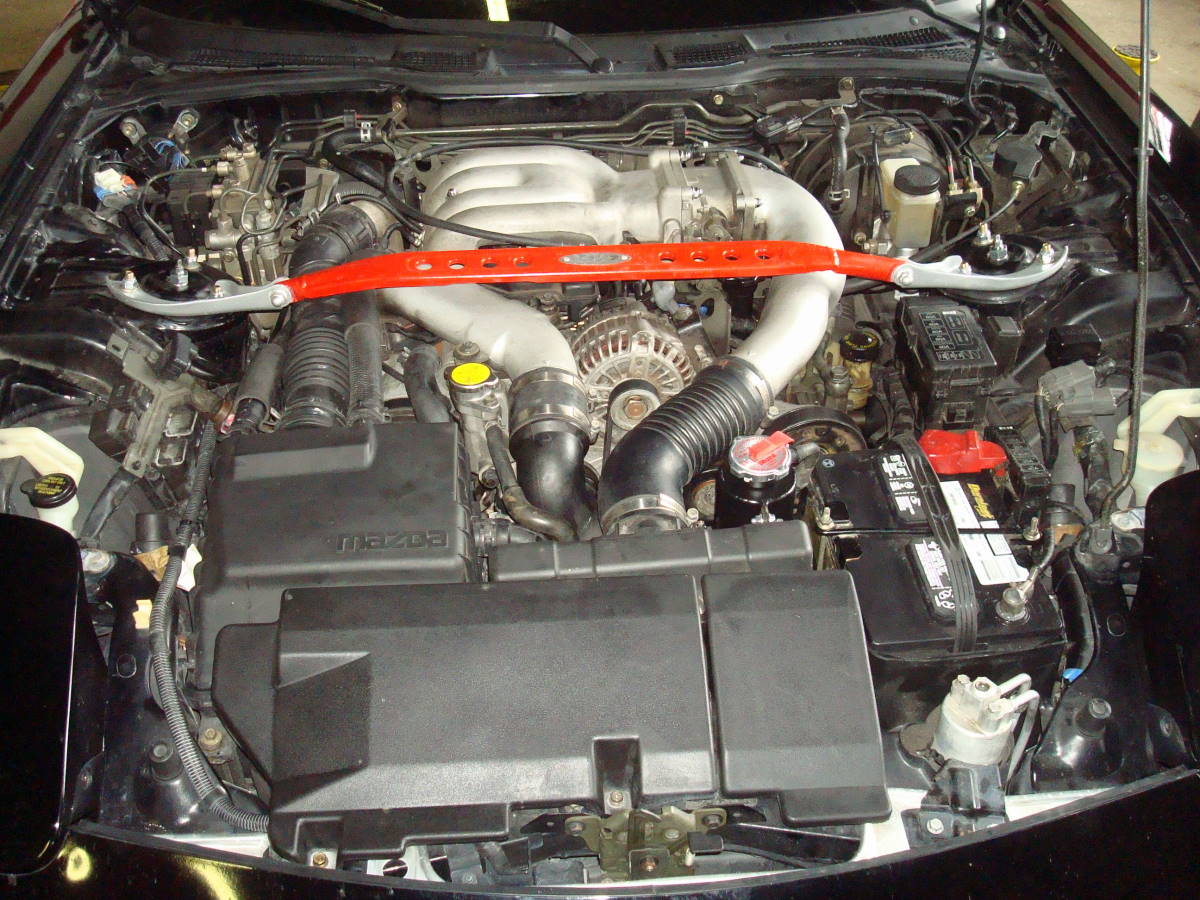

Final Engine Bay Photographs February 2015

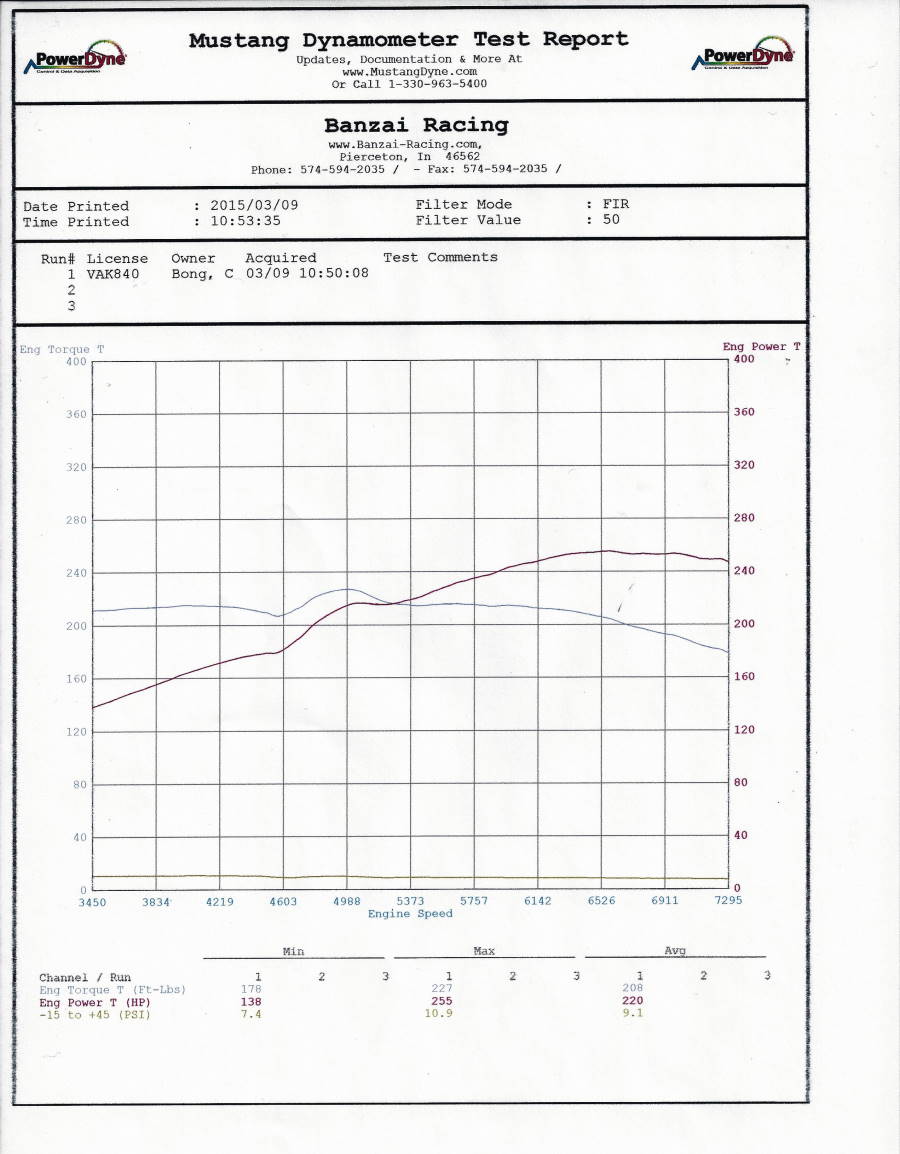

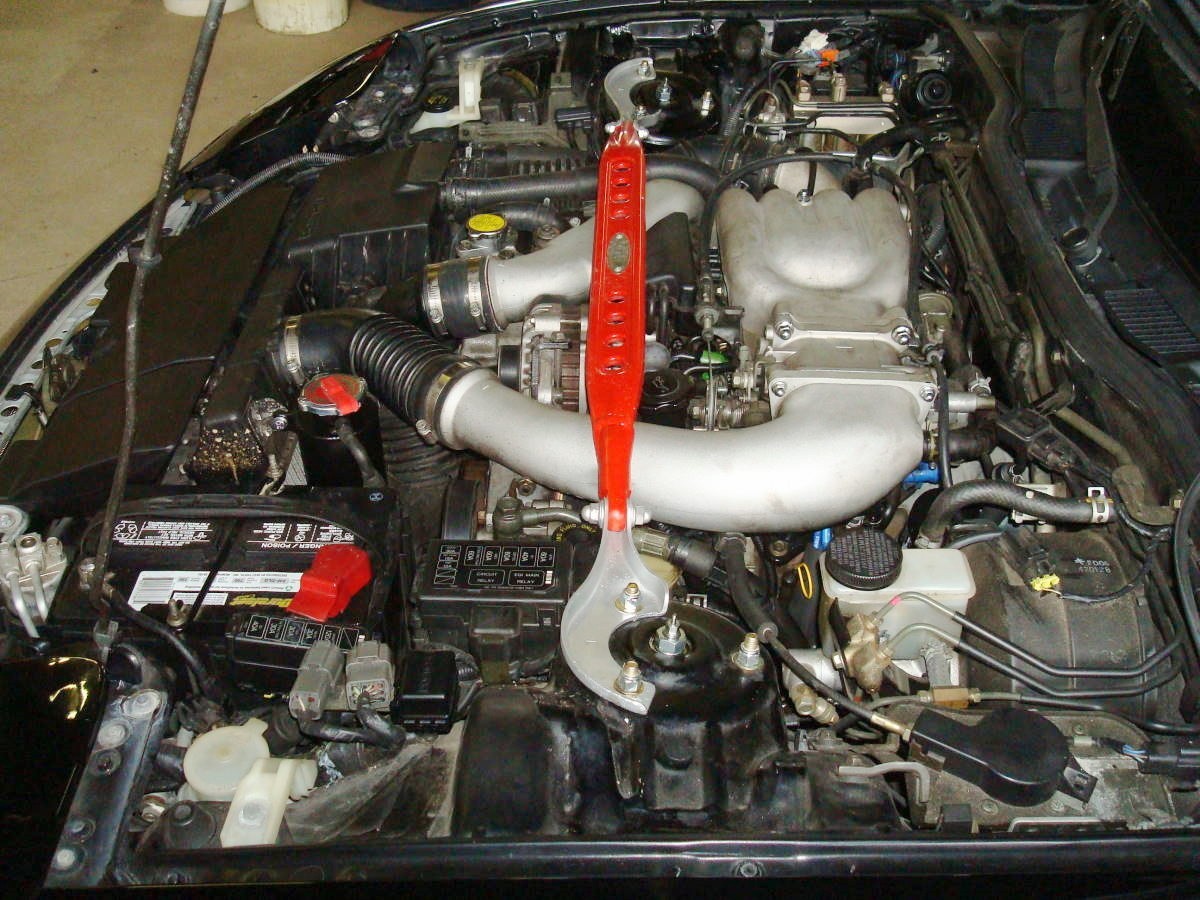

Passenger Side View	Front View	Driver Side View	Dyno Sheet

Stage 2: OD 37415; List of parts & work performed:

• HKS Hipermax IV SP Coilovers
• ST Anti-Sway Bars
• Clutch Master & Slave Cylinder
• SS Clutch Line

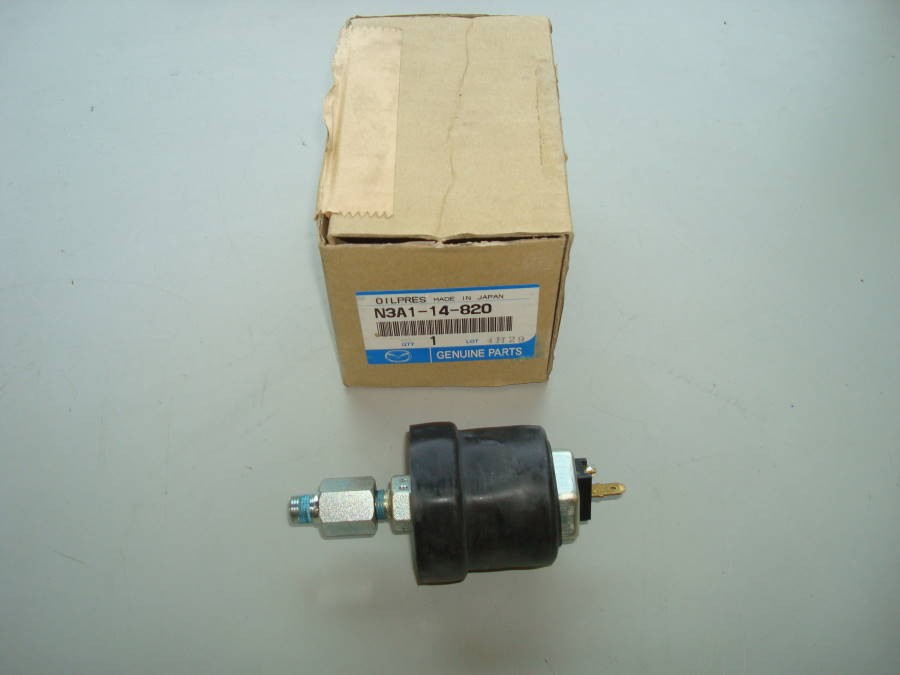

• OEM Oil Pressure Sensor
• Oil & Filter Change
• NGK Platinum Spark Plugs (BUR9EQP x 4)

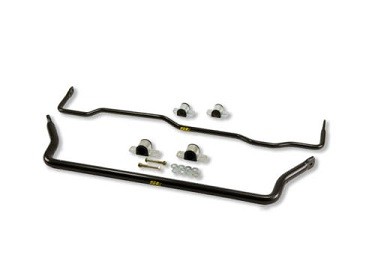

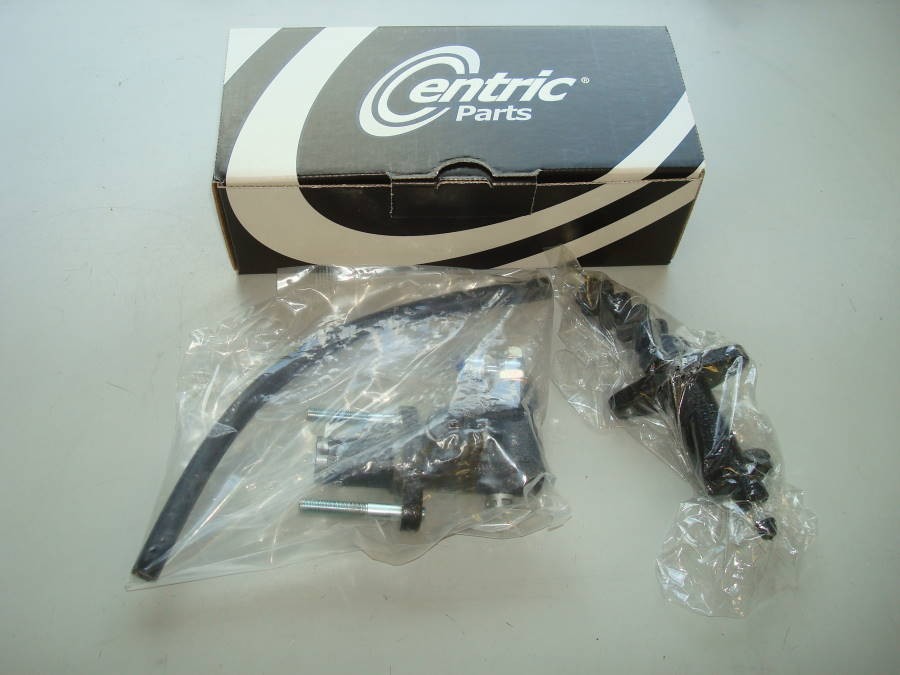

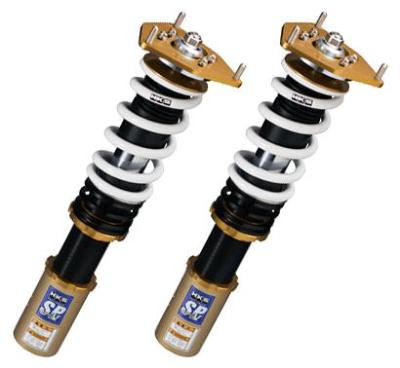

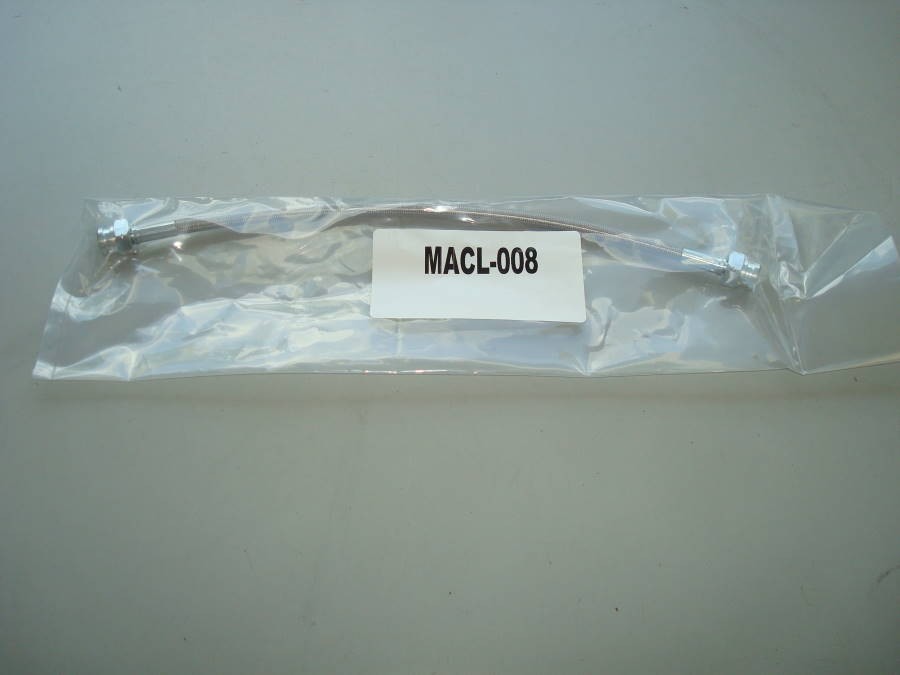

Coilovers	Anti-Sway Bars	Clutch Hydraulic Parts	SS Clutch Line	OEM Part

Photographs of Parts Installed

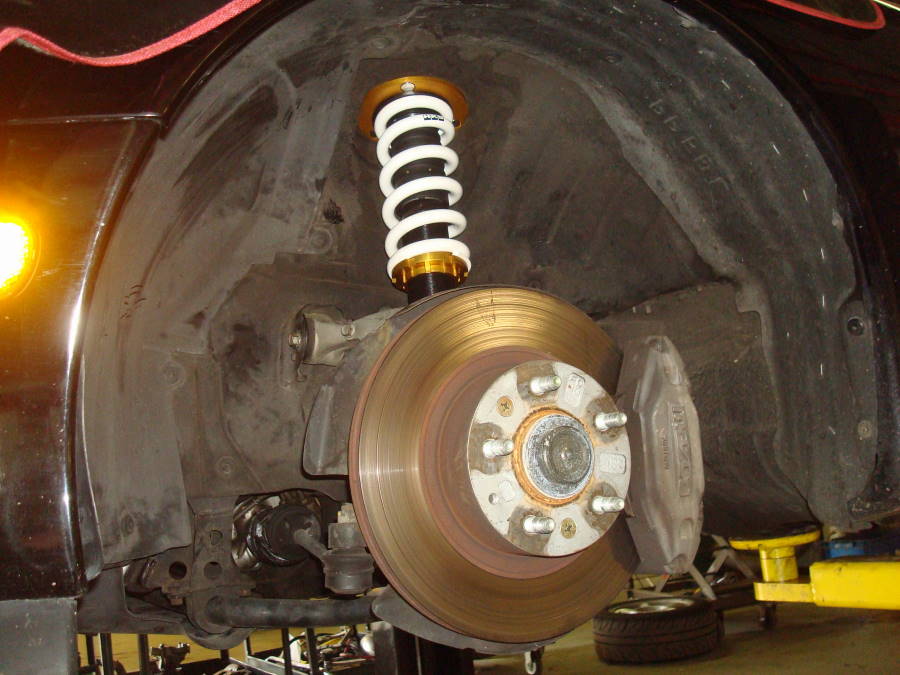

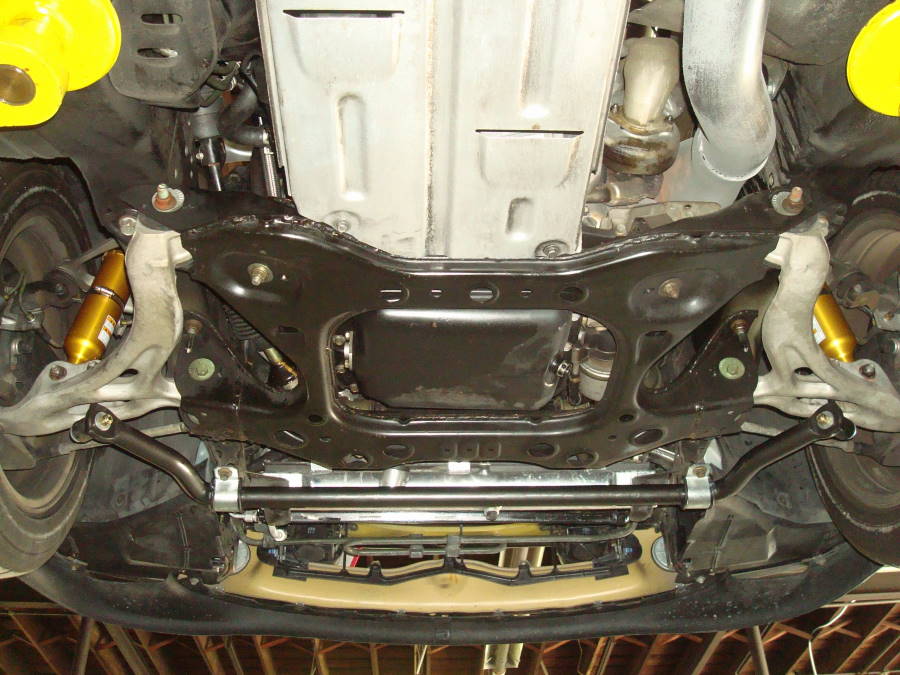

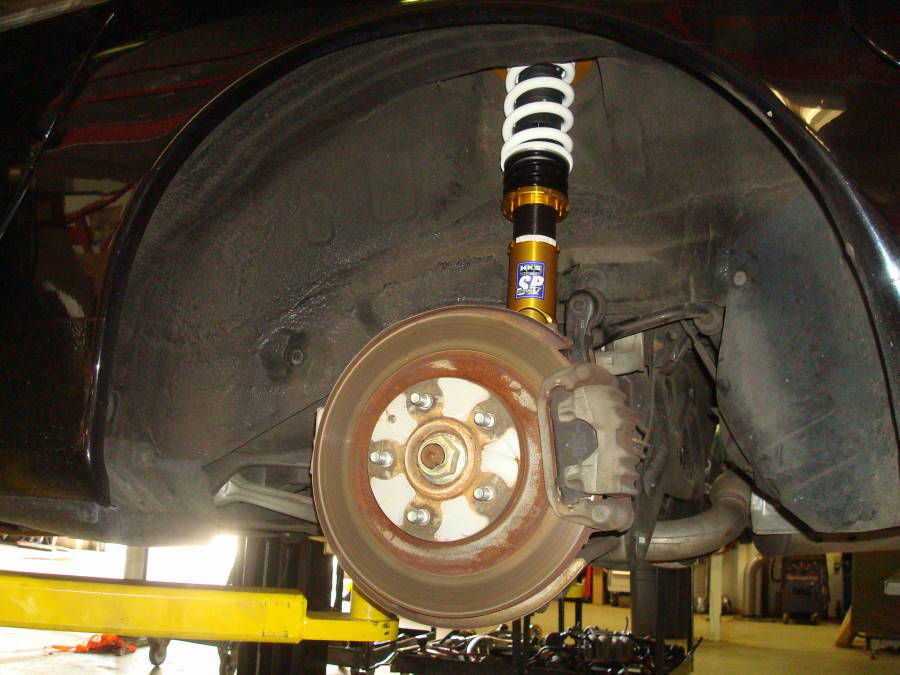

Front Coilovers	Rear Coilovers	Front Anti-Sway Bar

Click on images for larger view
