Paul's RX-7 13B-REW Engine Installation & Modifications

Photographs of Rebuilt Engine taken before & during installation

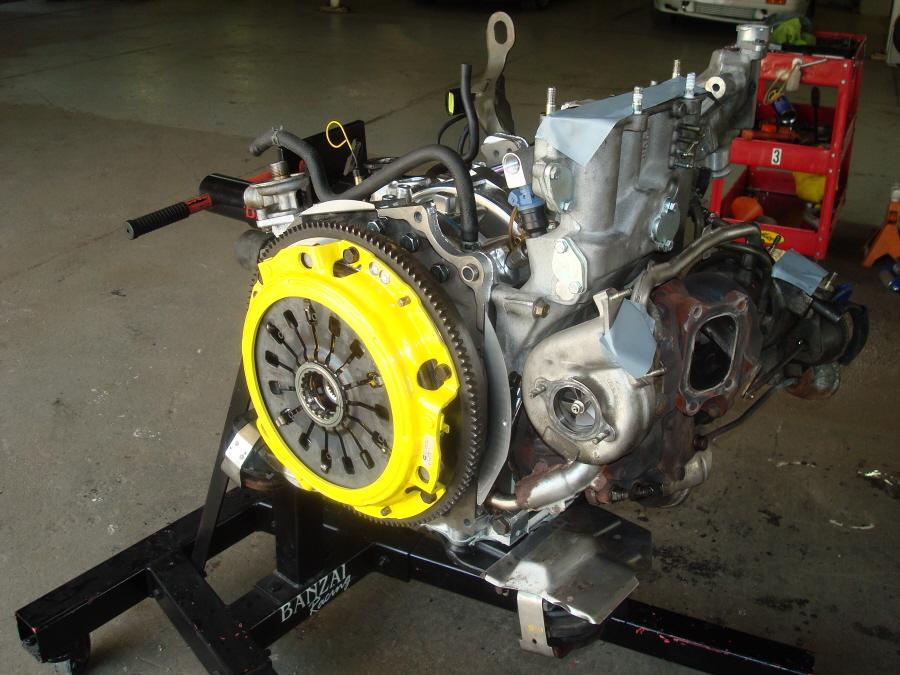

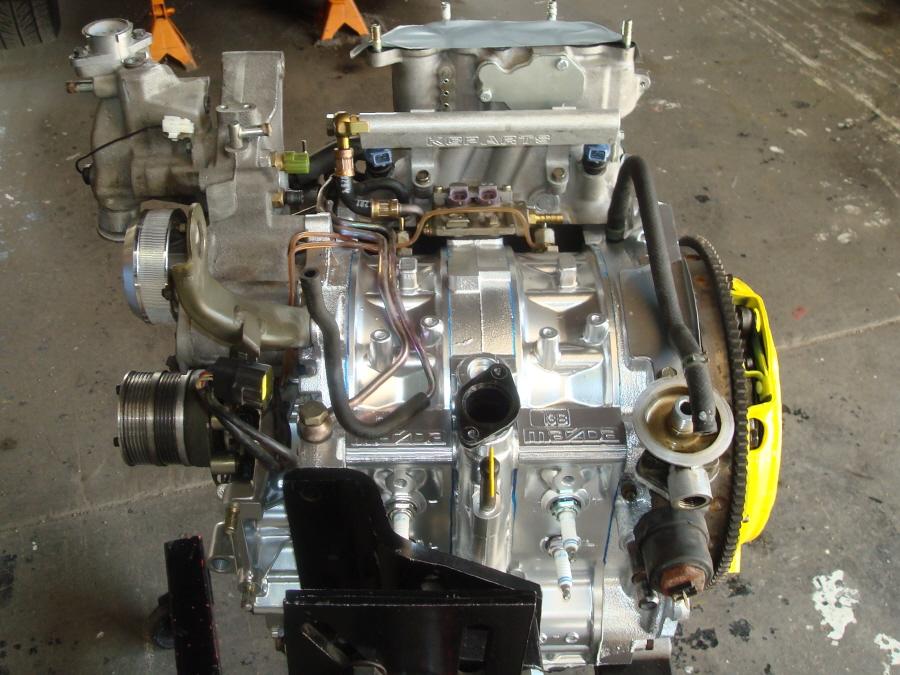

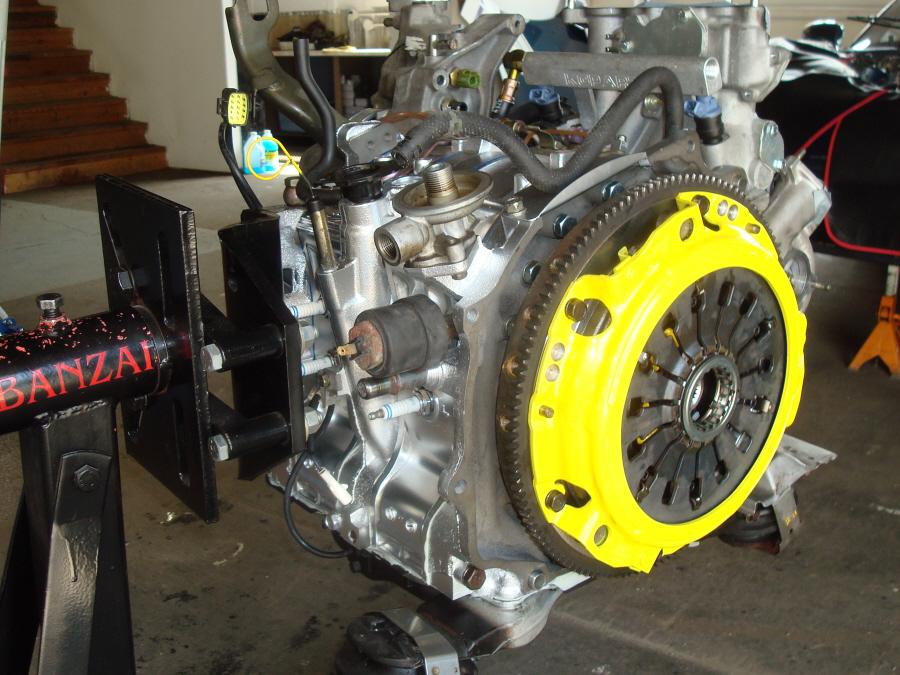

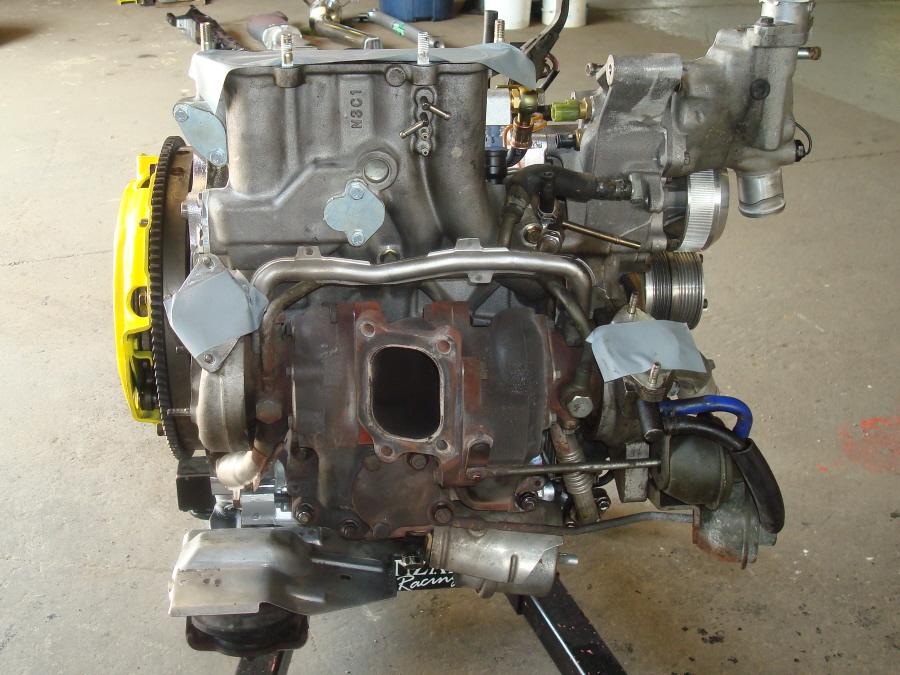

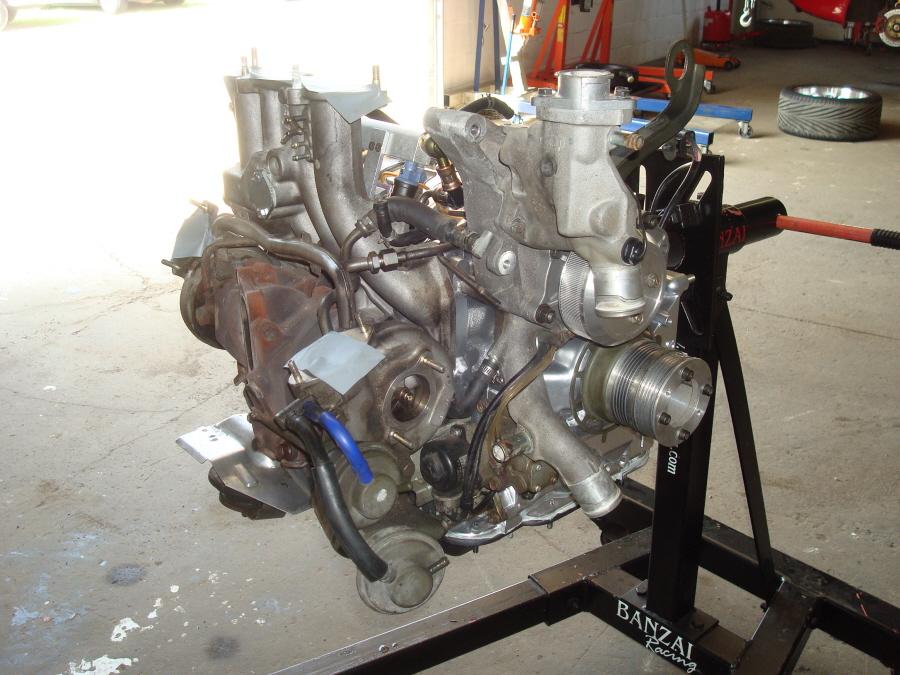

Engine Long Block #1	Engine Long Block #2	Engine Long Block #3	Engine Long Block #4	Engine Long Block #5

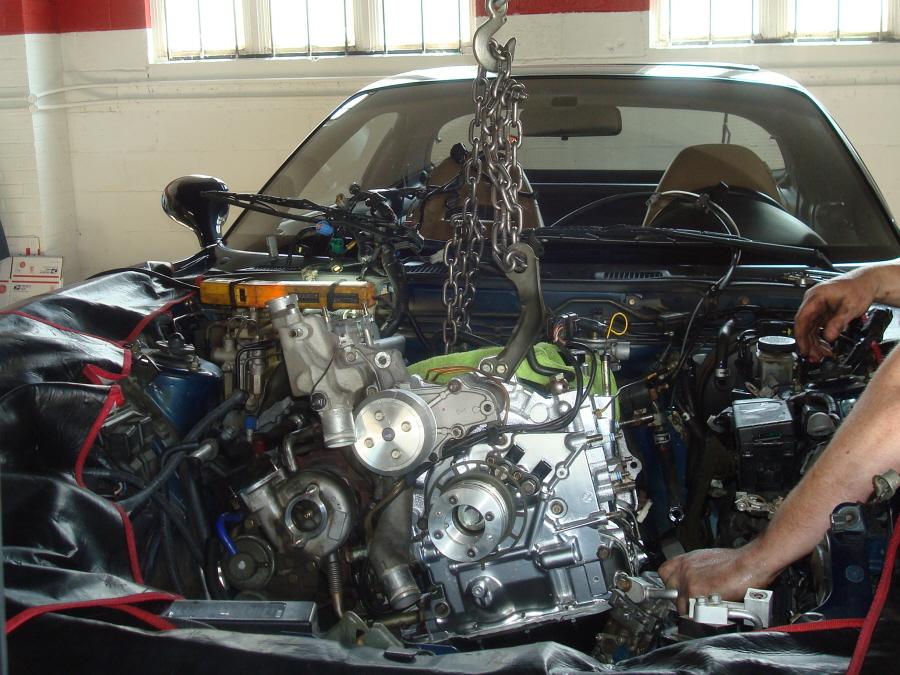

Photographs taken during engine installation

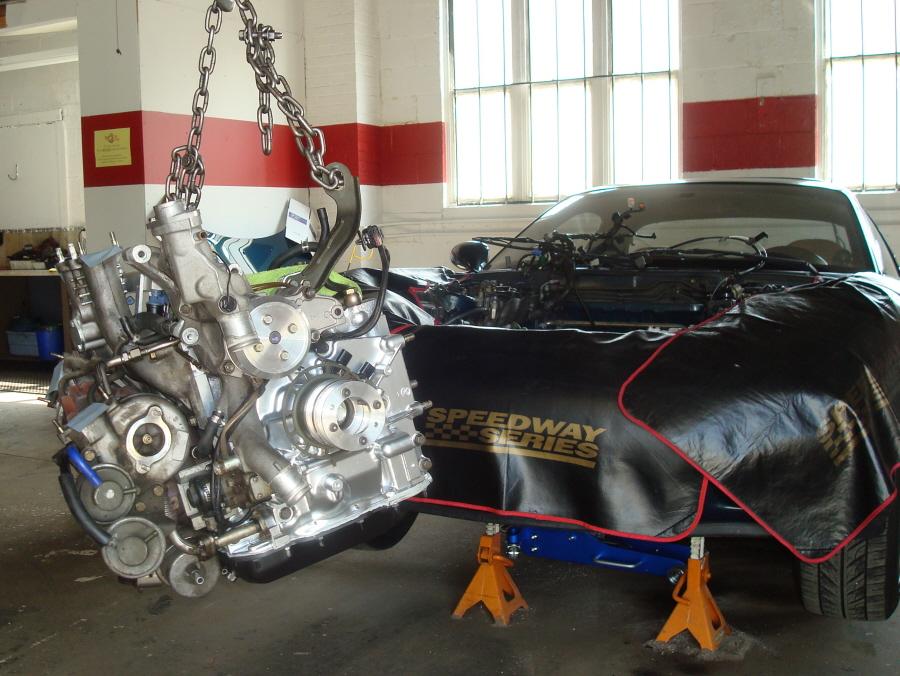

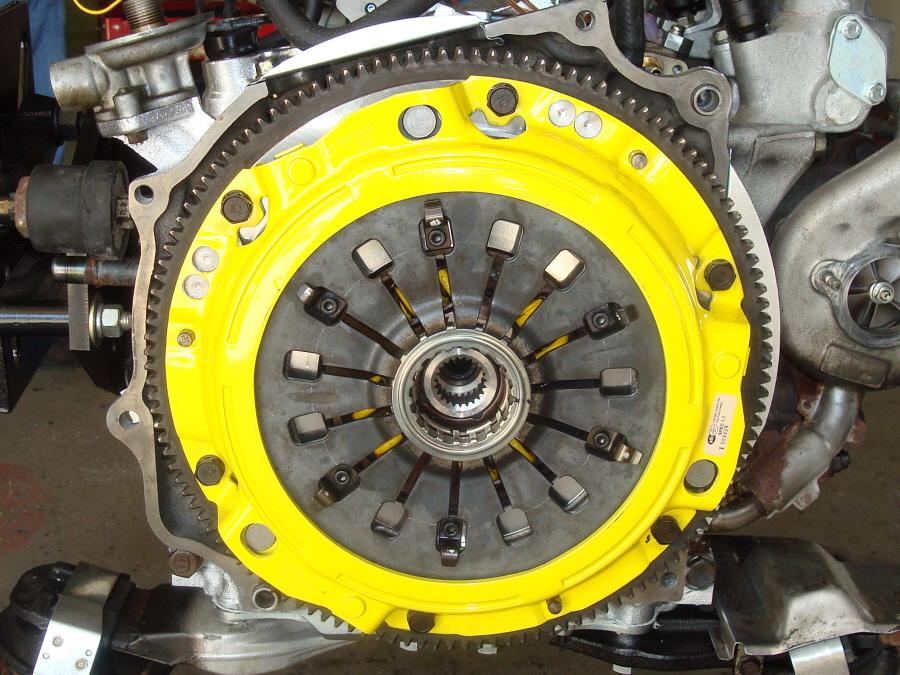

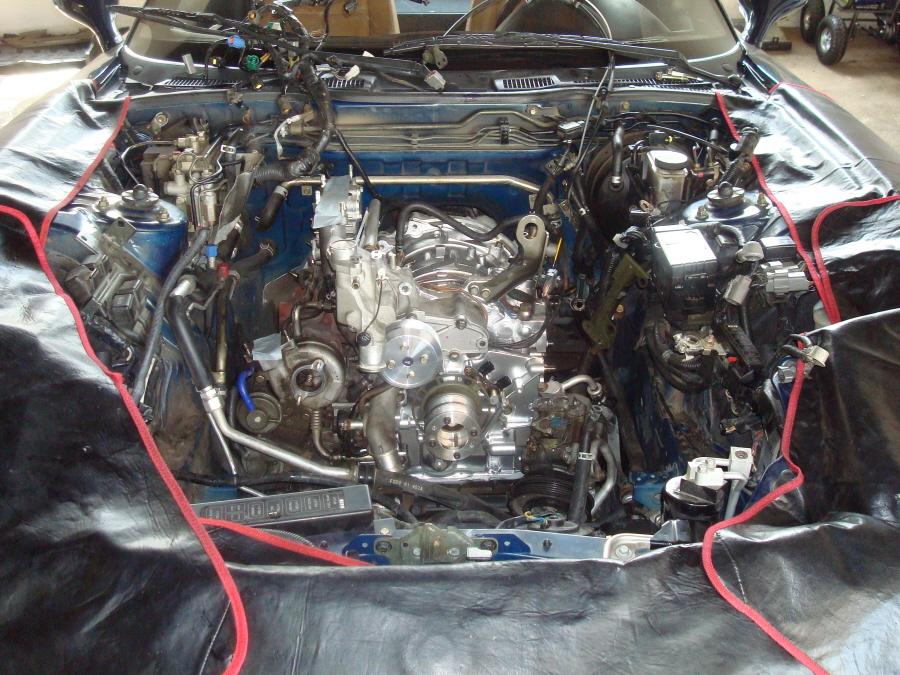

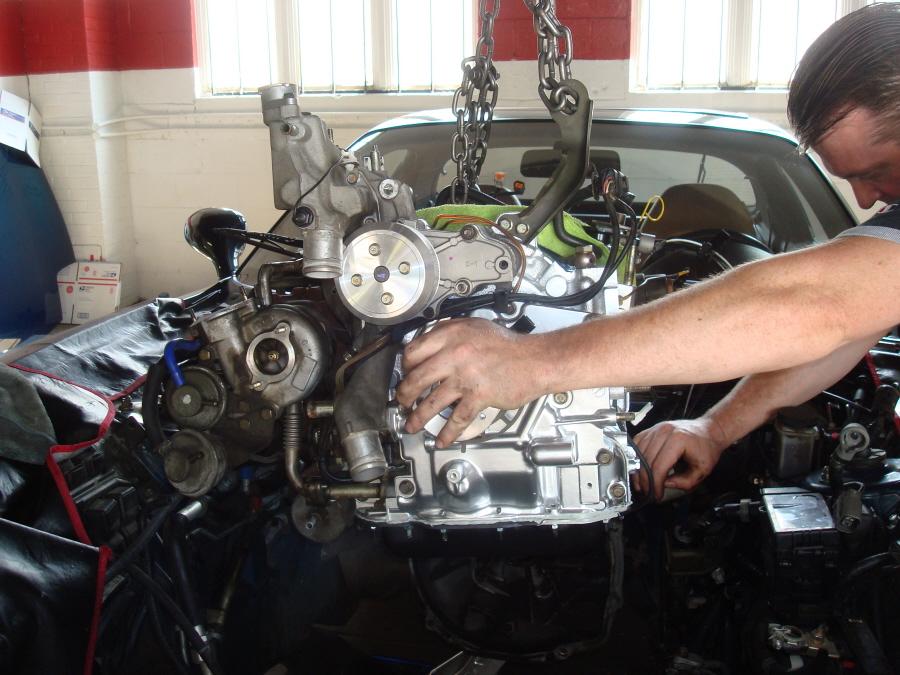

Clutch	Installation #1	Installation #2	Installation #3	Installation #4

List of upgraded components & modifications;

• Banzai Racing Rebuilt & Streetported Engine
• Banzai Racing Oil Pan Brace Kit
• OEM FD Oil Pump
• ACT XTSS Clutch Kit
• Vacuum Line Simplification w/ Silicone Hose
• Banzai Racing FD Block-Off Plates Kit
• Resurfaced Flywheel
• Koyo N-Flow Radiator
• OEM Radiator Hoses
• OEM Waterpump
• OEM Low Coolant Sensor
• Standt Thermostat
• Pettit Racing Cool Charge III SMIC Kit
• Compression Tube
• Air Separation Tank (AST)
• AM Pulley Kit
• Walbro Fuel Pump

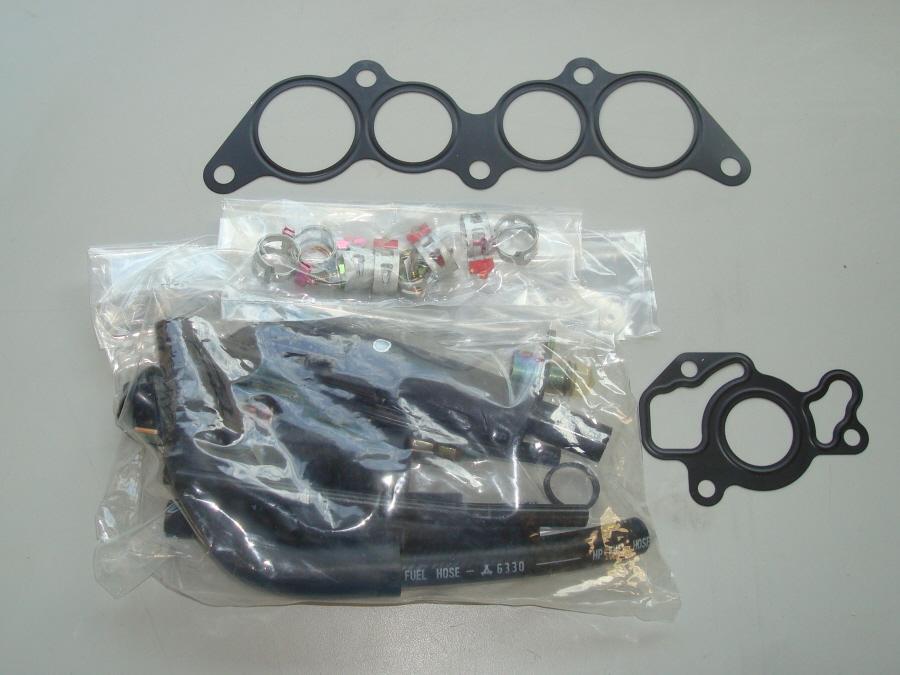

• OEM Fuel Hose Kit
• Banzai Racing Fuel System w/1600cc Secondary Injectors
• Cleaned and Balanced Primary Injectors
• Fuel Filter
• APEXi Power FC & Commander
• HKS Twinpower & Harness
• NGK Power Cables & Spark Plugs
• Relocated Odyssey Dry Cell Battery
• Koni Sport Shocks
• OEM Shock Mounts
• ST Sportech Springs
• ST Front & Rear Anti-Sway Bars
• Banzai Racing Differential Brace
• Russell SS Brake Lines
• AM Trailing Arms & Toe Links
• Alignment
• R1 Strut Bar

Upgrades & Modifications Photographs

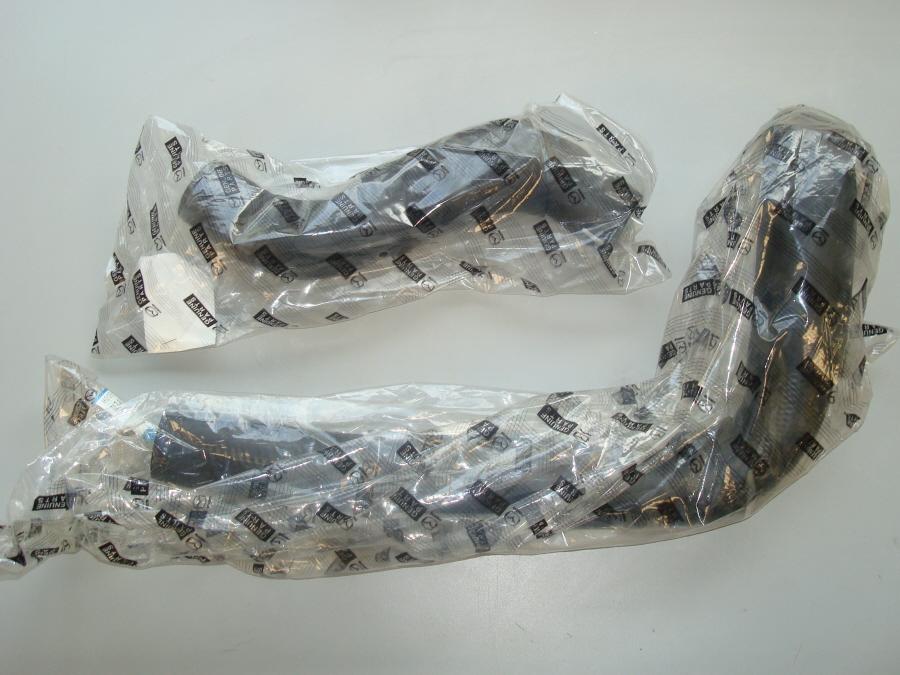

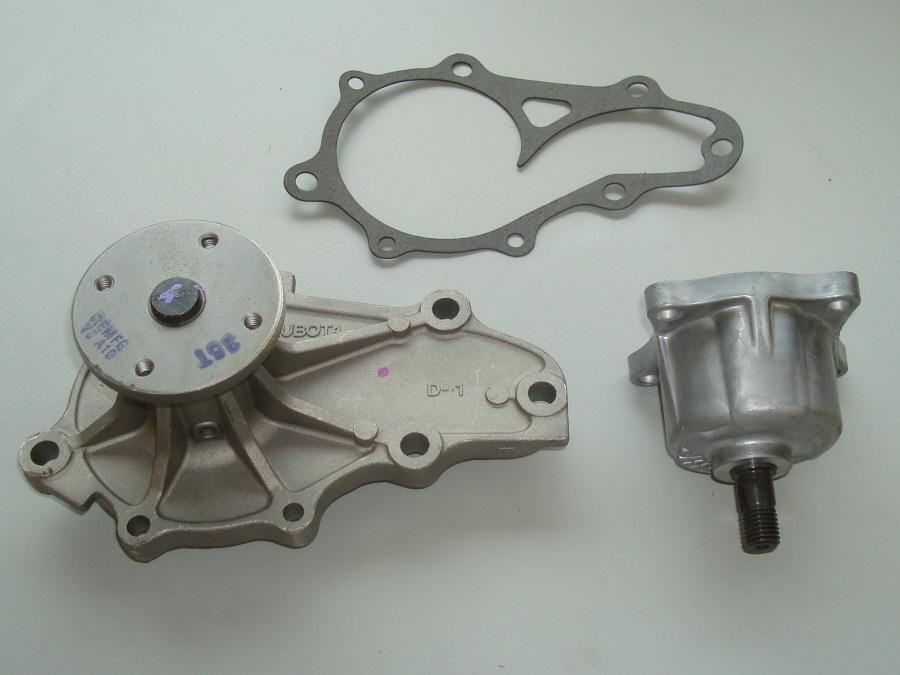

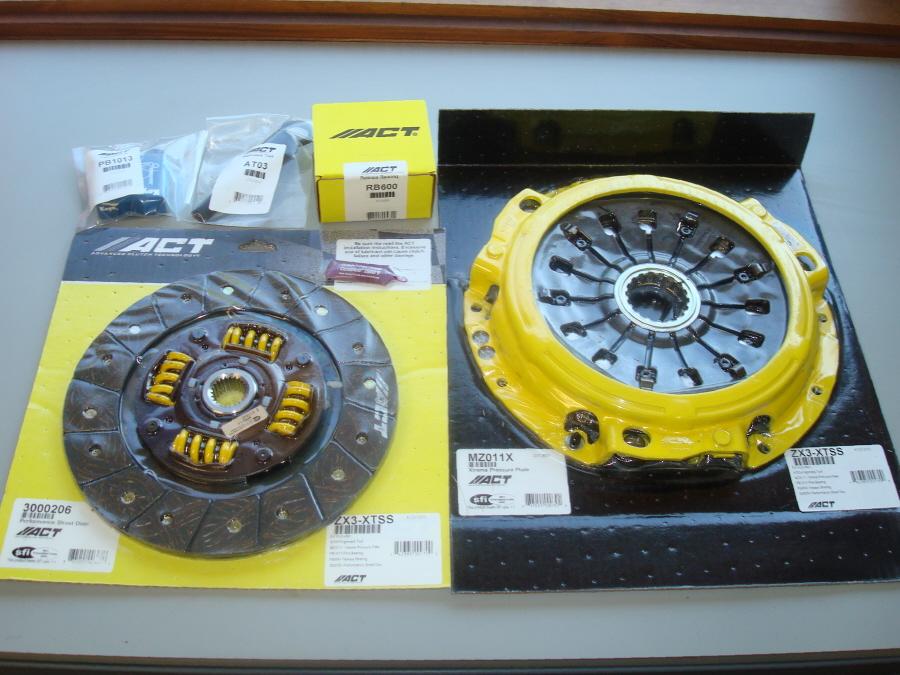

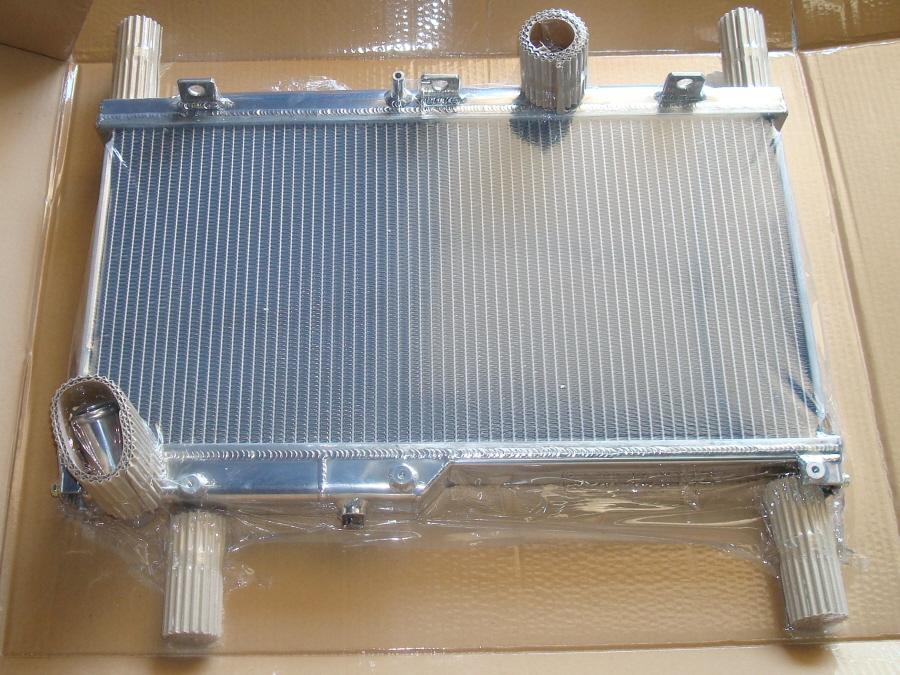

Clutch Kit	Waterpump & Oil Pump	Radiator	Hoses

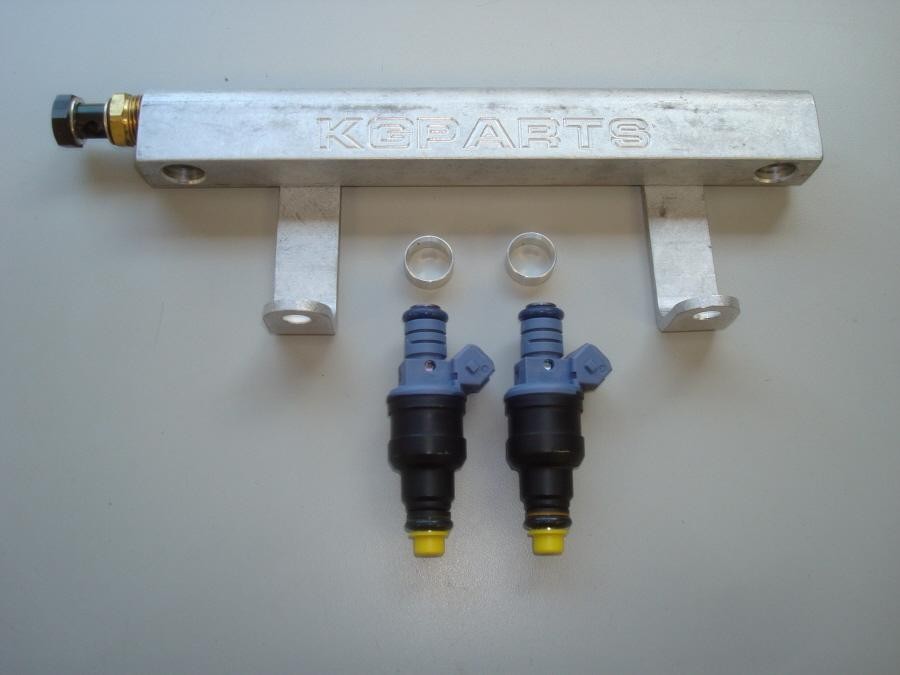

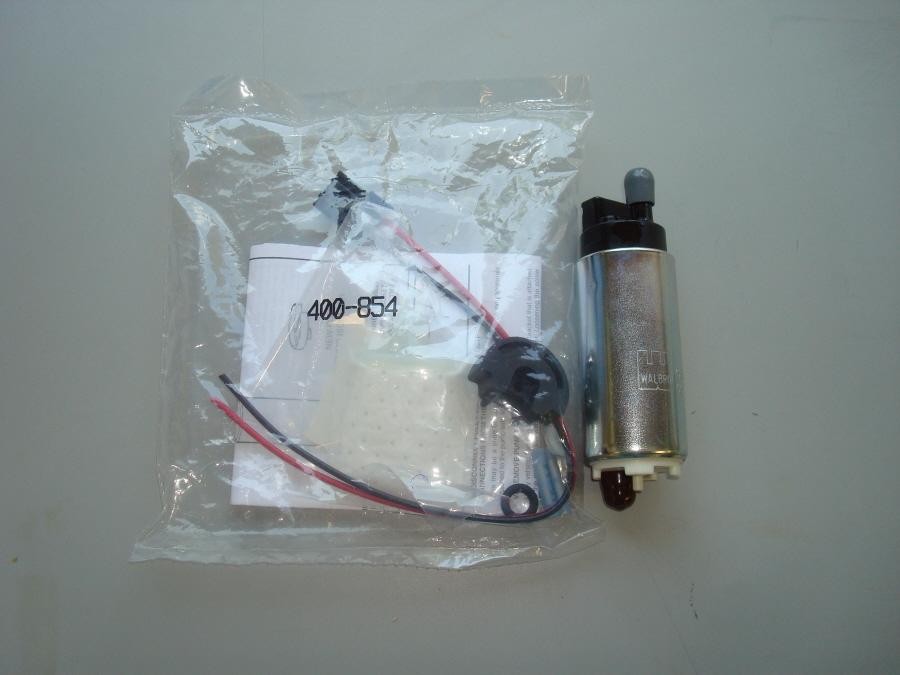

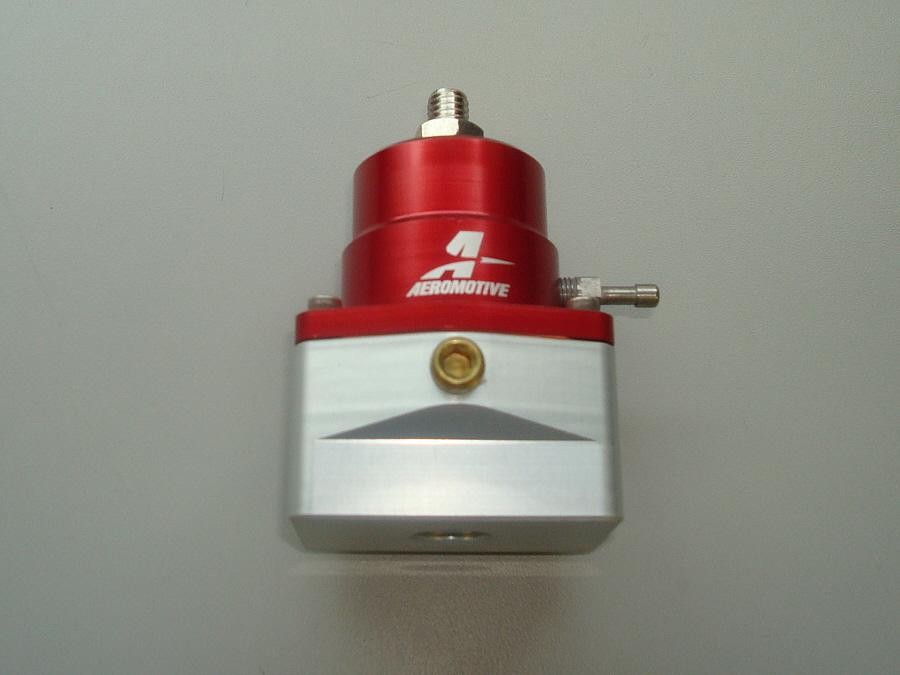

Fuel Pump	Fuel Hose Kit	Injectors & Fuel rail	Fuel Pressure Regulator

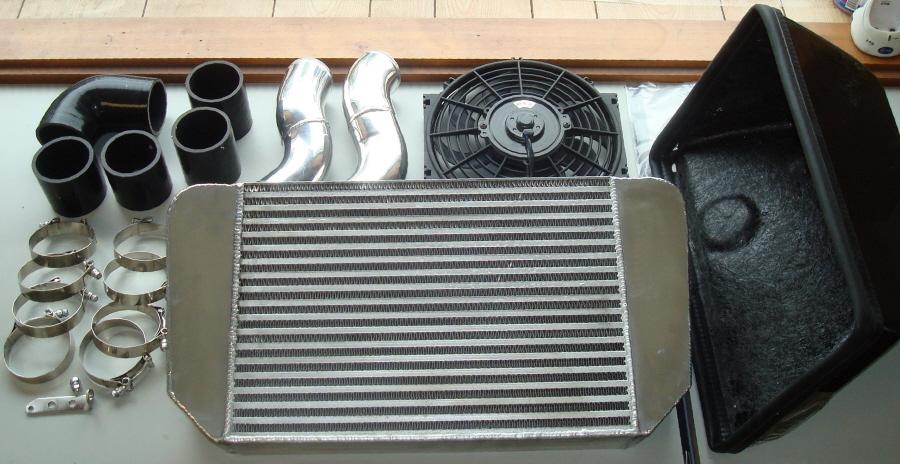

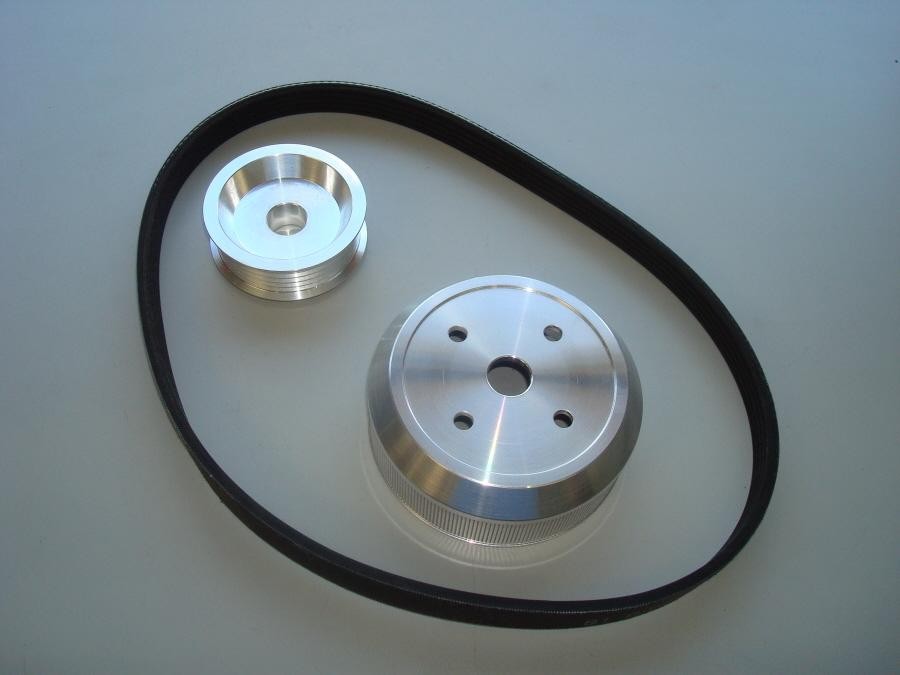

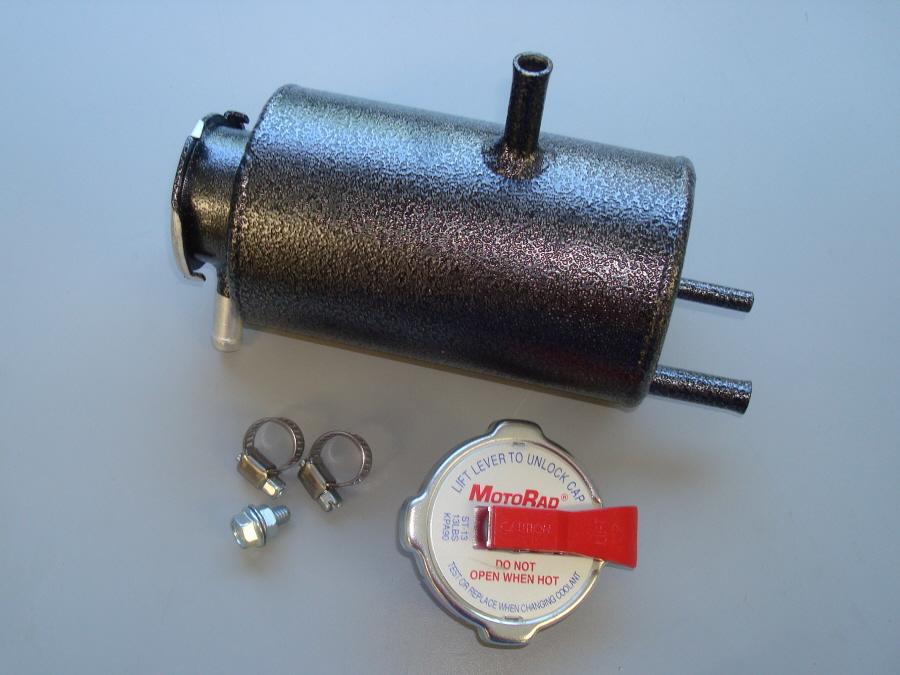

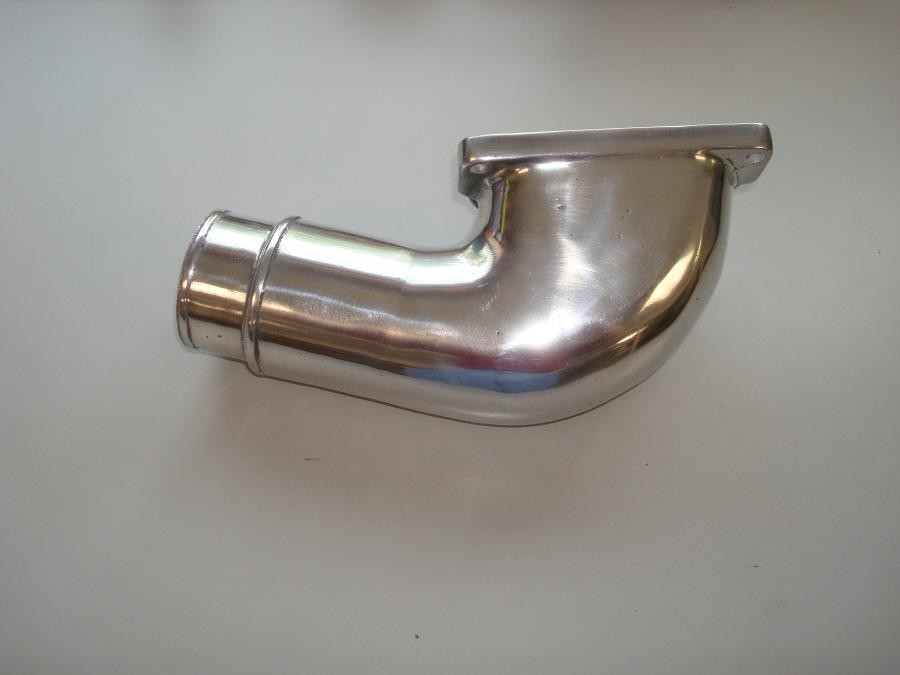

SMIC Kit	Compression Tube	Pulley Kit	AST

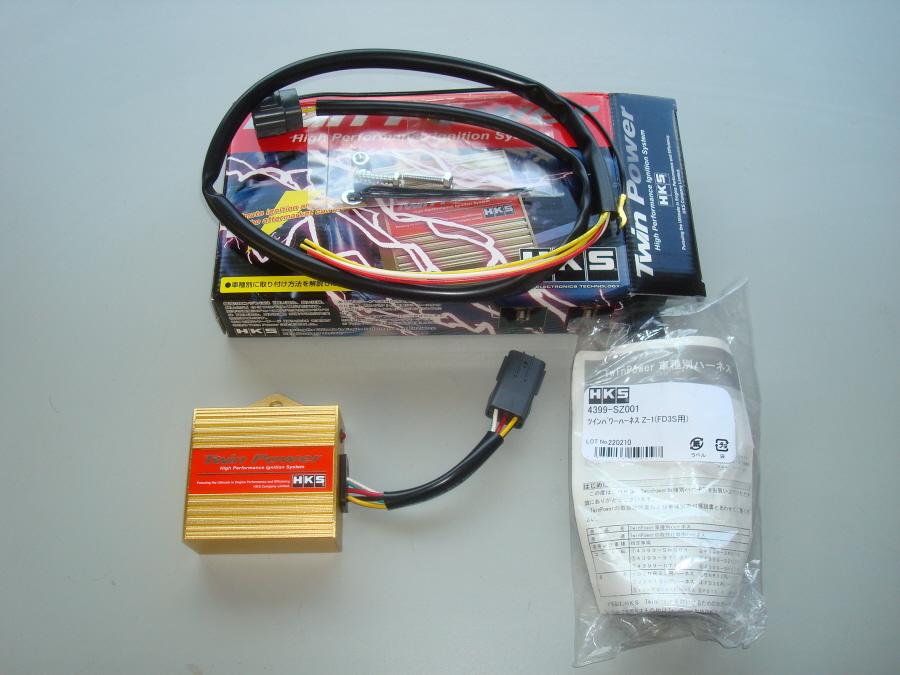

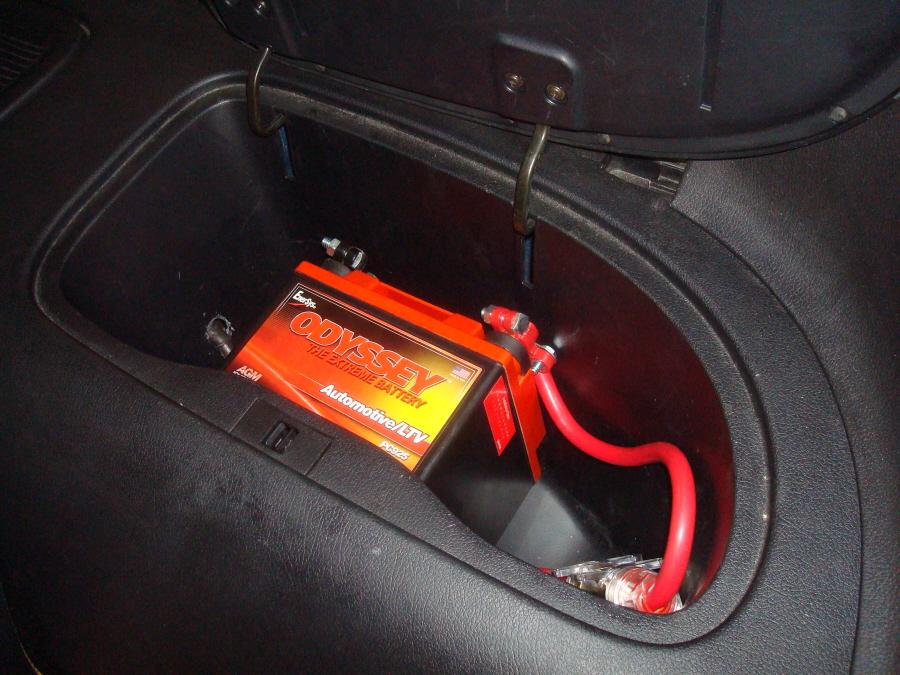

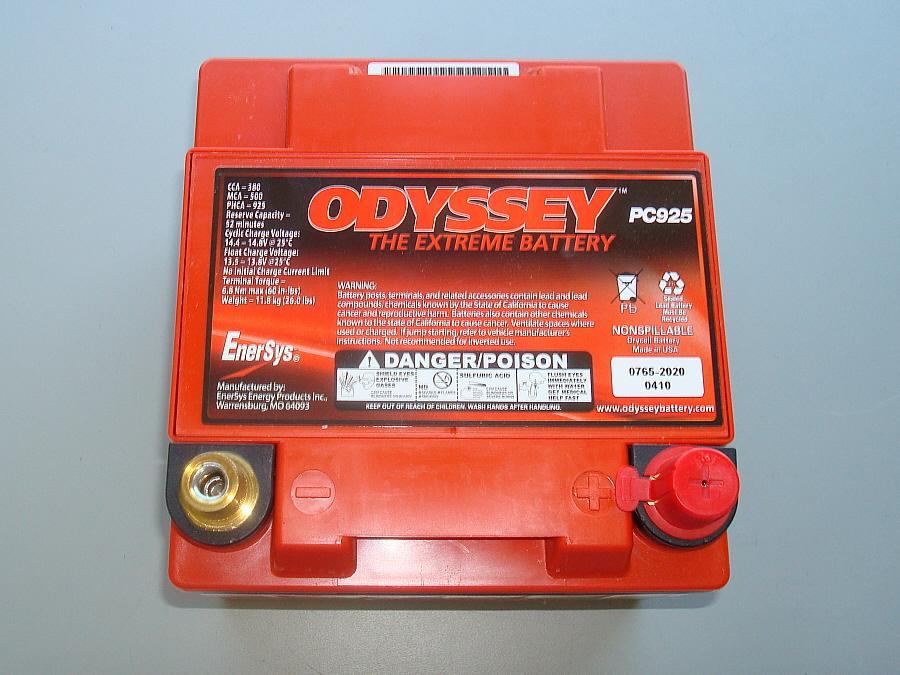

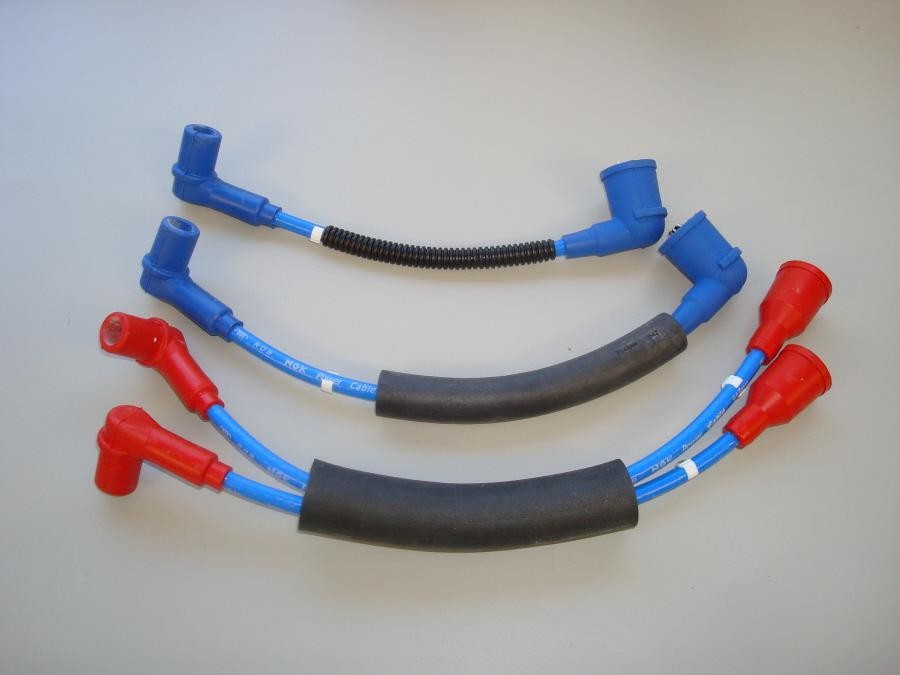

Twinpower & Harness	Plug Wires	PFC & Commander	Battery

Upgrades & Modifications Installed Photographs

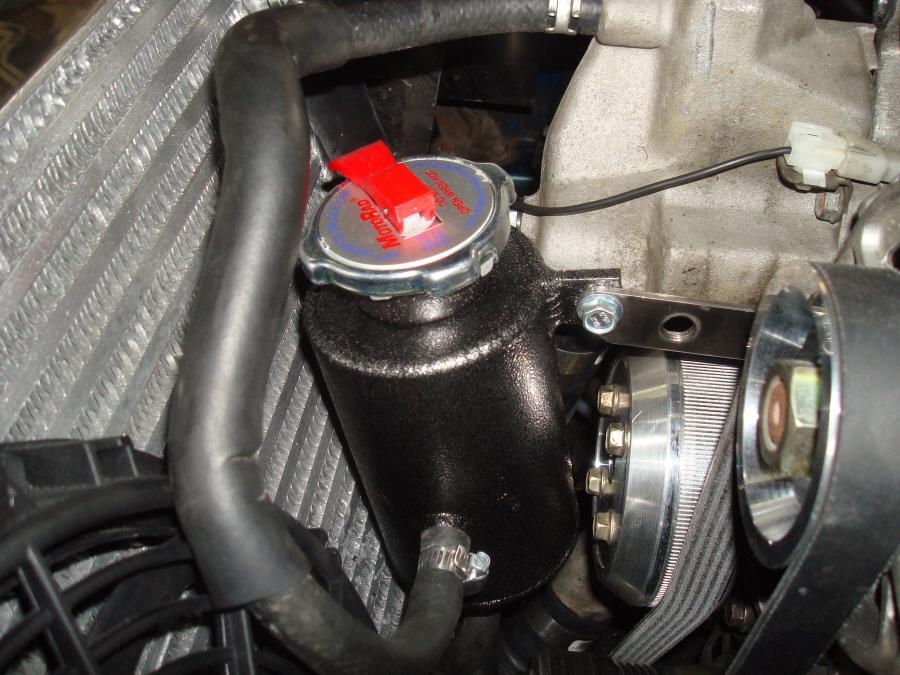

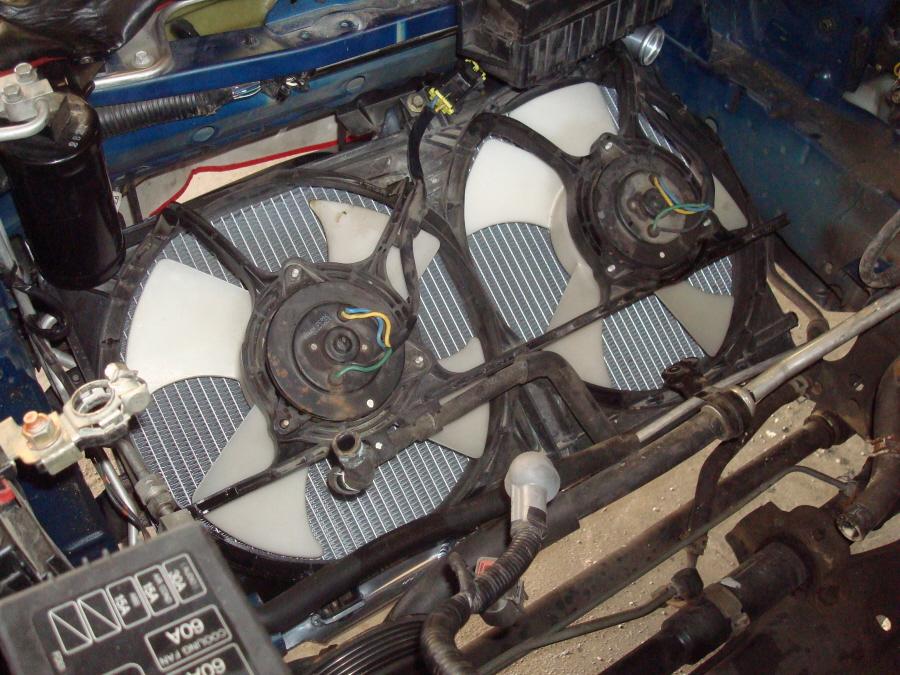

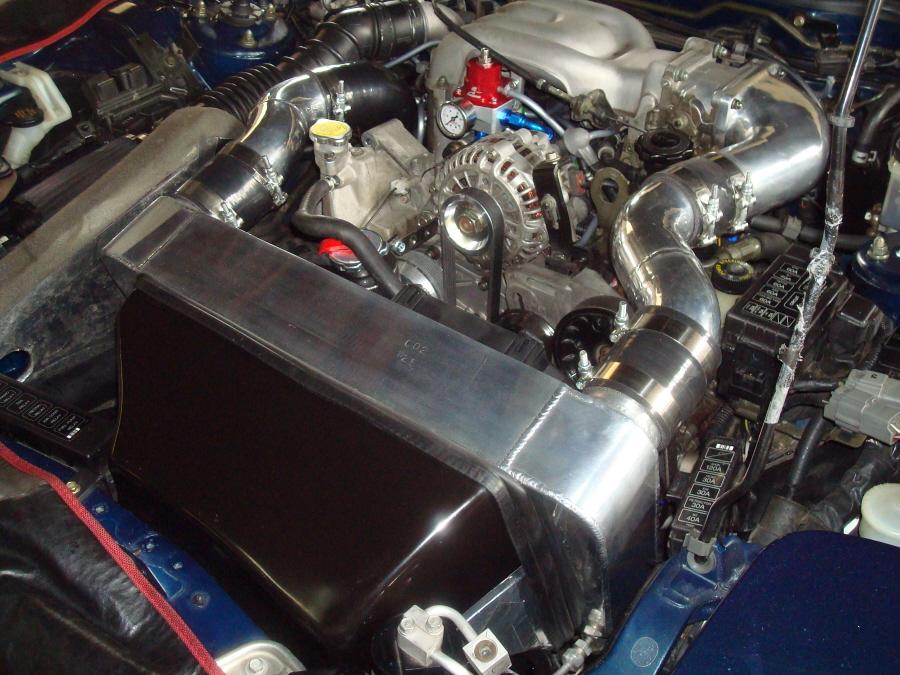

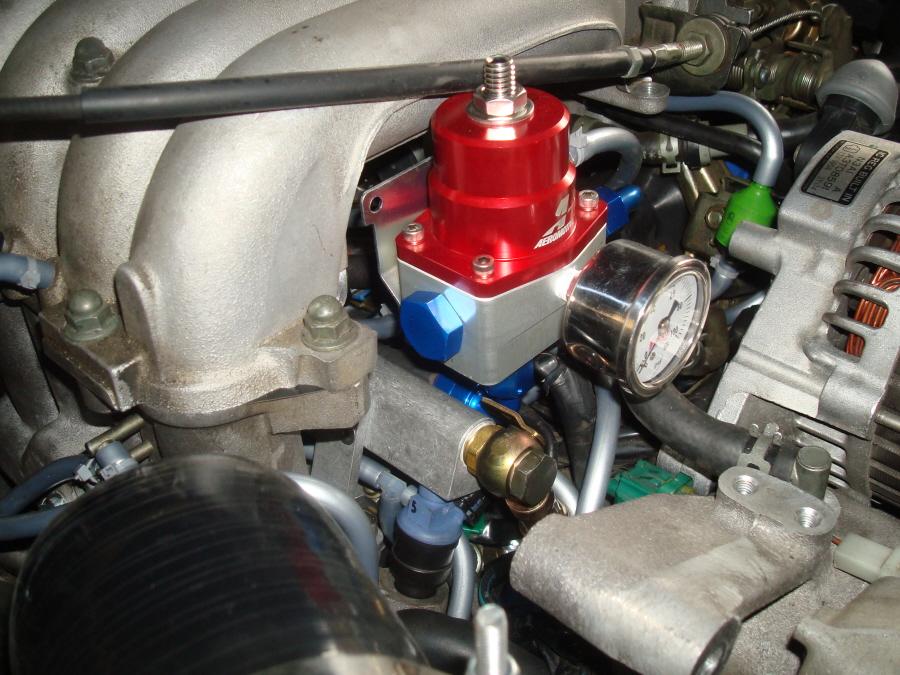

Radiator	Fuel System Components	SMIC	AST

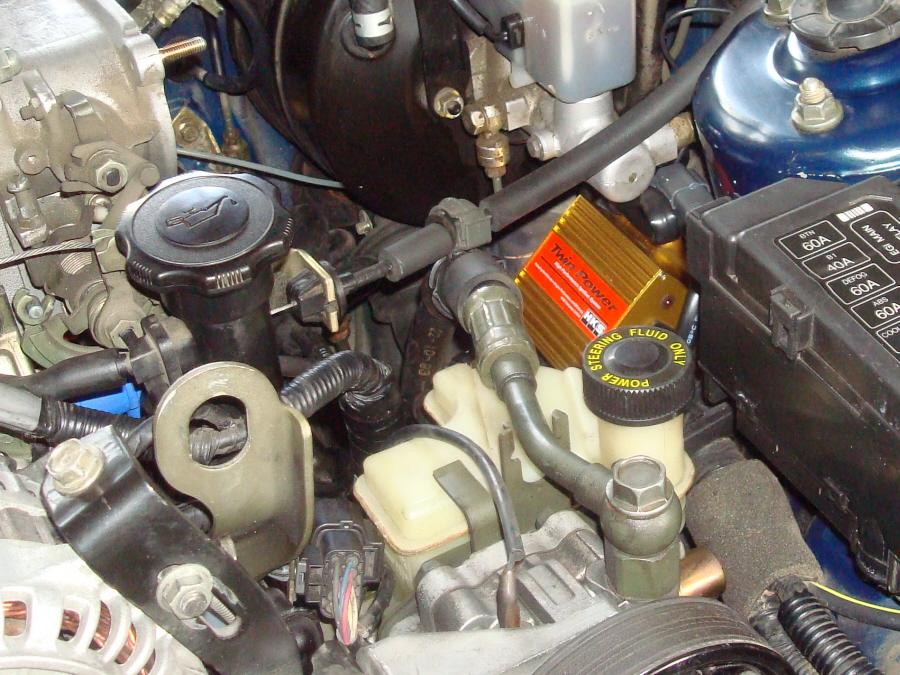

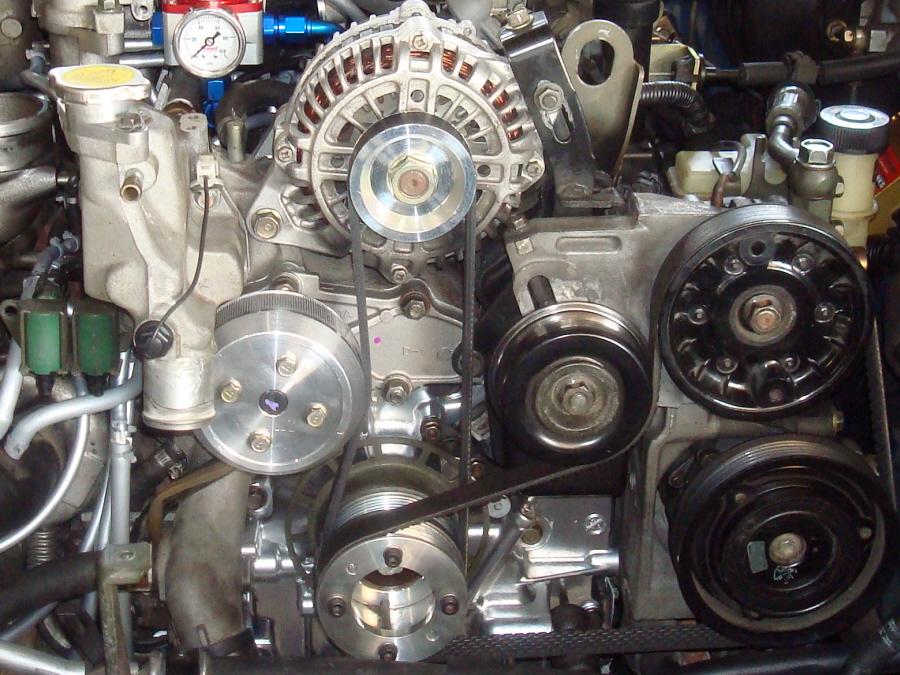

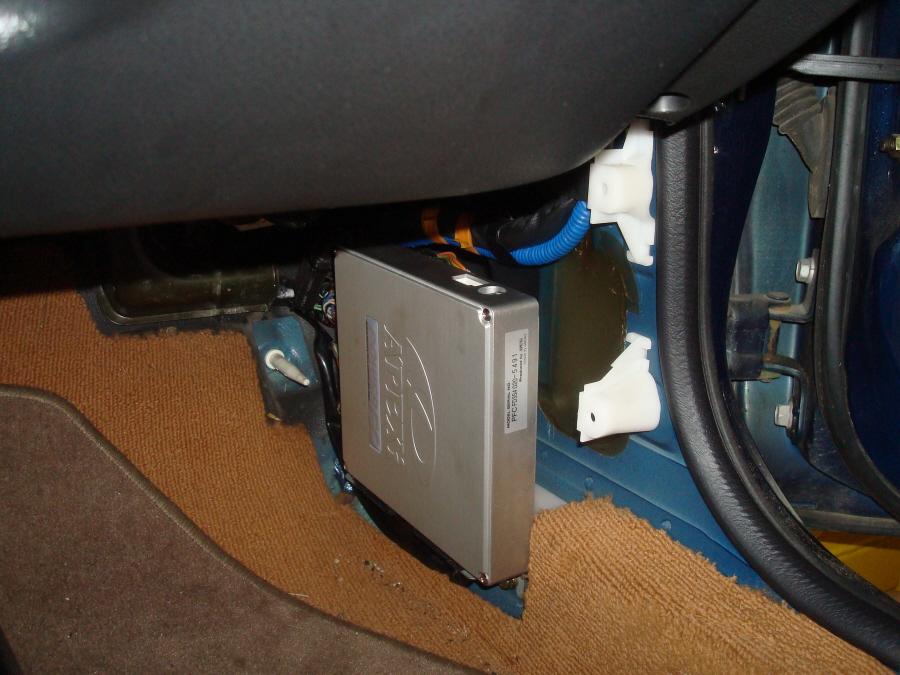

Pulley Kit	HKS Twinpower	Power FC	Battery

Suspension & Other Modifications

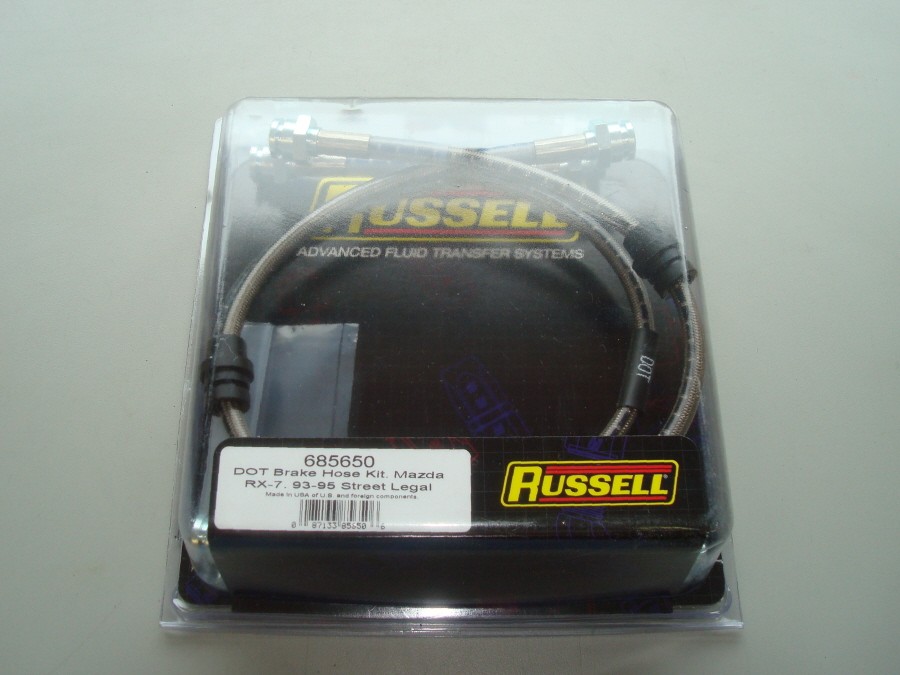

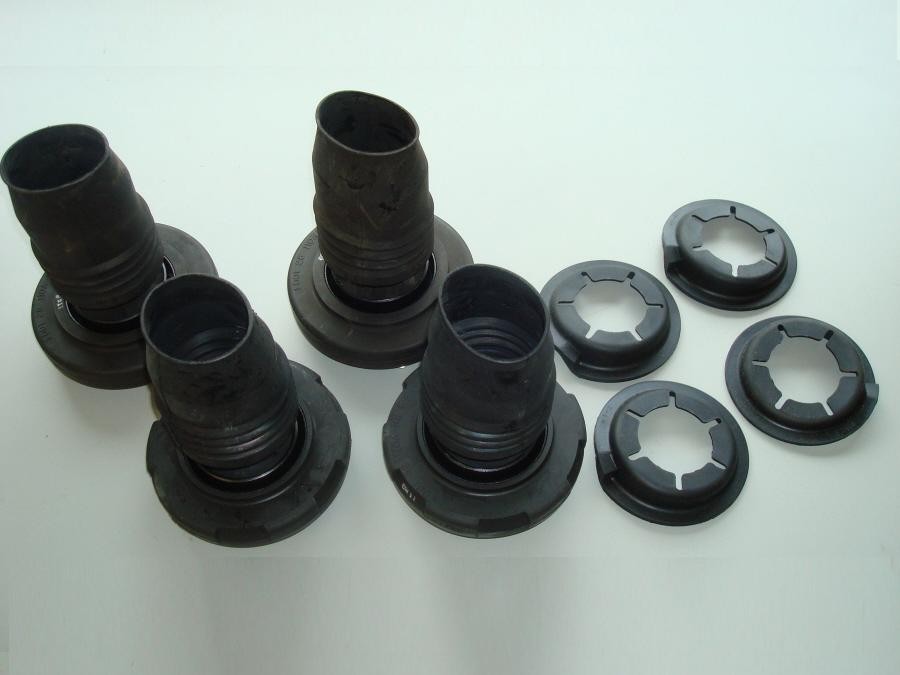

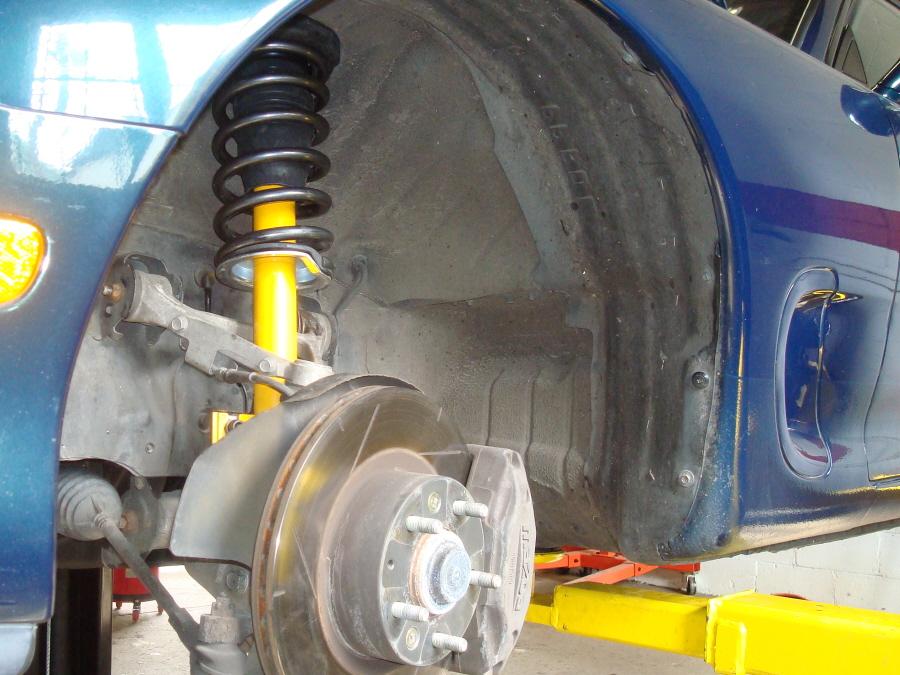

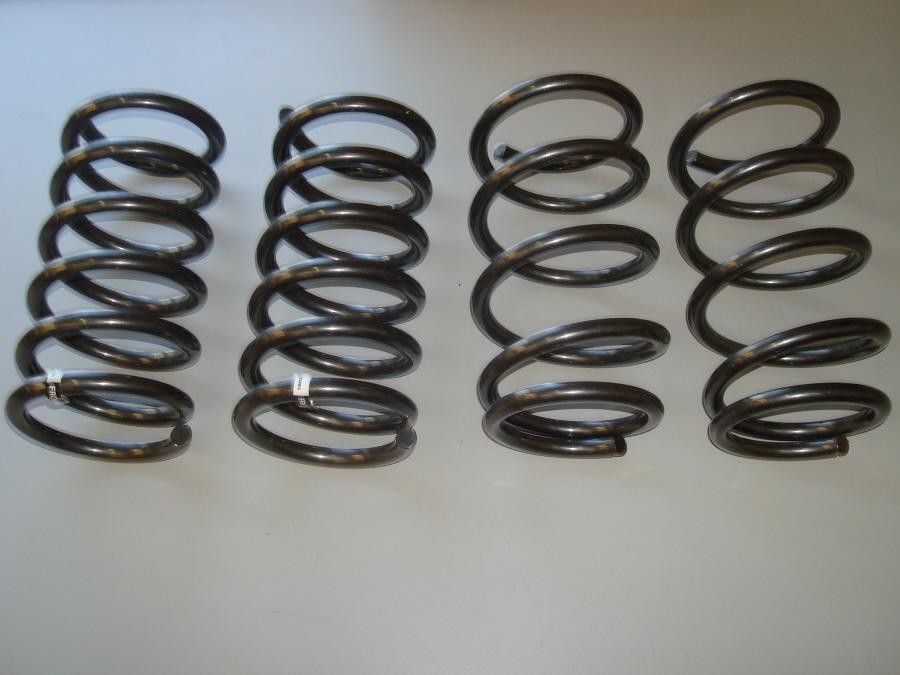

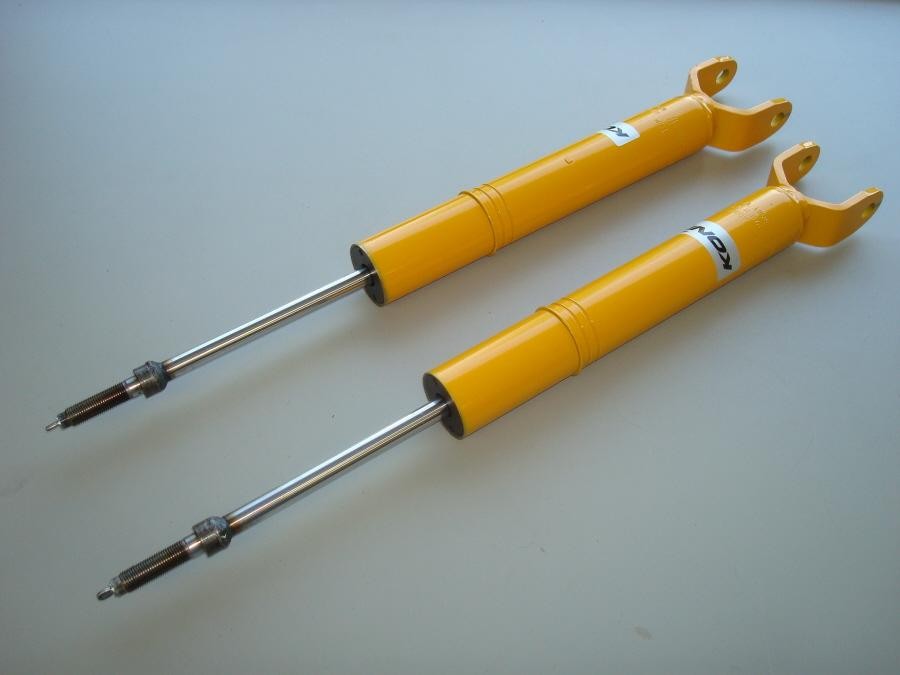

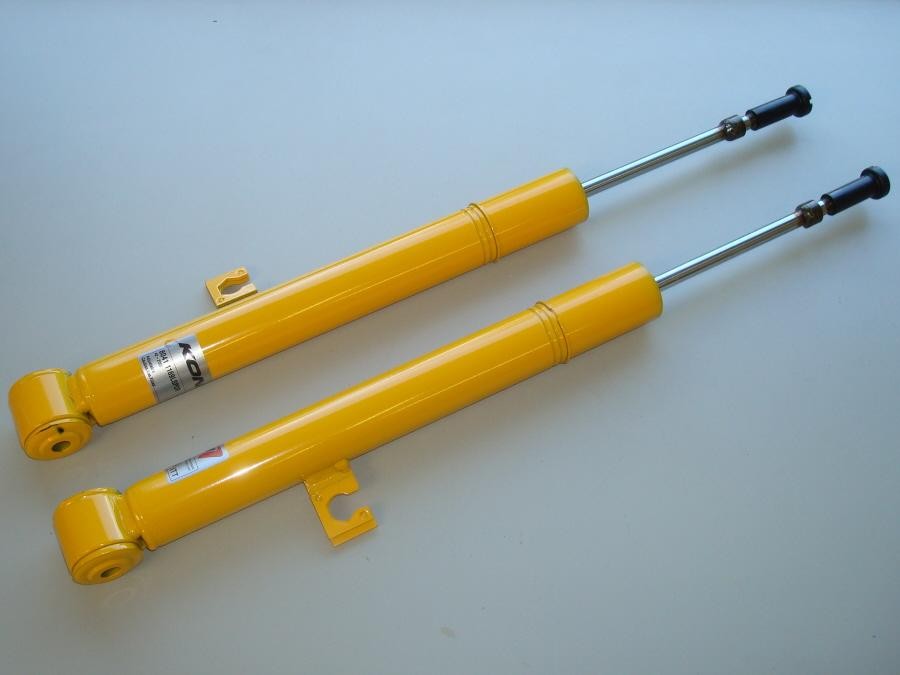

Front Shocks	Rear Shocks	Shock Mounts	Springs	SS Brake Lines

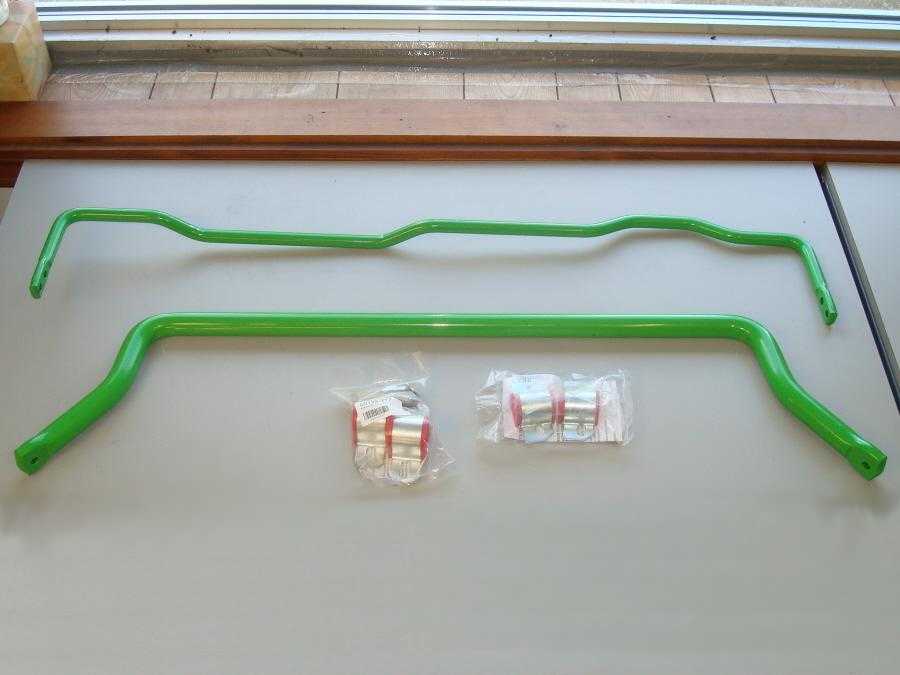

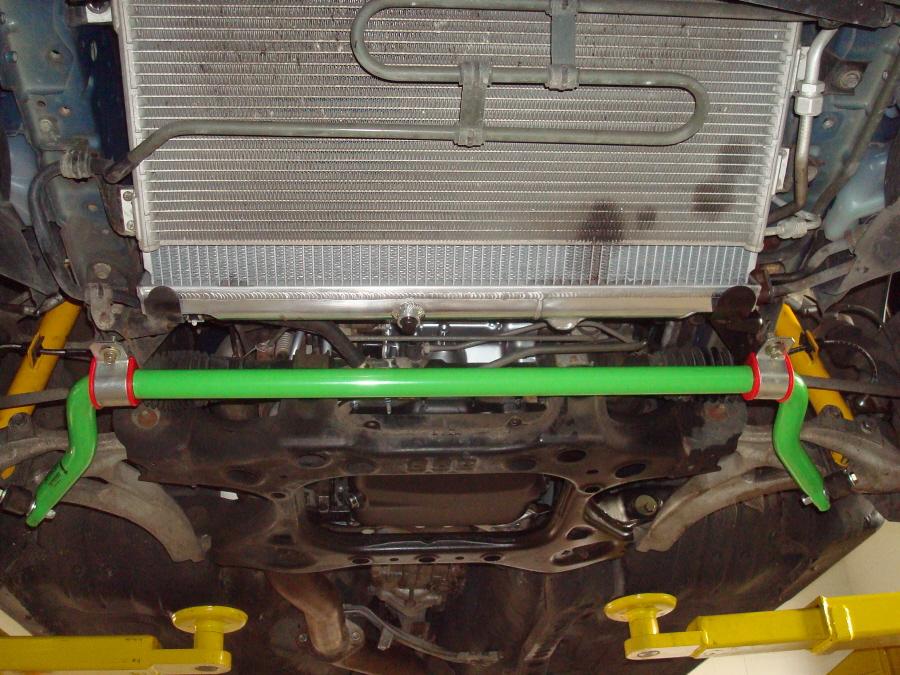

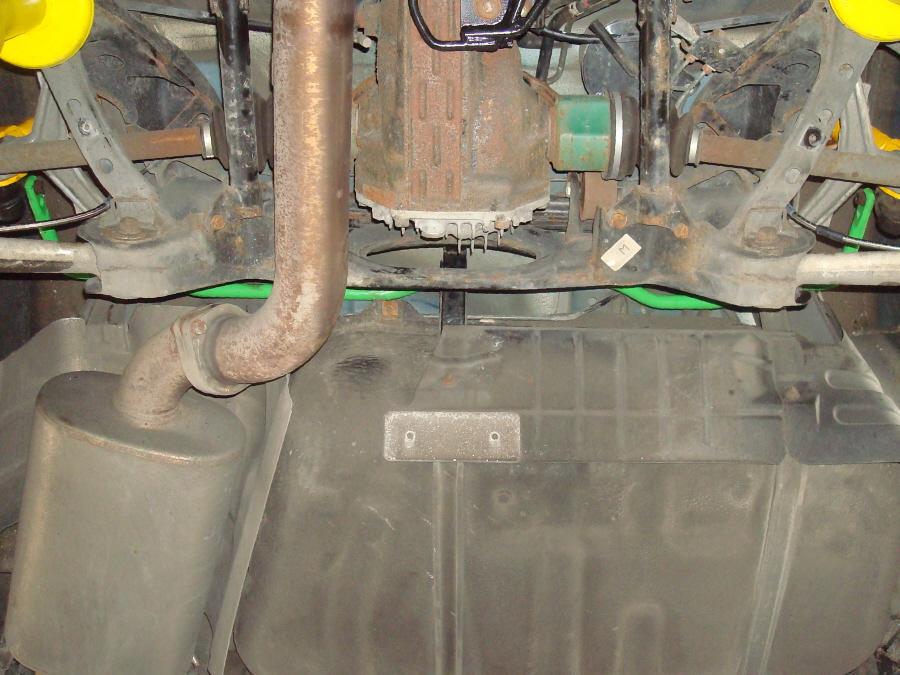

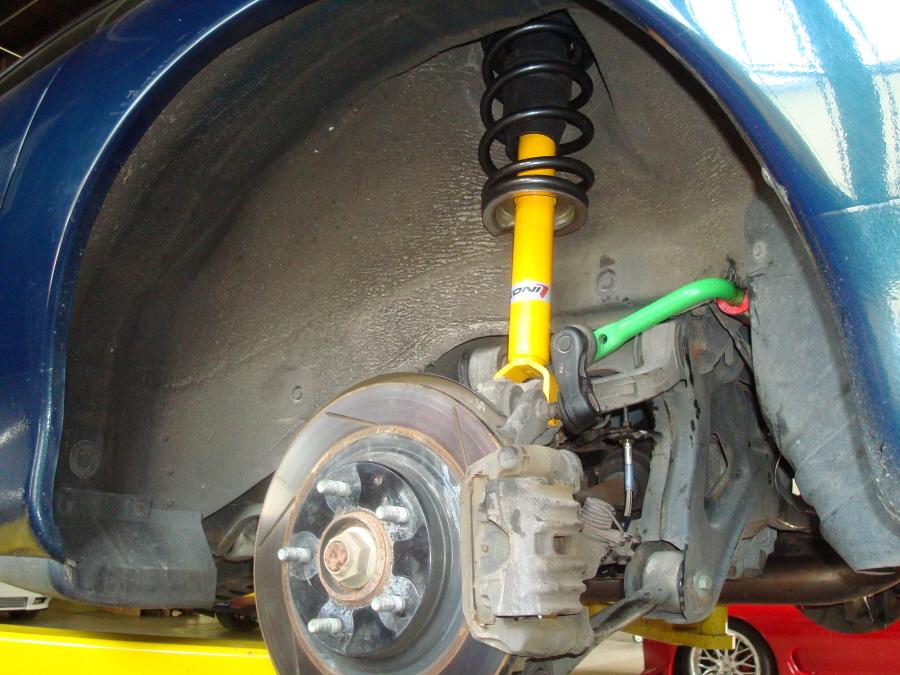

Front Suspension	Rear Suspension	Anti-Sway Bars	Front Anti-Sway Bar	Rear Anti-Sway Bar

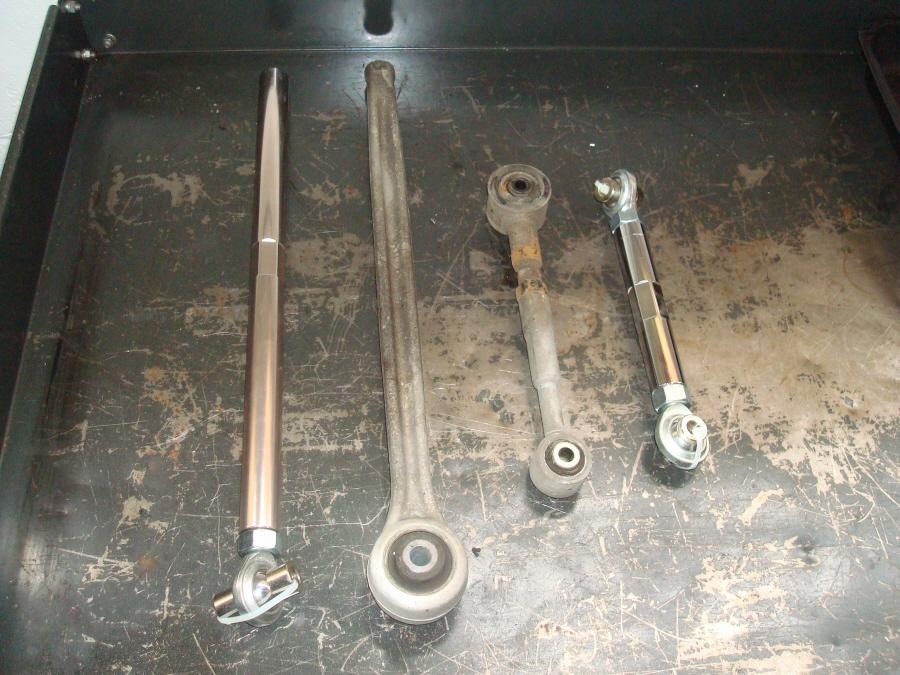

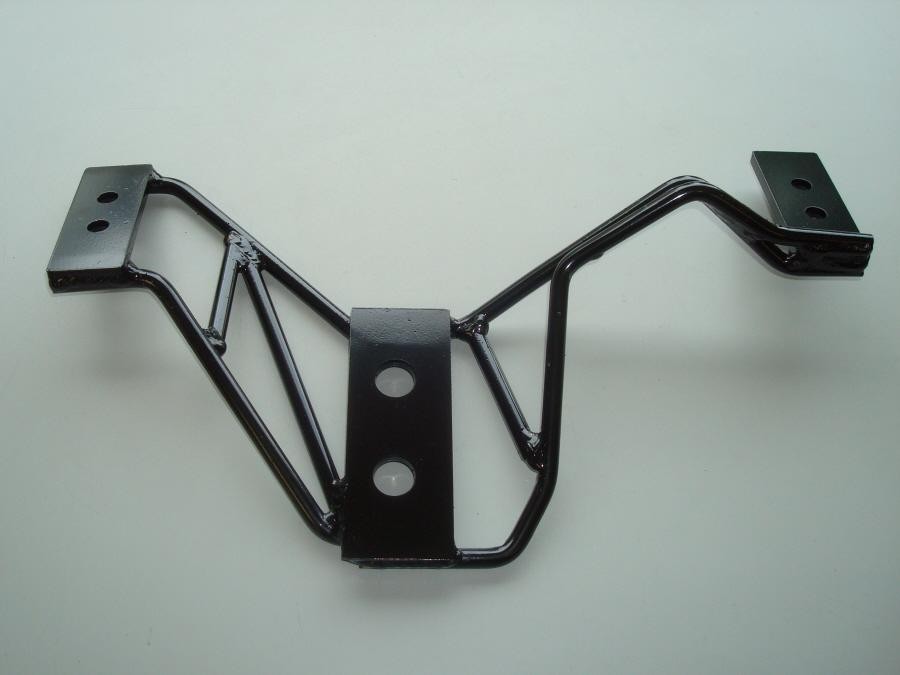

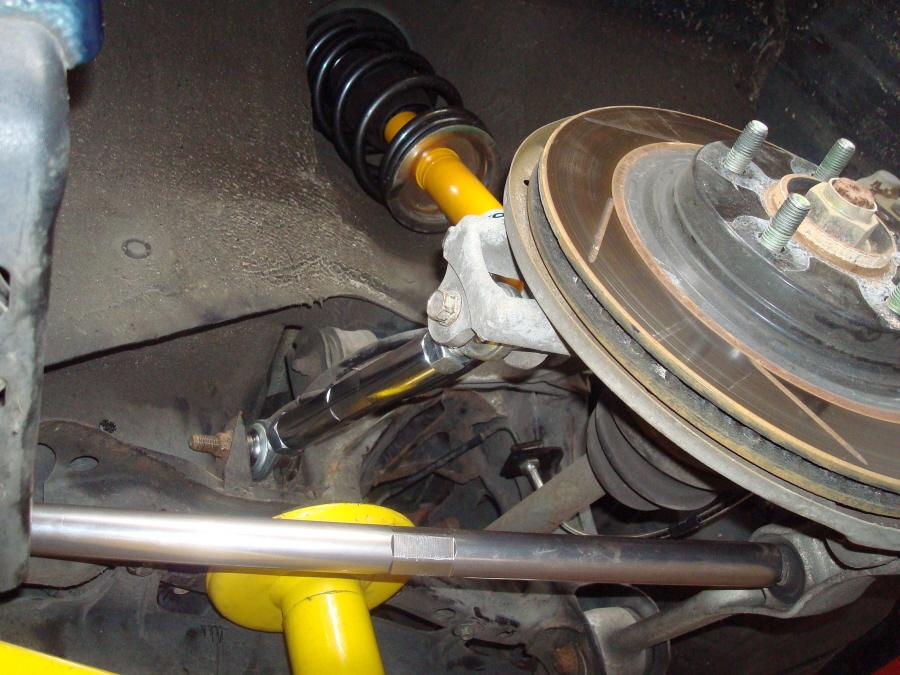

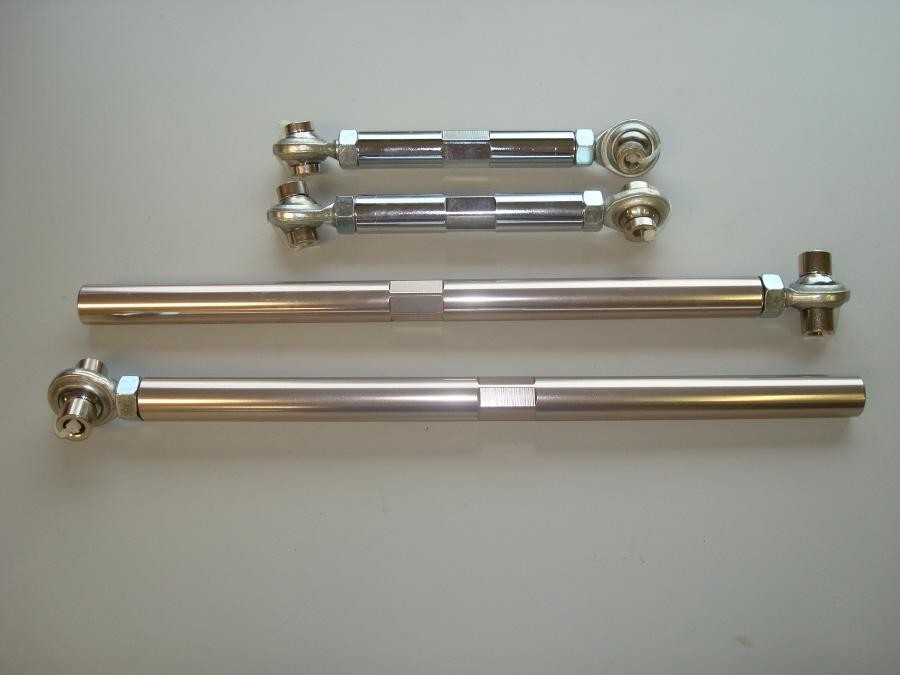

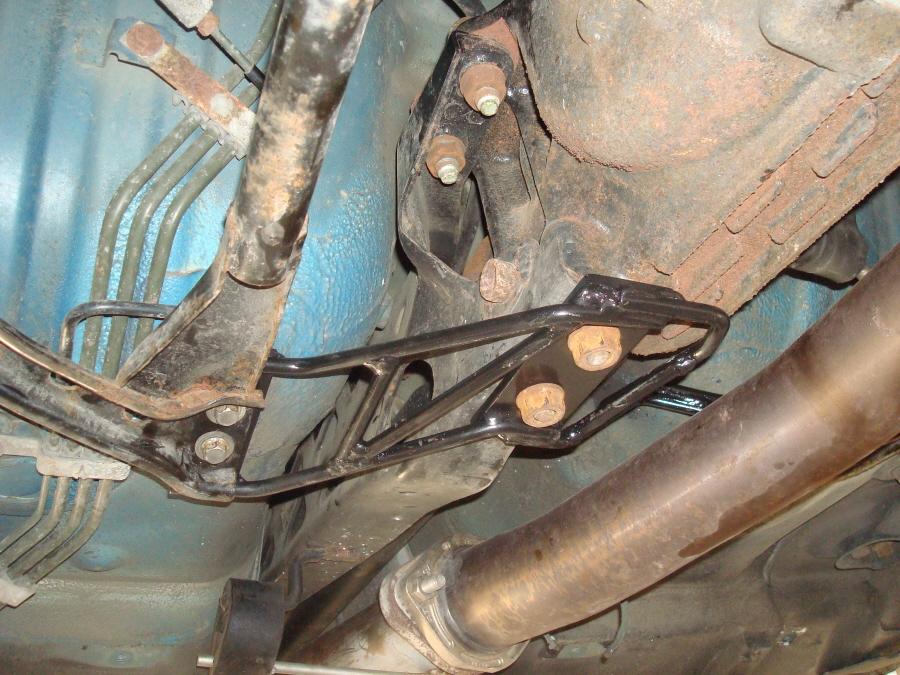

Differential Brace	Differential Brace Installed	Trailing Arms & Toe Links	Comparison	Installed

Final Engine Bay Photographs

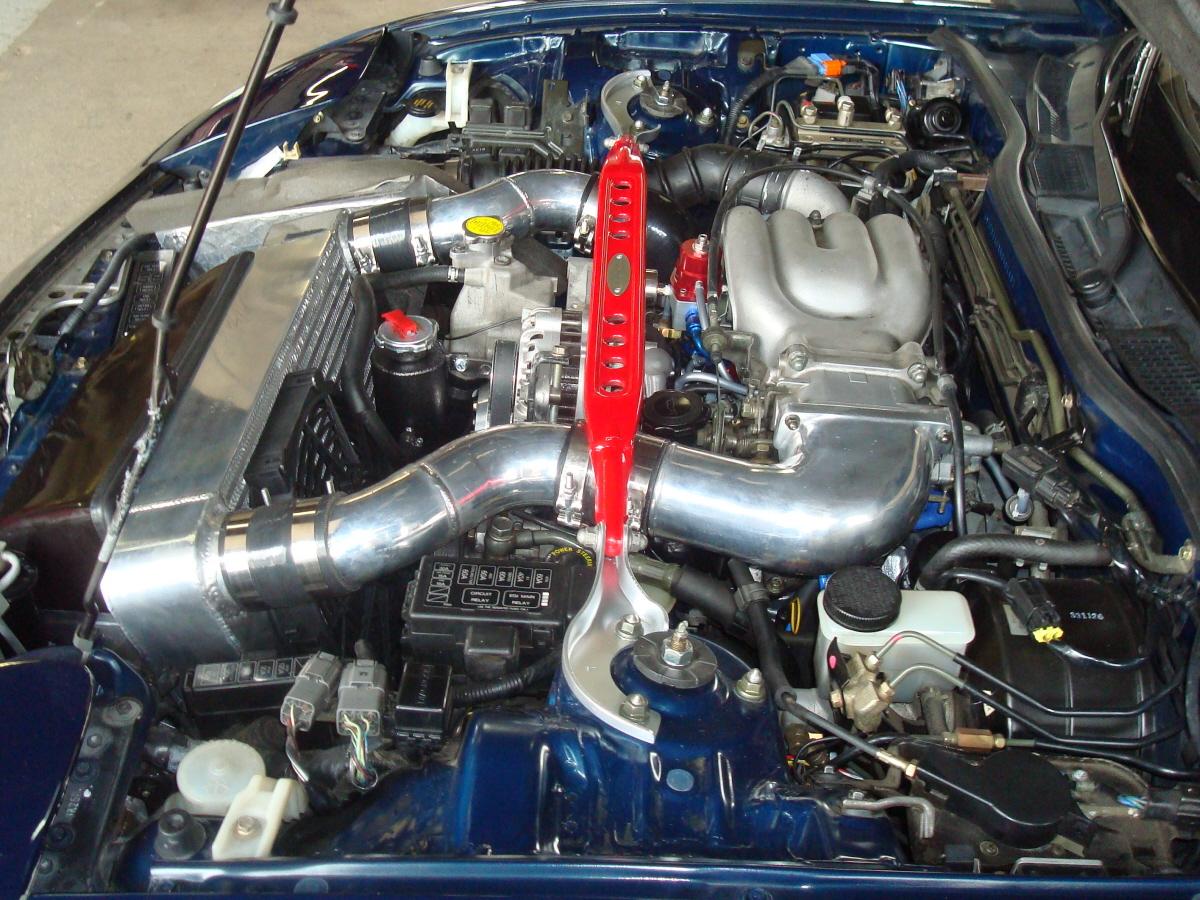

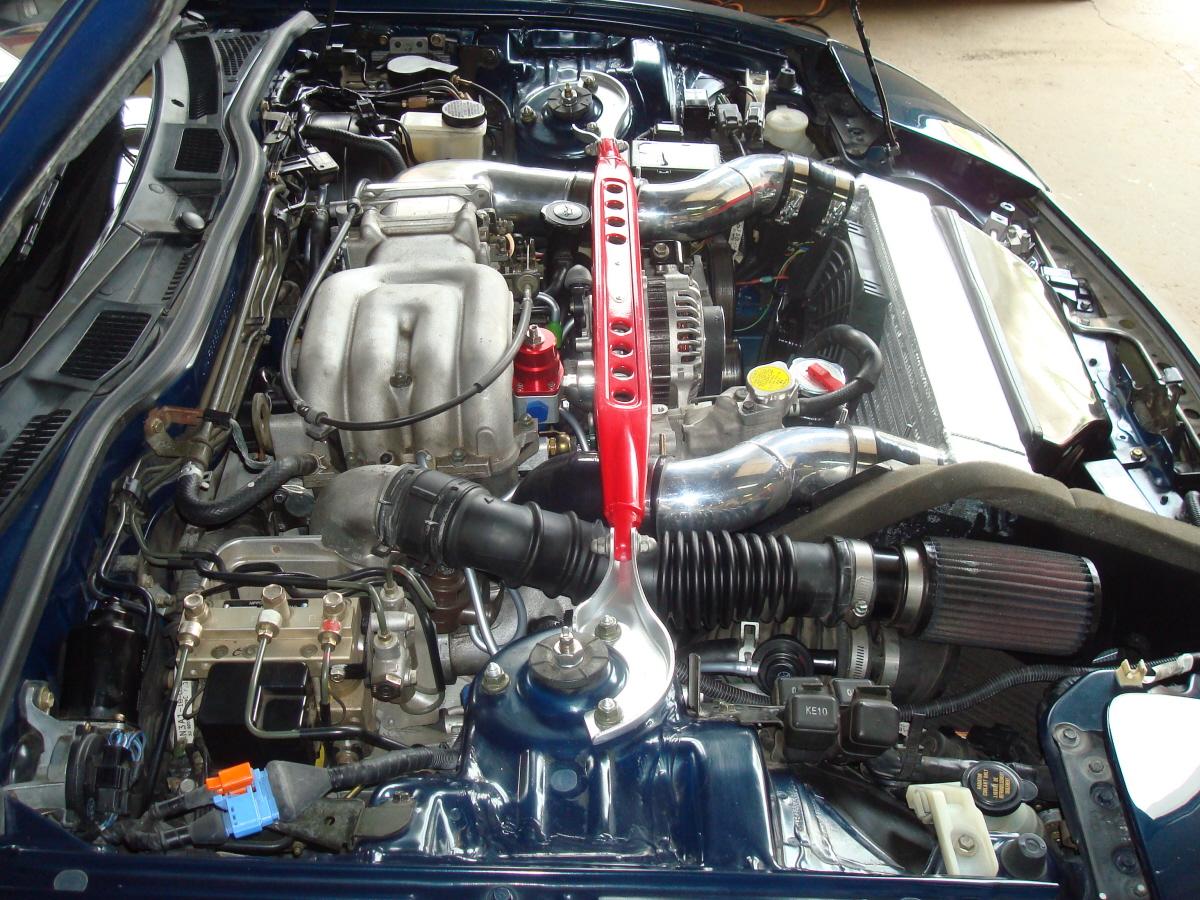

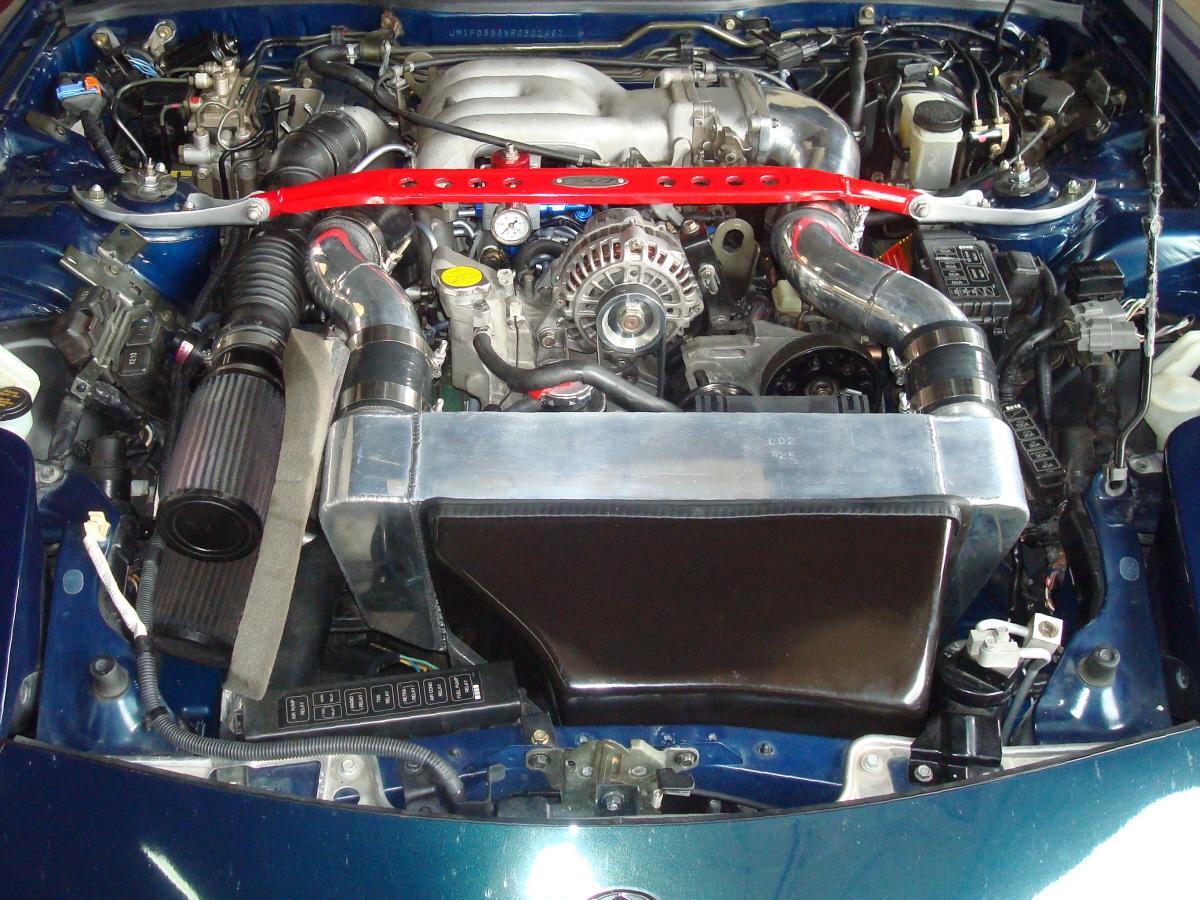

Passenger Side View	Front View	Driver Side View

Stage 2 (OD: 65278): After putting on a few break-in miles, Paul returned to have us install the following;

• Pettit Racing Resonated Midpipe with welded O2 Sensor Bung

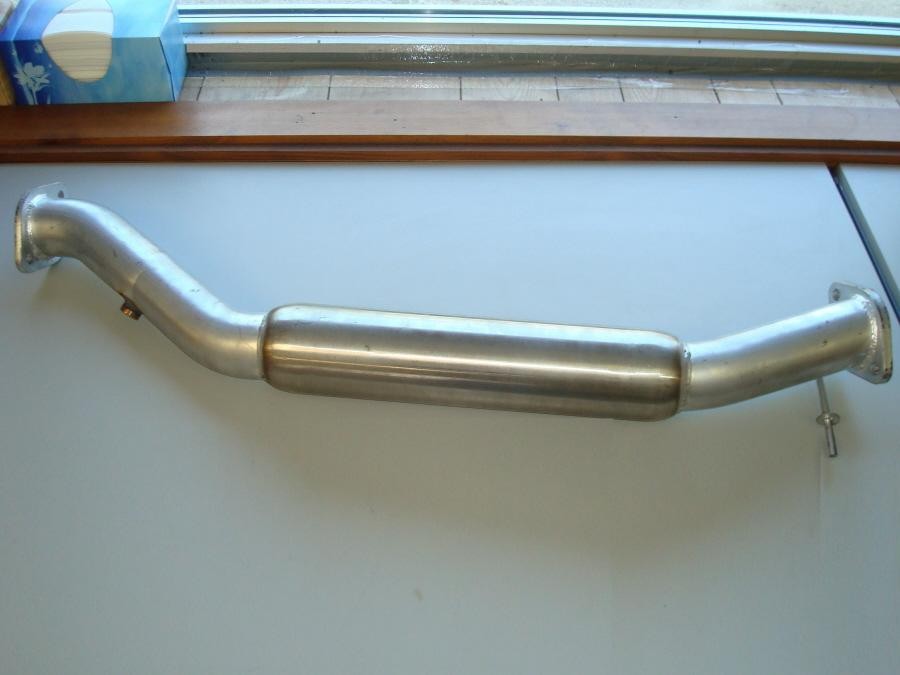

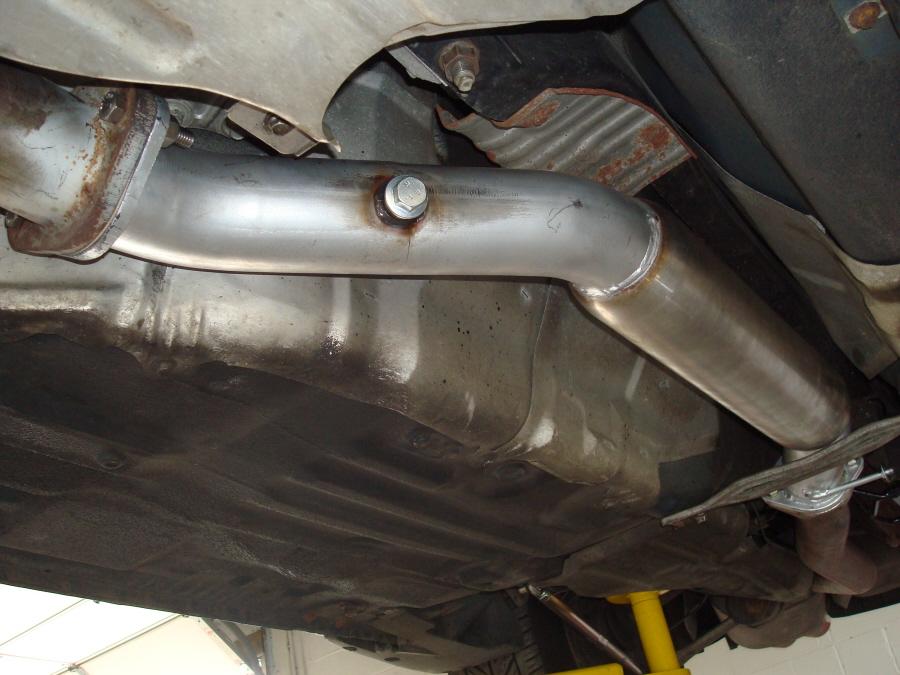

Midpipe	Installed

Stage 3 (OD: 66125): After completing the engine break-in, Paul returned for dyno tuning;

Dyno Chart 369 RWHP @ 12.1 psi

08/25/10
