Ryan's RX-7 Staged Modifications Plan
1993 Mazda RX-7

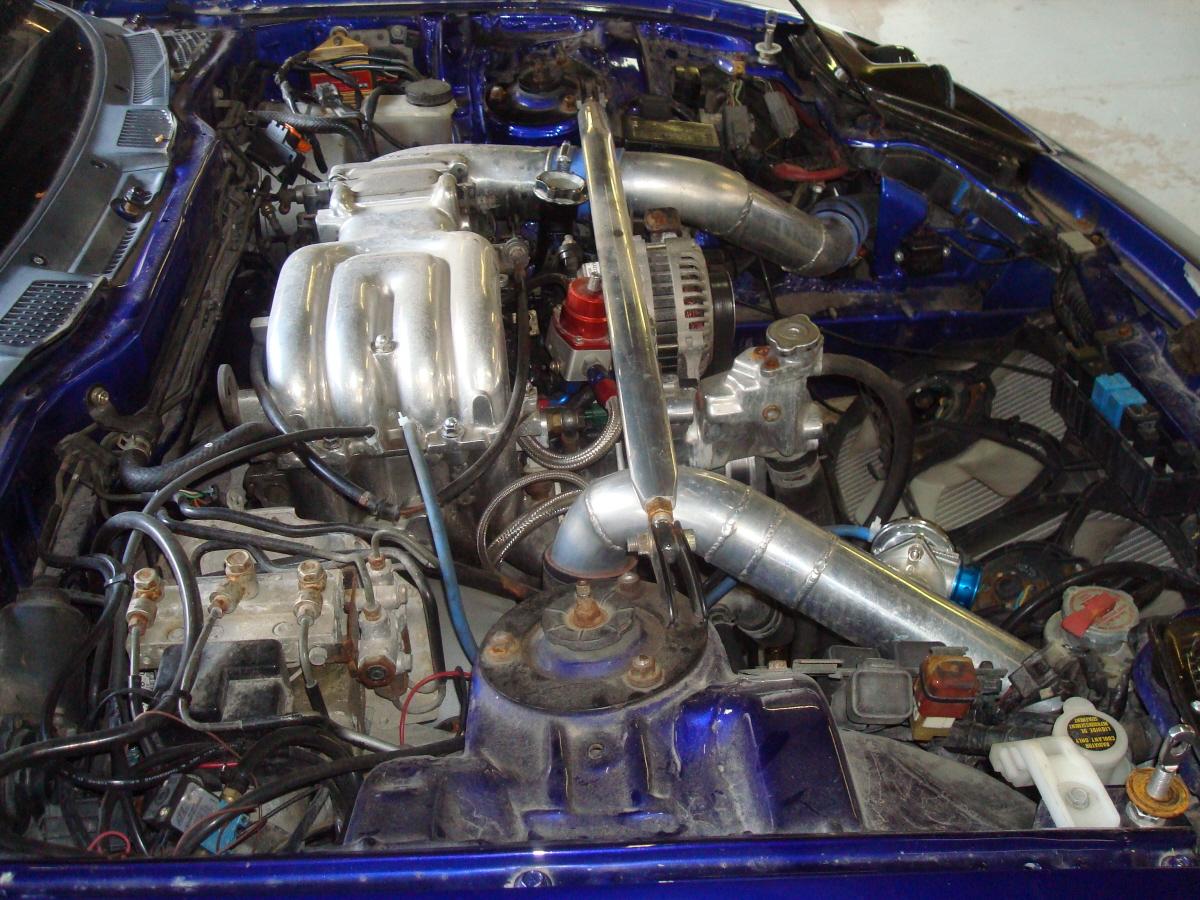

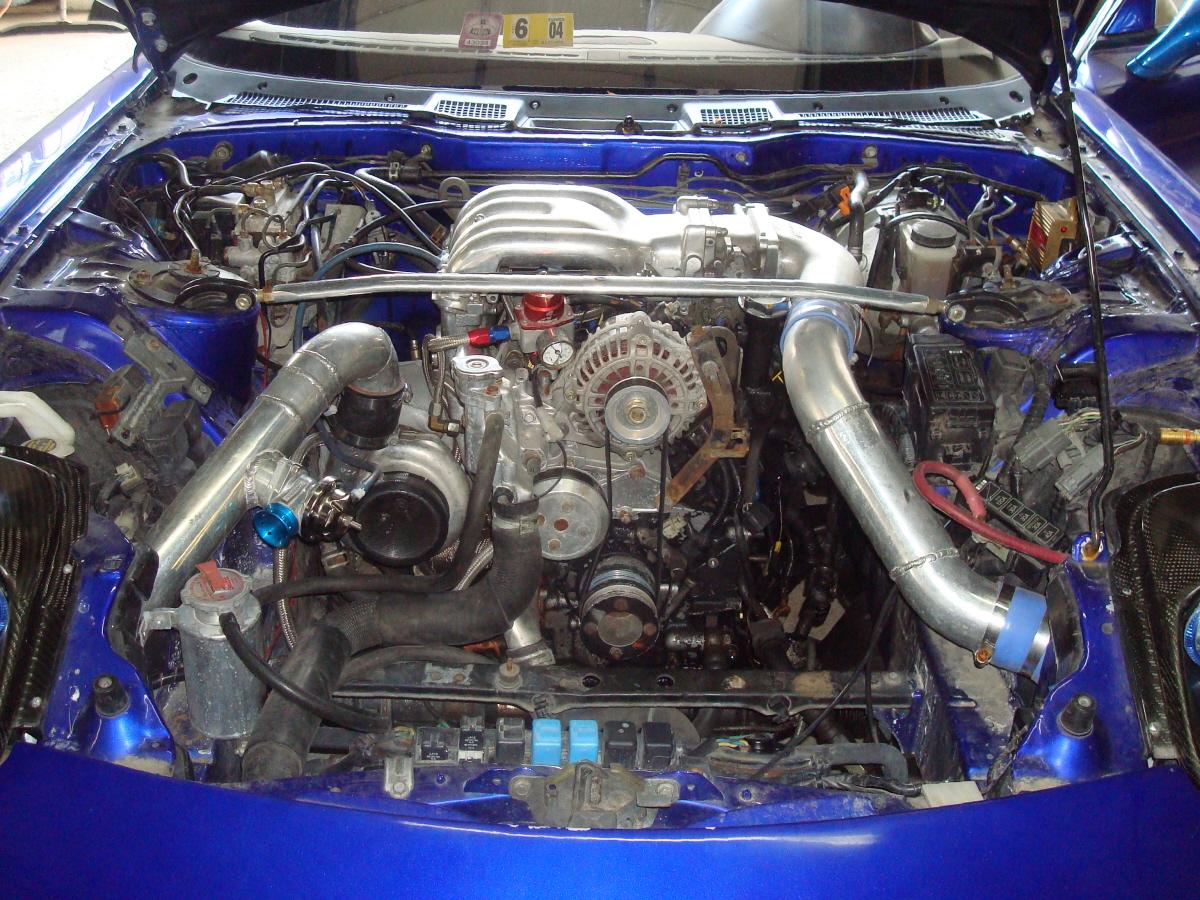

Photographs of the engine bay prior to modifications & upgrades
 |
 |
 |
|
Passenger
Side View
|
Front
View
|
Driver
Side View
|
Stage 1 (OD: 108113): Ryan brought his RX-7 to us in the Summer of '10 for some re-work and a tune-up, including;
 |
 |
 |
|

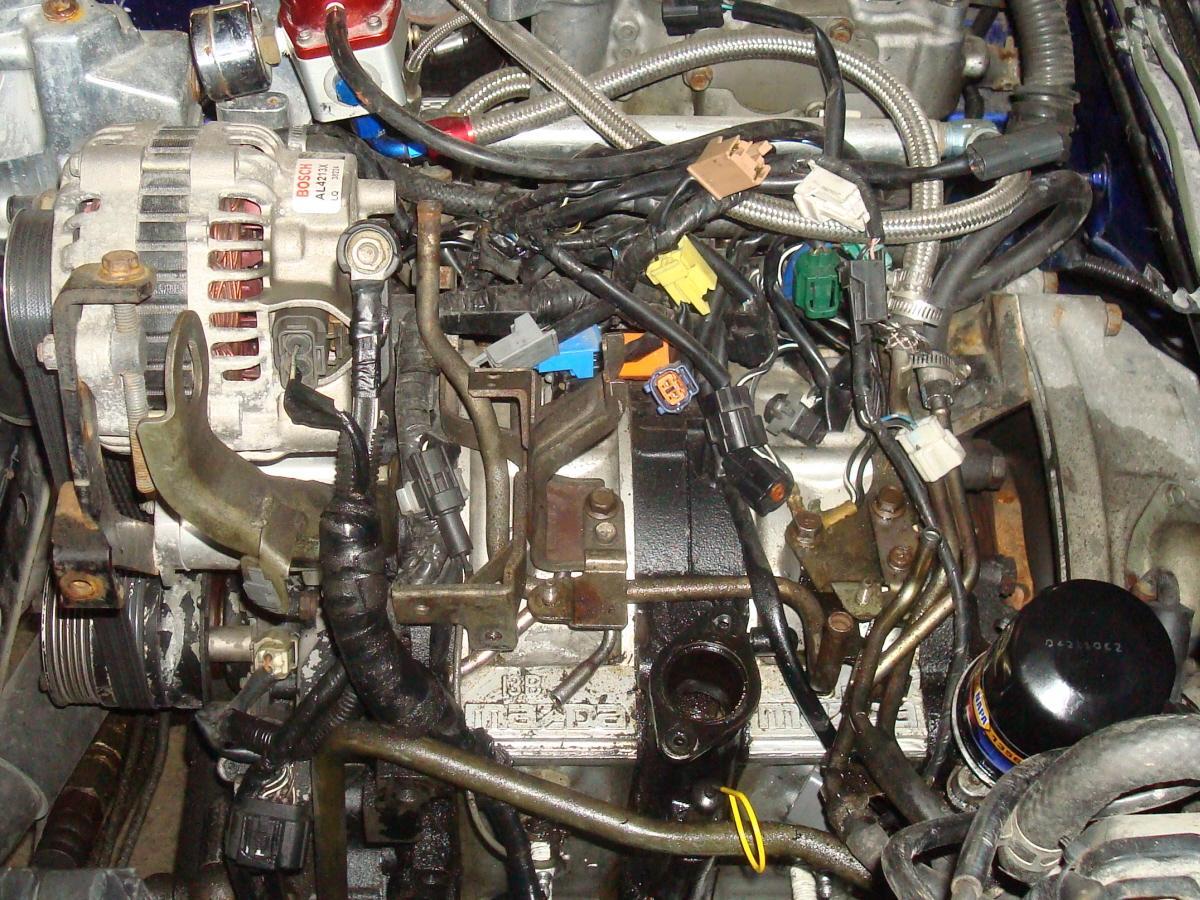

Harness
Before Clean-Up
|
Harness

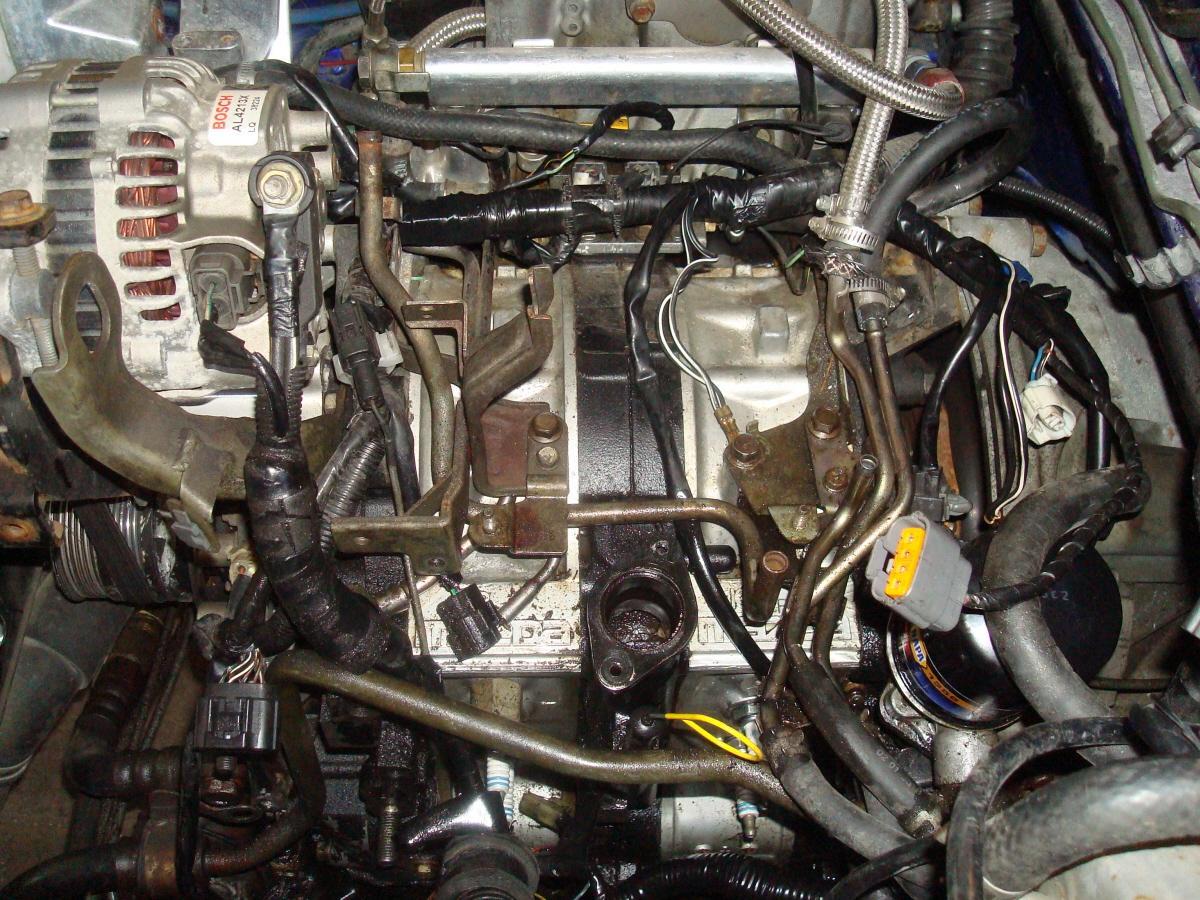

After Modification
|

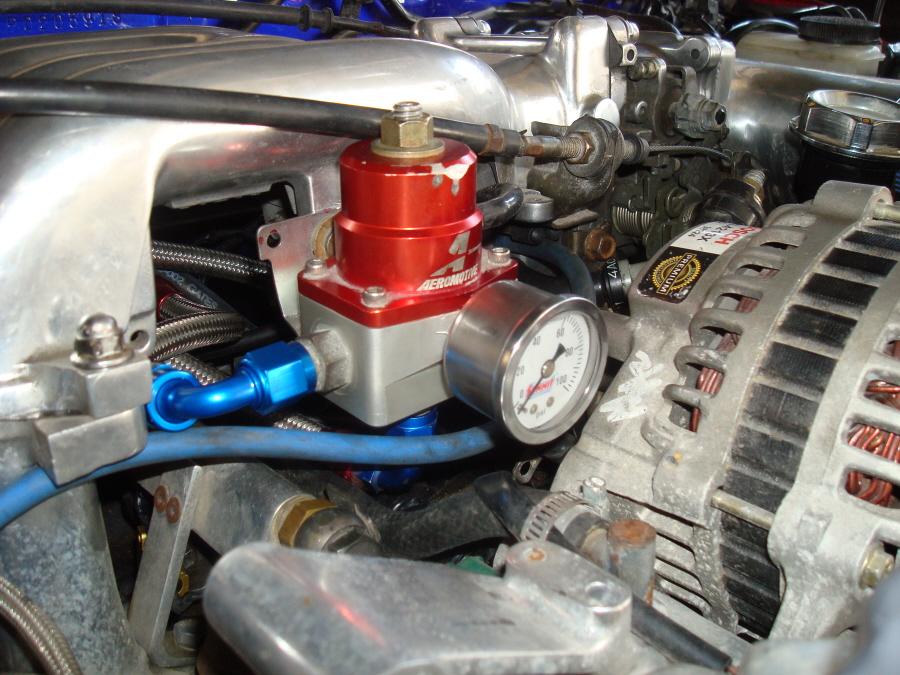

Fuel
Parts Installed
|
Parts Installed
 |
 |
 |
 |
|
Tail

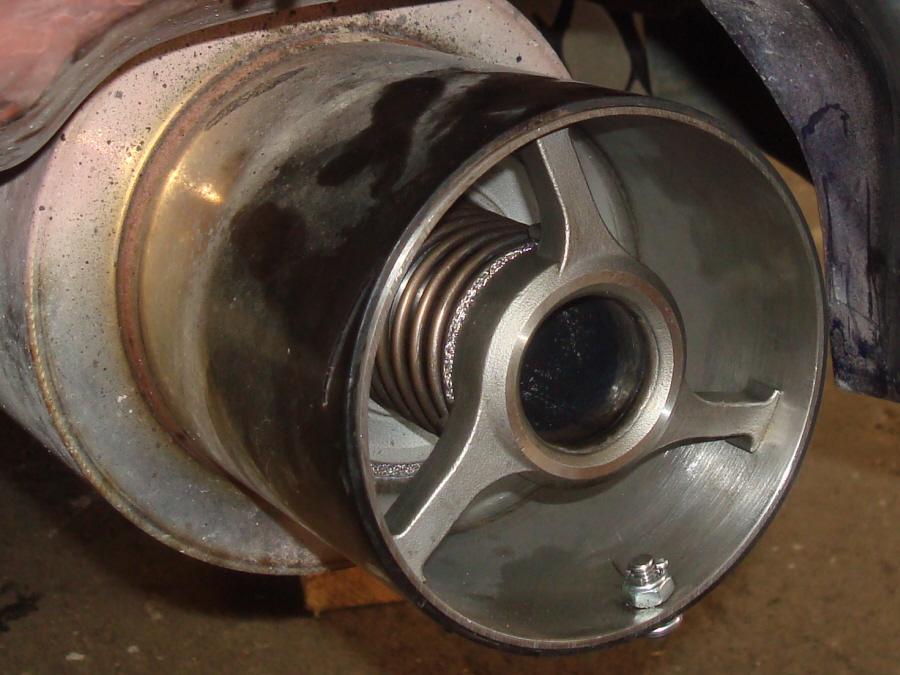

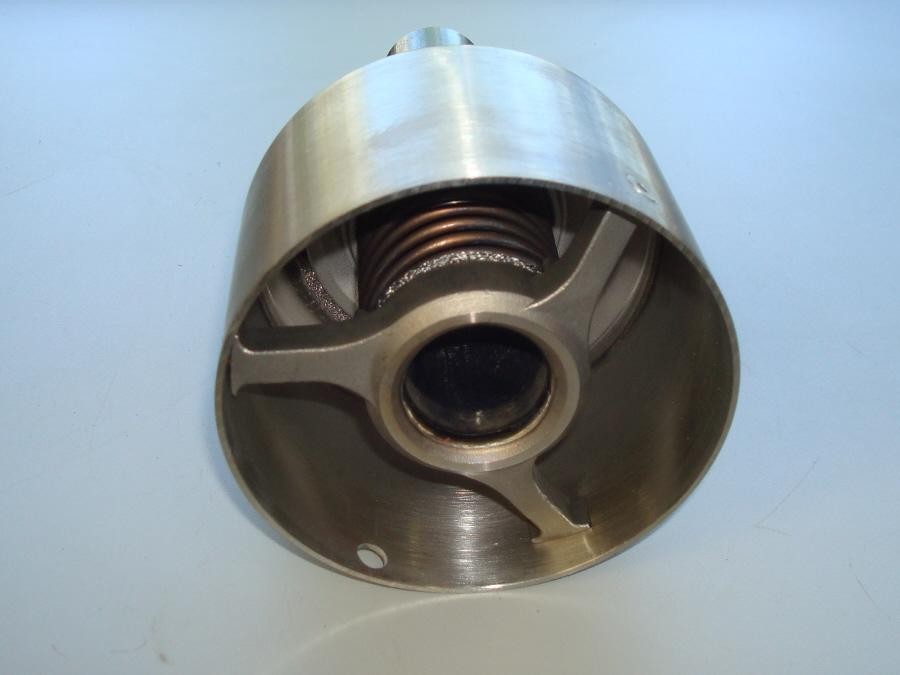

Pipe Silencer
|
Silencer
Installed
|

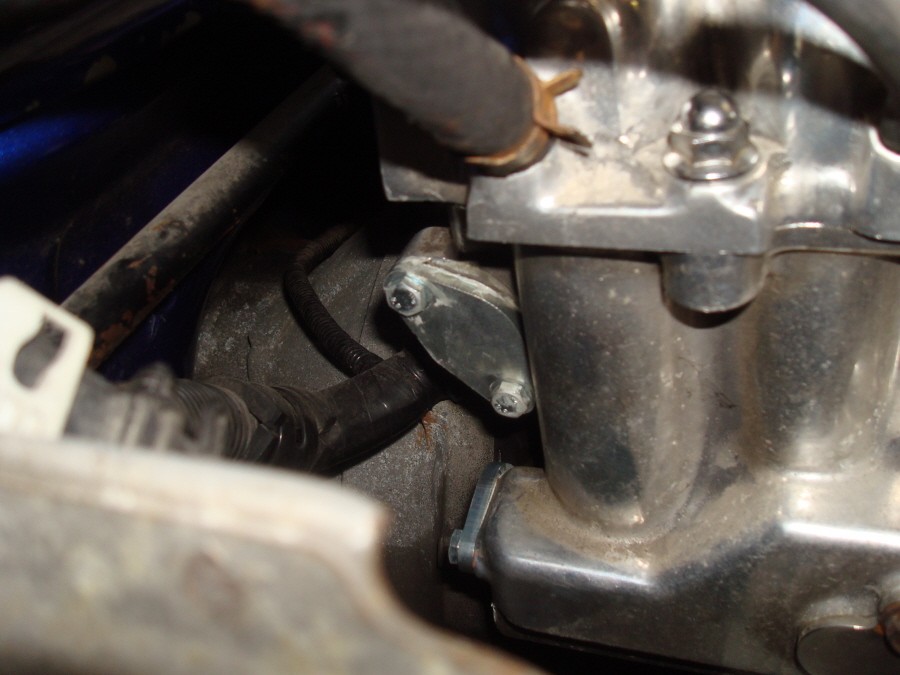

BOP
Installed
|

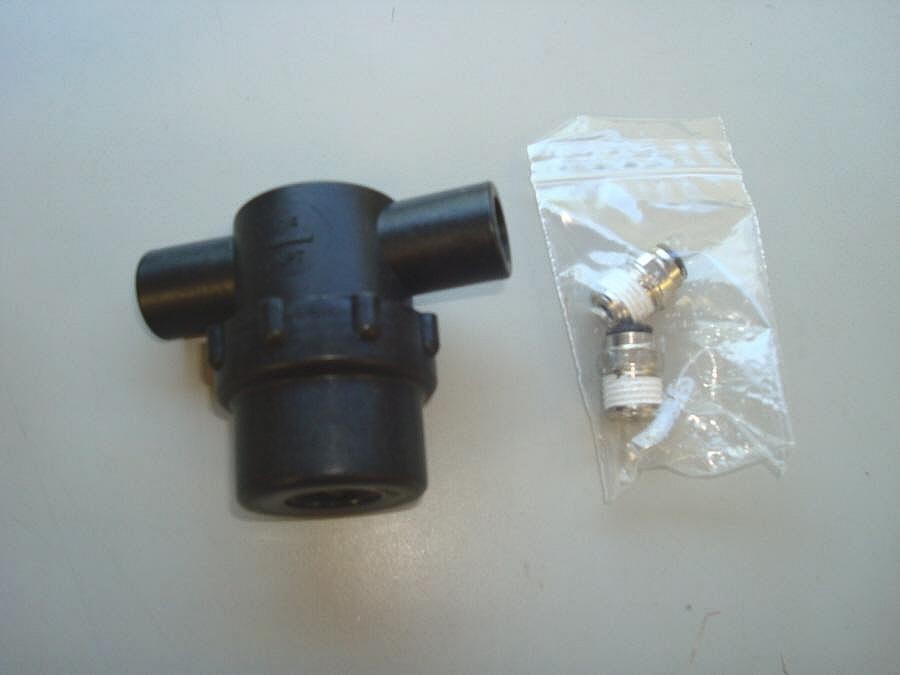

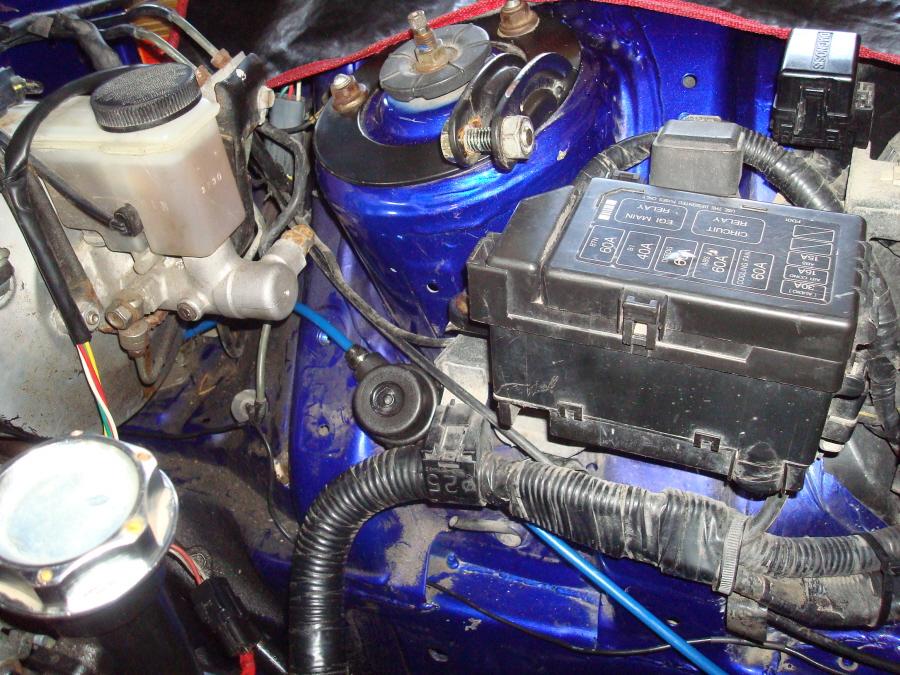

AEM
Filter
|
 |
 |
 |
 |
|

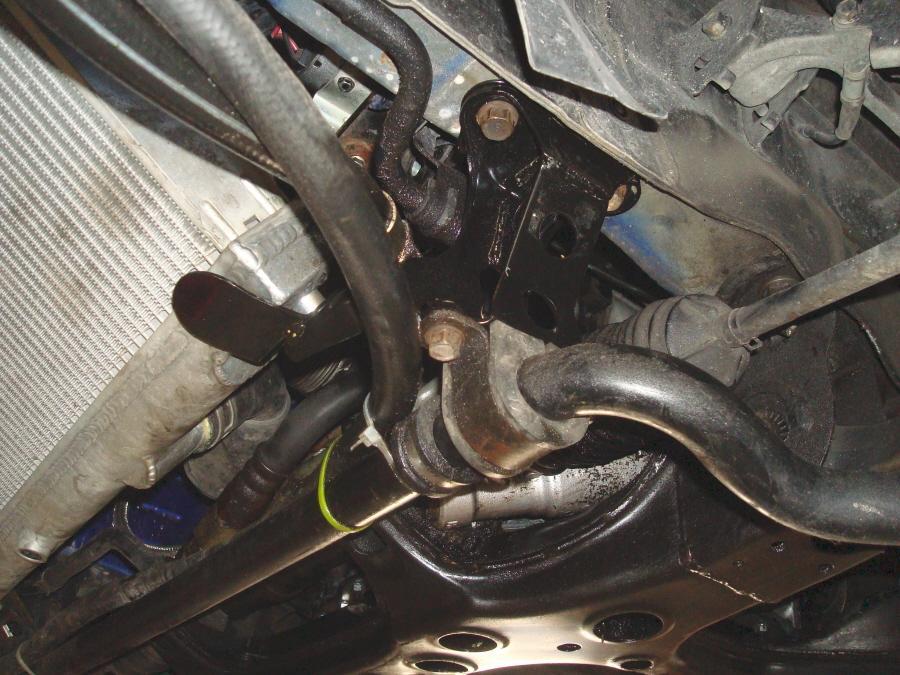

Anti-Sway

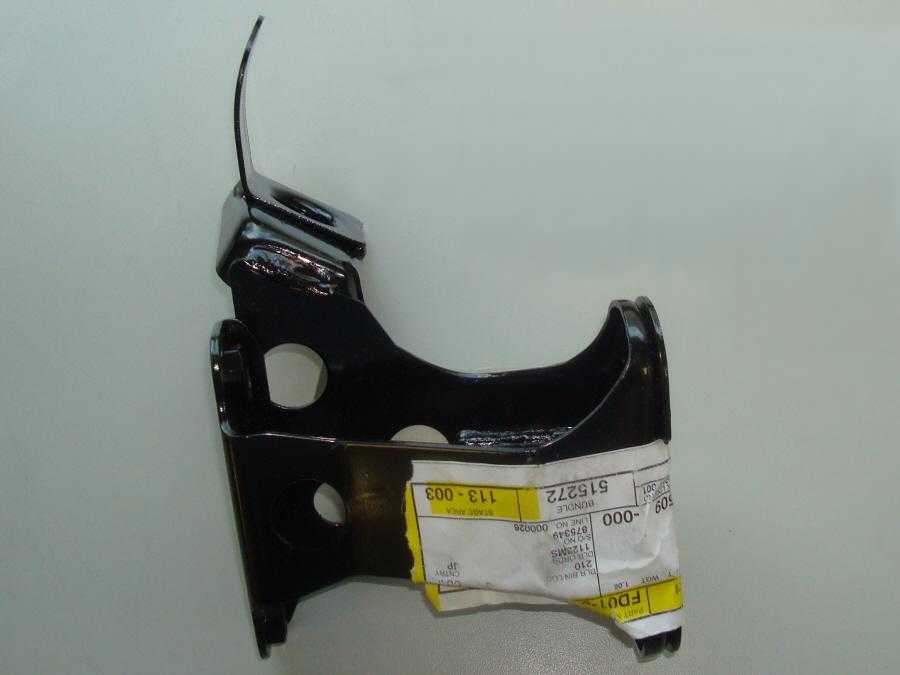

Bar Bracket
|
Bracket
Installed
|

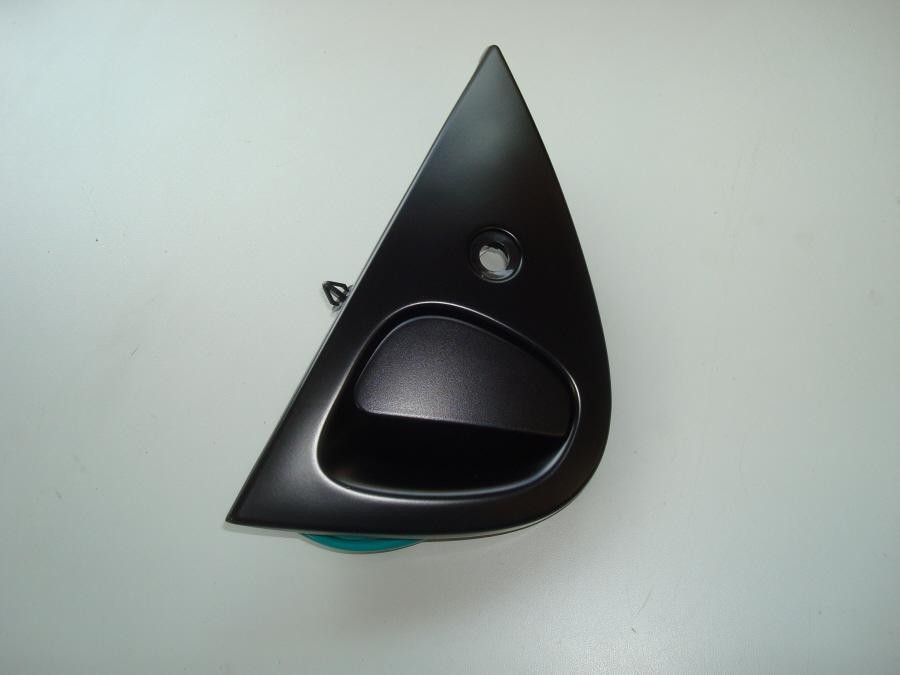

Door
Handle
|
Door
Handle Installed
|
AI Injection Re-Installed
 |
 |
 |
 |
|
AI
Pump Installation Before
|
AI

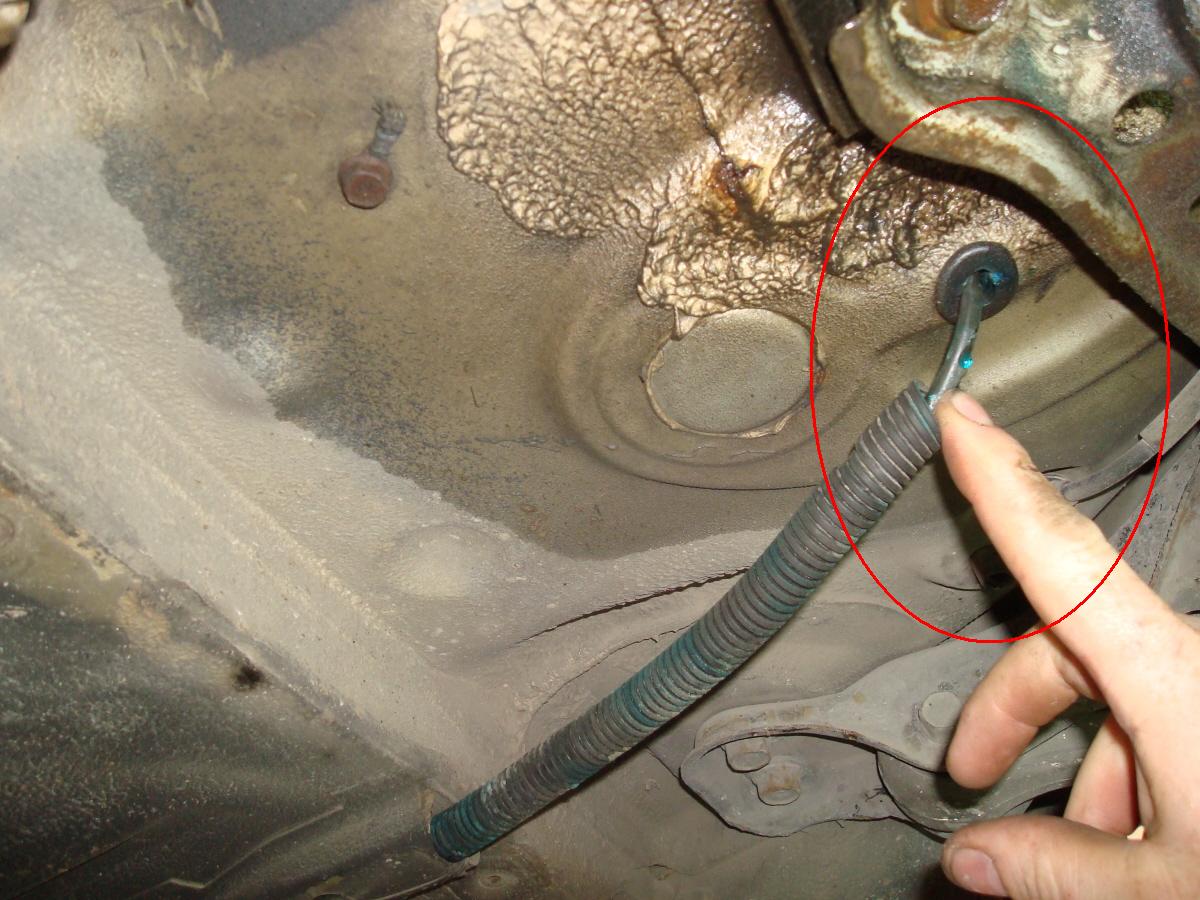

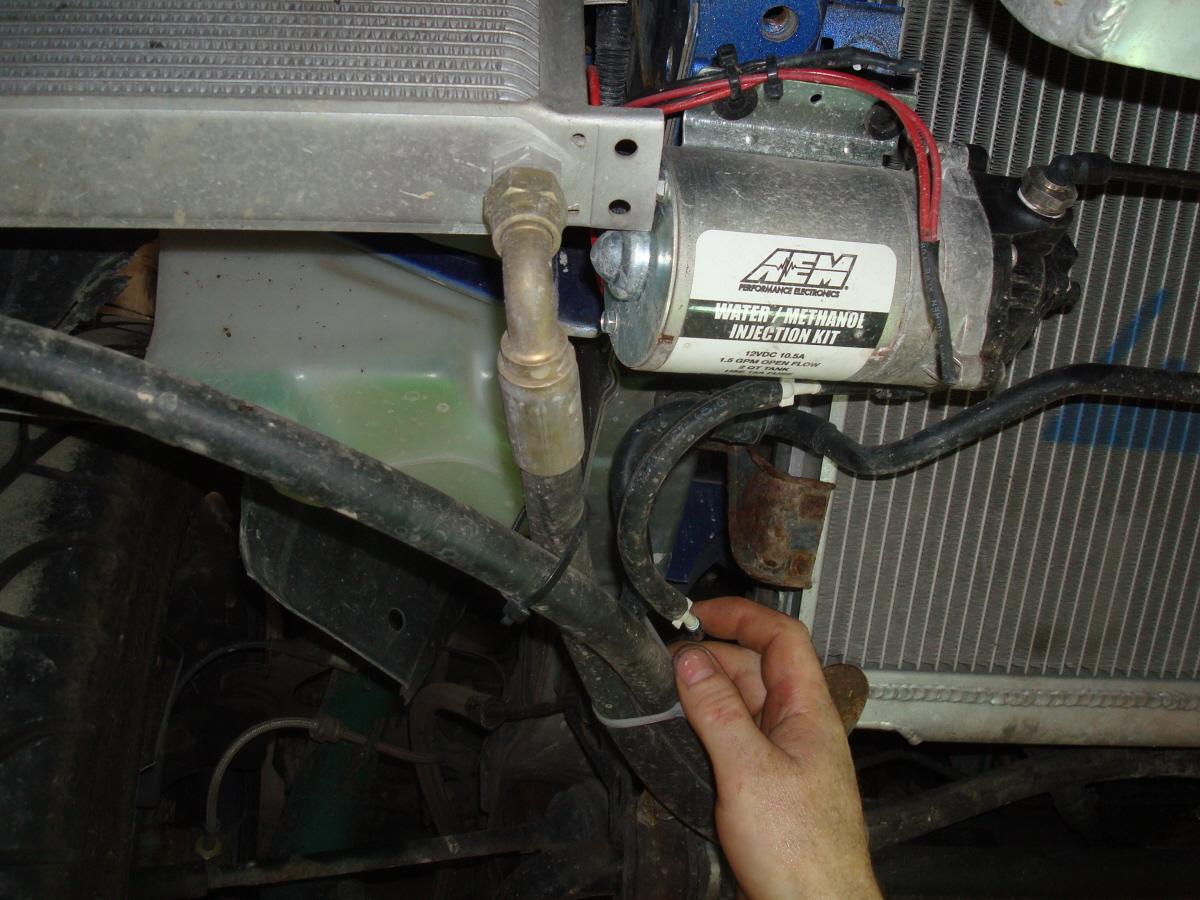

Line Installation Before
|
Replacement

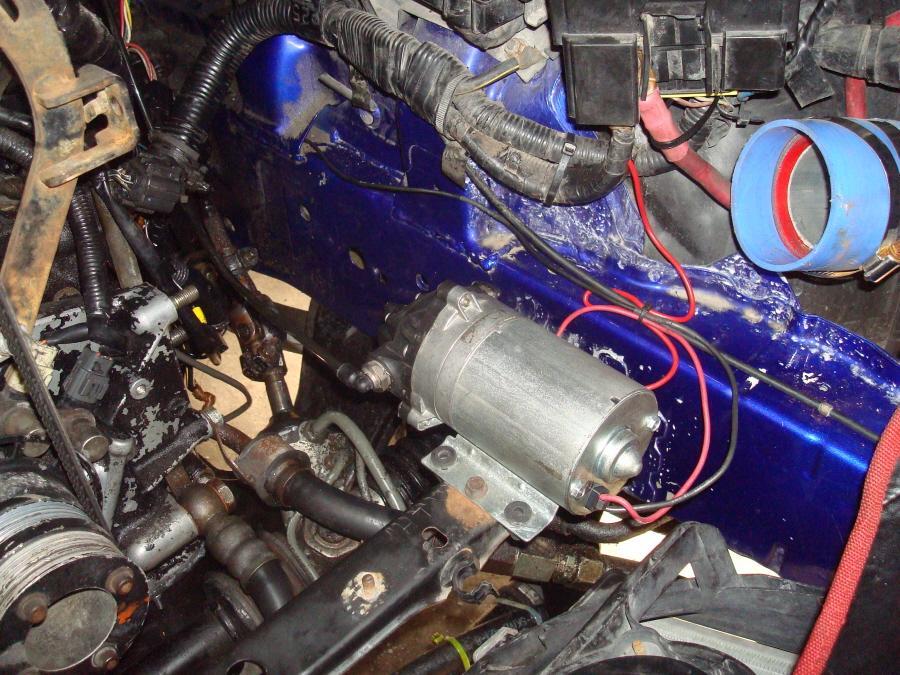

Pump Installed
|
Filter
Installed
|

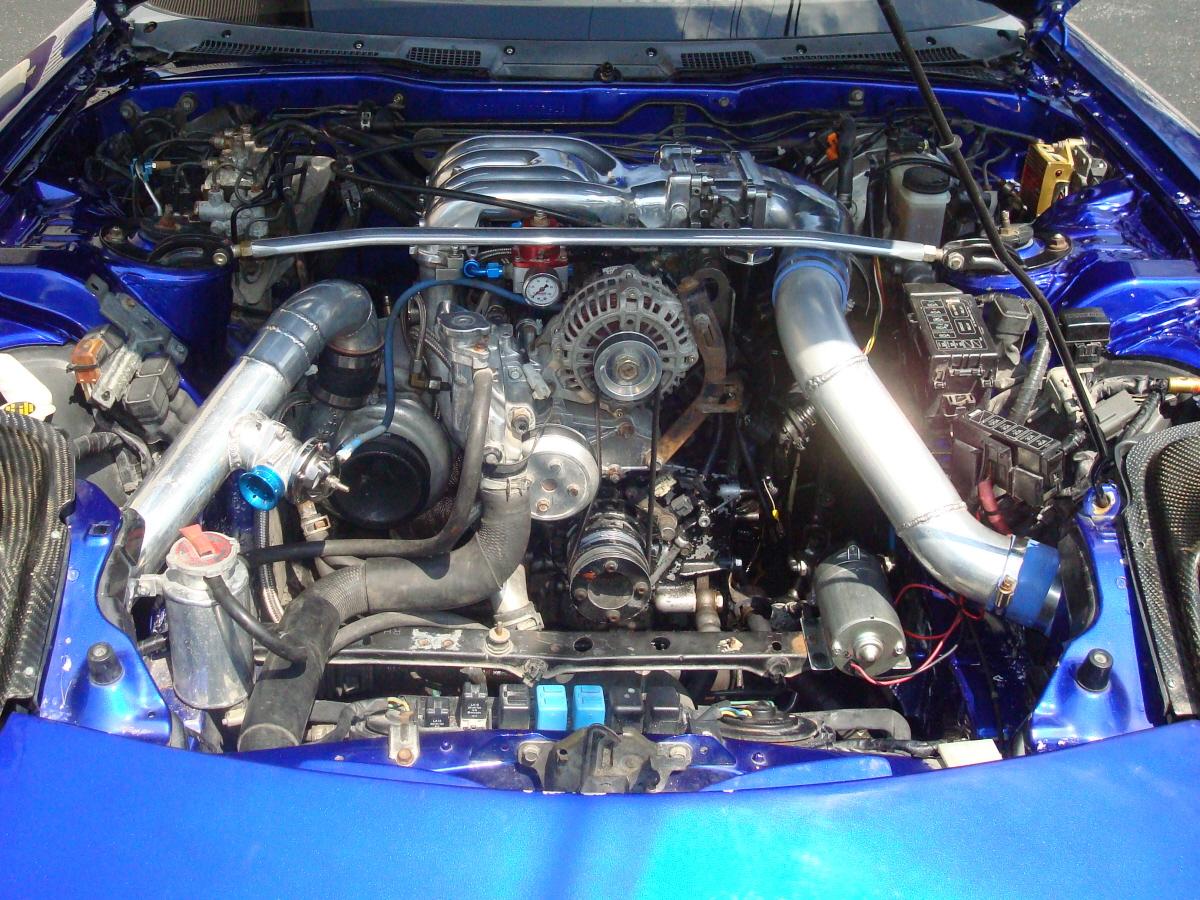

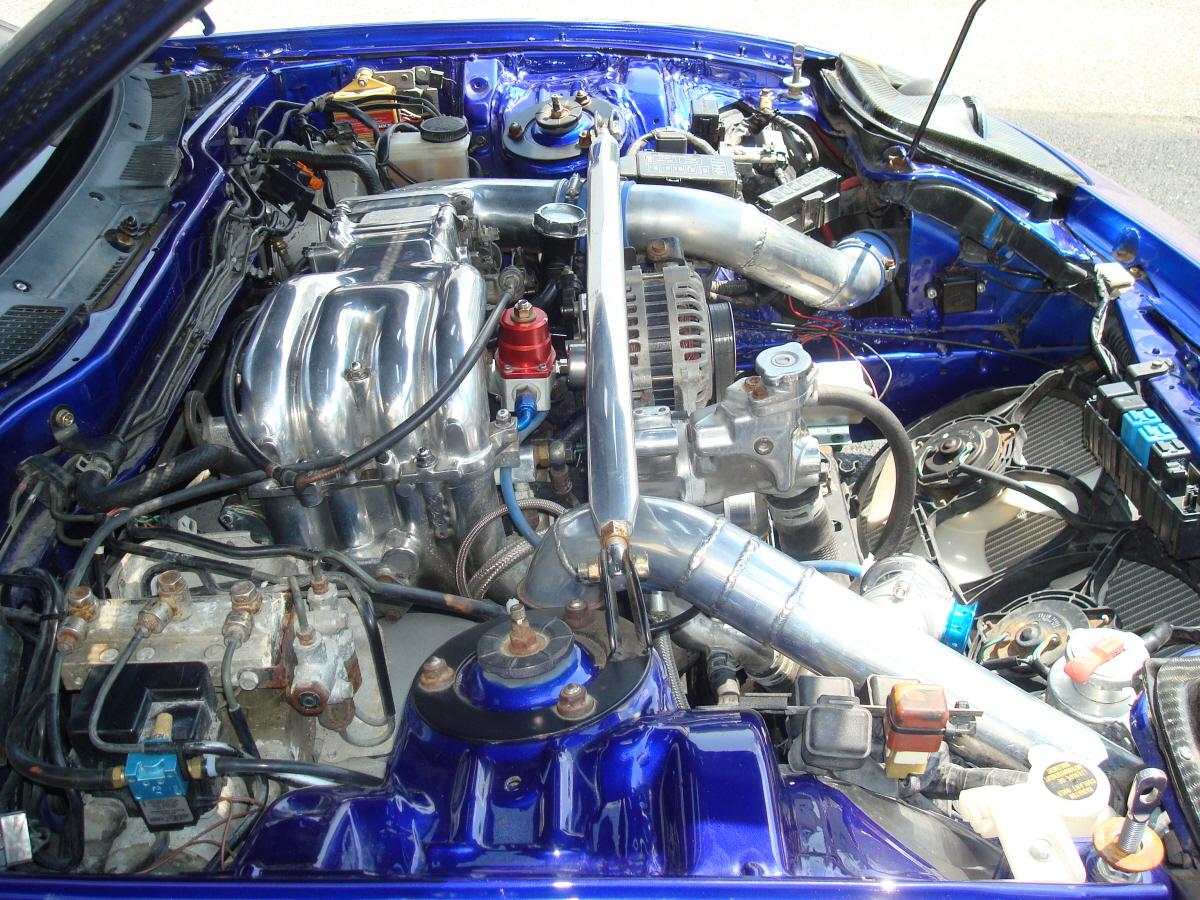

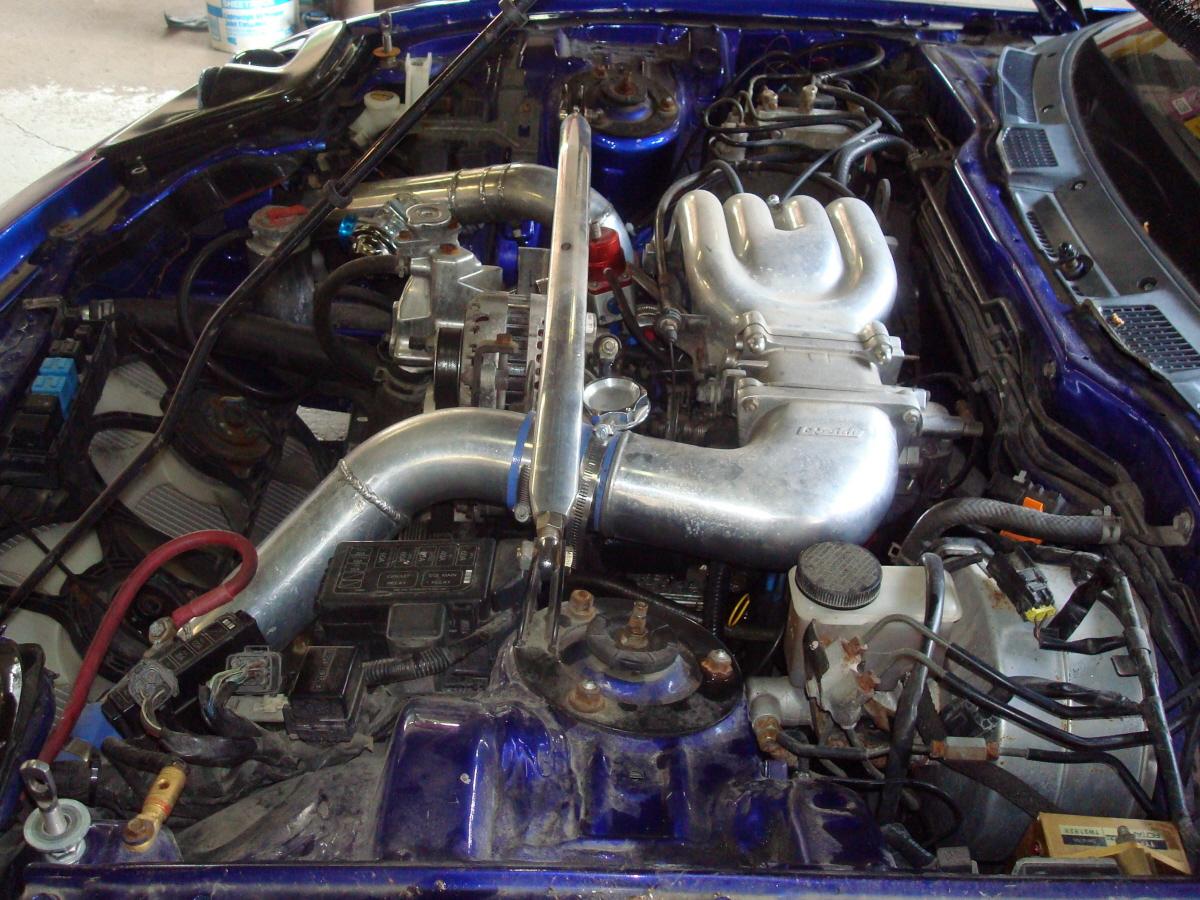

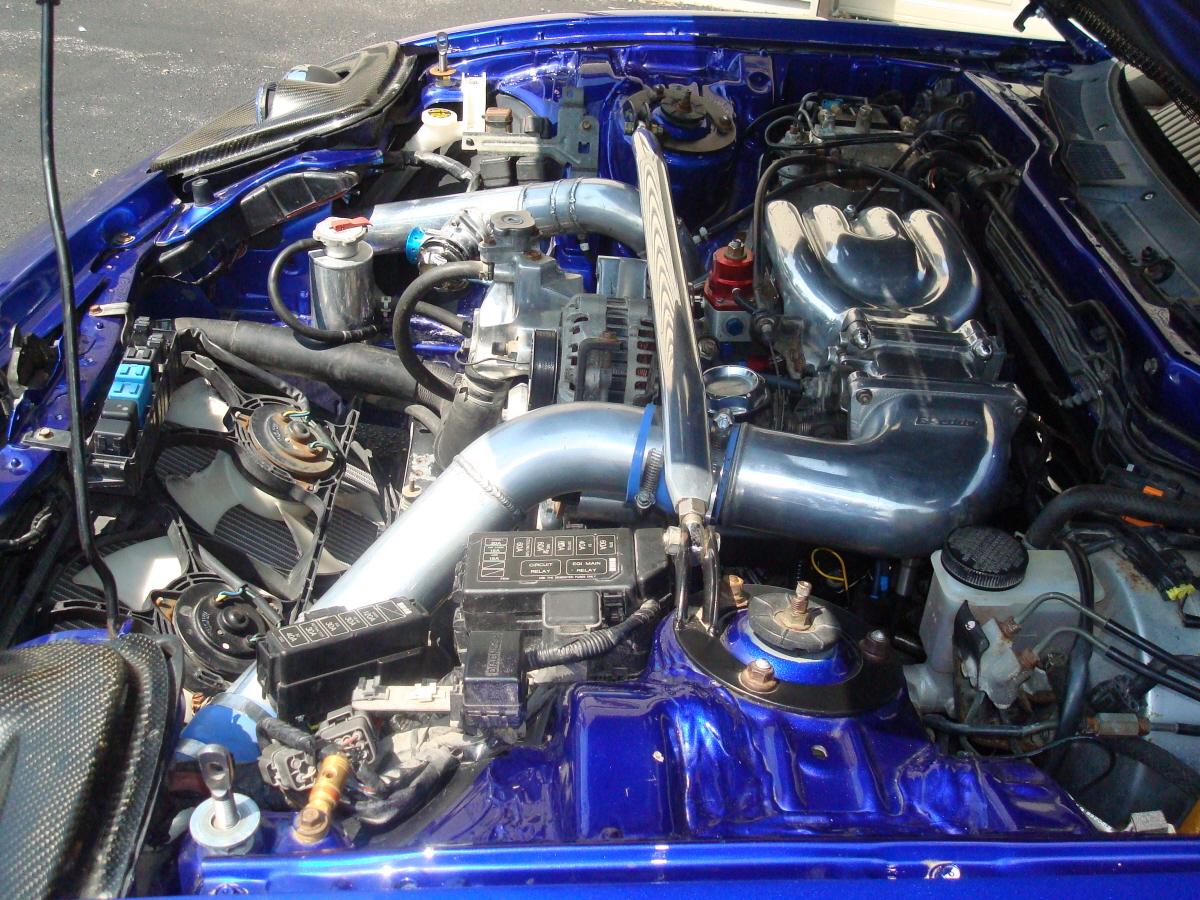

Engine Bay After Work Performed, August 5th, 2010
 |
 |
 |
|
Passenger
Side View
|
Front
View
|
Driver
Side View
|
Stage 1 (OD: 109503): Summer of '13 Ryan brought his car back for the following upgrades and work;
Photographs of Parts
 |
 |
 |
 |
|
Transmission
Brace
|

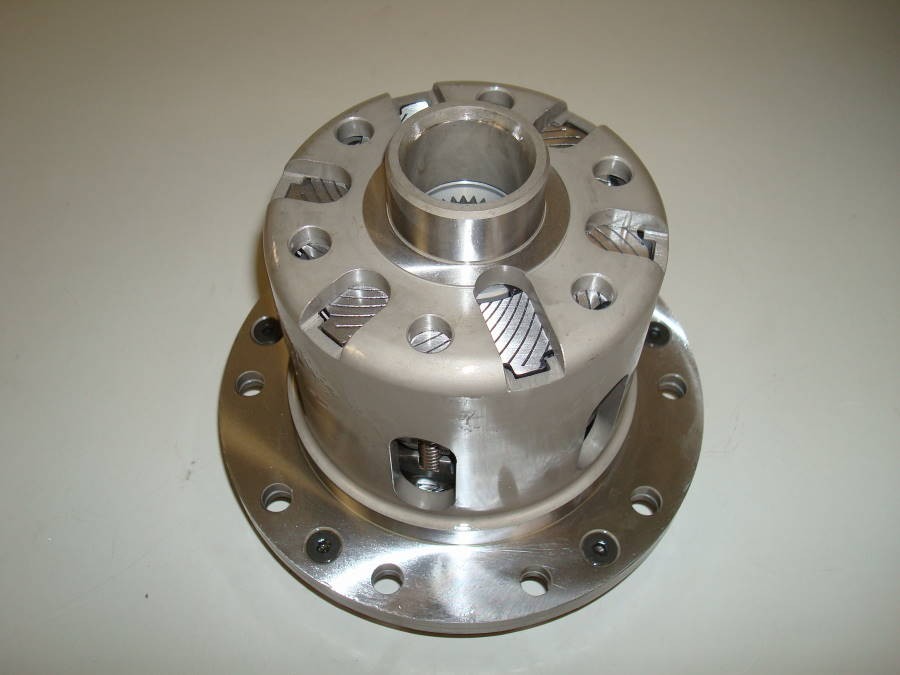

Cusco
LSD
|
Differential

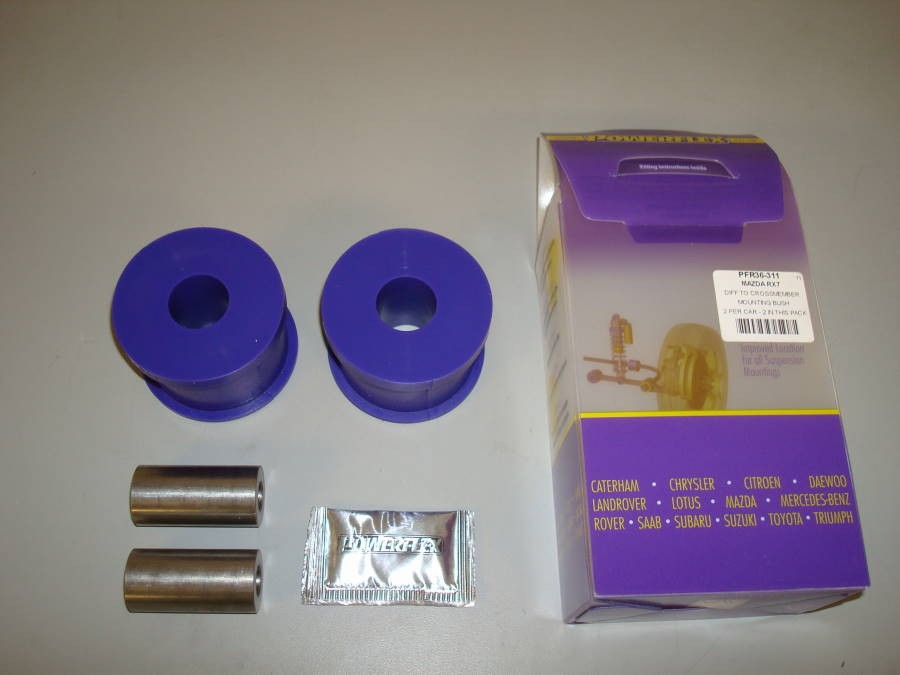

Bushings
|

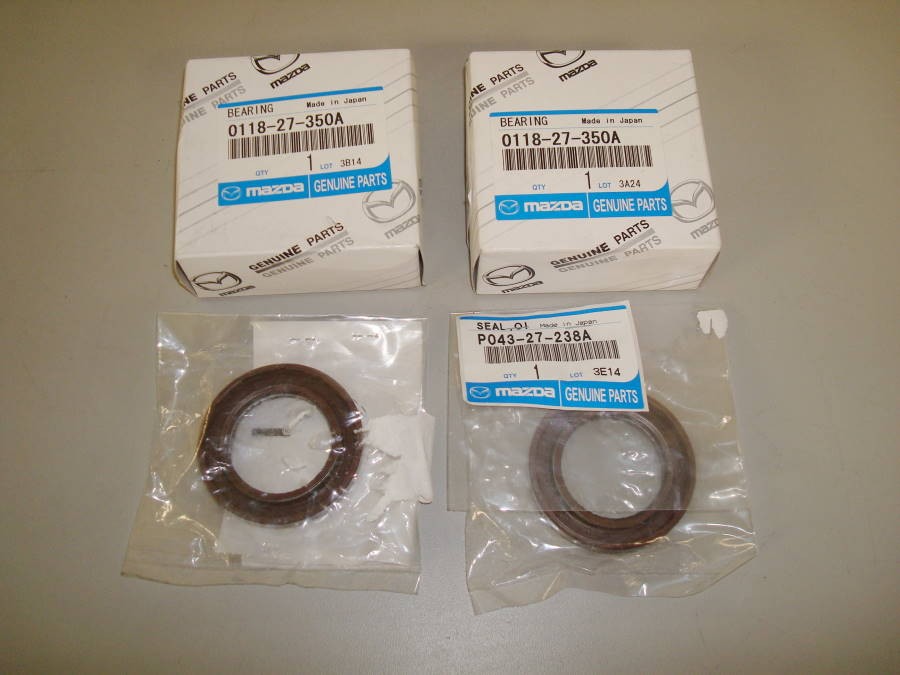

OEM
Seals
|
 |
 |
 |
 |
|

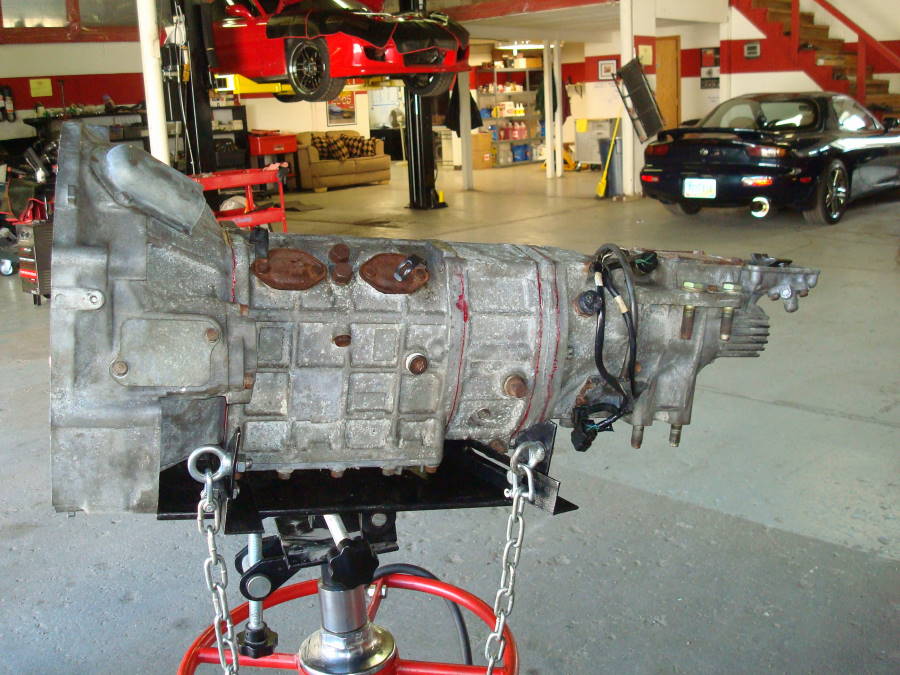

Rebuilt
Transmission
|

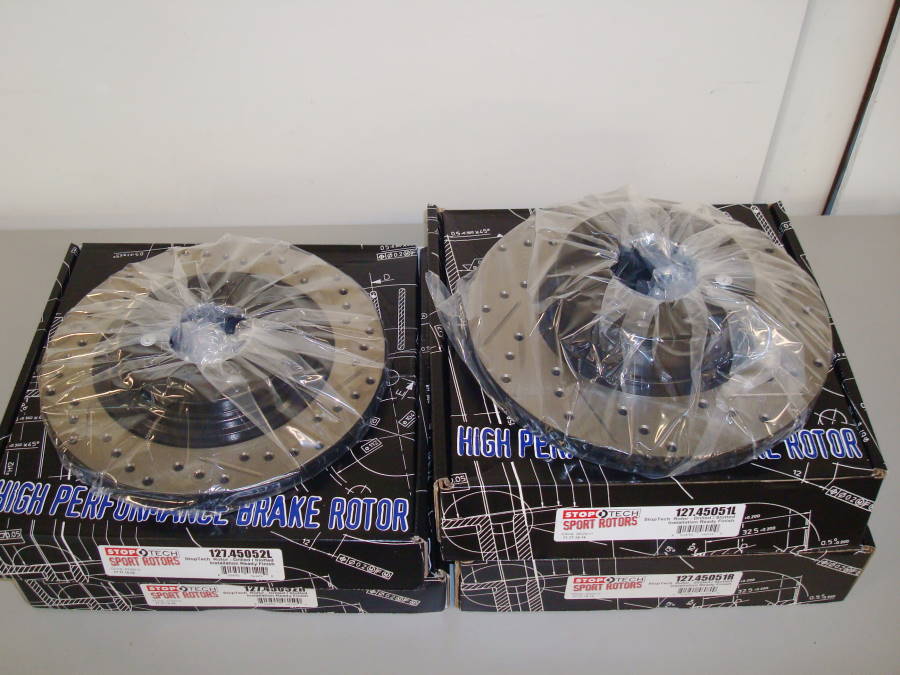

Brake
Rotors
|

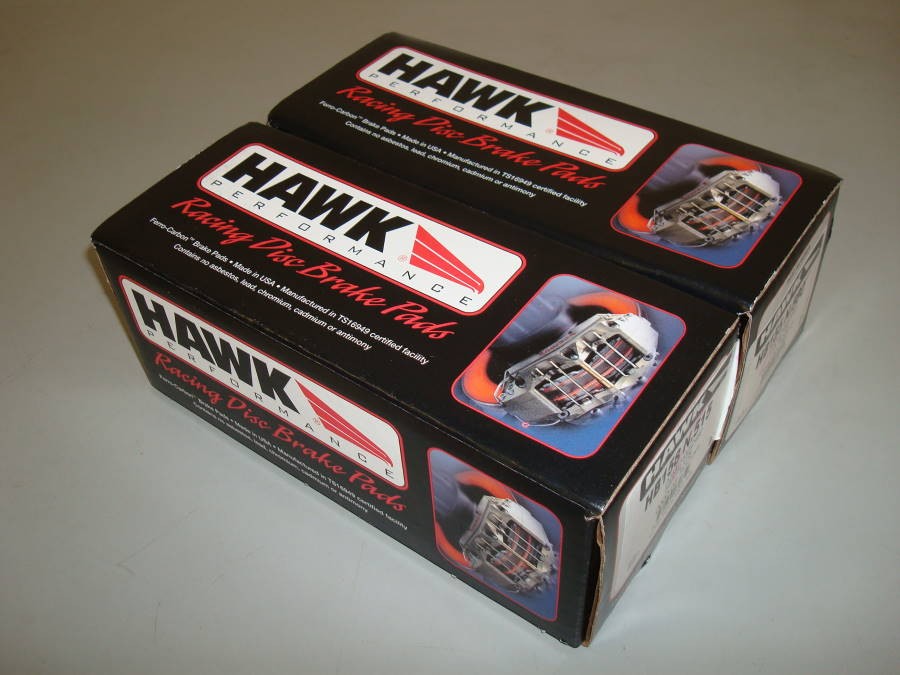

Brake
Pads
|
Oil

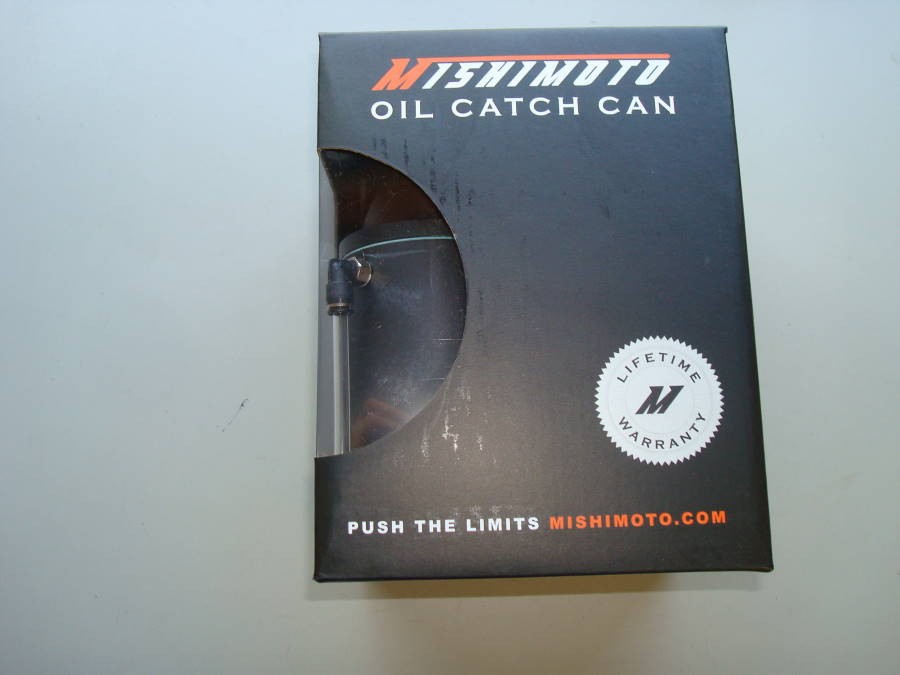

Catch Can
|
 |
 |
 |
 |
|

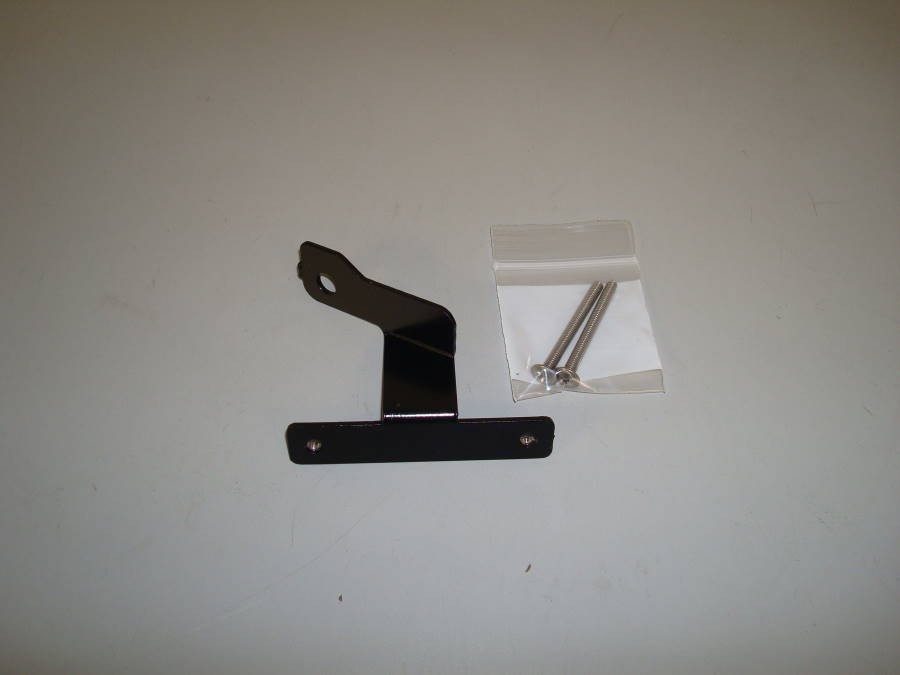

Map
Sensor Bracket
|

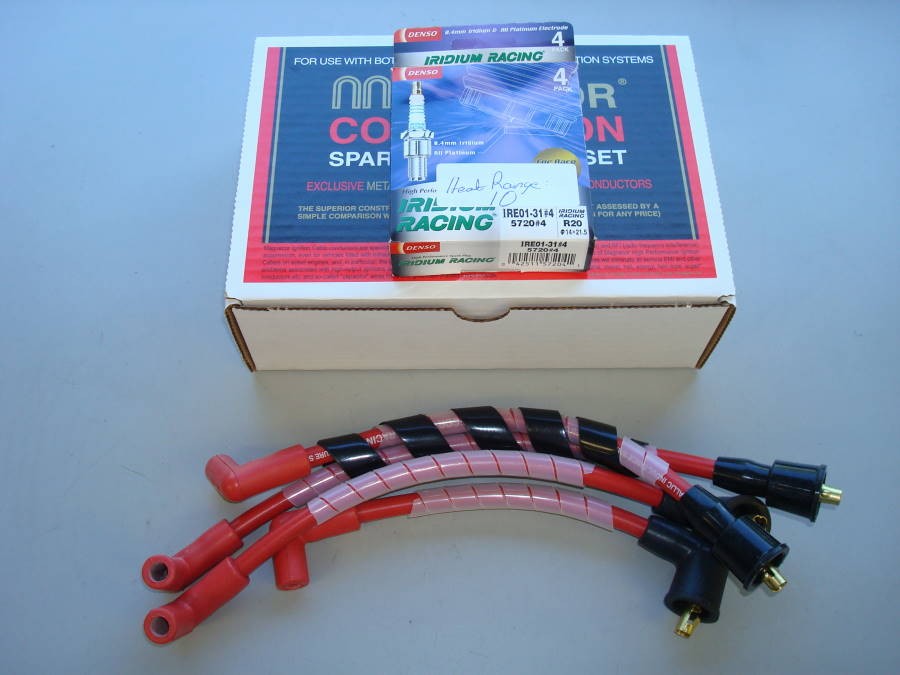

Plugs
& Wires
|

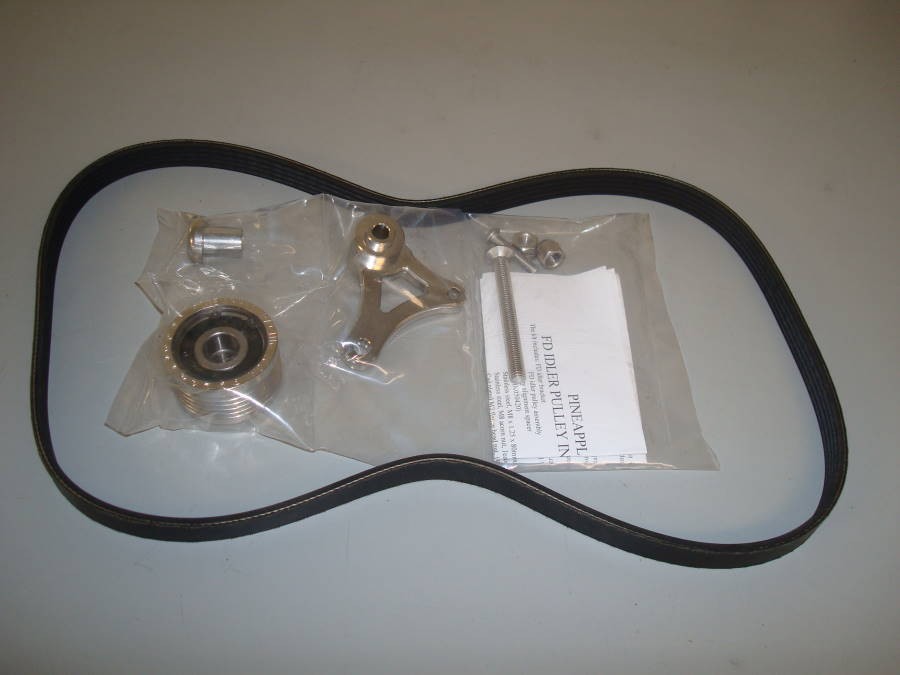

Idler
Pulley Kit
|
SS

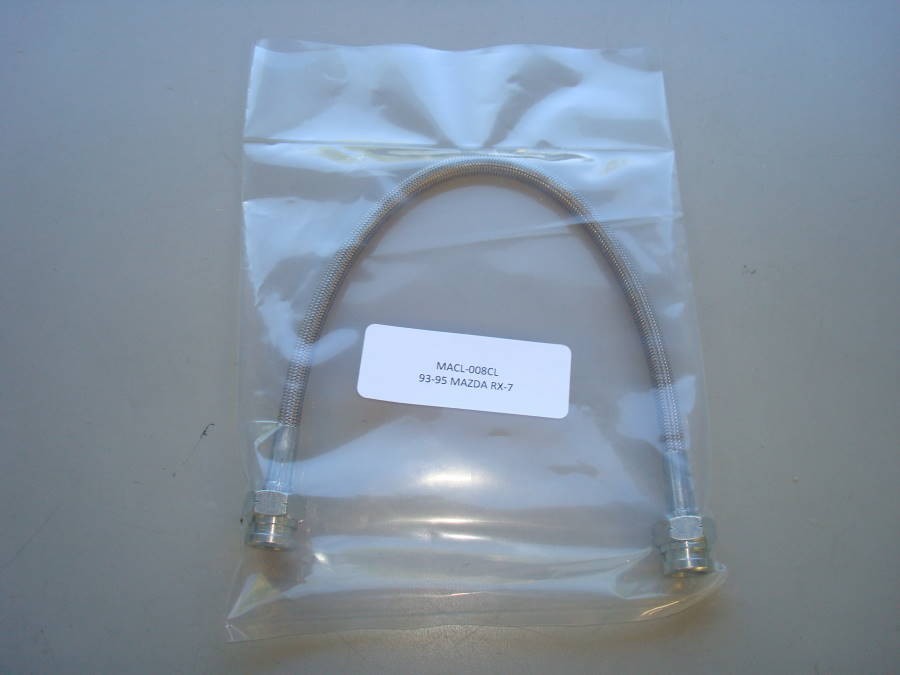

Clutch Line
|
Photographs of Parts Installed
 |
 |
 |
 |
 |
|
Front

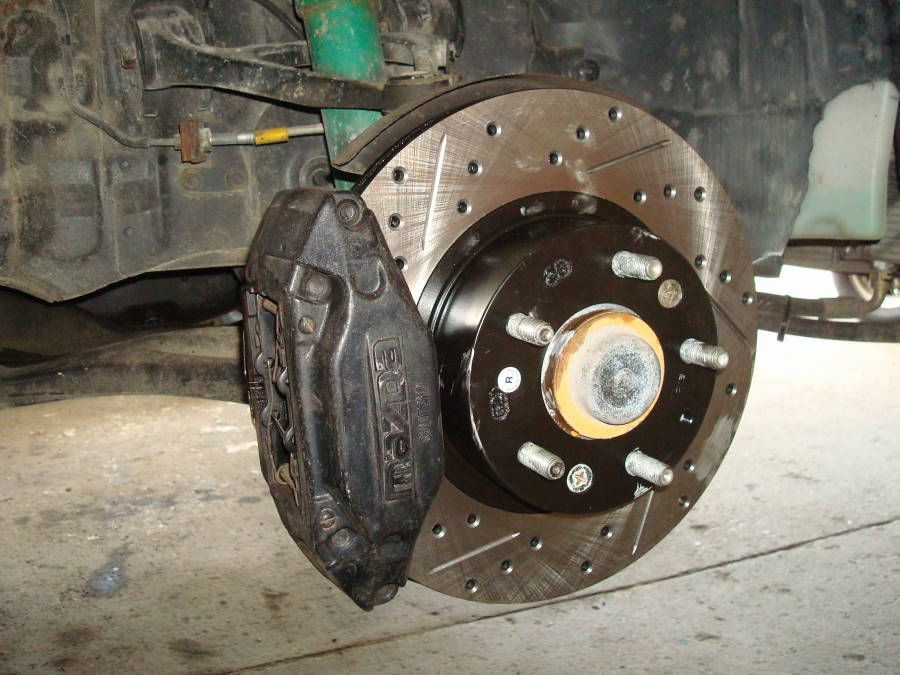

Brake Parts
|

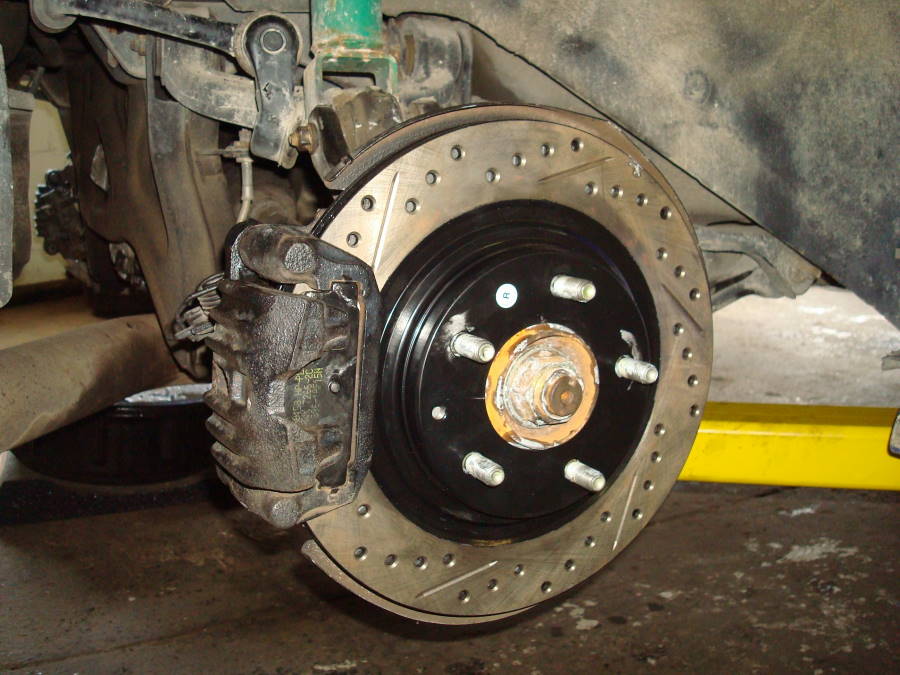

Rear
Brake Parts
|

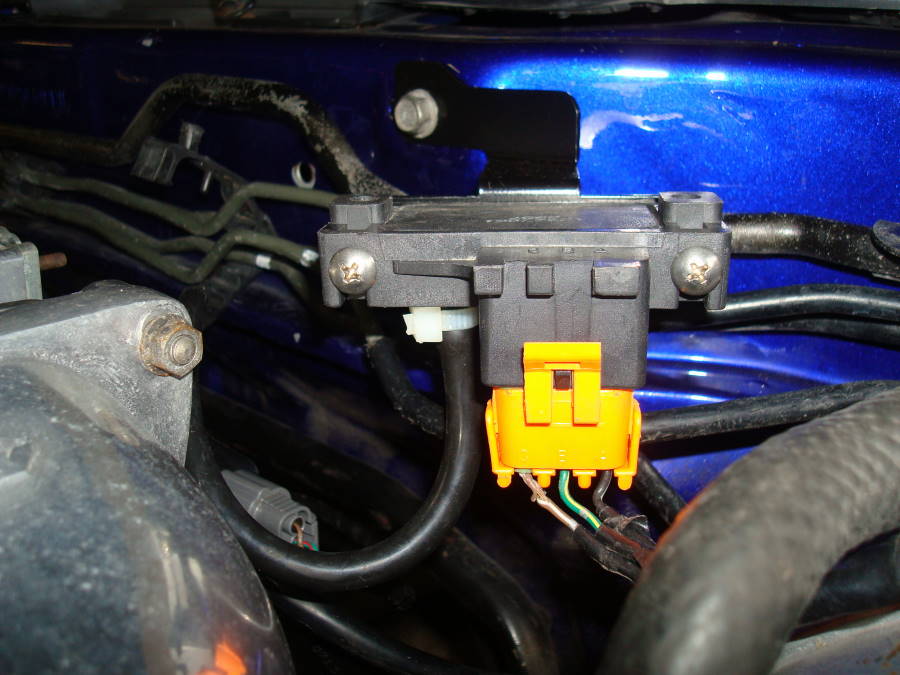

Map
Sensor Bracket
|

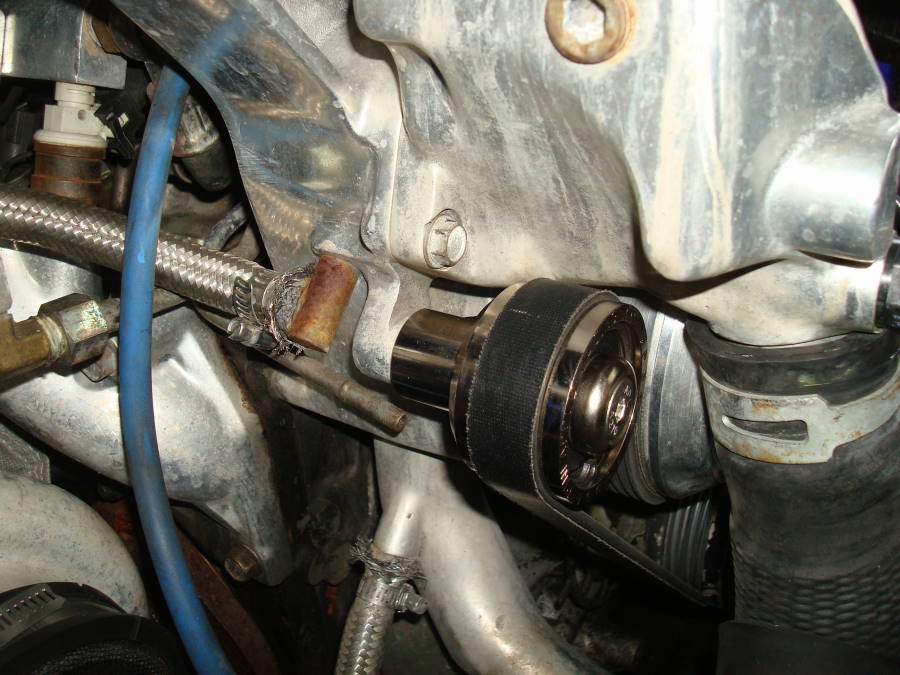

Idler
Pulley Kit
|

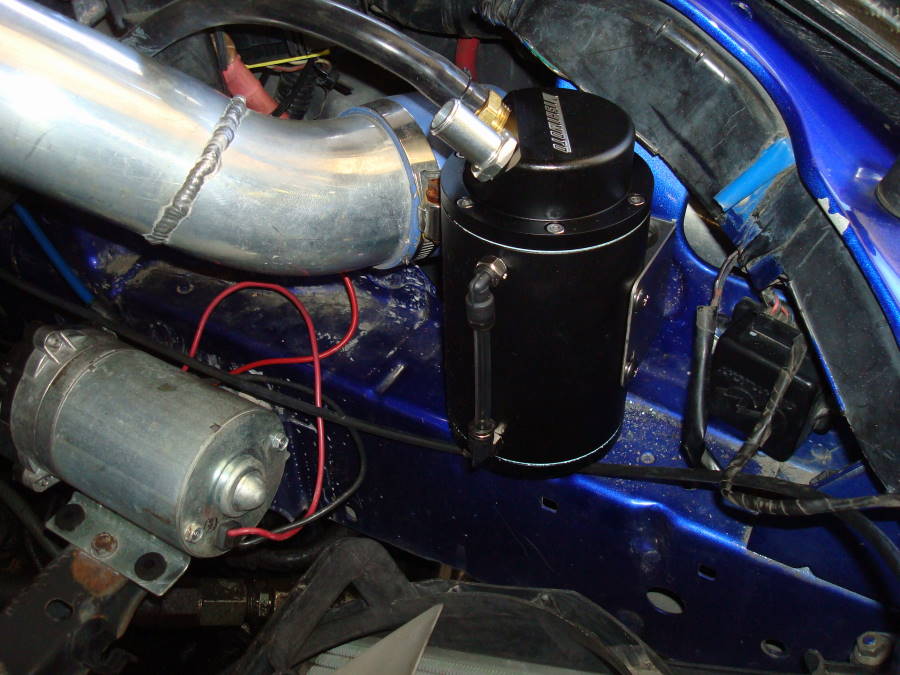

Oil
Catch Can
|

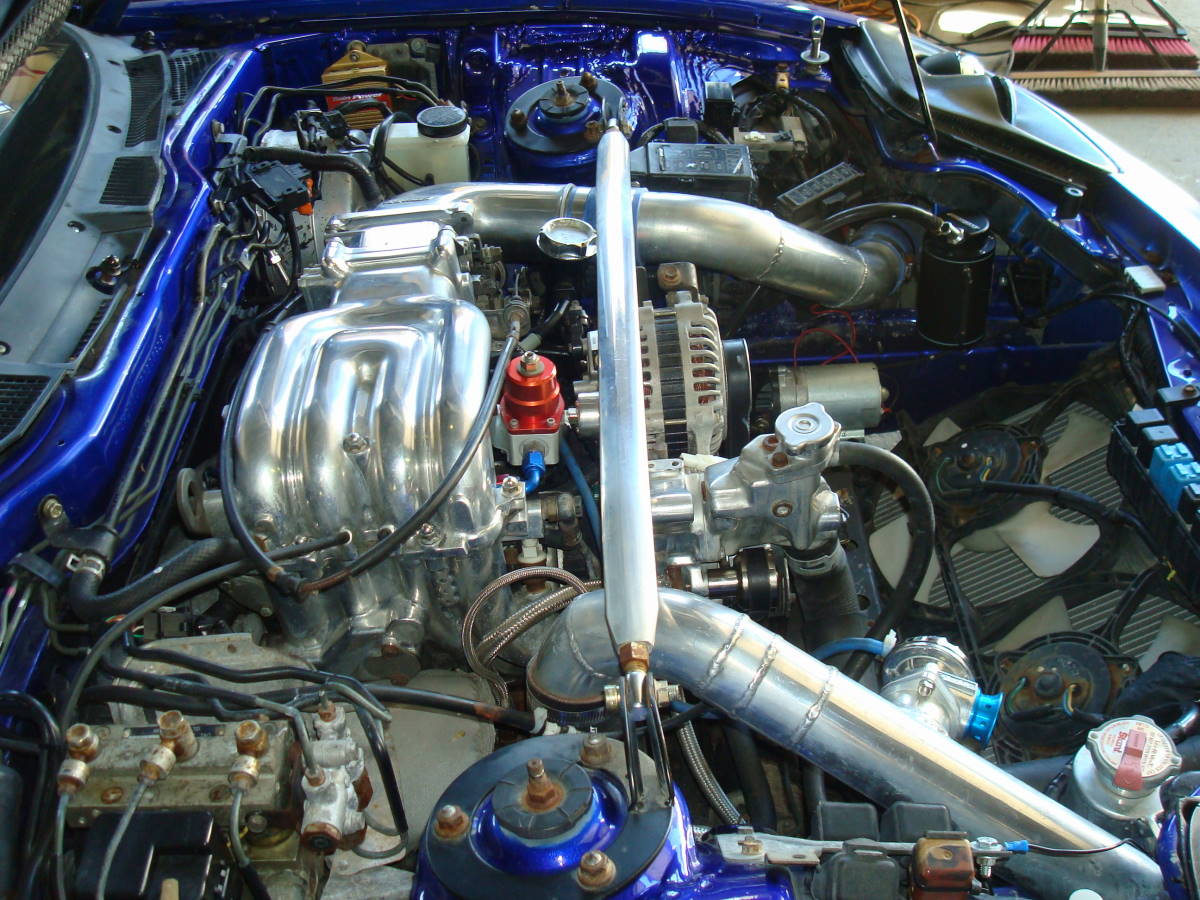

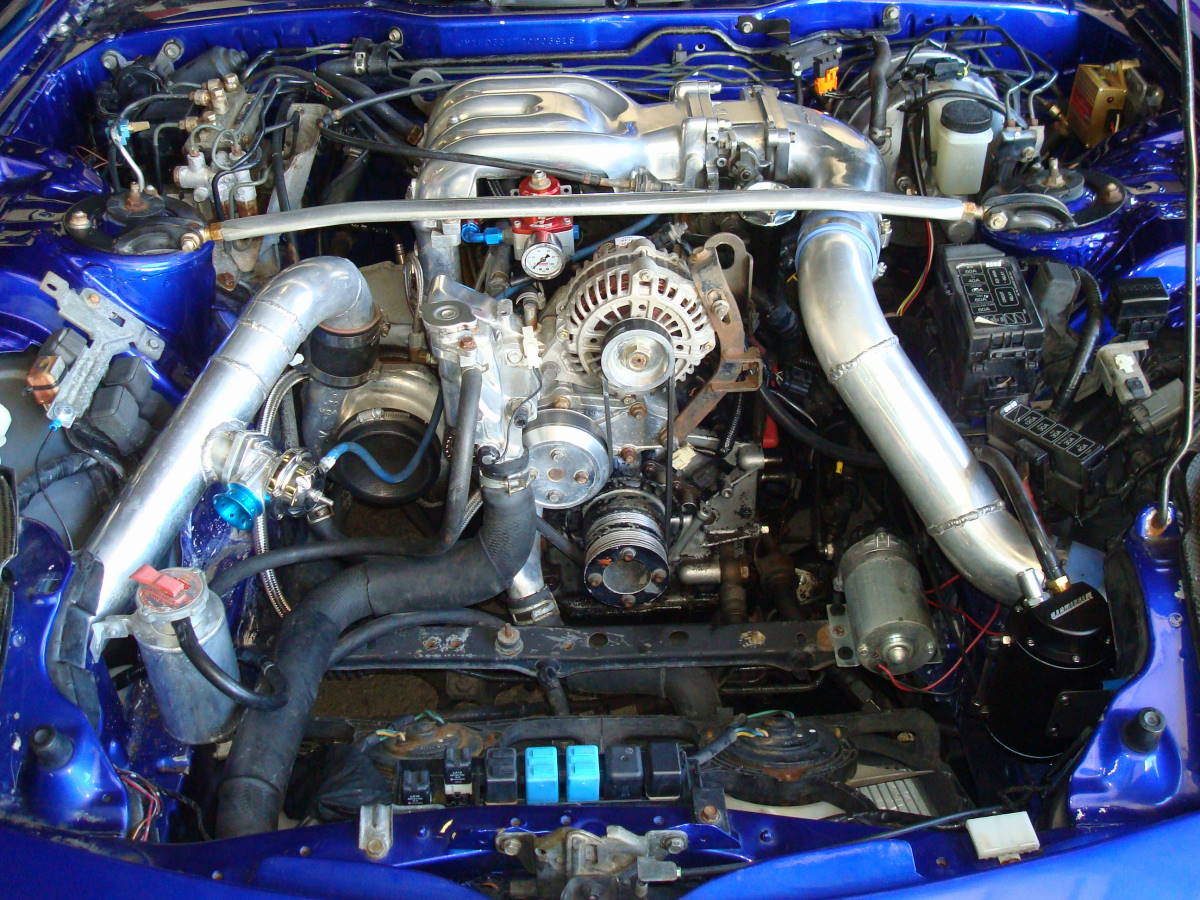

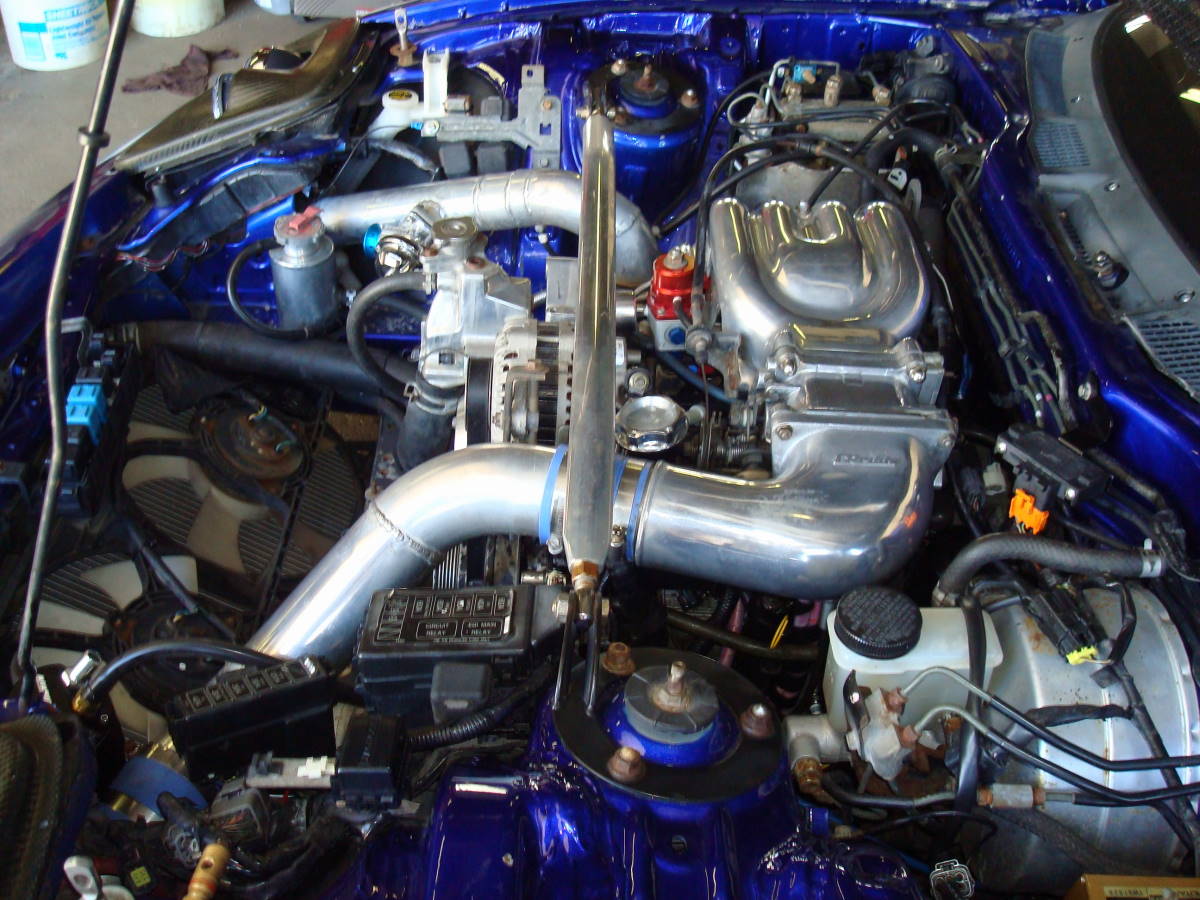

Photographs of the engine bay after modifications & upgrades
 |
 |
 |
|
Passenger
Side View
|
Front
View
|
Driver
Side View
|

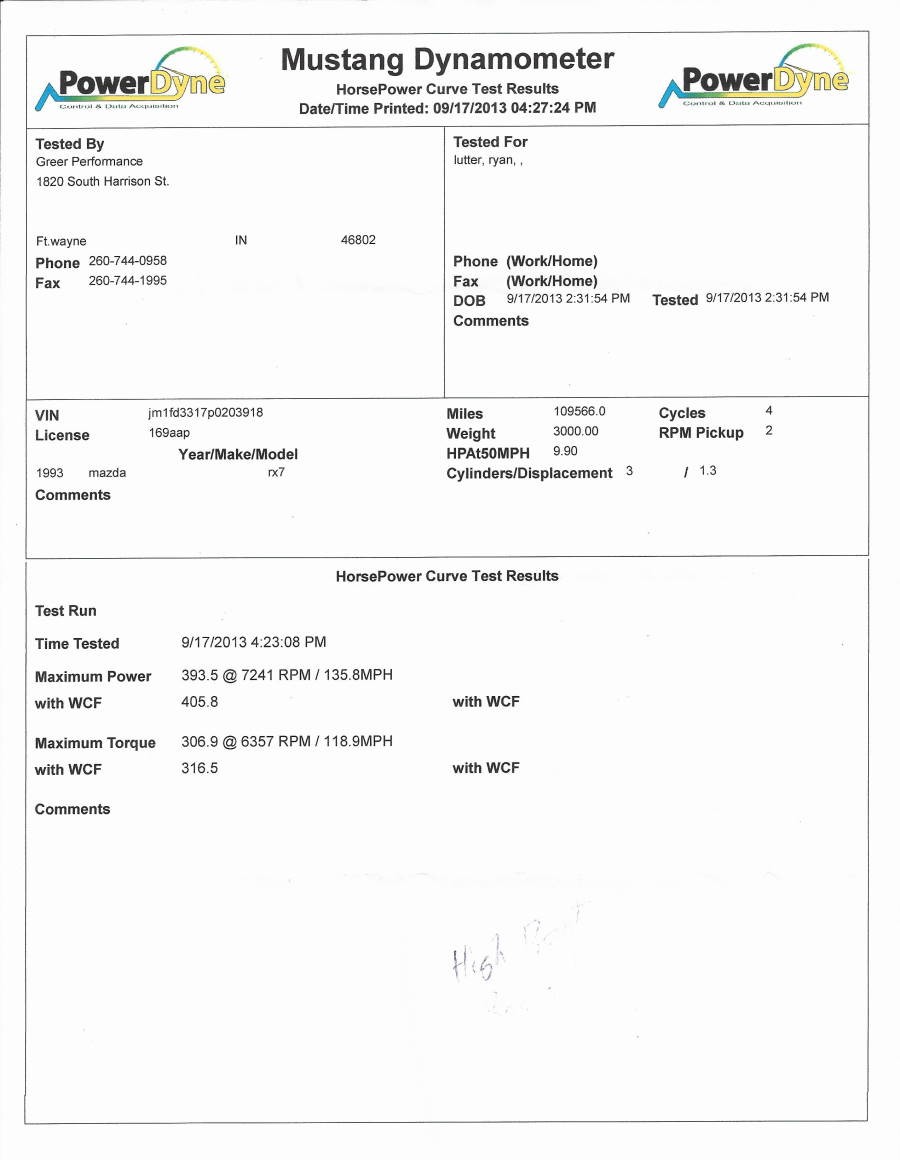

Dyno Sheet
 |
 |
|
9/17/13
405 RWHP @ 17 psi
|
|
