Matt's RX-7 13B-REW Engine Installation & Modifications

Photographs of Rebuilt Engine taken before & during installation

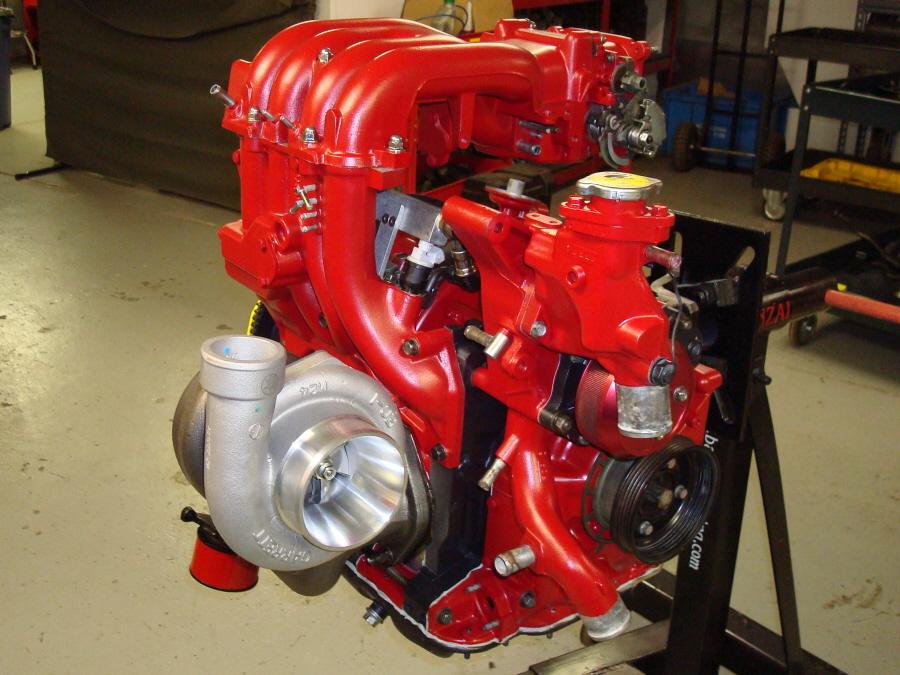

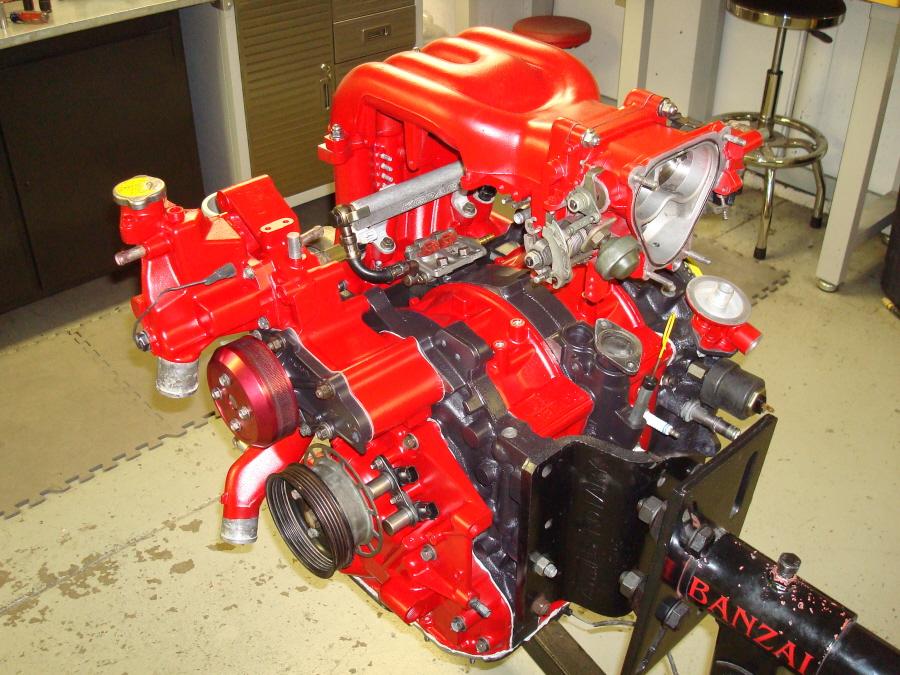

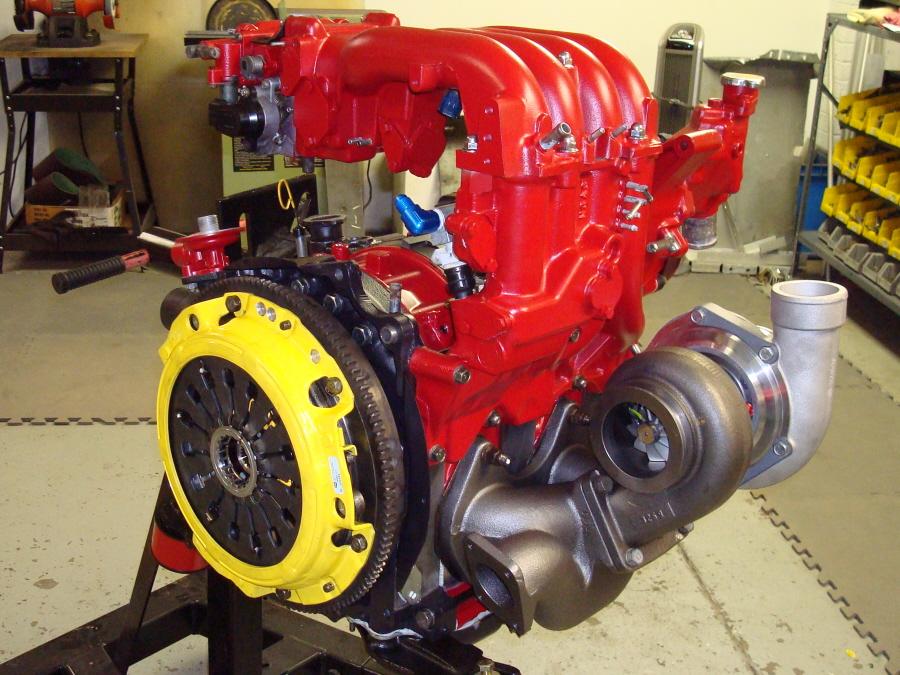

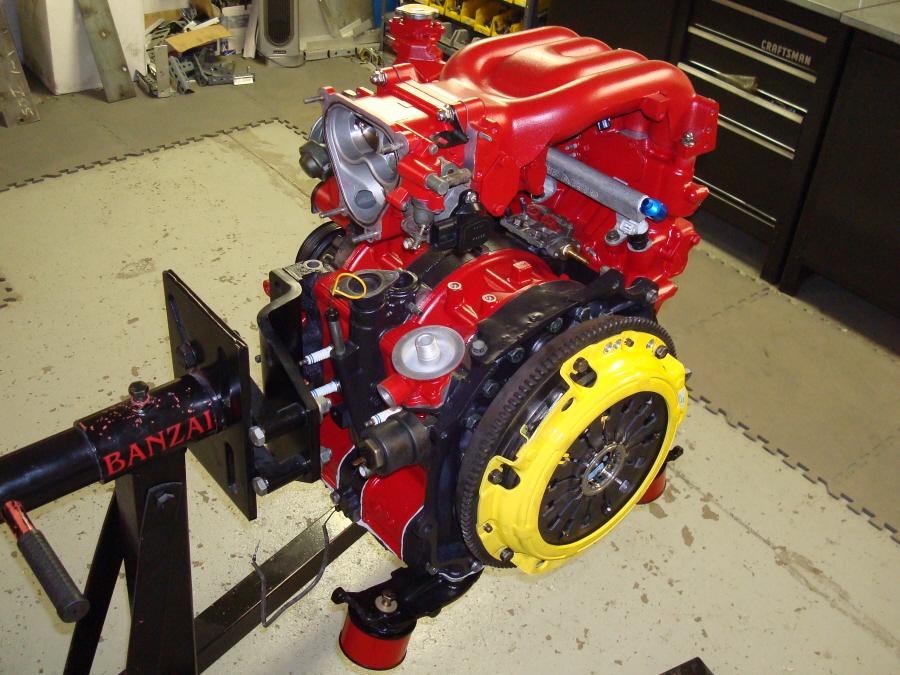

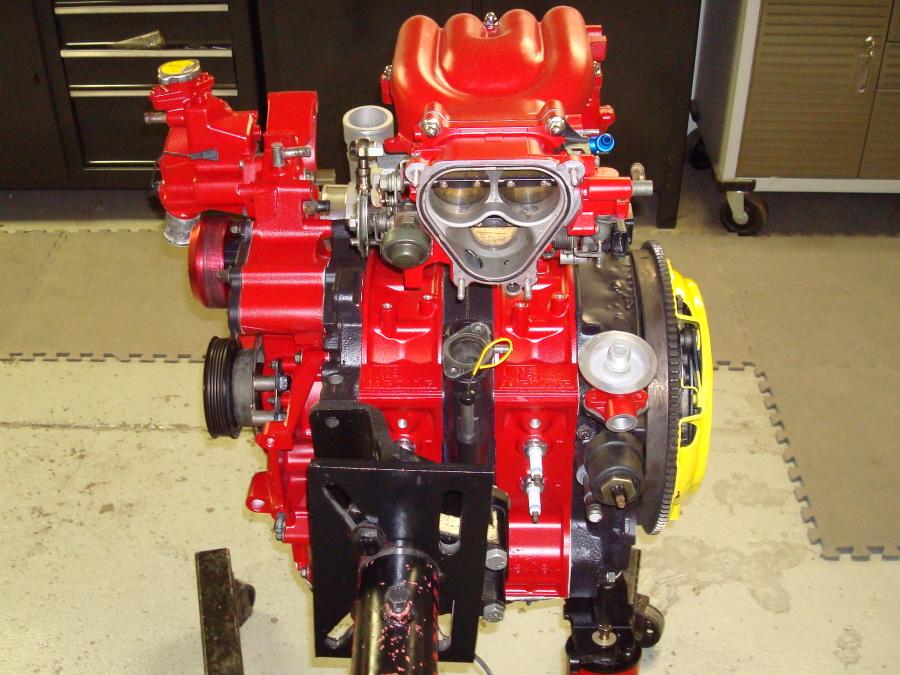

Engine Long Block #1	Engine Long Block #2	Engine Long Block #3	Engine Long Block #4	Engine Long Block #5

Photographs taken during engine installation

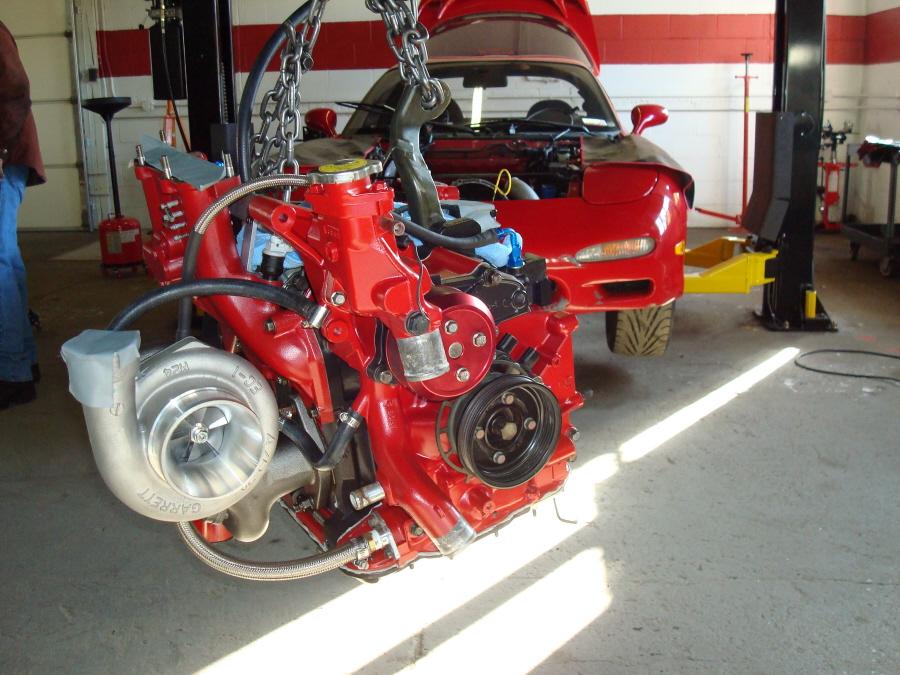

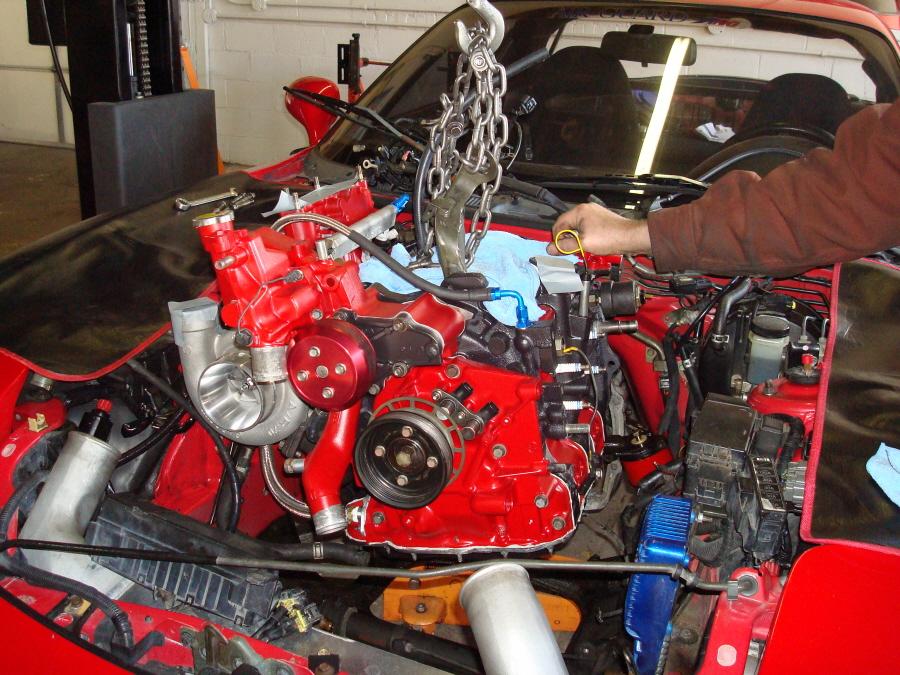

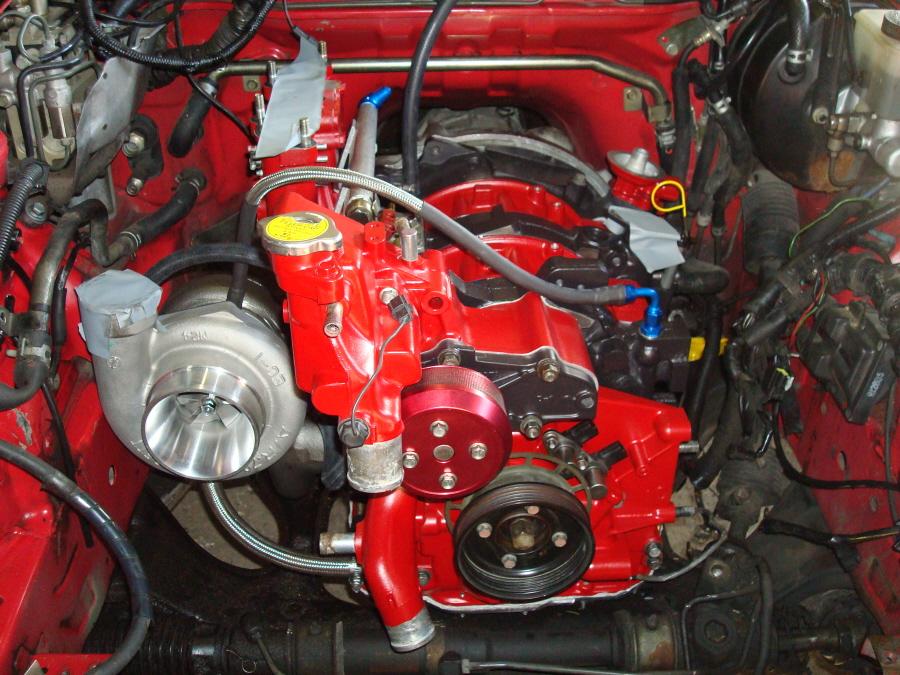

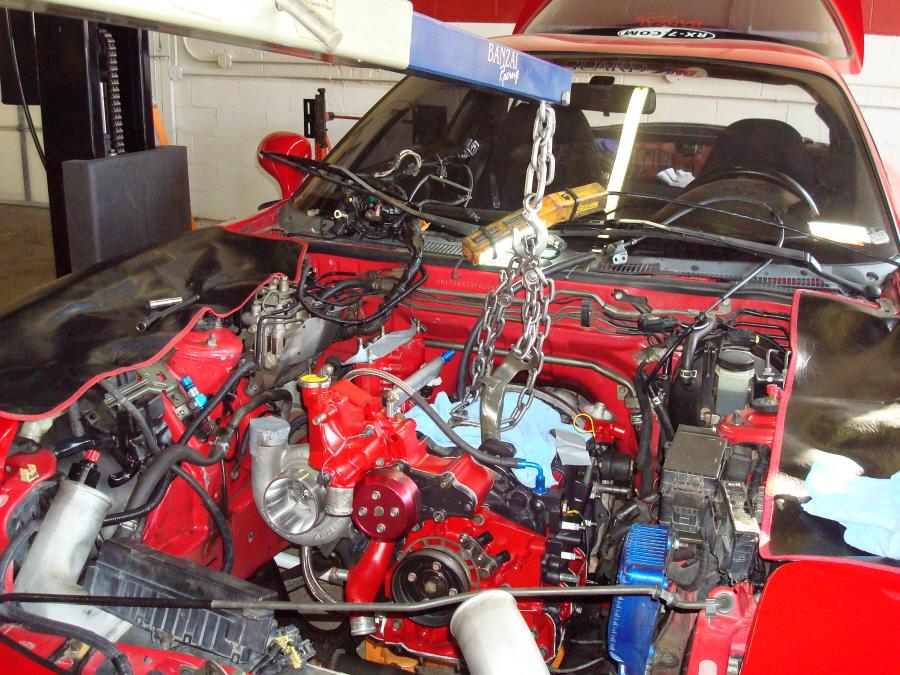

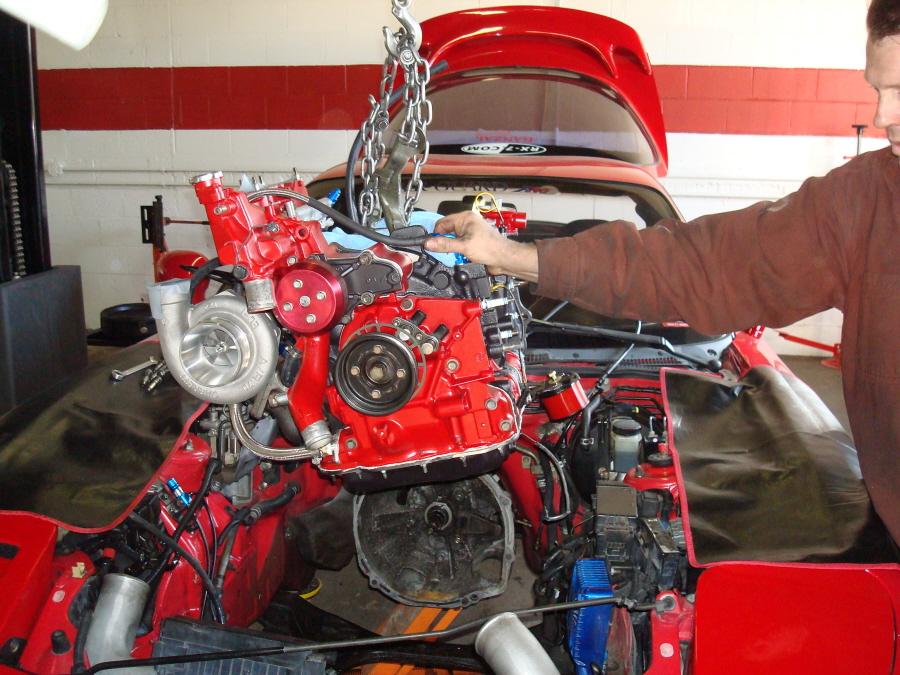

Installation #1	Installation #2	Installation #3	Installation #4	Engine Installed

List of upgraded components & modifications;

Banzai Racing Streetported 3mm Engine
New OEM Rotor Housings
Banzai Racing Oil Pan Brace Kit
Banzai Racing Polyurethane Motor Mounts
Banzai Racing Block-Off Plate Kit
Banzai Racing OMP Elimination Kit

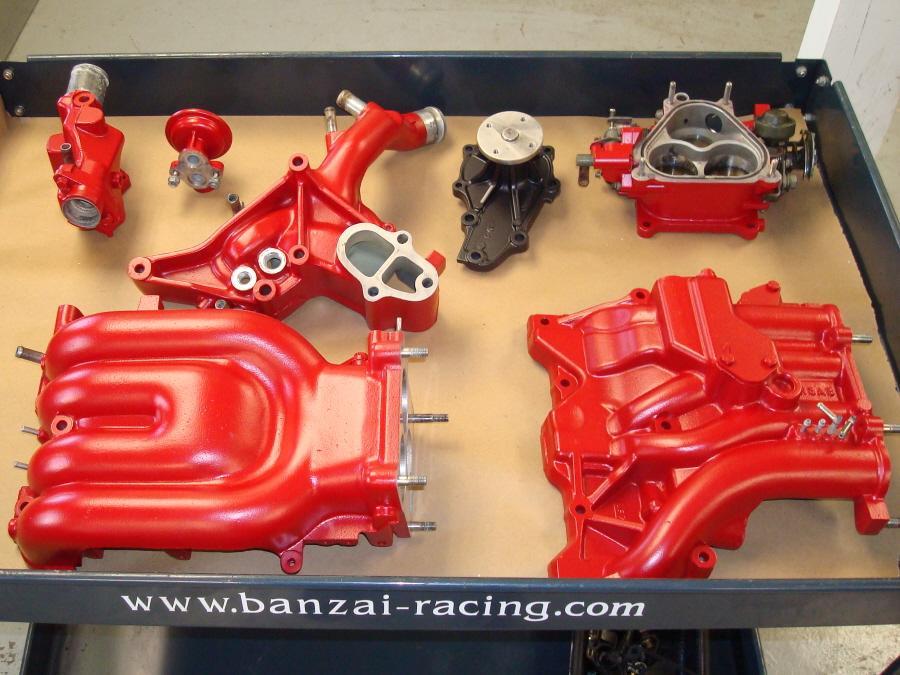

Painted Peripherals
Vacuum Line Simplification w/Hose Techniques Silicone Hose

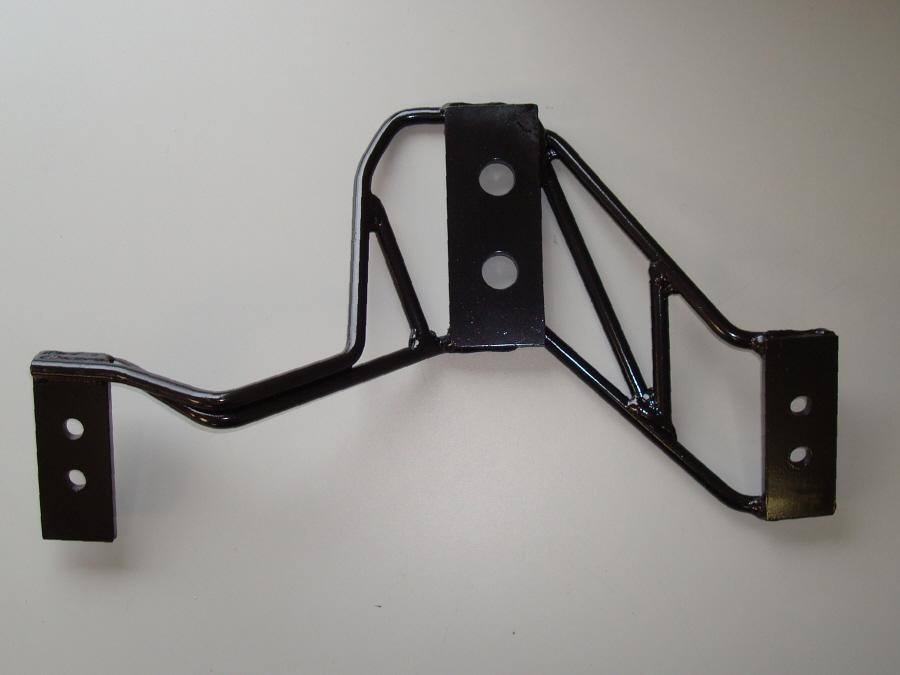

Banzai Racing Differential Brace
Powerflex Differential Bushings
Garret GT35R Dual Ball Bearing Turbo
TiAL 44mm Wastegate

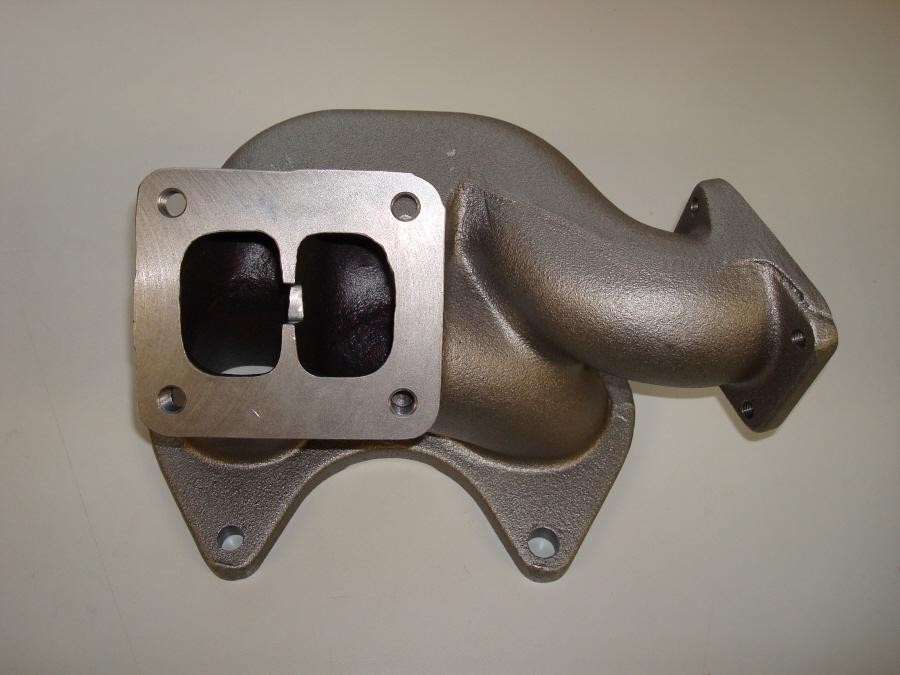

HKS Cast Manifold
Banzai Racing HKS to TiAL Wastegate Adapter
SS Coolant & Oil Lines & AN Fittings
Custom Downpipe

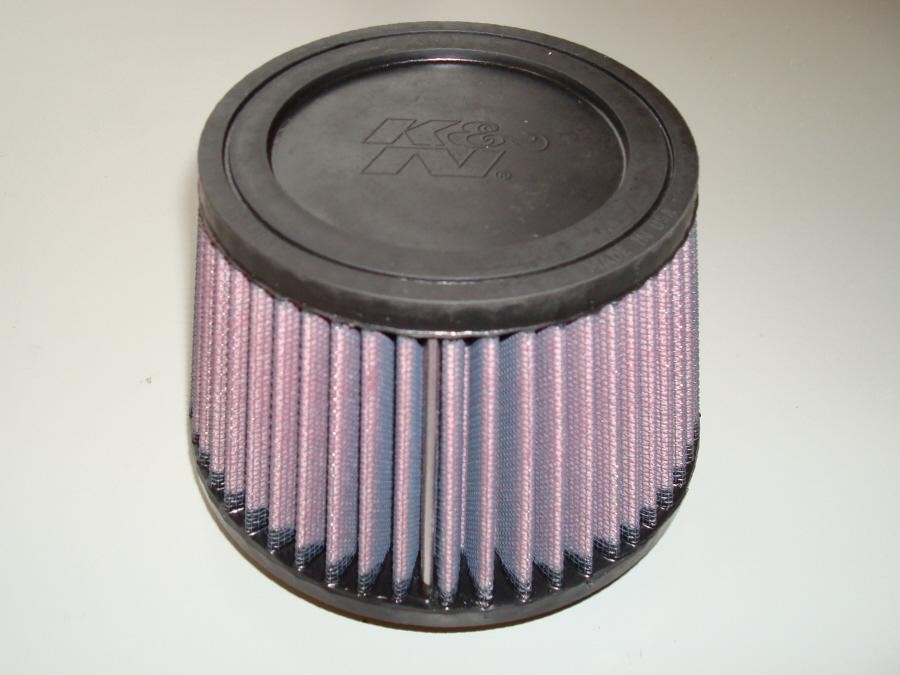

K&N Filter
GReddy Elbow

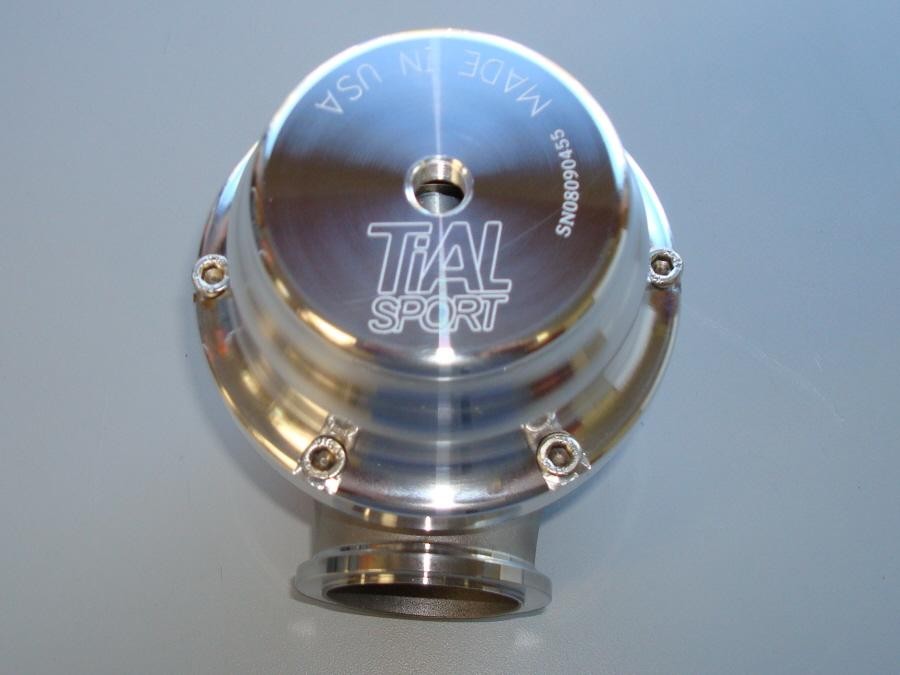

TiAL 50mm Blow-Off Valve
Custom I/C Piping
4-Ply Silicone Couplers & T-Bolt Clamps
Banzai Racing Custom Fuel System w/ 1600cc Secondary Injectors
850cc Primary Injectors Cleaning & Balancing
JDM Transmission
Poly-V Belts
OEM Oil Filler Neck
Miscellaneous; Gaskets, Heat Shield, Sensors and Seals
Odyssey Dry Cell Battery

Upgrade & Modifications Photographs

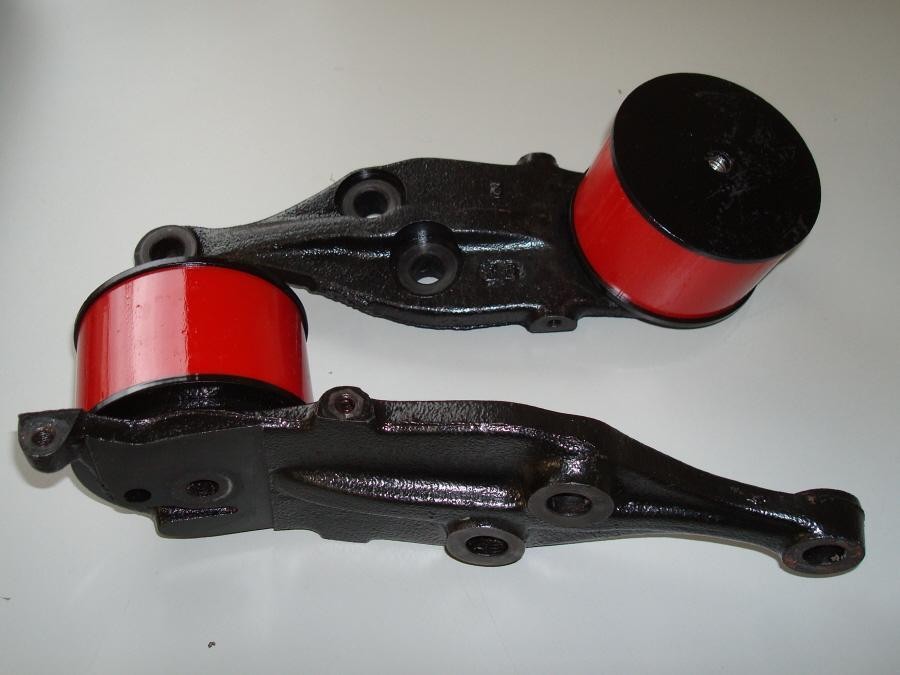

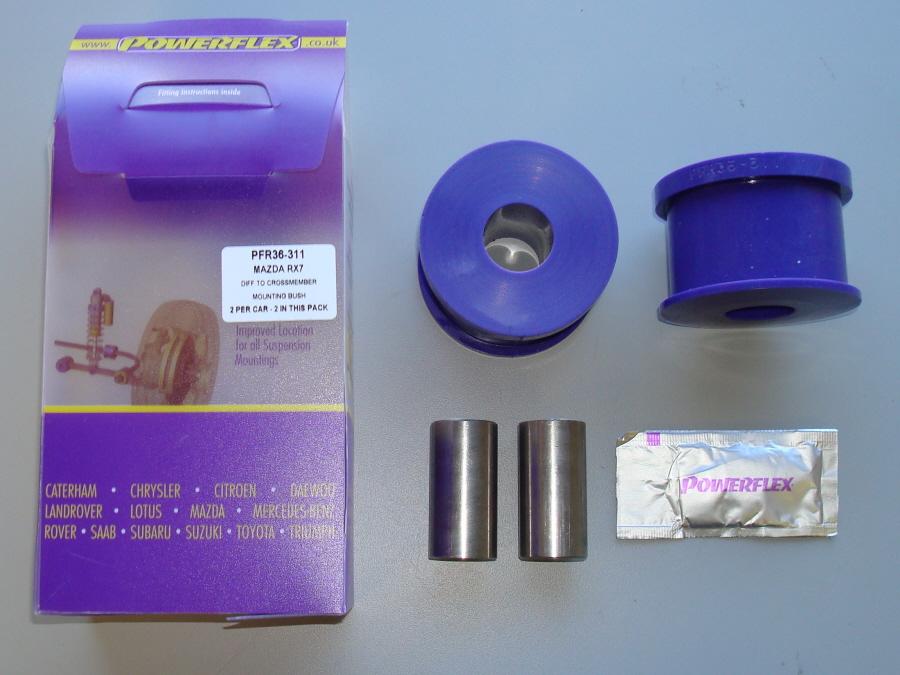

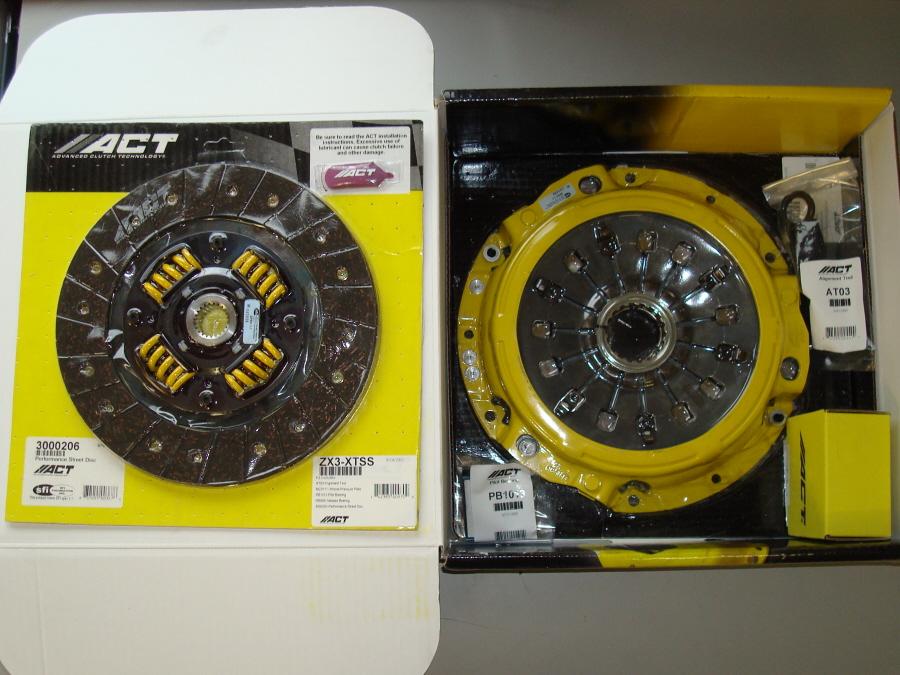

ACT XT Clutch Kit	Polyurethane Motor Mounts	Painted Peripherals	Differential Bushings	Differential Brace

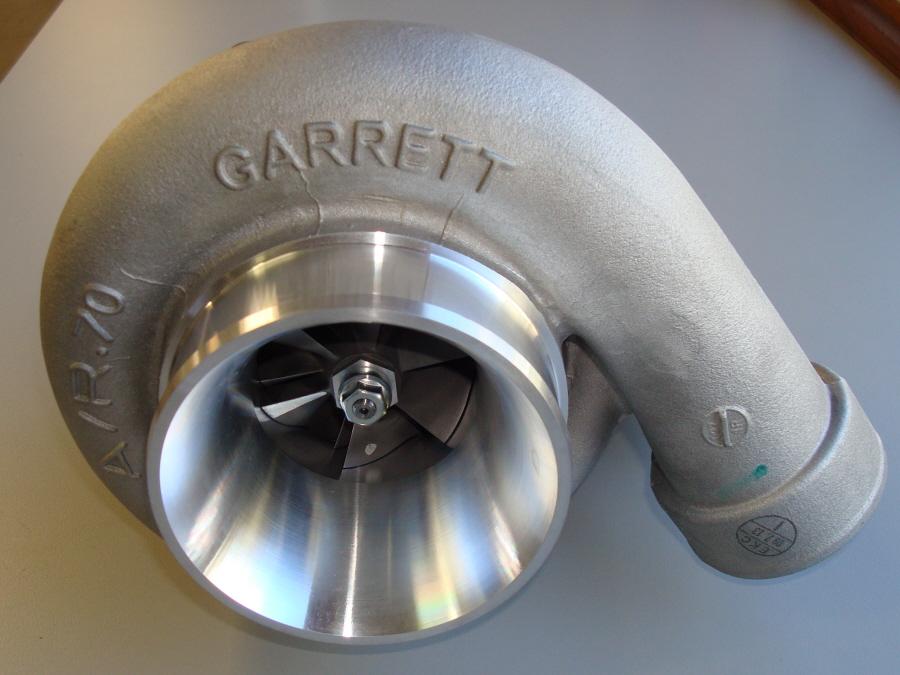

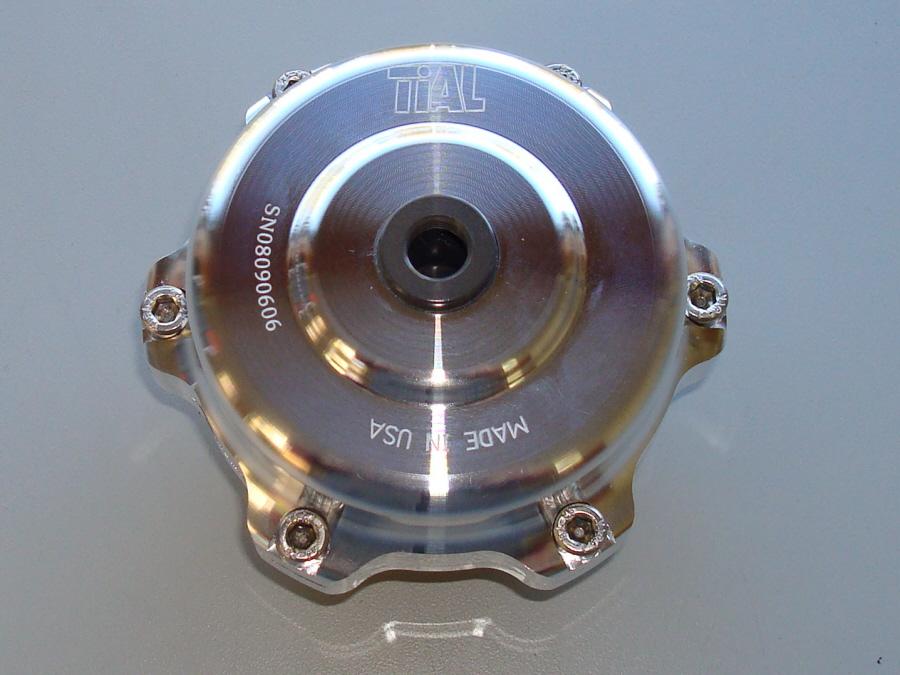

GT35R Turbo	TiAL Wastegate	HKS Manifold	Wastegate Adapter Kit	K&N Filter

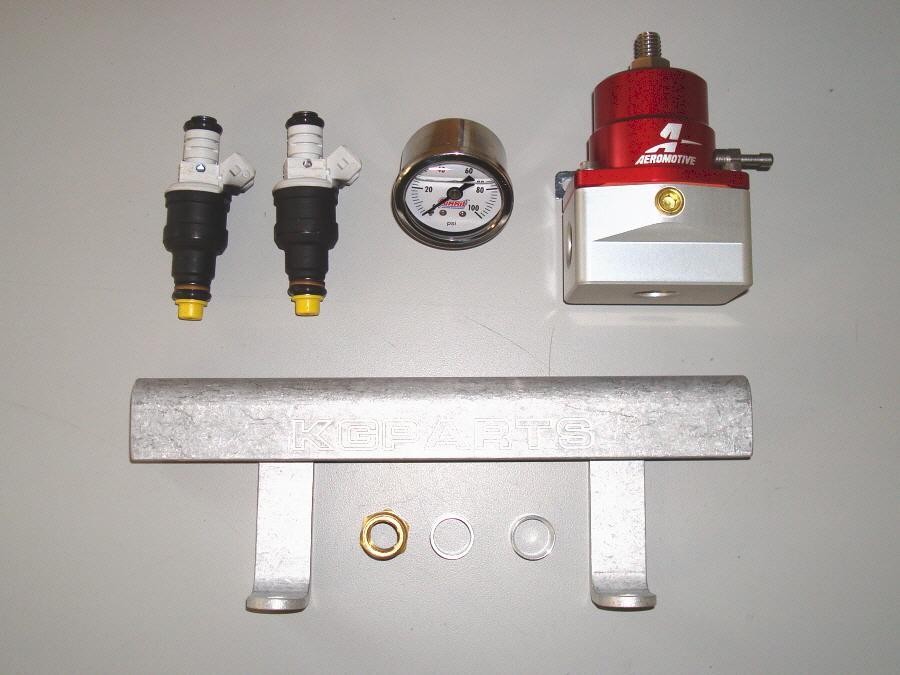

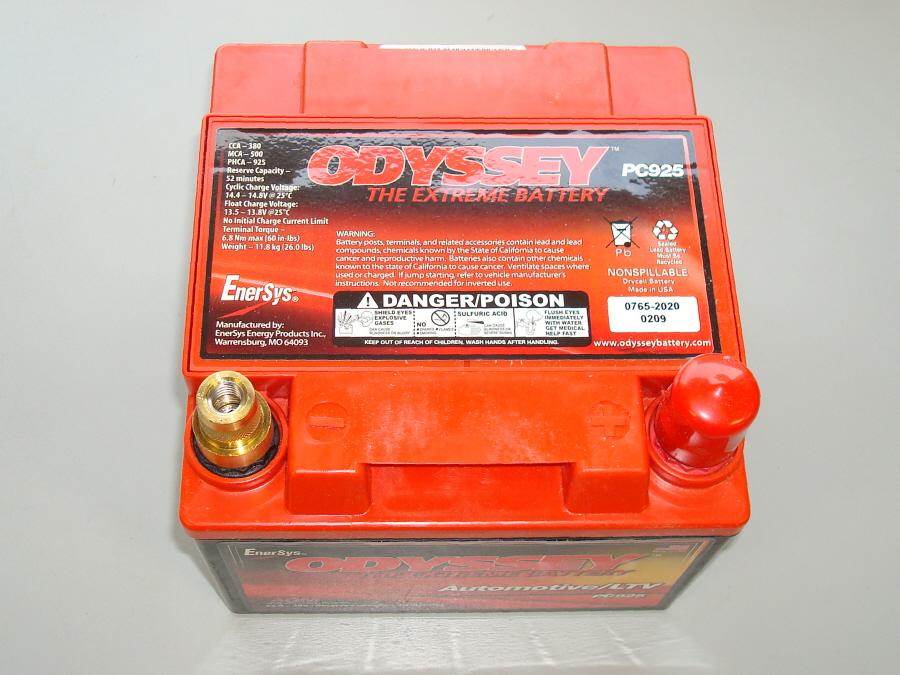

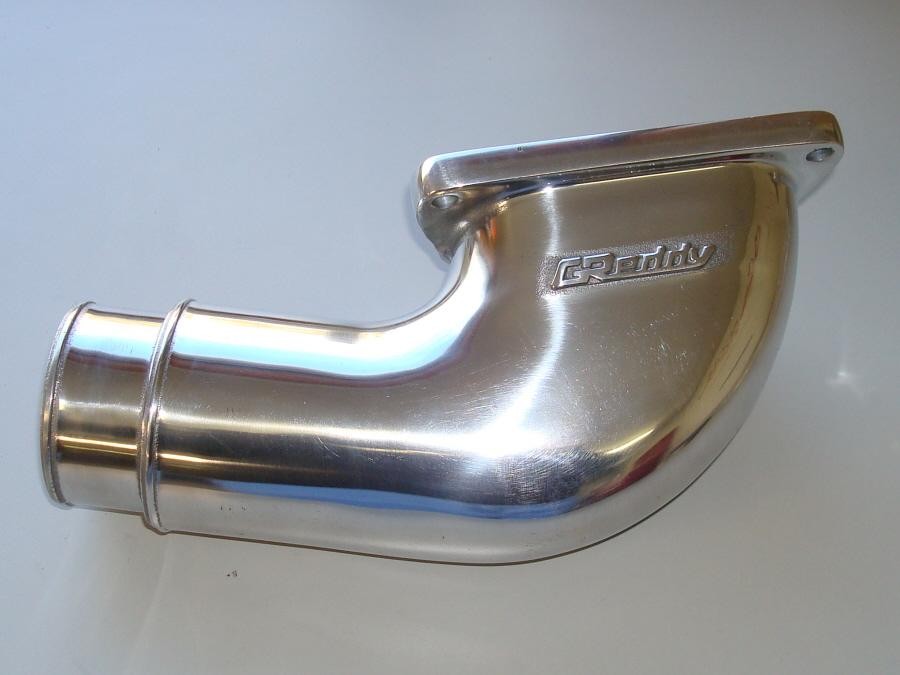

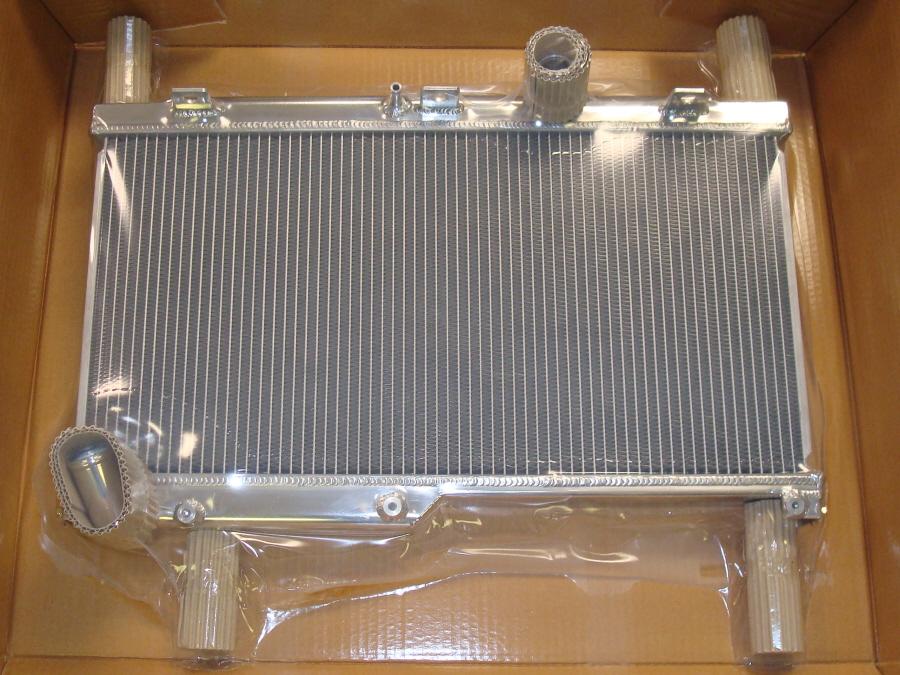

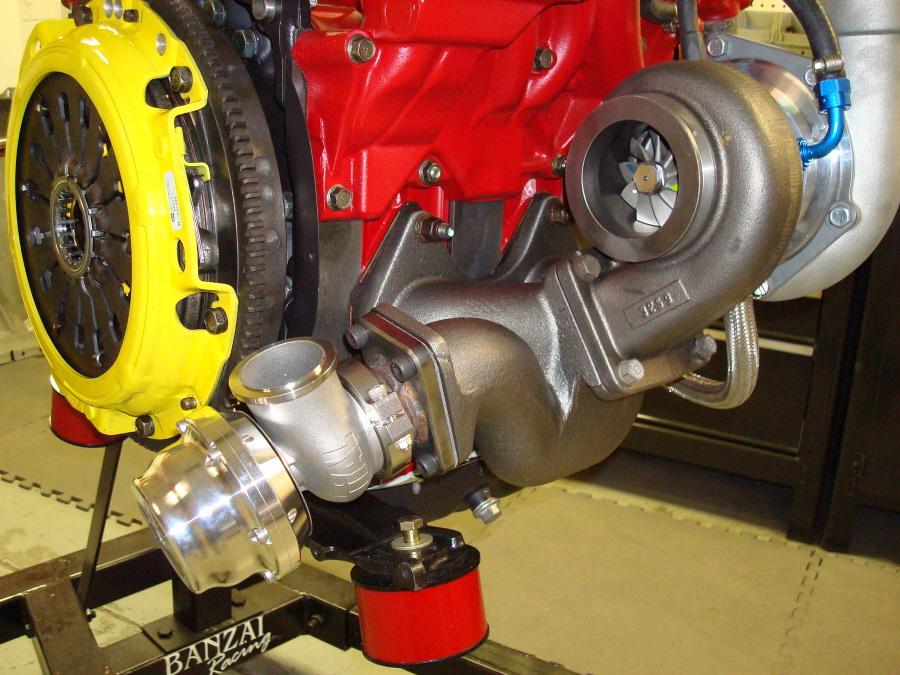

TiAL BOV	GReddy Elbow	Koyo Radiator	Fuel System Components	Odyssey Battery

Photographs of Parts Installed

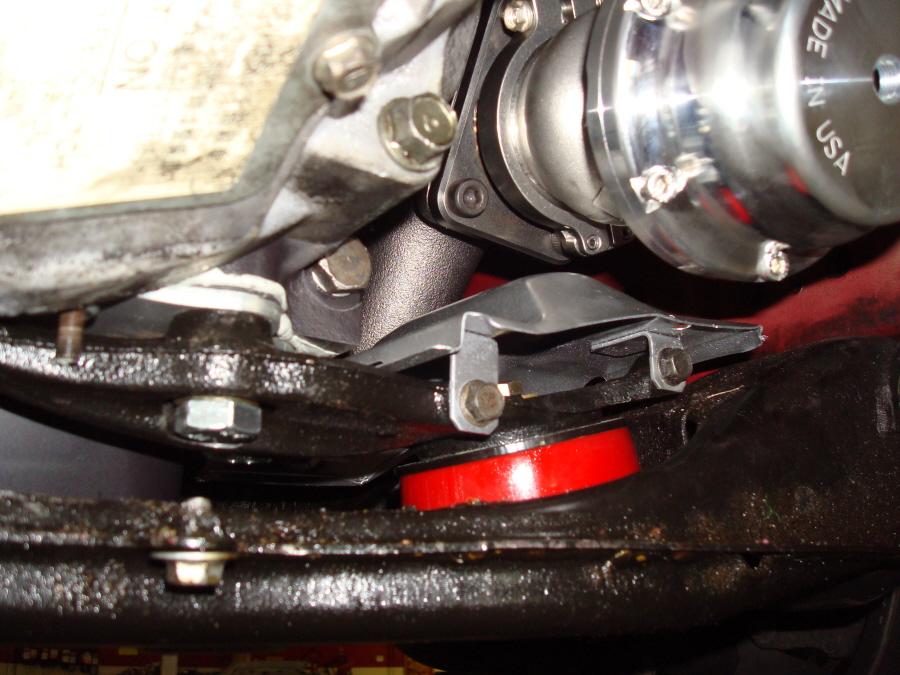

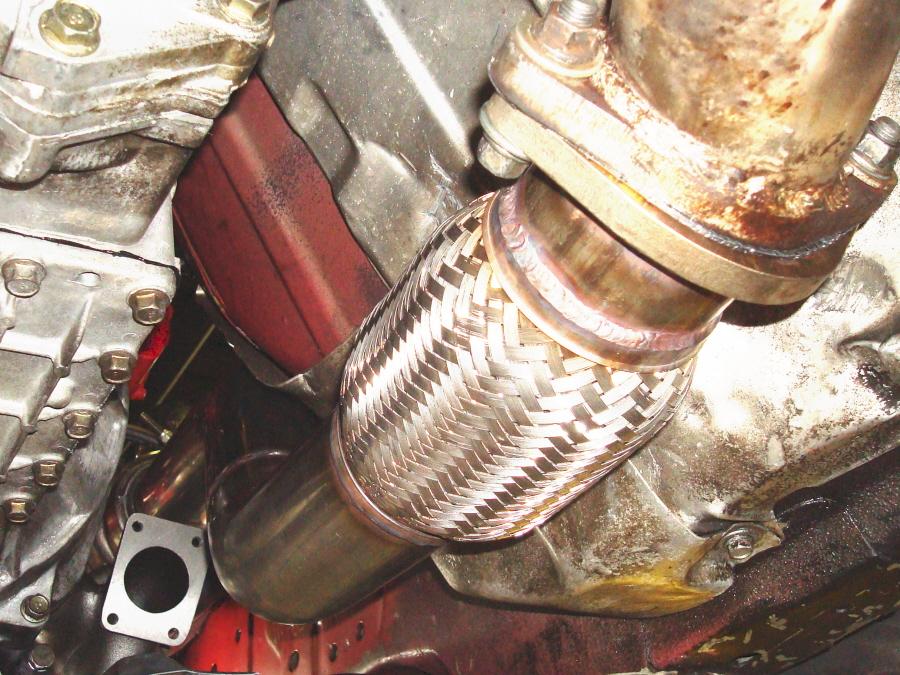

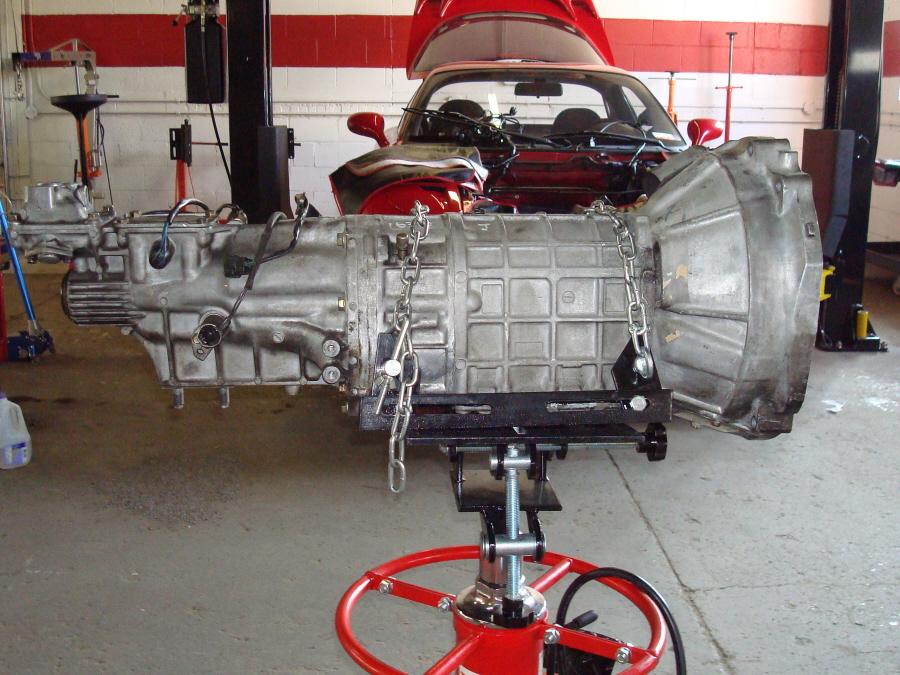

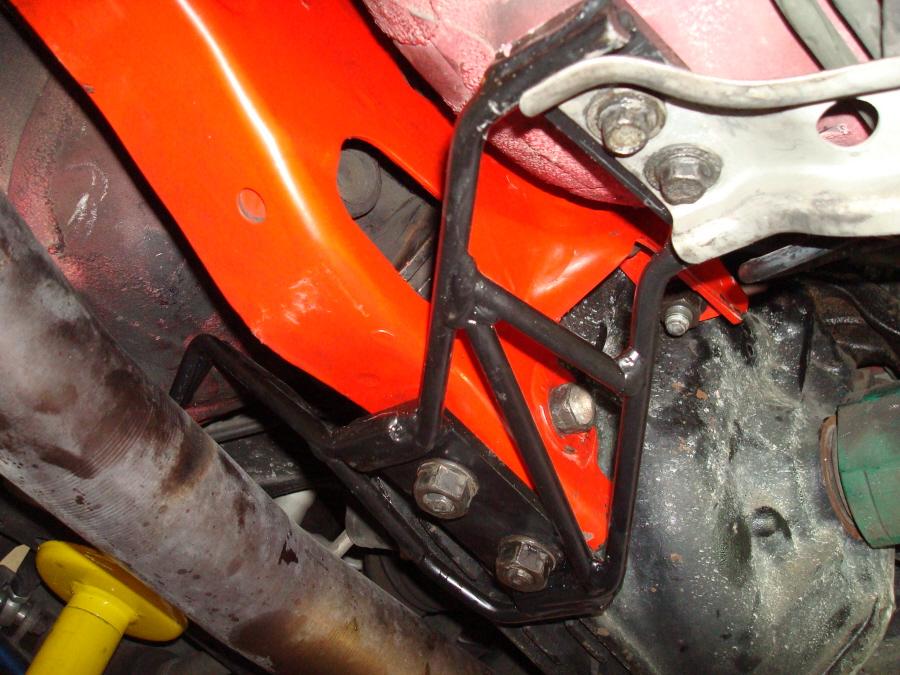

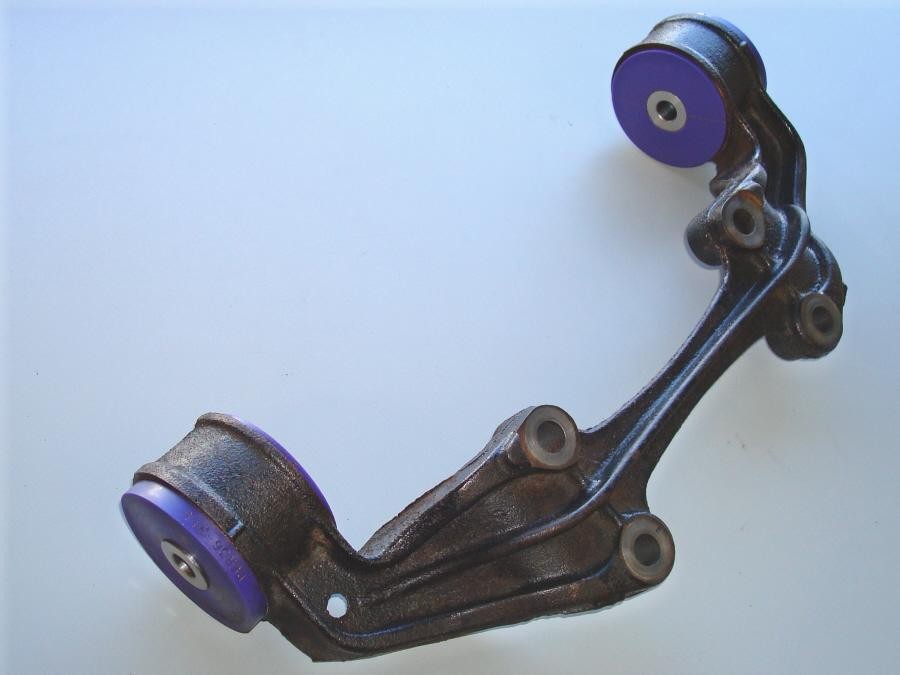

Differential Bushings	Differential Brace	Transmission	Heat Shield	Downpipe

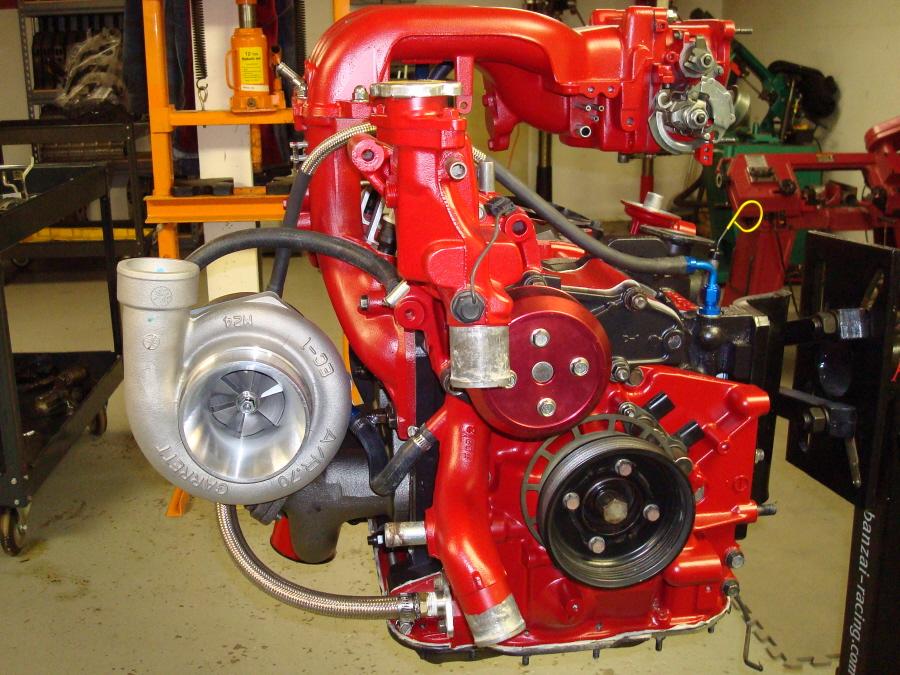

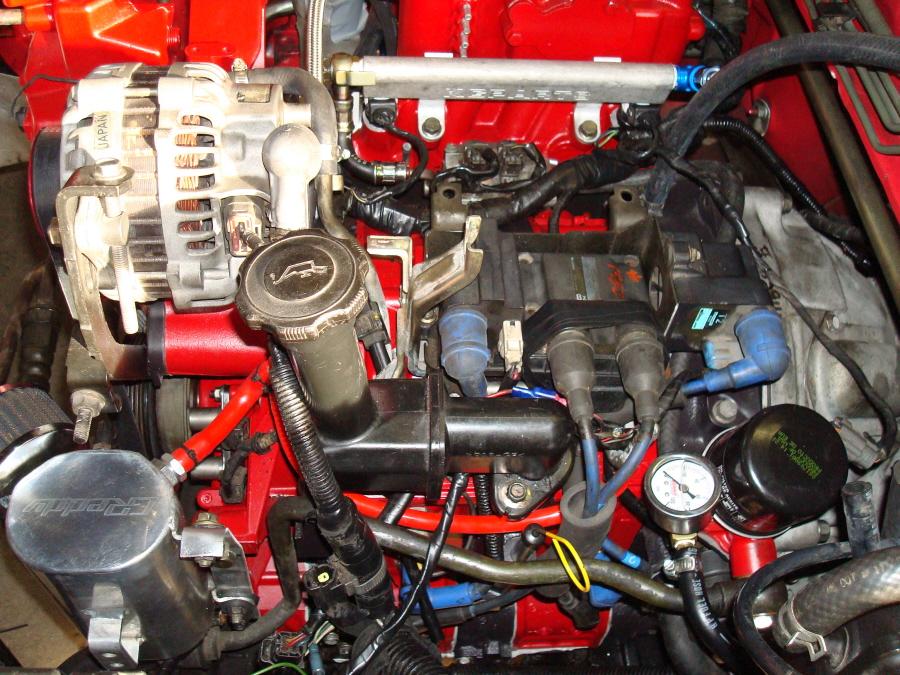

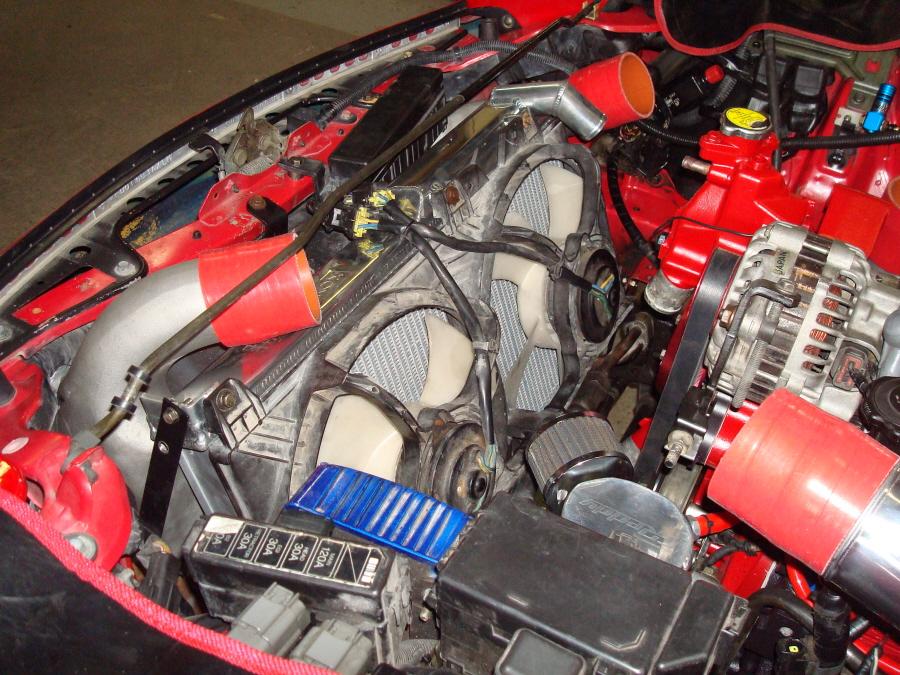

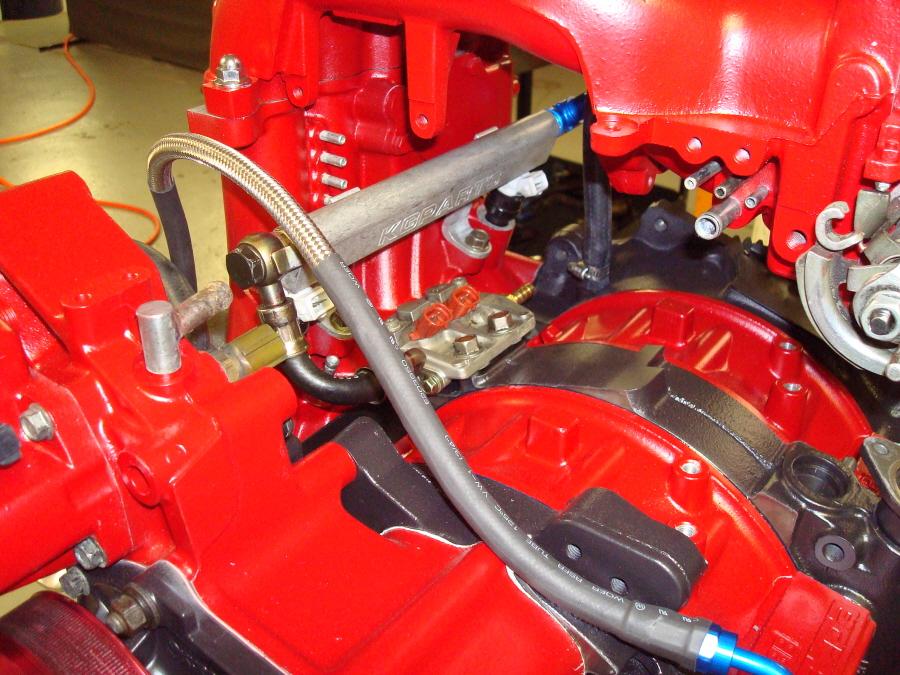

Turbo System	Wastegate, Adapter & Manifold	Fuel System #1	Fuel System #2	I/C & Radiator

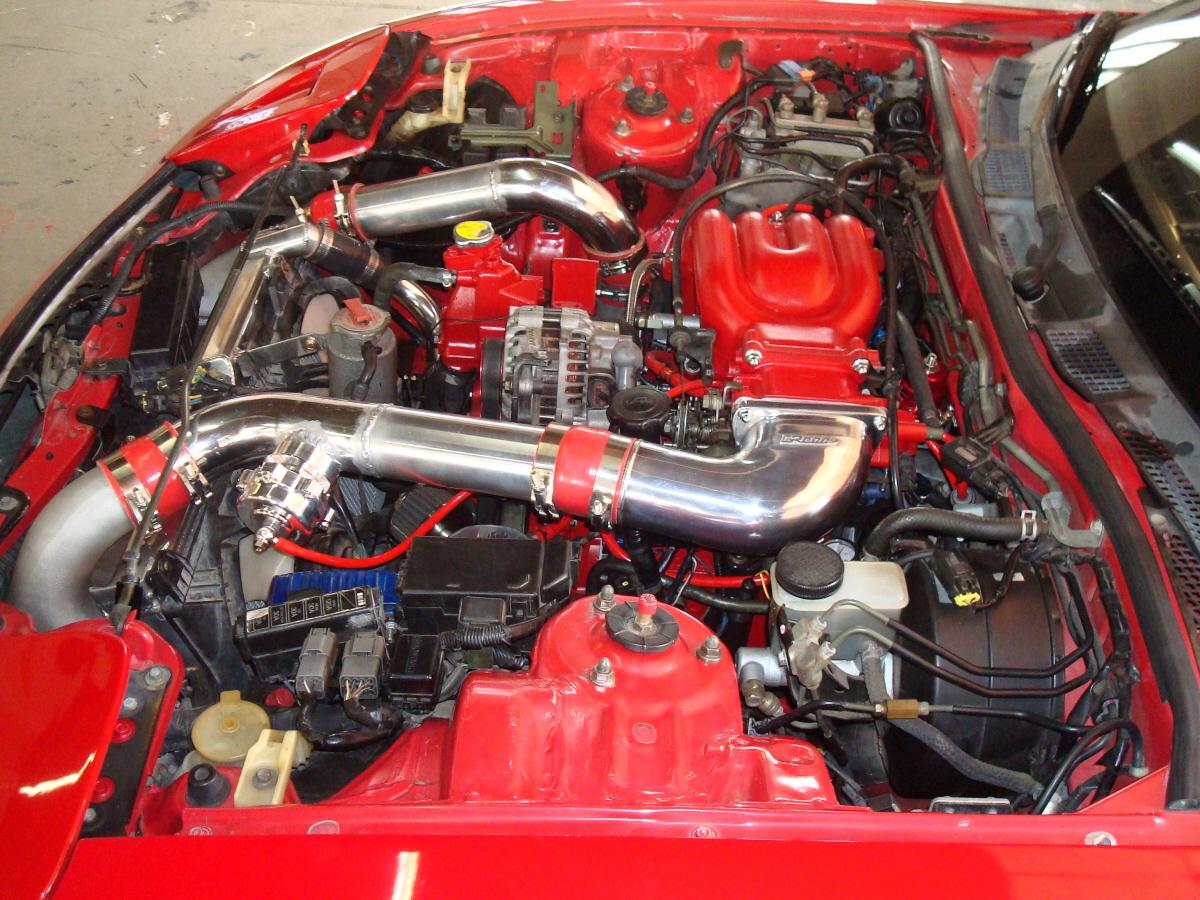

Final Engine Bay Photographs November 2009

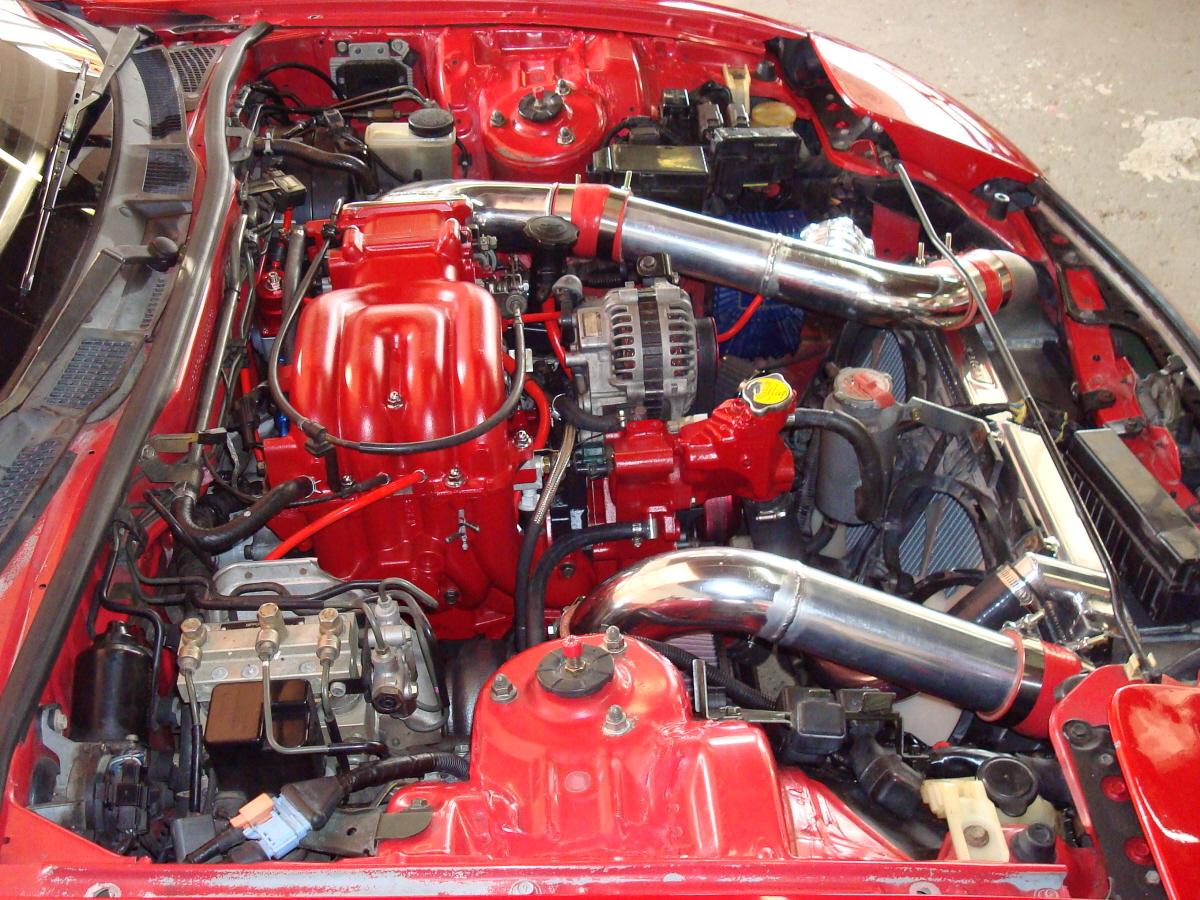

Passenger Side View	Front View	Driver Side View
