Carsey's RX-7 13B-REW Engine Installation & Modifications

Photographs of Rebuilt Engine taken before & during installation

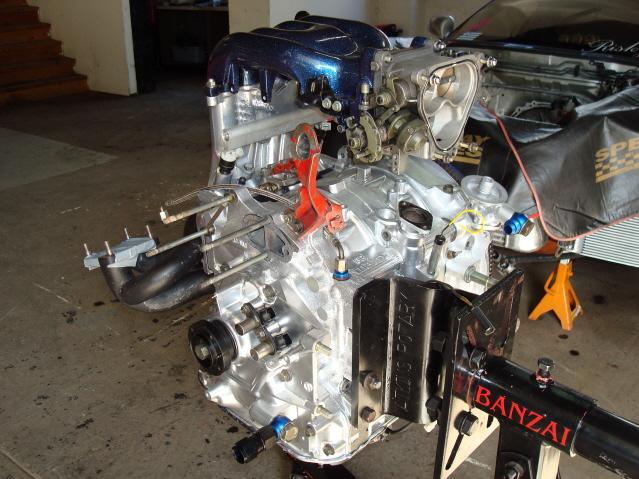

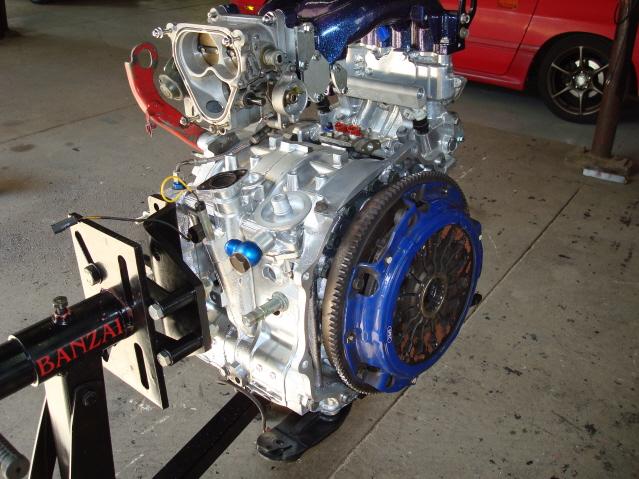

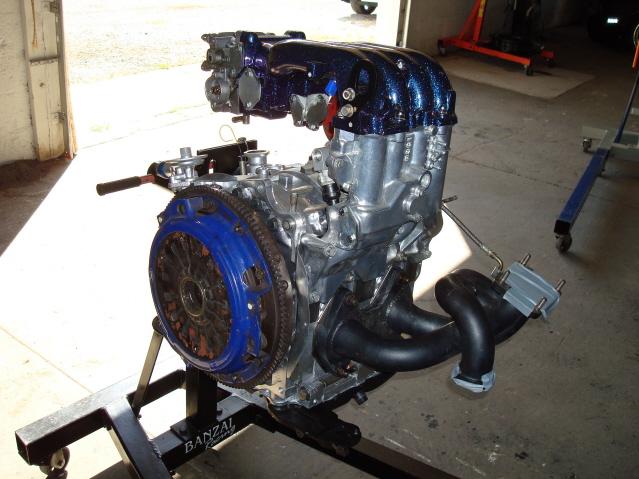

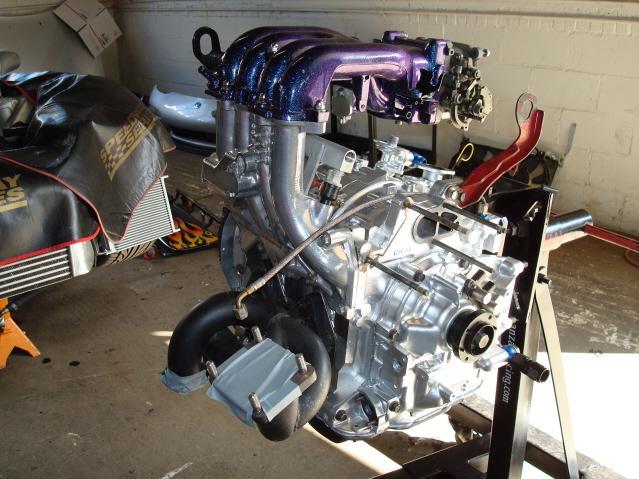

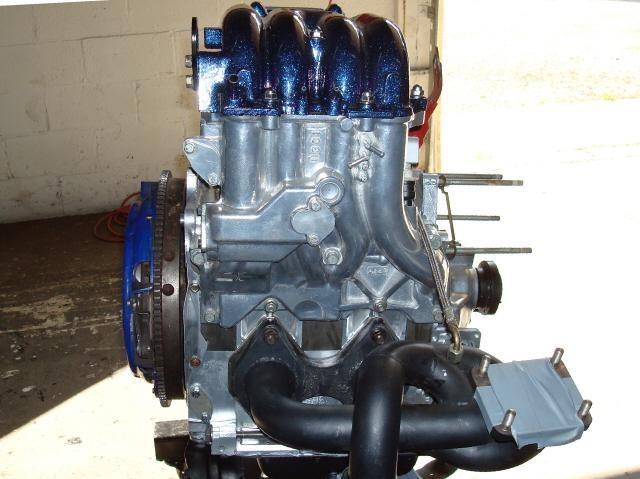

Engine Long Block #1	Engine Long Block #2	Engine Long Block #3	Engine Long Block #4	Engine Long Block #5

Photographs taken during engine installation

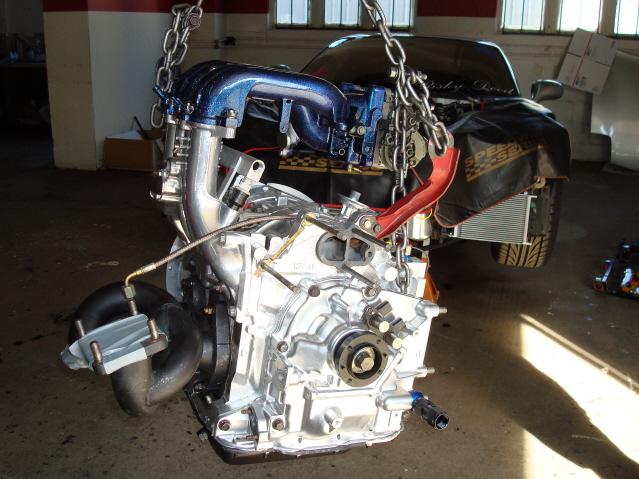

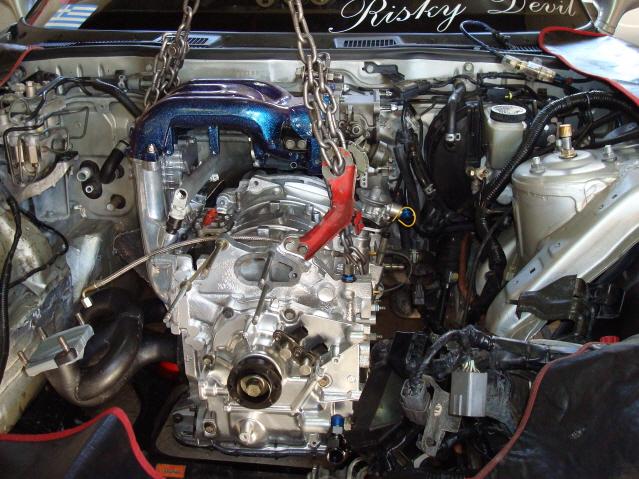

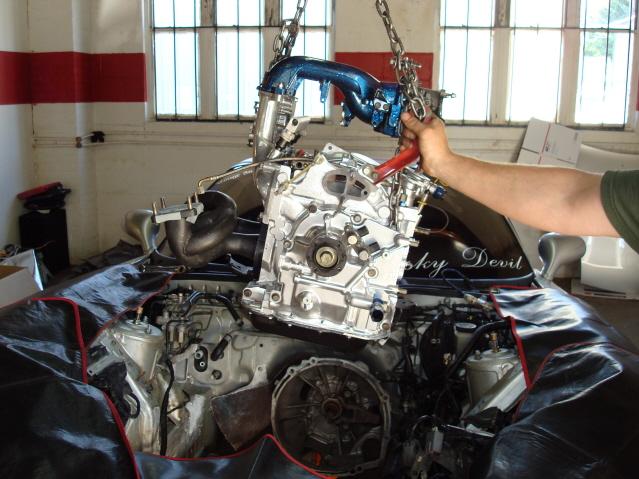

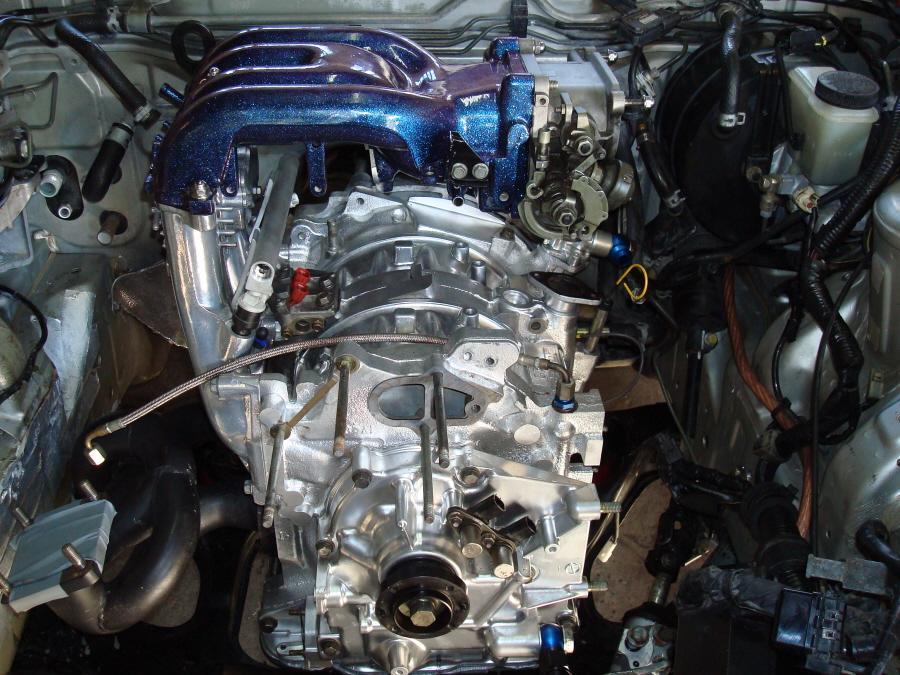

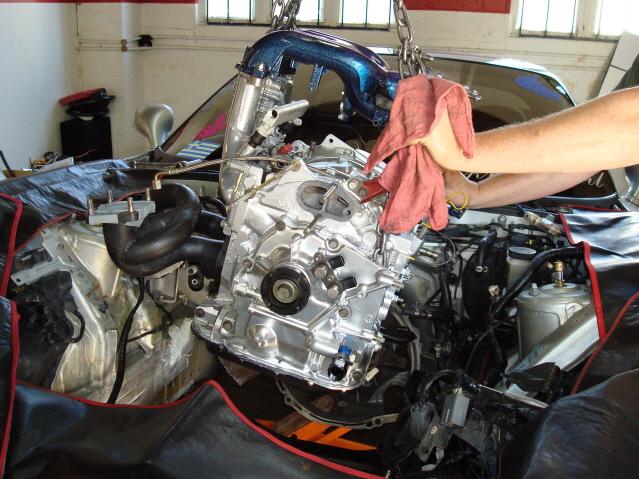

Installation #1	Installation #2	Installation #3	Installation #4	Engine Installed

List of upgraded components & modifications;

• Banzai Racing Streetported Engine
• Banzai Racing Oil Pan Brace Kit
• Banzai Racing Polyurethane Motor Mounts
• Master Power T70 Turbo (custom painted)
• Tial 44mm Wastegate
• Custom Downpipe
• Spec Stage 3 Clutch with LW Flywheel
• Banzai Racing Differential Brace
• Koyo Radiator
• GReddy 3-Row FMIC Kit
• BLITZ Blow-Off Valve
• Banzai Racing Block-Off Plate Kit
• Dual Walbro 255 lph Fuel Pumps
• 1600cc Secondary & 850cc Primary Injectors
• Dual Oil Coolers
• Custom I/C Piping
• Relocated Optima Yellow Top Battery
• APEXi Power FC & Commander
• Stri X-Line Gauges
• AEM Wideband UEGO Controller

Dual Oil Coolers & Front Nose

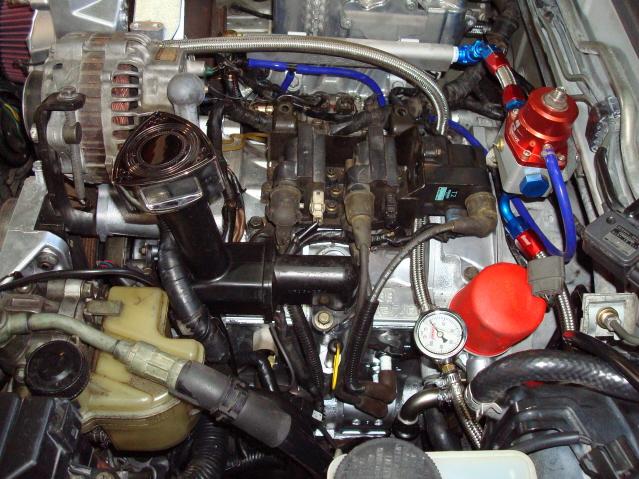

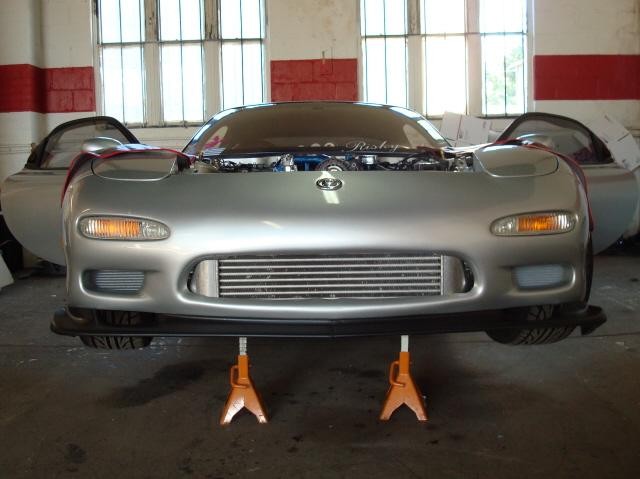

Dual Oil Coolers	Front Nose Installed	Fuel System & Vaccum Lines

Relocated Battery, Gauges & PFC Photographs

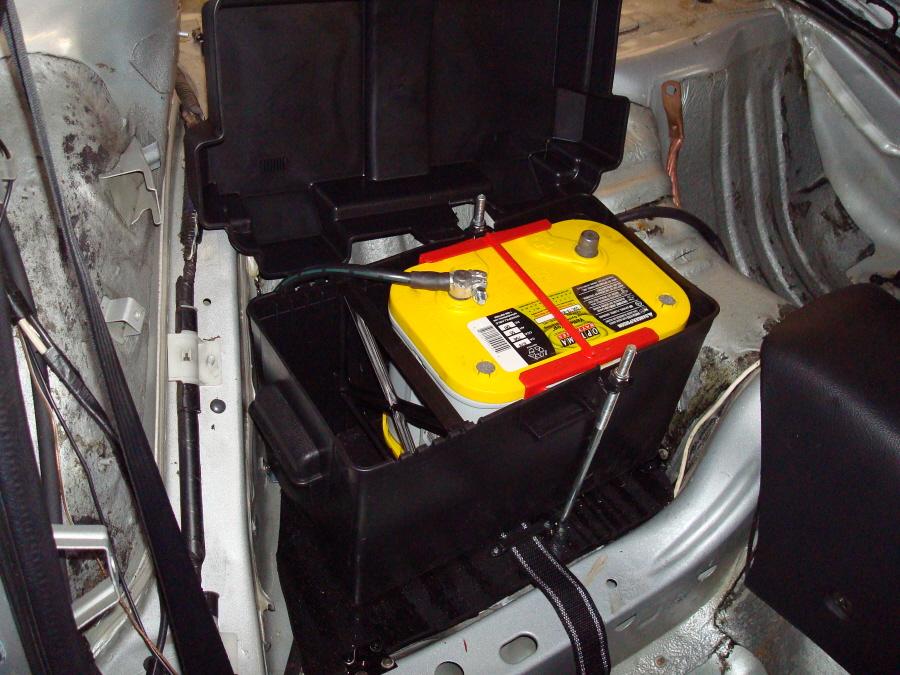

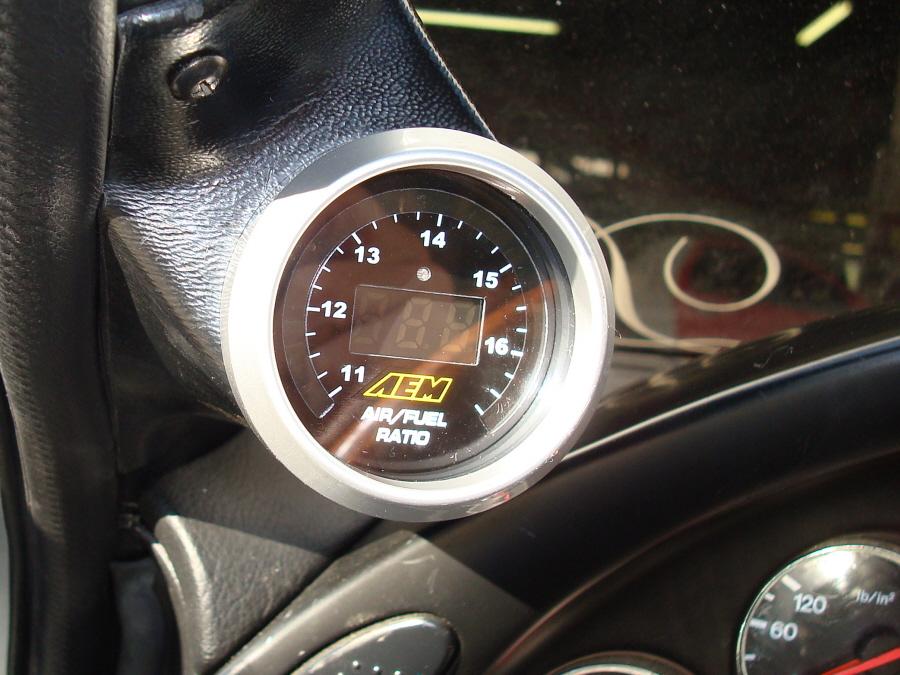

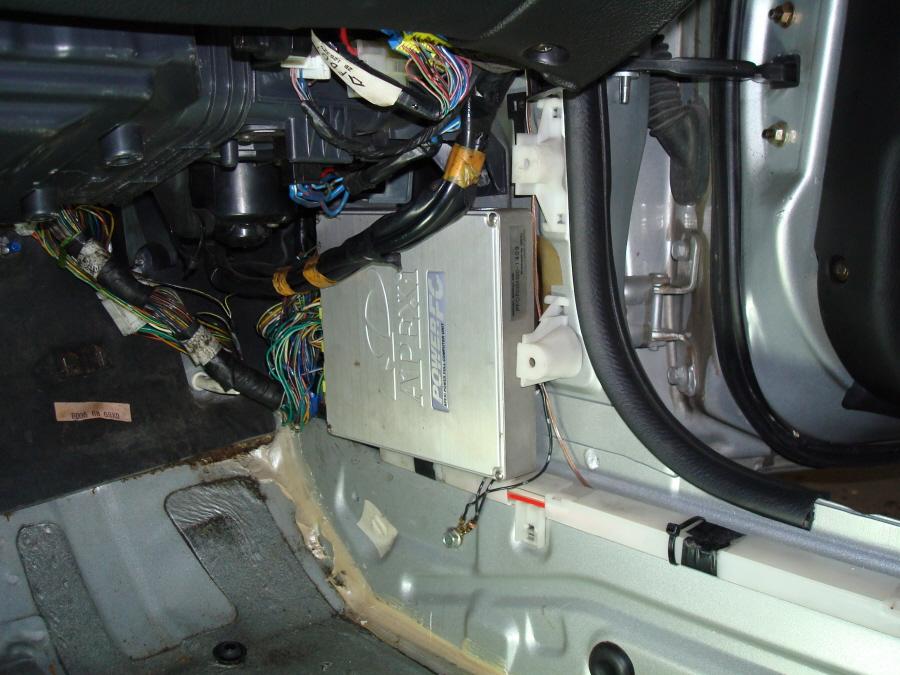

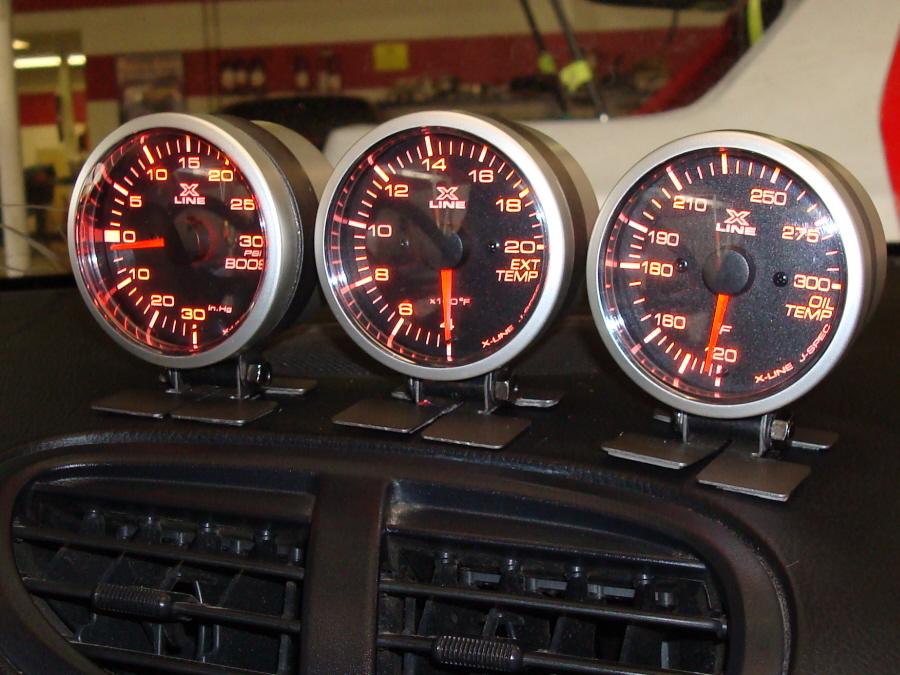

Battery Box Installed	Battery Installed	APEXi Power FC Installed	Gauges Installed	Wideband Installed

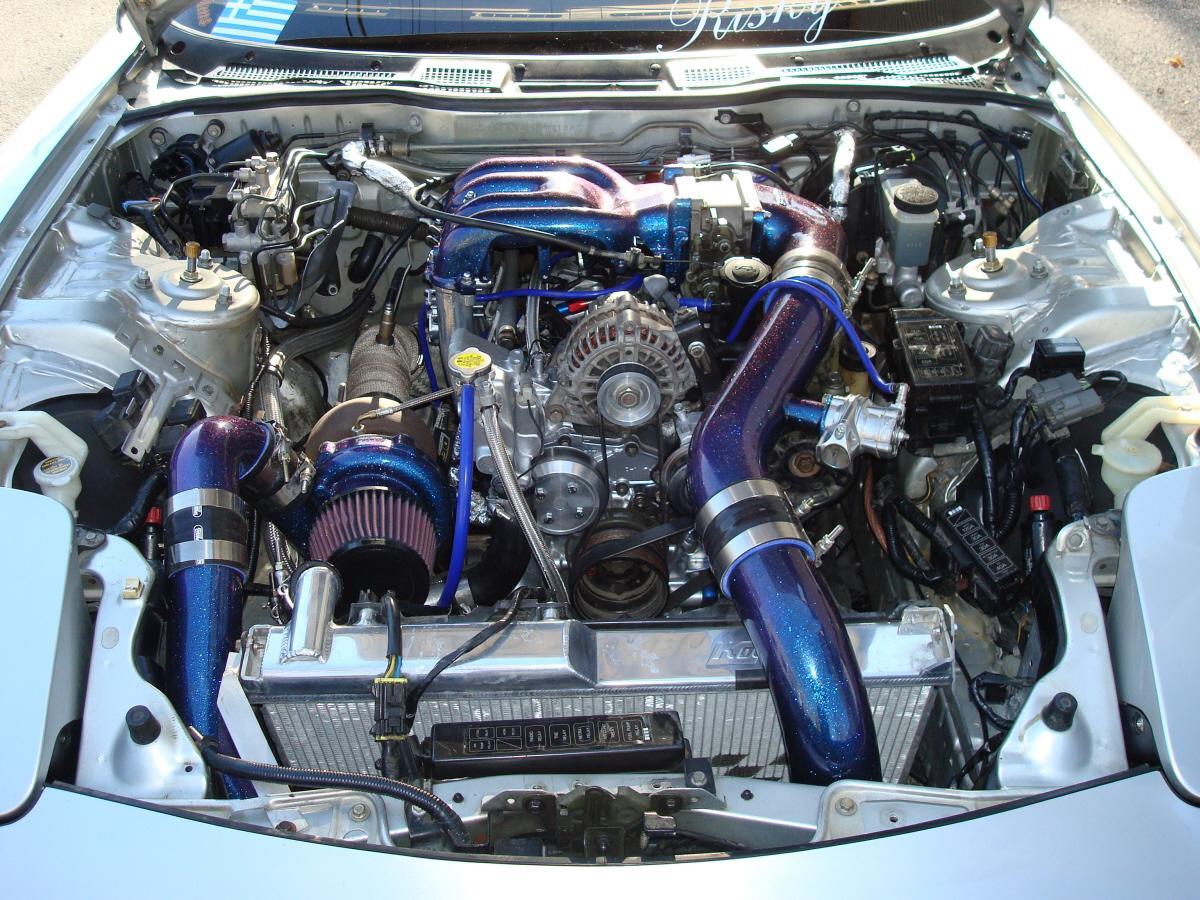

Final Engine Bay Photographs November 3rd, 2008

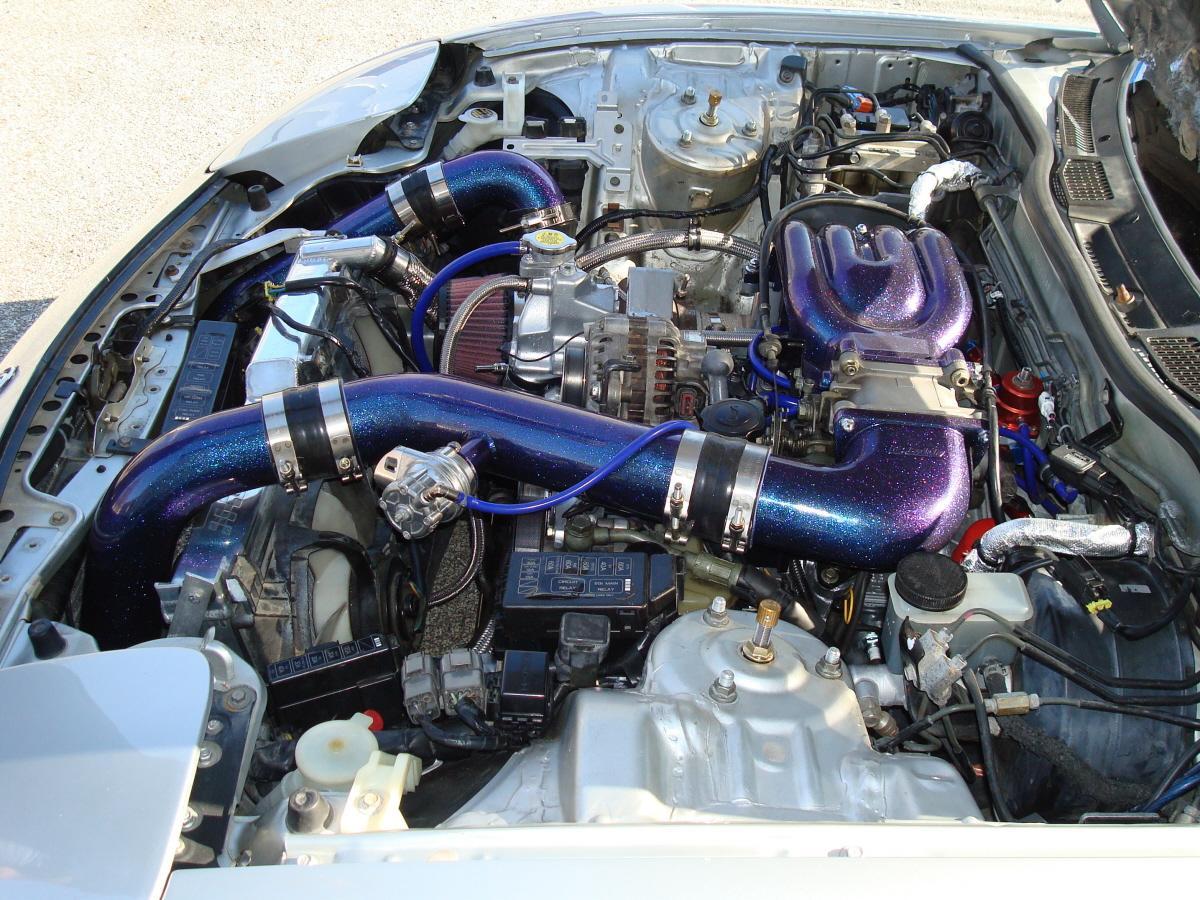

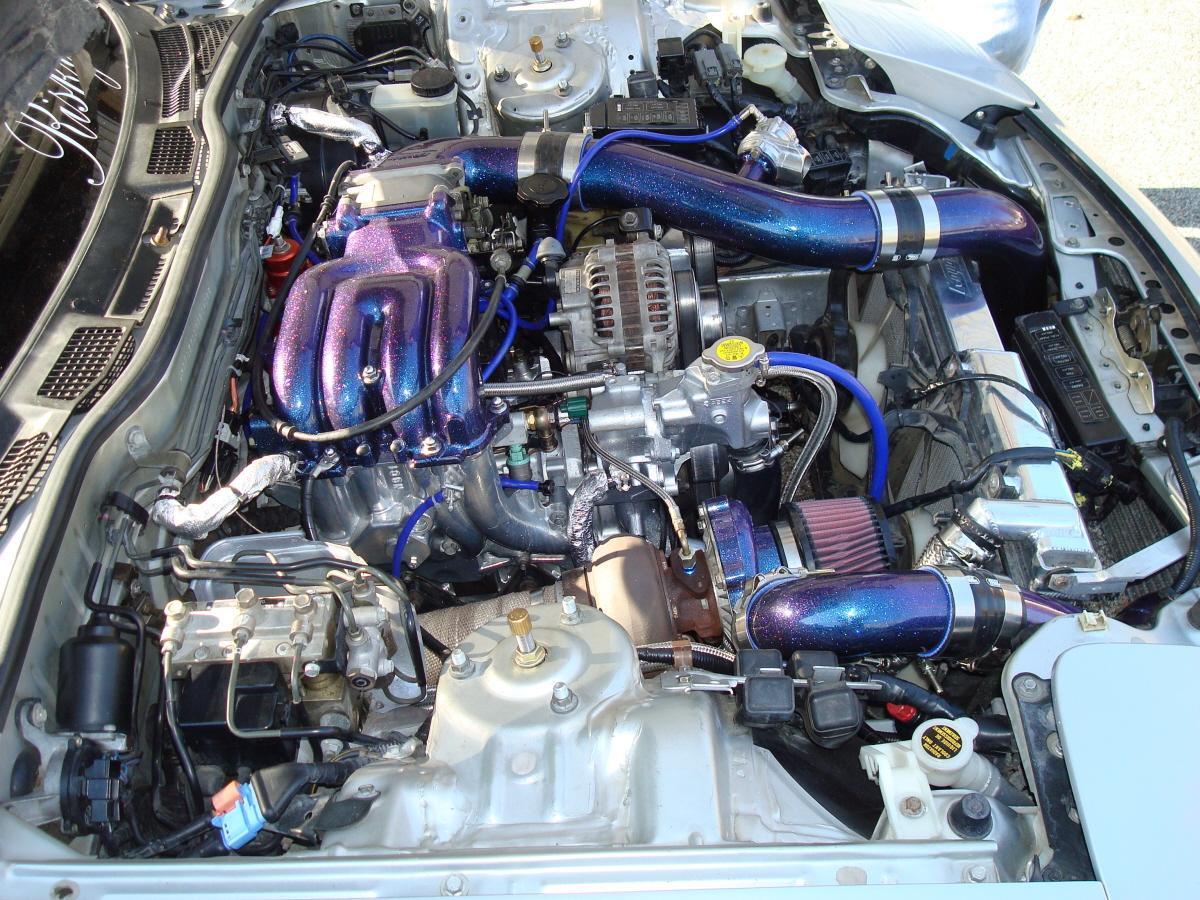

Passenger Side View	Front View	Driver Side View
